Полноцветная светодиодная панель P6 для помещений 3 в 1 192x192 мм HD дисплей матрица 32x32 светодиодный модуль p6 smd rgb

Сохранить в закладки 1600096700002:


Цена:1 274,48 ₽ - 1 350,08 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


P6 SMD3528 Indoor led display full color module 192*192mm 1/16S

Packing List

* 1 pcs full color led module ( led panel )

* 1 pcs date cable

* 1 pcs power cable (If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules)





Technical Parameters



Item
P6
Chip
Epstar
Chip size
Red 9 mil, Green 12. Blue 12mil
Light type
SMD
Pixel Pitch
6mm
Module Size
192mm*192mm
Module Resolution
32 X 32 (dots)
Density of pixel
27777dots/m2
Pixel configuration
1R1G1B
Red wavelength
625±2nm
Green wavelength
525±2nm
Blue wavelength
470±2nm
Colors
16777216
Best viewing distance
≥5m
viewing angle
120°/90°
Maximum power consumption
13W
Brightness
1500cd/m2
Gray scale
16bits per color
Color temperature
6500k
Control method
Synchronization or Asynchronization
Driving method
1/16 scanning
Frame frequency
60Hz
Refresh frequency
≥600Hz
Working Voltage
DC5V
IP grade
IP54
Warranty
3 years
Life Span
100,000hours
Certificate
CCC, FCC, ROHOS, CE


Module Detailed

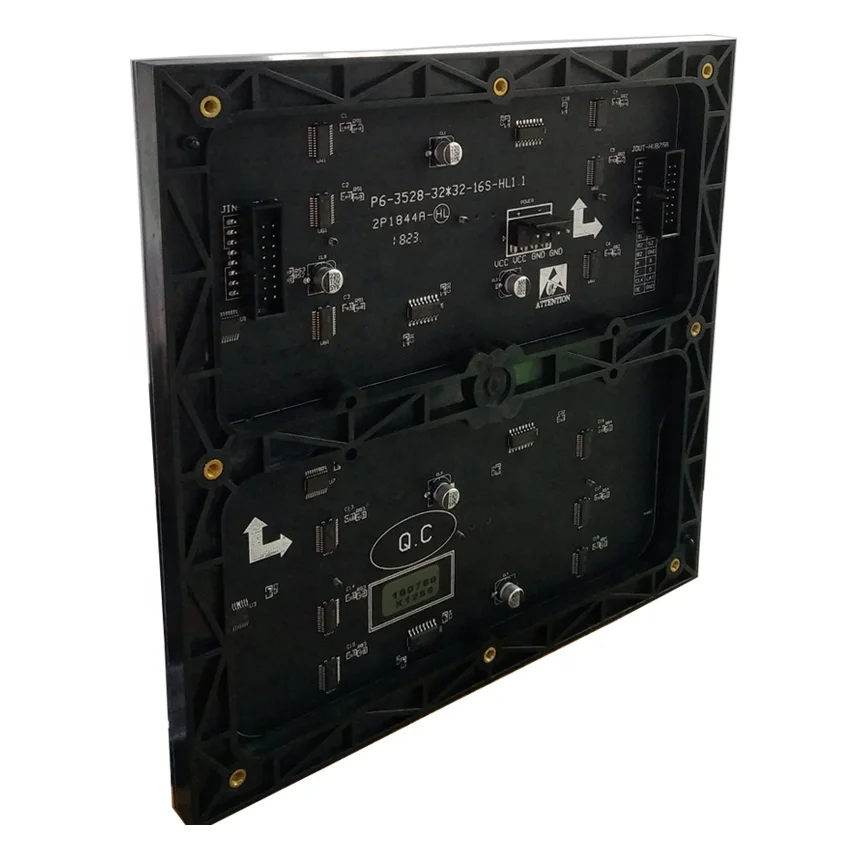

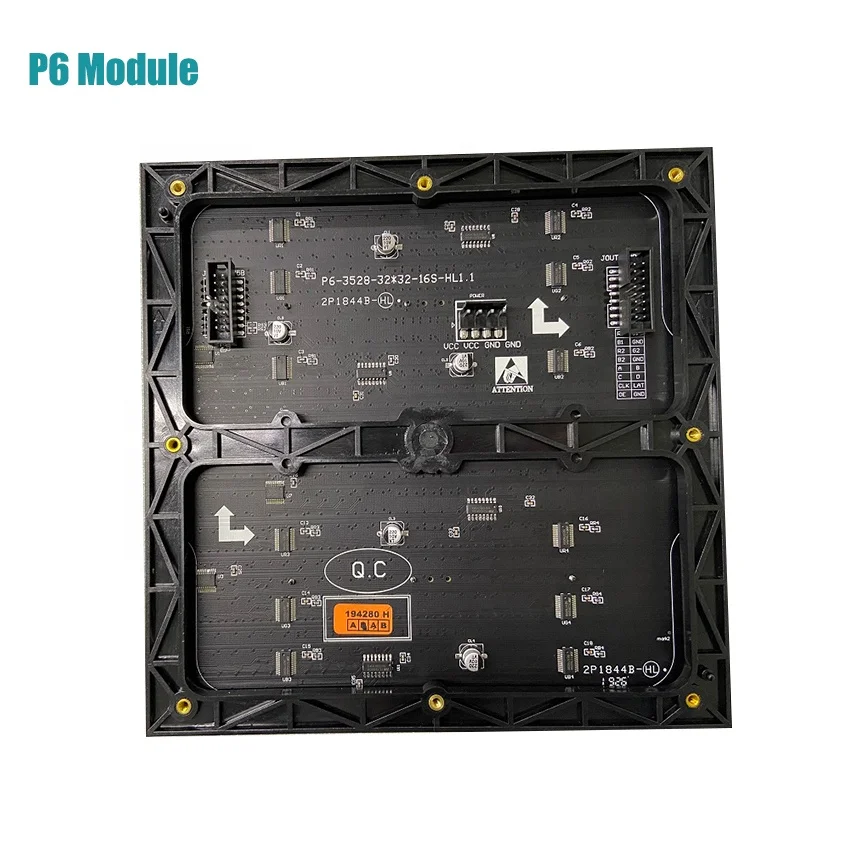

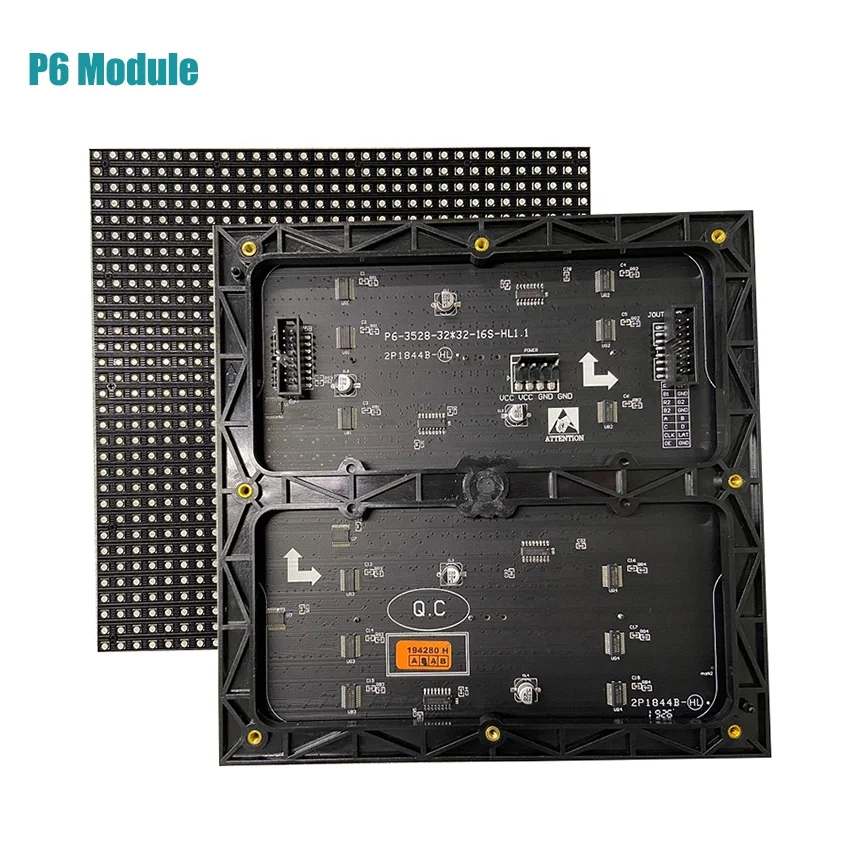

P6 Indoor led display Full Color Module Show

Module Size: 192*192mm

Module Resolution: 32*32dots

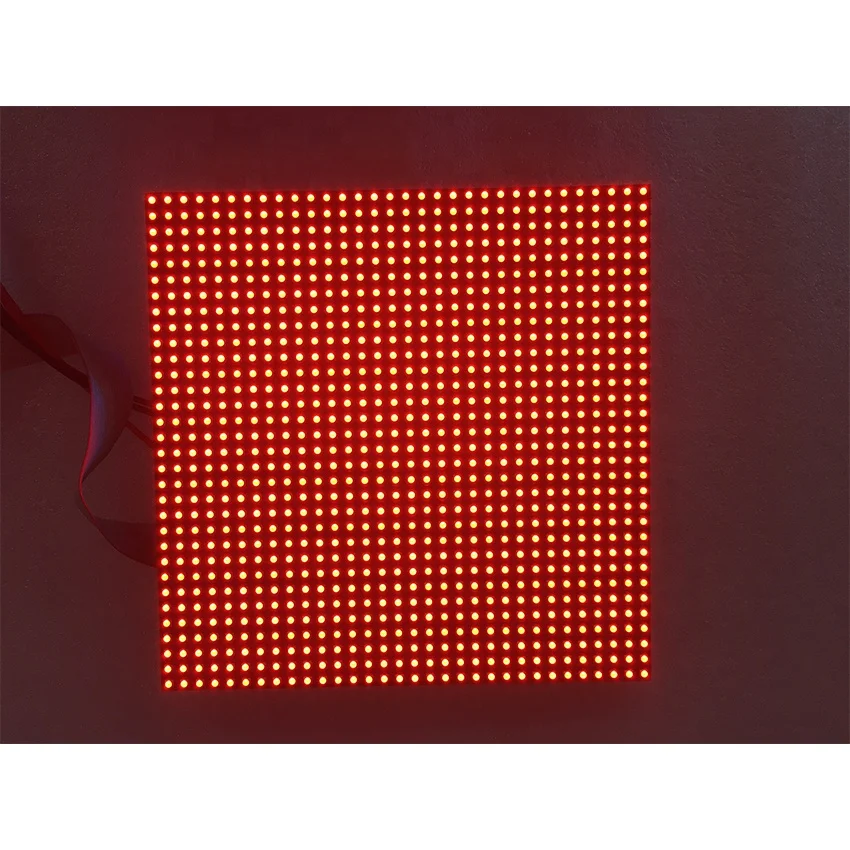

P6 Indoor LED Display Module Testing

Working Voltage: DC5V
Modules Aging 72 Hours









LED Display Screen Connection


Suitable for 576x576mm and 768x768mm die casting aluminum cabinet
1. color uniformity, high contrast.
2. low power consumption, low heat, energy saving and environmental protection.
3. dual channel heat dissipation design, attenuation of small, long life.
4. signal, power supply is stable, safe and reliable.
5. ultra wide angle, any angle pictures are clear.






■ Slim and lightweight, quick disassembly.
■ High degree of protection, high durability.
■ Good commonality, flexible and easy to use.




LED Display System




Our Project


Application Field:
* Business Organizations:
Supermarket, large-scale shopping malls, star-rated hotels, travel agencies
* Financial Organizations:
Banks, insurance companies, post offices, hospital, schools
* Public Places:
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms
* Entertainments:
Movie theaters, clubs, stages.






Company Profile










Package & Shipping




Shipping


By Express

1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.

By Sea

If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.





Payment


* Payment term: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
* Lead time: Normally in 15~18 days after receiving your advance payment. The specific delivery time depends on the items and quantity of your order.
* Sample policy:
1) We can produce by your samples or technical drawings. We can build the molds and fixtures.
2) We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
* Shipping port: Shenzhen, China
* Discounts: We offer discount for big quantity.
