Встроенный компьютер 8 ГБ ОЗУ 128 Гб SSD настольный мини ПК i7 10810U двойная Lan промышленный
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Shenzhen Shinho Electronic Technology Co. Limited
Сохранить в закладки 1600099788102:
Описание и отзывы
Характеристики
Product Description
Embedded computer 8GB RAM 128GB SSD Desktop mini pc i7 10810U Dual Lan Industrial Computer Advantech
Support WiFi and 4G LTE
The back has tow antenna holes for Wi-Fi or LTE via the system’s two mPCIe slots. If more than the 64 GB of eMMC storage is needed, an mSATA slot can be used to expand. And with optional 4G LTE connectivity, remote network access and failover protection has never been easier.

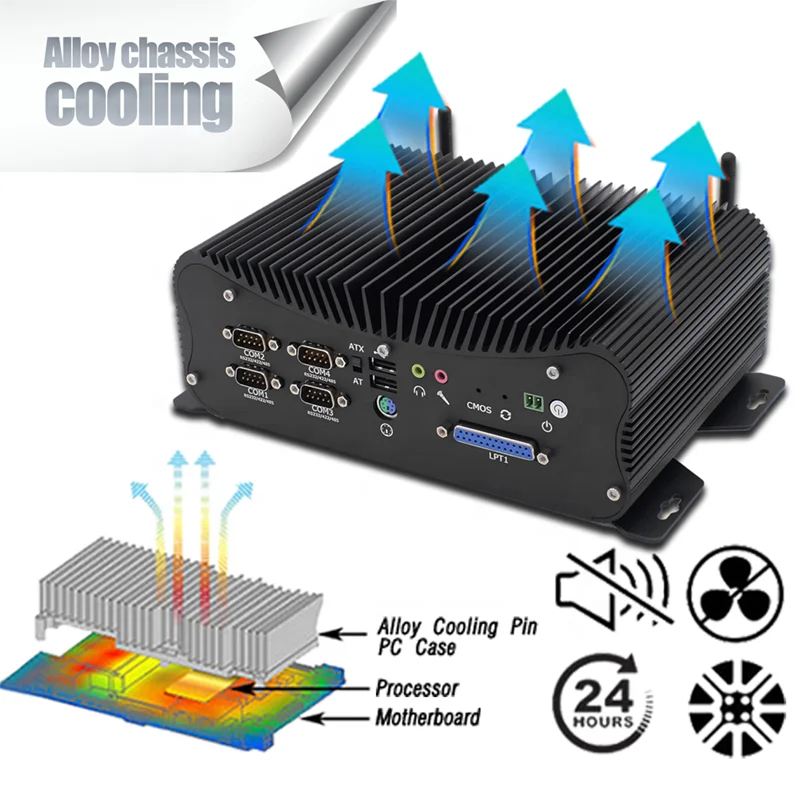

High Temperature Tolerance
Even without a fan, Industrial Computer Rugged products can operate in temperatures from -20 to 60˚C in the field.
Dual Display
Support synchronous and asynchronous dual display
1*VGA+1*HD full HD 1080P dual display
1*VGA+1*HD full HD 1080P dual display
Watchdog Timer Utility
Available on Industrial Computer, this utility monitors and restarts an unresponsive application or OS, protecting the end user experience.
Mounting Options
The Industrial Computer chassis offers multiple mounting options, including VESA-ready wall, and DIN rail mounting.
24/7 Operation
Industrial Computer are built to last and qualified for 24/7 sustained operations — a must-have for commercial and industrial use cases.

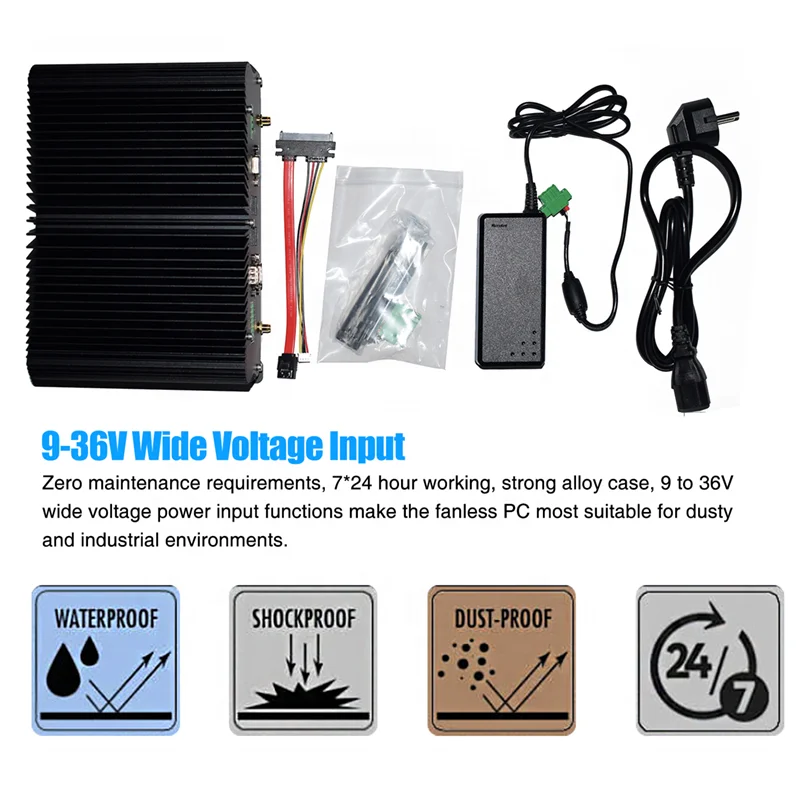

Wide Voltage Optional
Industrial Computer feature 9v to 36v DC input with overvoltage protection and dirty DC tolerance.
Specification
Model: SM09 | ||
PC | ||
CPU | Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0GHz, Turbo 2.4GHz, Fanless | |
CPU Optional | Intel® Core i3-8140U/8145U, 2 Cores, 4 Threads, Base 2.1GHz, Turbo 3.9GHz, Fanless | |
CPU Optional | Intel® Core i5-4278U, 2 Cores, 4 Threads, Base 2.6GHz, Turbo 3.1GHz, Fanless | |
CPU Optional | Intel® Core i5-7360U, 2 Cores, 4 Threads, Base 2.3GHz, Turbo 3.6GHz, Fanless | |
CPU Optional | Intel® Core i5-8269U/8265U/8365U, 4 Cores, 8 Threads, Base 2.6GHz, Turbo 4.2GHz, Fanless | |
CPU Optional | Intel® Core i5-10210U, 4 Cores, 8 Threads, Base 1.6GHz, Turbo 4.2GHz, Fanless | |
CPU Optional | Intel® Core i7-4578U, 2 Cores, 4 Threads, Base 3GHz, Turbo 3.5GHz, Fanless | |
CPU Optional | Intel® Core i7-7500U/7600U, 2 Cores, 4 Threads, Base 2.7GHz, Turbo 3.5GHz, Fanless | |
CPU Optional | Intel® Core i7-8569/8565U, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz, Fanless | |
CPU Optional | Intel® Core i7-10710U/10810U, 6 Cores, 12 Threads, Base 1.1GHz, Turbo 4.7GHz, Fanless | |
Memory | 4gen/5gen 1xDDR3L SODIMM, Max 8GB 6/7/8/10gen 2xDDR4 SODIMM, Max 32GB | |
Storage | 1x MSATA 1x M.2 NVME 2280（6/7/8/10gen） 1x HDD/SSD | |
Display | 1x HD-MI, 1x VGA | |
Network | 2 x GbE RJ45 Intel i211/i210 | |

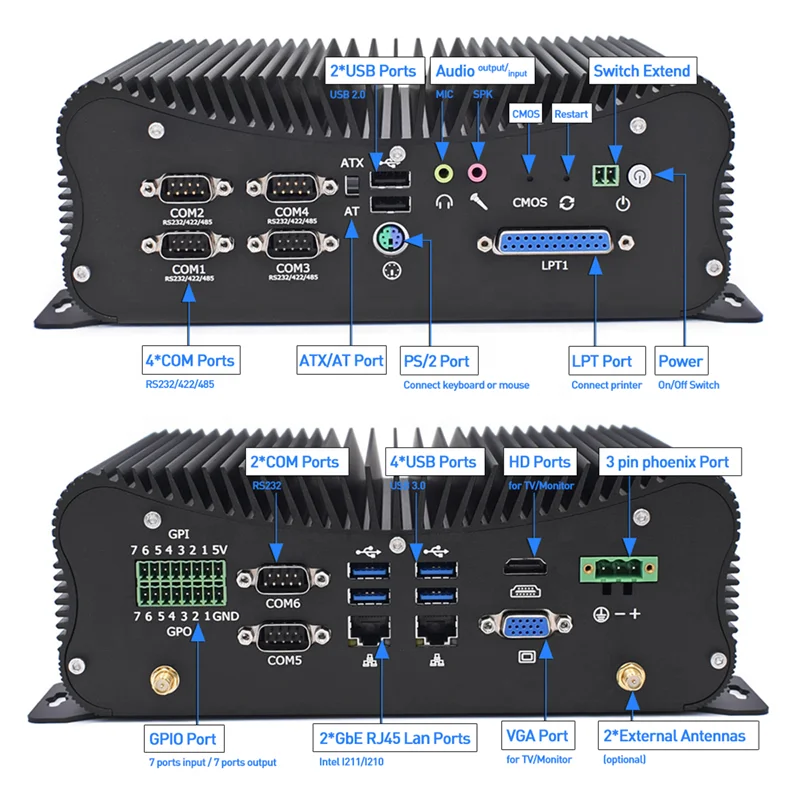

I/O | 4x USB3.0，2x USB2.0, 6x DB9 COM（4 of them Suports RS485/RS422, 1x HD-MI, 1x VGA, 1x PS2(Keyboard and mouse in one), 14x GPIO(7 input，7 output), 1x Power Button,1x Reset Button,1x Clear CMOS Button, 1x 3pin Power phoenix，Support: 9-36V DC, 1x 3.5mm Jack，1x Mic in, 1x ATX/AT, 2x Antenna port, for WIFI/3G/4G, 2xLAN(GbE RJ45 Intel i211/i210) | |

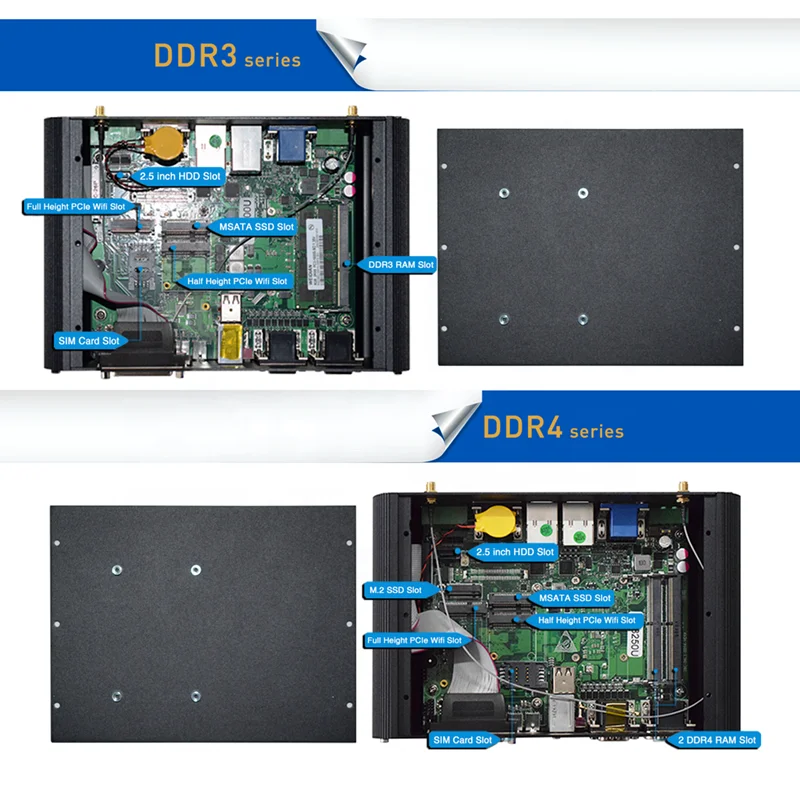

Expansion Slot | 1x Mini-PCIe half card, support WIFI Blue-tooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Blue-tooth 1x Expand IO, support LPC, USB, PCIE | |
BIOS | AMI EFI BIOS | |
WDT | Support hardware reset (256 level, 0-255 sec) | |
Operation System | Windows® 7/8/10，WES 7/10，LINUX | |
Power Supply | ||
External Power Supply | AC 100 - 240V | |
Working voltage | DC 9-36V | |
Power consumption | ≤20W | |
Enclosure | ||
Material | Aluminum Alloy | |
Color | Black | |
Operating Environment | ||
Temperature Range | Operating: -20 to 70°C, Storage: -30 to 80°C, surface air flow | |
Relative humidity | 10%~95% , non-condensing | |
Packing Details | ||
Net weight | 2.2 kg | |
Gross weight | 3.5 kg | |
Product Dimension | 249 x 150 x 86 mm | |
Packing size | 30*20*12cm | |
Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws | |
Other | ||
Mounting (options) | Wall mounting | |
Embedded mount | ||
Warranty | 2 years warranty | |
Packaging & Shipping
PACKING
Small product will be packed in strong export carton box, stuffed with foam.
Large product will be packed in wooden case to avoid damage during shipping.
SHIPPING WAY
Sample order by DHL, UPS, Fedex, TNT, etc.
Large order by air or sea.
Also depending on your quantity, budget, and degree of urgency.
Company Introduction
OEM/ ODM
Certifications
FAQ
1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3)What payment methods does your company accept?
T/T,Western Union,Paypal and secure payment on alibaba.
4)What’s the delivery time?
Sample:5-7 working days.bulk order 15-25 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
5)What are the shipping ways?
We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3)What payment methods does your company accept?
T/T,Western Union,Paypal and secure payment on alibaba.
4)What’s the delivery time?
Sample:5-7 working days.bulk order 15-25 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
5)What are the shipping ways?
We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
