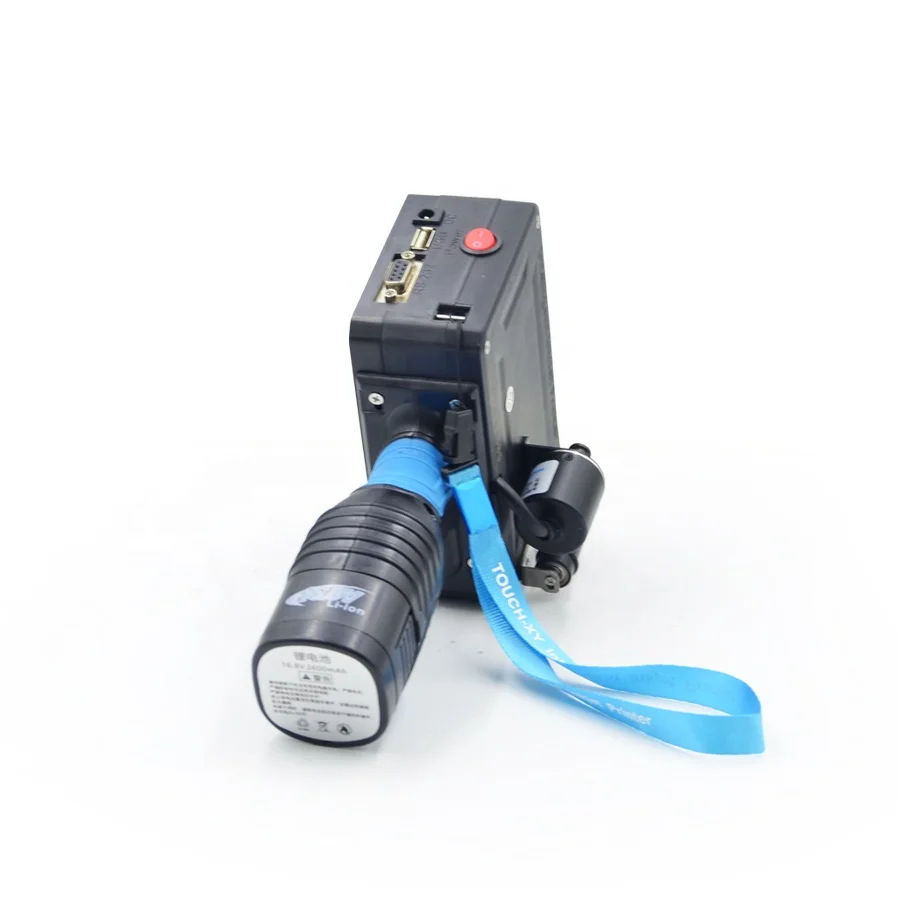

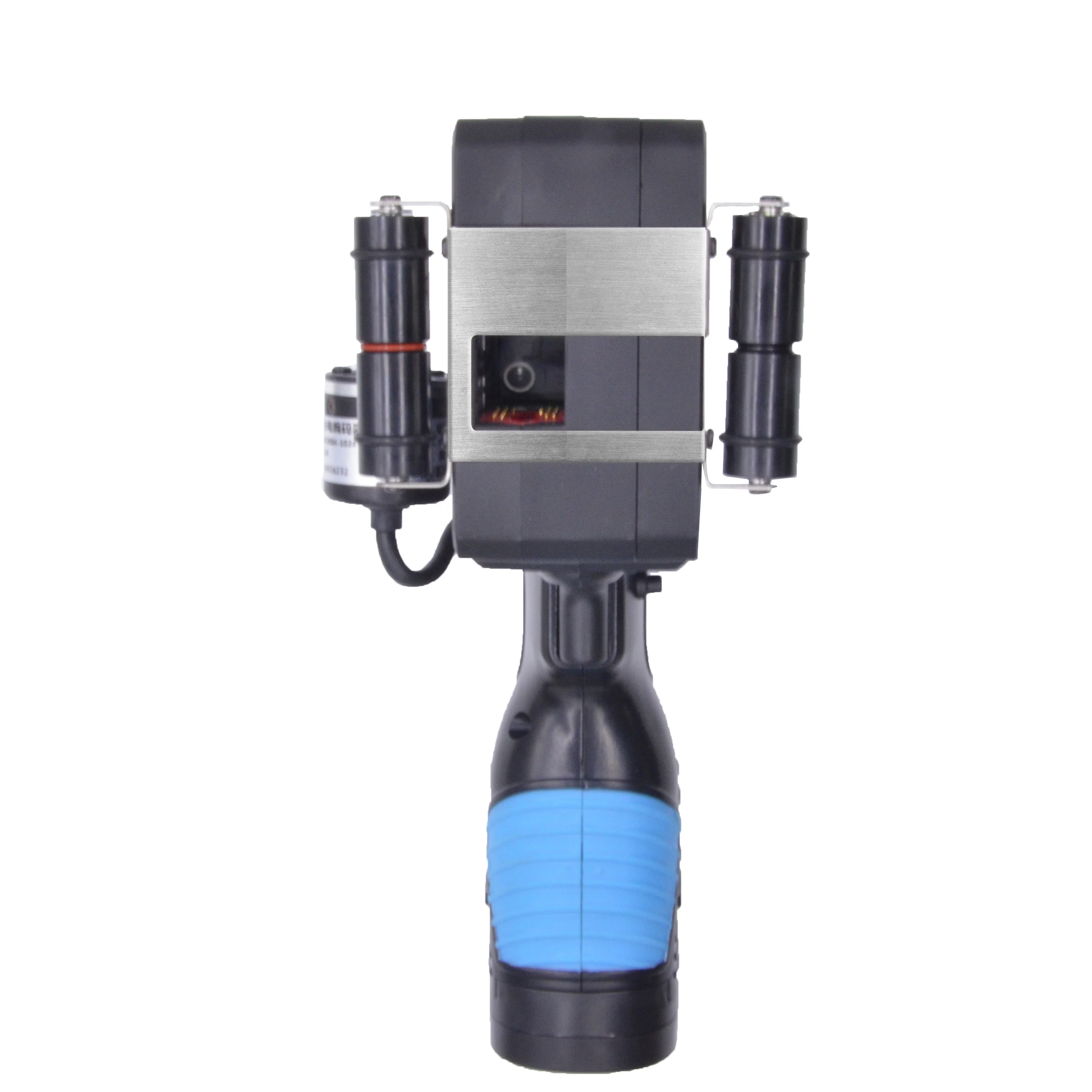

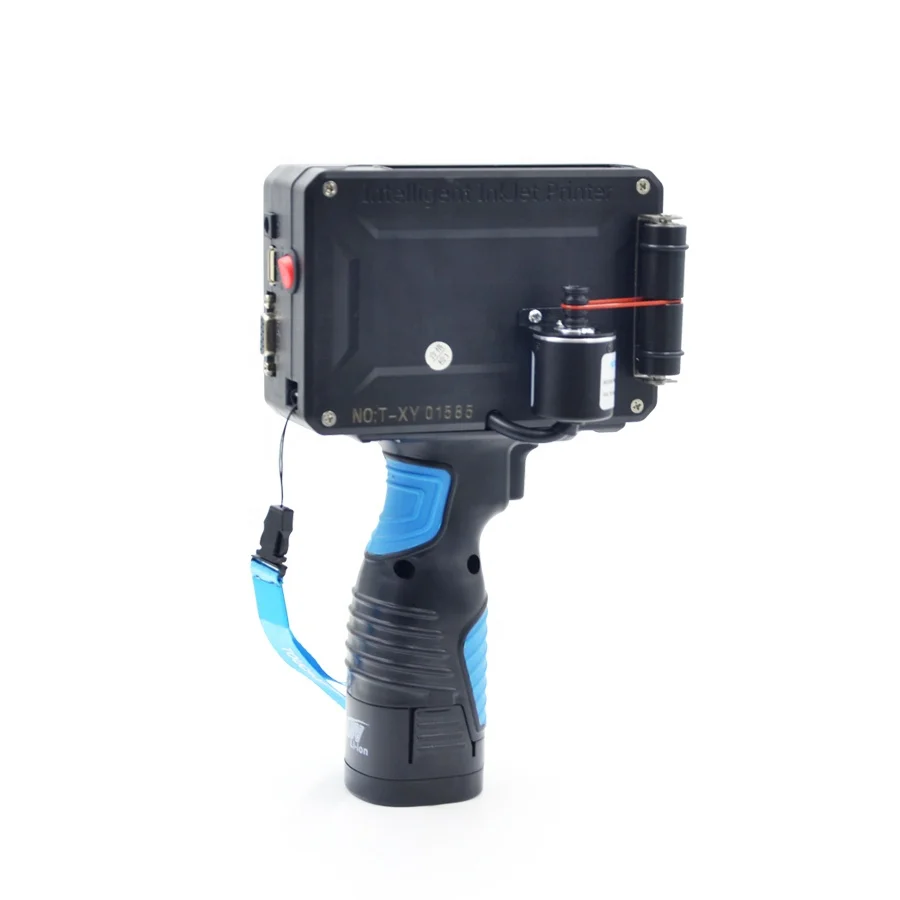

Струйный принтер с кодом партии ручной струйный для кодирования

Shape features

stainless steel casing/black aluminum shell and color touch screen

Dimension

140*80*235mm

Net weight

0.996kg

Printing direction

adjusted within 360 degree, meet all kinds of production needs

Character type

high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English

Printing pictures

all kinds of logo, pictures can be uploaded through USB disk

Printing accuracy

300-600DPI

Printing line

1-8 lines (adjustable)

Printing height

1.2mm-12.7mm

Print code

bar code, QR Code

Printing distance

1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)

Print serial number

1~9

Automatic print

date, time, batch number shift and serial number, etc

Storage

the system can store more than 1000 mass (external USB make the information transfer in a free way)

Message length

2000characters for each message, no limitation on length

Printing speed

60m/min

Ink type

Quick-dry environmental ink, water-based ink and oily ink

Ink color

black, white, red, blue, yellow, green, invisible

Ink volume

42ml(usually can print 800,000 characters)

External interface

USB, DB9, DB15, Photoelectric interface, can directly insert a USB disk to upload information

Voltage

DC14.8 lithium battery, print continuously more than 10 hours and 20 hours standby

Control panel

touch-screen (can connect wireless mouse, can also edit information through the computer)

Power consumption

the average power consumption is lower than 5W

Working environment

Temperature:0 - 40 degree; Humidity: 10% - 80%

Printing material

board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
