Shiding SD 60 Q Улучшенная ультразвуковая Нетканая швейная машина для сумок

Shiding SD 60 Q Улучшенная ультразвуковая Нетканая швейная машина для сумок

Категория: Packaging Material Making Machine >>>
Поставщик: Changzhou Shiding Machinery Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

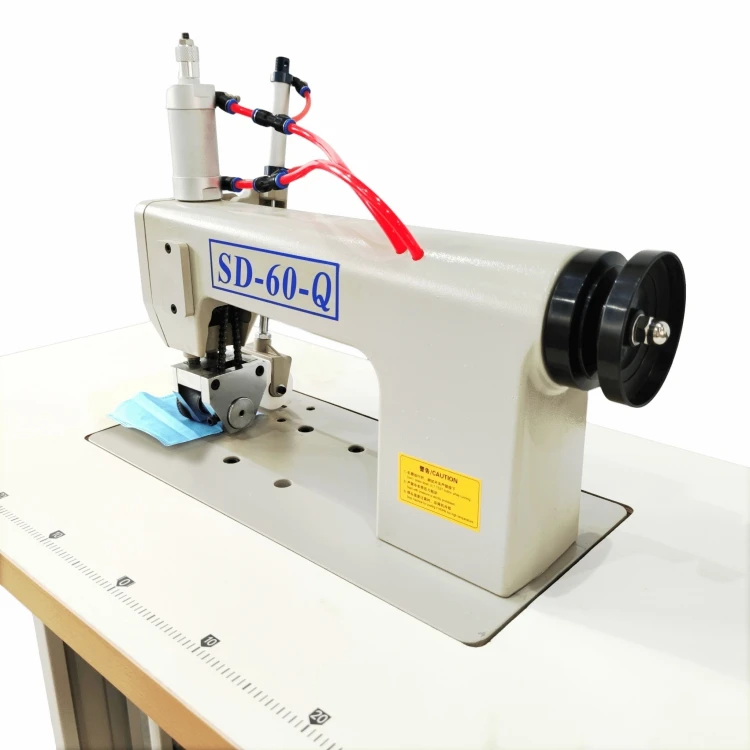

Changzhou Shiding SD-60-Q（Pneumatic）Mutifunction

Ultrasonic Sewing/Nonwoven Bag Making/Lace sewing

Surgical Gown Sewing Machine

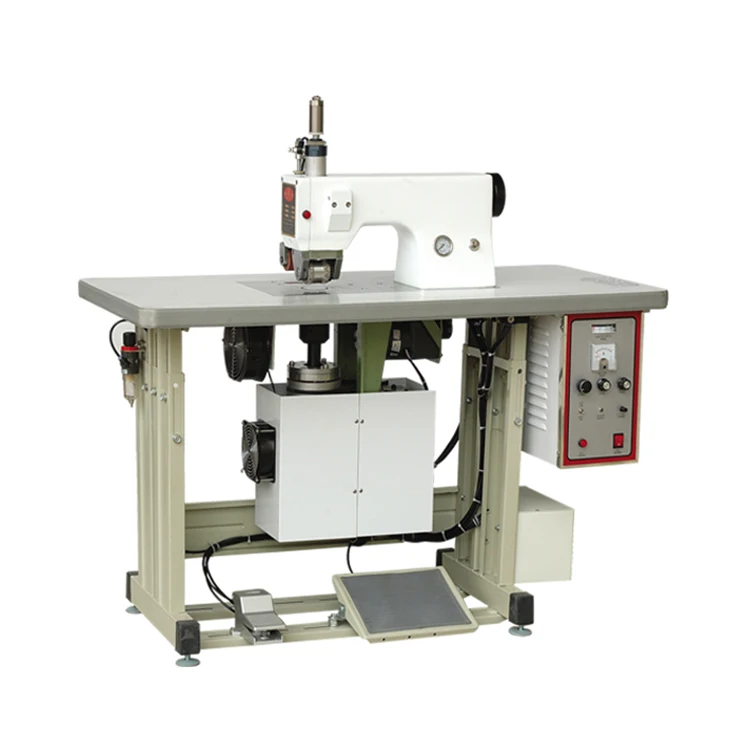

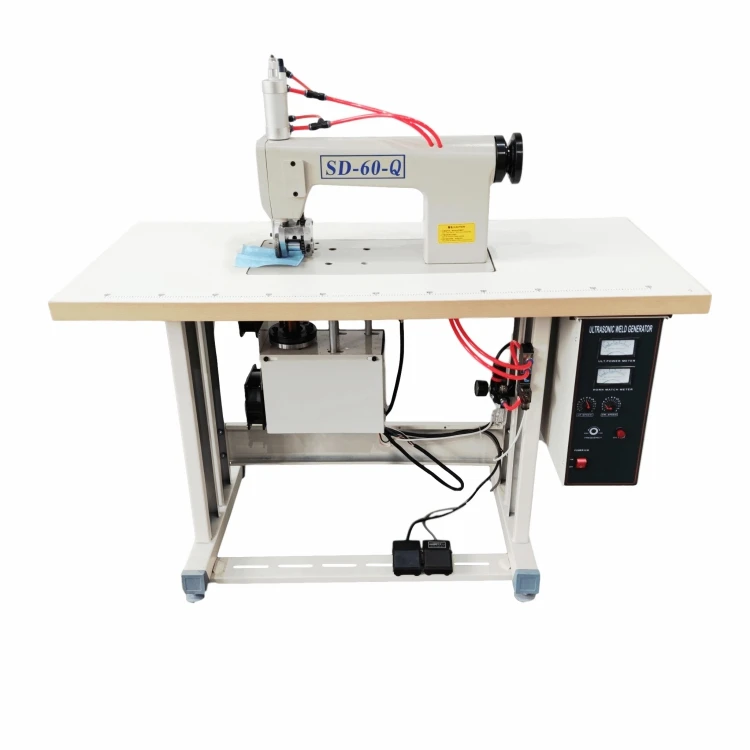

Overview Picture

Name	Mutifunction Ultrasonic Sewing Machine
Power supply	220V/ Single-phase Electric
Power	2000W
Output frequency	20KHZ
Working speed	20m/min
Roller size	10mm
Machine size	1.2x0.6x1.2m
Machine weight	120kg

SD-60-Q Mutifuction Show

For making surgical gown

For making nonwoven bag

For fabric sewing

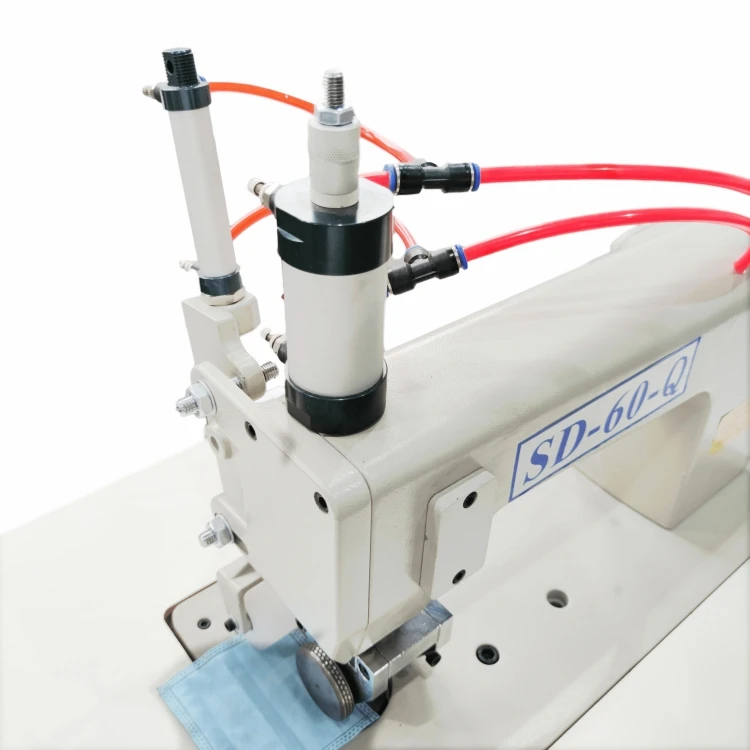

Basic components

1. New type PC intellectual ultrasonic generator;

2. 20KHz ultrasonic transducer unit;

3. Bottom horn fixed suspension structure;

4. Single motor speed adjustment system;

5. Manual（SD-60-S）( or pneumatic(SD-60-Q)) roller lifting system;

Functions

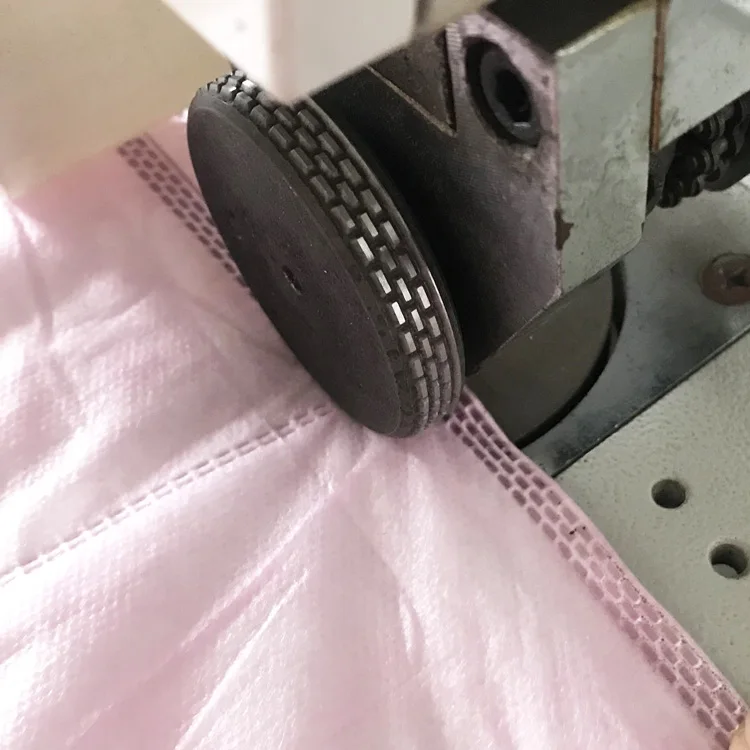

1. Trimming: Straight or curvilinear edge cutting and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.
