Product Description

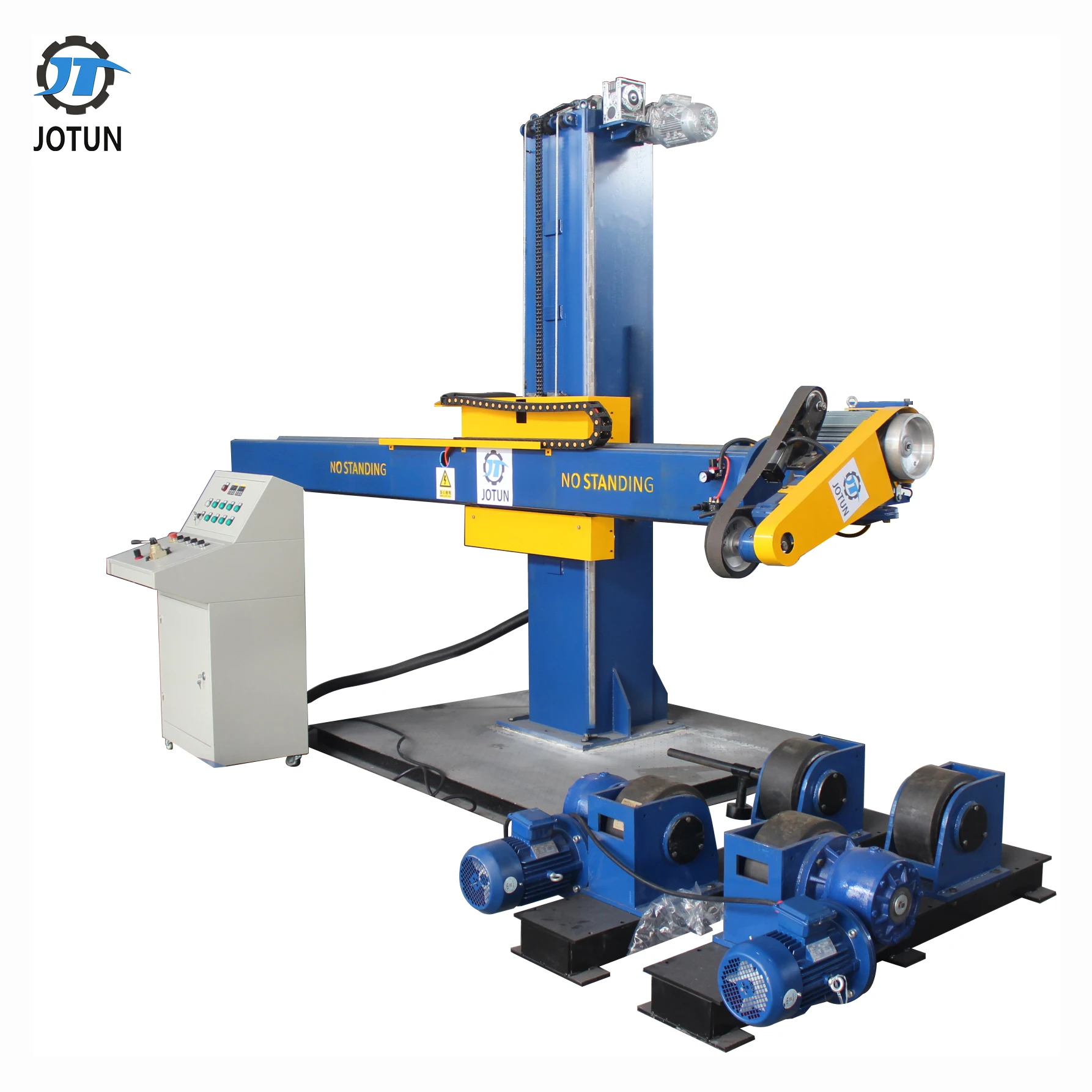

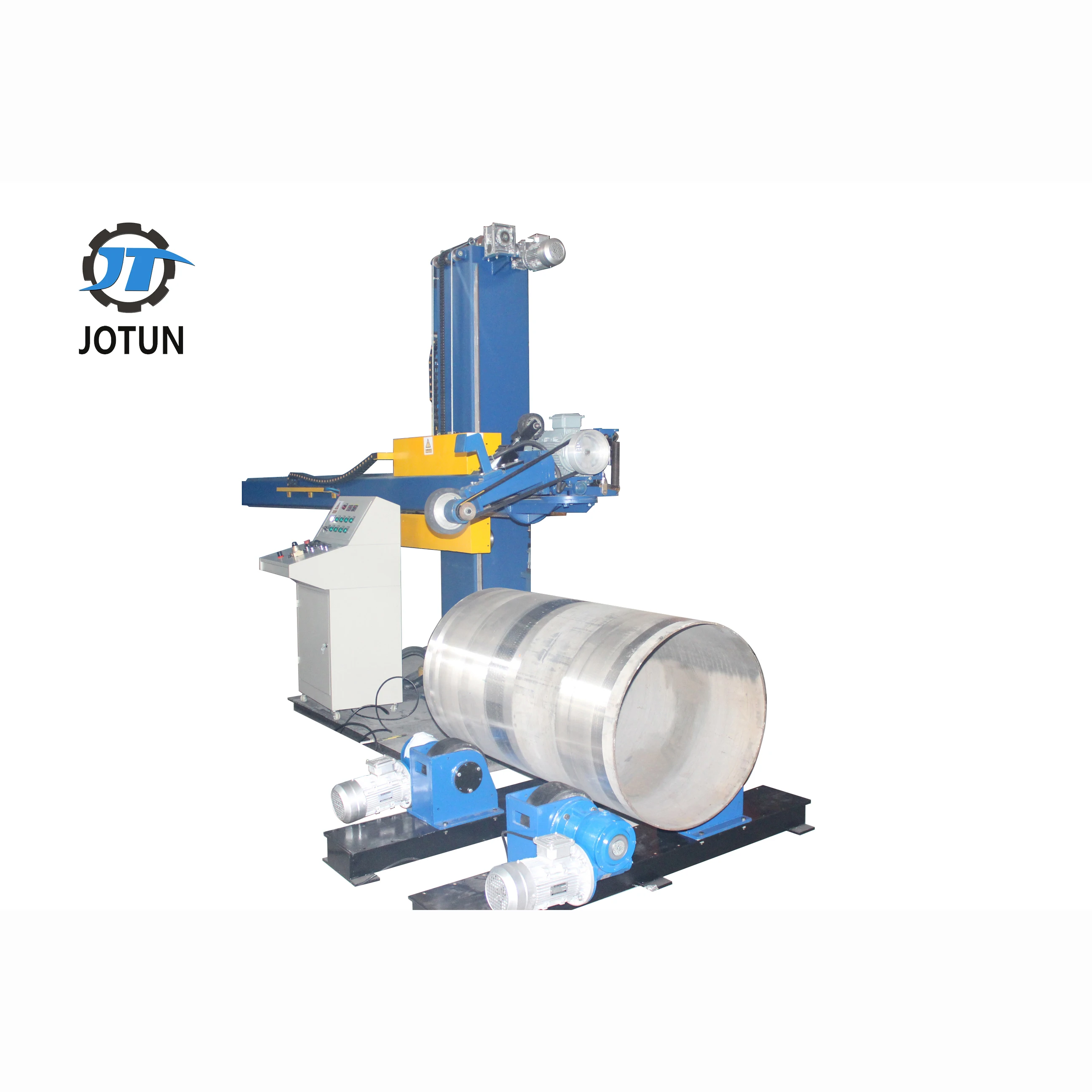

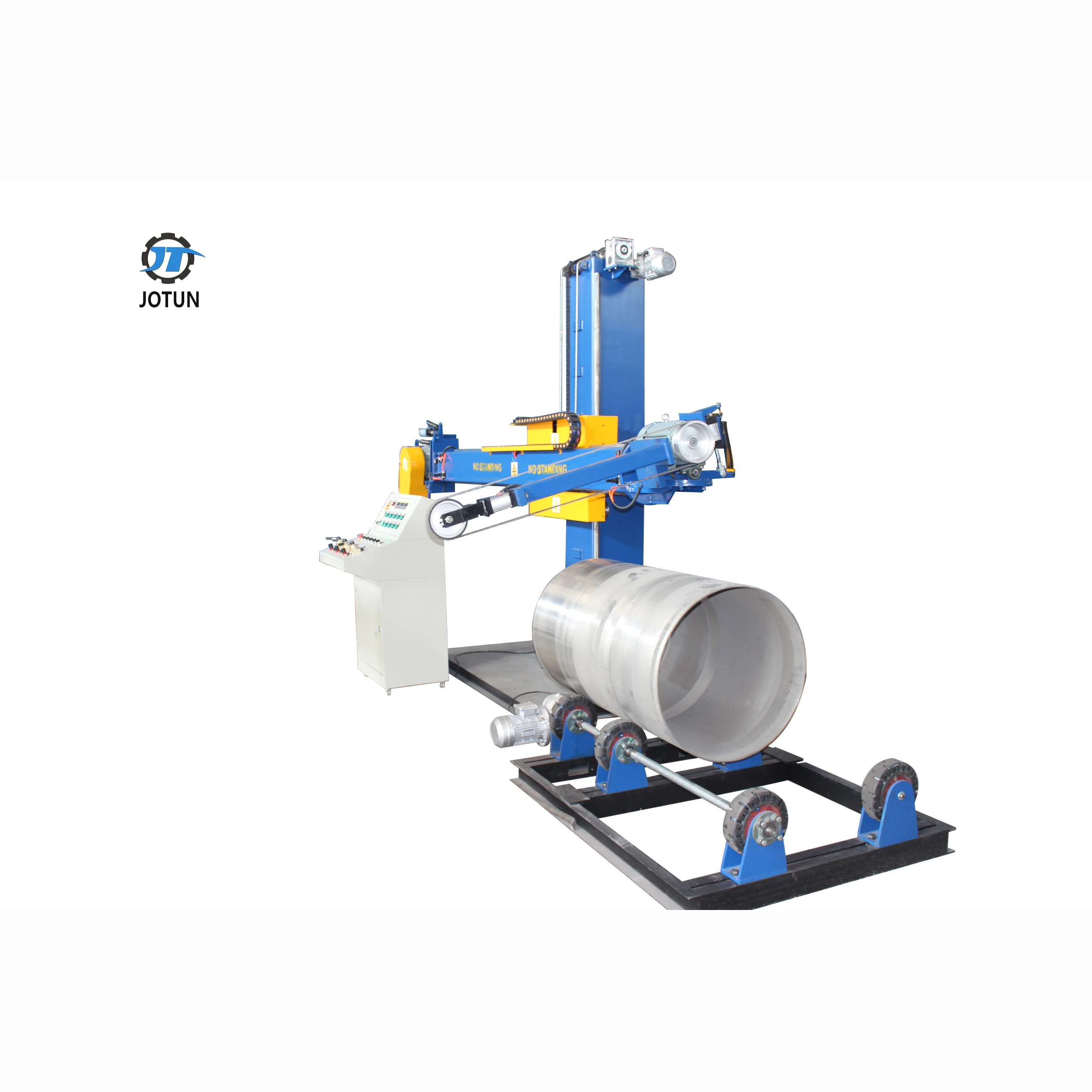

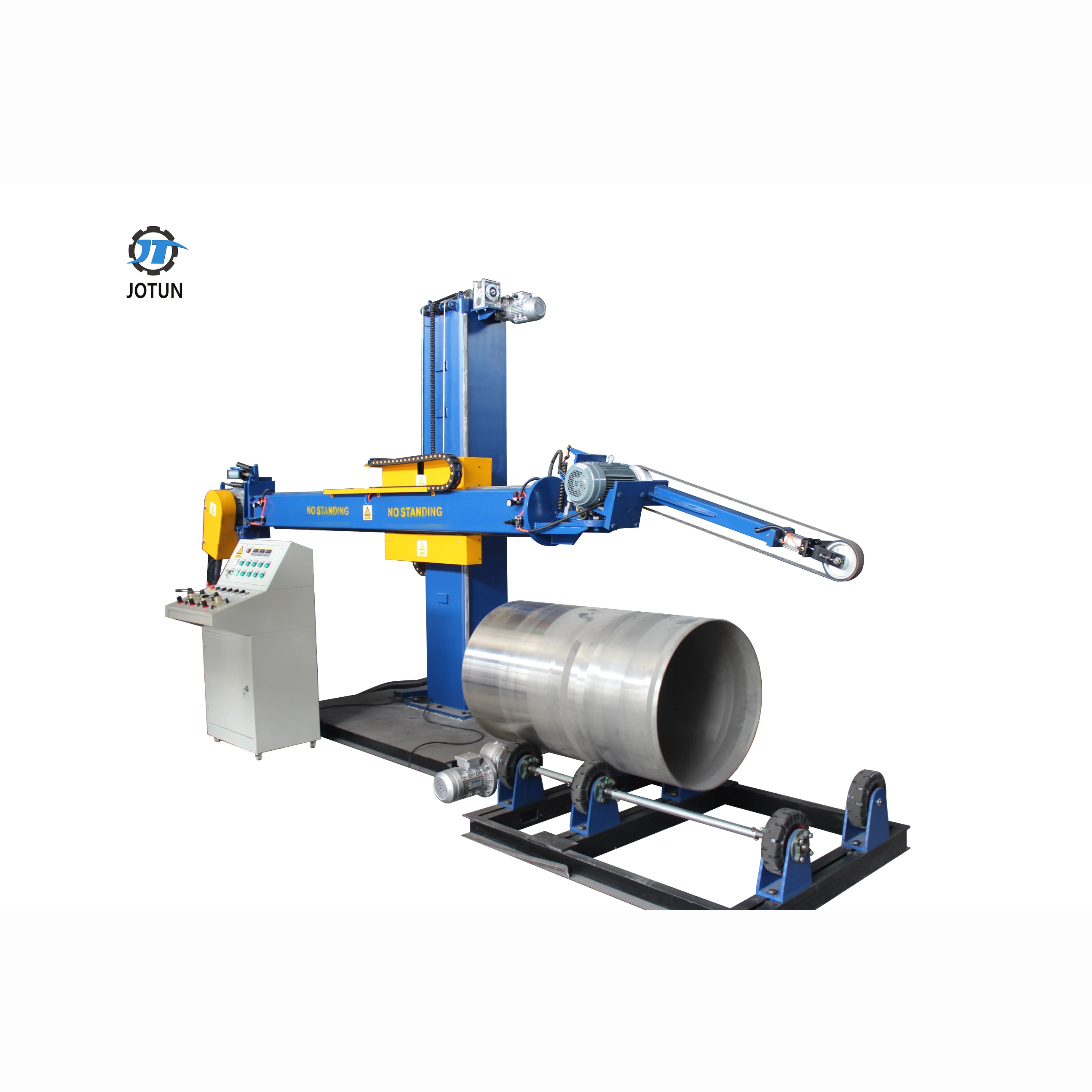

JT-1 Tank & Cylinder Polishing buffing Machine
This machine is suitable for all kinds of steel tanks,industrial tanks/vessels to polish the inside and outside of cylinder and also used to polish the inside and outside,surface finish of pressure vessels and industrial container and the circumferential weld processing. The tank polishing machine is extensive apply for the polishing of work piece in the range of medical, chemical, enviromental purification,food and beverage,water filtration etc.
Specification of grinding and polishing machine | ||||||
Outer Dimension | 3500*1500*3080 mm | |||||
Machine Weight | 2200 kg | |||||
Input Power | 8 KW | |||||
Control System | PLC/CNC | |||||
Polishing Materials | Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel | |||||
Patent No. | 201120122490.4 | |||||
Note | Our products all Non-Standard Customization | |||||
Specifications of Working Pieces | ||||||
Work Piece Size | Tank/Vessel/Cylinder | Diameter | 400-5000 mm | |||
Max Length | 6000 mm | |||||
Max Weight | 10 T | |||||
Dished End/Tank Top | Diameter | 400-5000 mm | ||||
Depth | 2500 mm | |||||
Max Weight | 10 T | |||||
Material | stainless steel,aluminium alloy,carbon steel,red copper,etc. | |||||
Surface Roughness | Ra ≤ 0.4 μm (Mirror Finished) | |||||
Product Eifficiency | 6 - 12 square meters per hour | |||||
Product Features
1. Grinding with abrasive belt, high efficiency, low noise and less dust.
2. Since the surface roughness is reduced after the abrasive belt is used, it can be reused. In grinding with a slightly higher level of abrasive belt, the cost is correspondingly reduced.
3. The workpiece rotation and lateral feed are variable frequency stepless speed regulation to further improve work efficiency.
4. The whole process of air pressure floating tracking grinding head grinding technology can solve the phenomenon that the roundness of the tank is not uniform and the high point is excessively polished, and the low point is not polished, so that the polished workpiece has good consistency. .
5. The use of 2540*120mm abrasive belt improves the grinding efficiency and prolongs the life of the belt.
2. Since the surface roughness is reduced after the abrasive belt is used, it can be reused. In grinding with a slightly higher level of abrasive belt, the cost is correspondingly reduced.
3. The workpiece rotation and lateral feed are variable frequency stepless speed regulation to further improve work efficiency.
4. The whole process of air pressure floating tracking grinding head grinding technology can solve the phenomenon that the roundness of the tank is not uniform and the high point is excessively polished, and the low point is not polished, so that the polished workpiece has good consistency. .
5. The use of 2540*120mm abrasive belt improves the grinding efficiency and prolongs the life of the belt.
Our Team
Anhui Jotun supply China professional Metal tank shell,dished end,flat sheet polishing grinding/buffing machine,welding seam treatment equipment,widely used for pharmaceutical industry,food,water purification,water supply,chemical,and new energy.Including elliptical dish,cone dish head,spherical shell ,butterfly shell,pharmaceutical stainless steel tank,pressure vessel, brewery, cylinder, cosmetic, sanitary, reaction kettle,fermentation tank,sterilizer,disinfection cabinet,filter, and LNG etc.
Everyone in our team will do their best to serve you, solve your problems and achieve mutually beneficial cooperation.
Certifications
Our Service
Our product has exported to America,Argentina,Australia,Denmark,South Korea,India,Poland and 20 other countries and regions.We always focused on research development and innovation,and has recently developed water polishing to meet enviroment management certification.
We regards"reasonable prices,efficient production time and good after-sales service".Hope to cooperate with more customers for mutual development and benefits.
Packing & Delivery
After the product is commissioned, we will split the product. The shock absorbing material is carefully wrapped on the surface of the product to prevent the product from being worn during transportation. The product will then be fixed in accordance with the shipping method requested by the customer to protect the integrity and condition of the product. The way the product is packaged can be determined by the customer and we will do our best to meet your requirements.
Contact
Похожие товары
OEM kangdang впрыскивающий насос BQT4A-1.0.0-06QC BH4QT90R9 топливный насос 4QT224 для quanchai двигателя
100,00 $ - 155,00 $

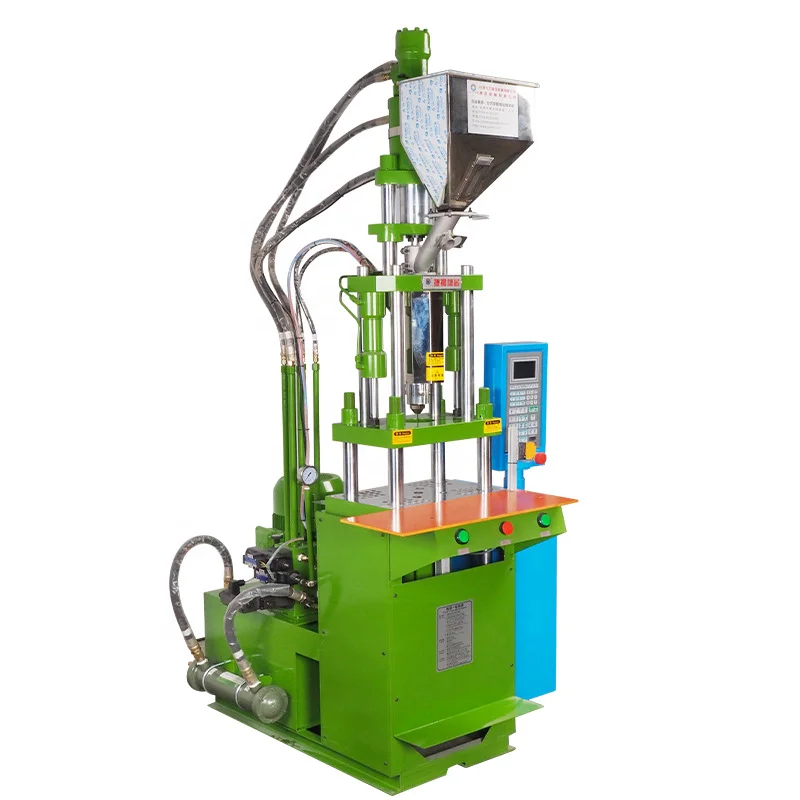

Пластиковая резиновая заглушка крышка винтовой болт для изготовления небольшого вертикального литья под давлением Чехол для мобильного телефона игрушечный автомобиль запасные части
4 637,00 $

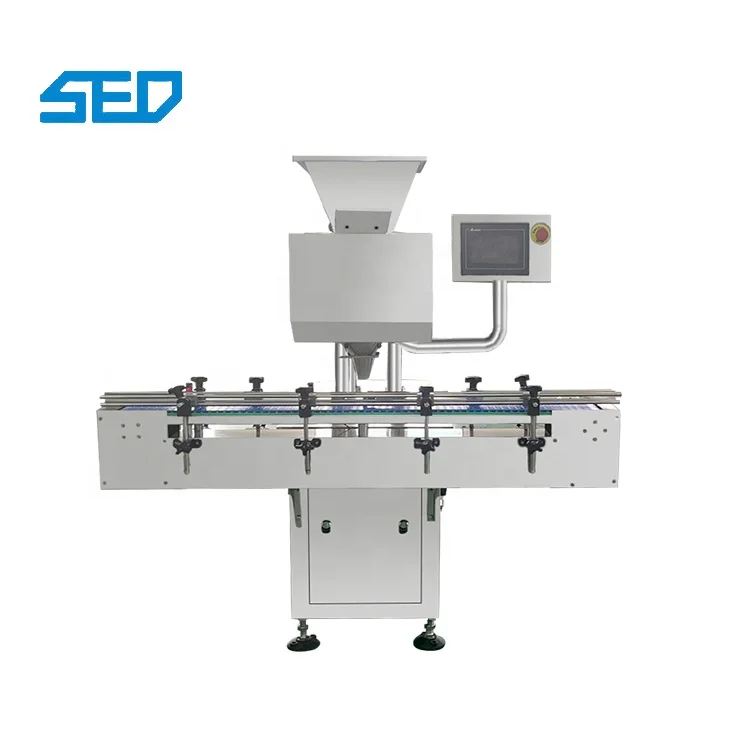

12-канальный автоматический аптечный таблетки счетчик таблеток и капсул машина
12 799,00 $ - 13 000,00 $

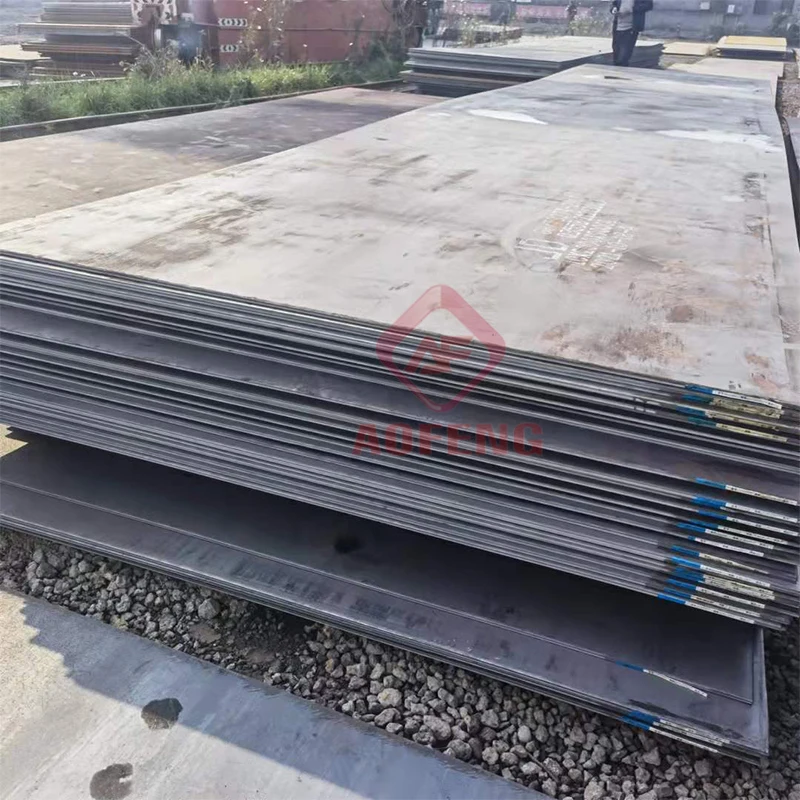

Прямая поставка с завода пластины из углеродистой стали 14 мм sa516
