Промышленный робот манипулятор YASKAWA MPX3500 для покраски автомобиля 15 кг полезная нагрузка 2700 мм рука с роботом куртка

Промышленный робот манипулятор YASKAWA MPX3500 для покраски автомобиля 15 кг полезная нагрузка 2700 мм рука с роботом куртка

Категория: >>>
Поставщик: Xiangjing (shanghai) Mechanical And Electrical Tech Co. Ltd.

Цена:3 179 803,60 ₽ - 3 698 221,24 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots

Main Specifications:

Model:MPX3500
Maximum reach:2700mm
Maximum payload:15kg
Pose repeatability:± 0.15mm
Number of axes:6
Weight:560kg

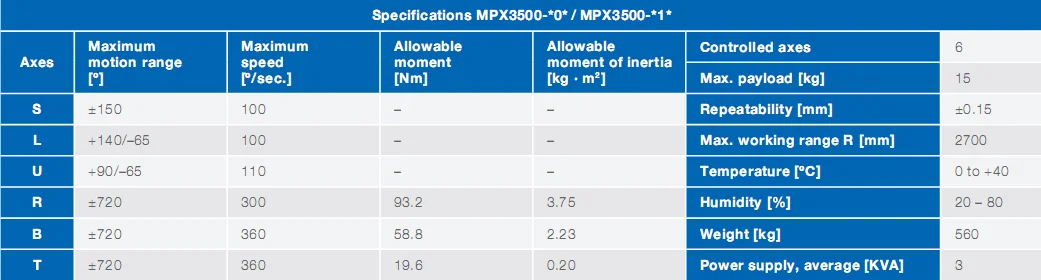

Specification

Product Name	Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots
Model	MPX3500
Application	Painting
Maximum reach	2700mm
Maximum payload	15kg
Pose repeatability (ISO 9283)	± 0.15mm
Number of axes	6
Mounting position	Floor, celling, wall
Weight	560kg
Protection rating	IP65
Controller	DX200 controller

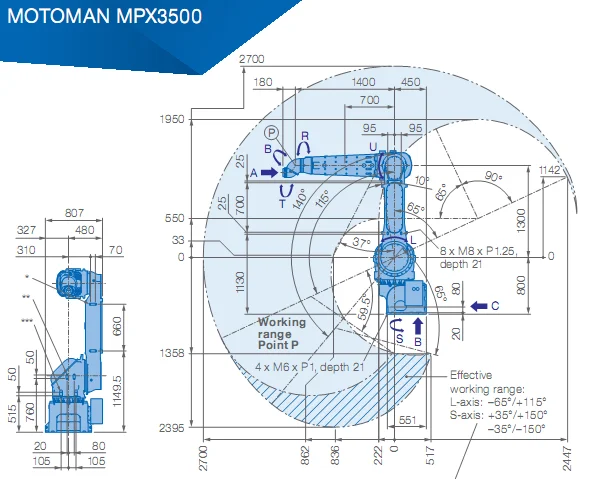

Motion range
S	150° to -150°
L	140° to -65°
U	90° tp -65°
R	720° to -720°
B	720° to -720°
T	720° to -720°

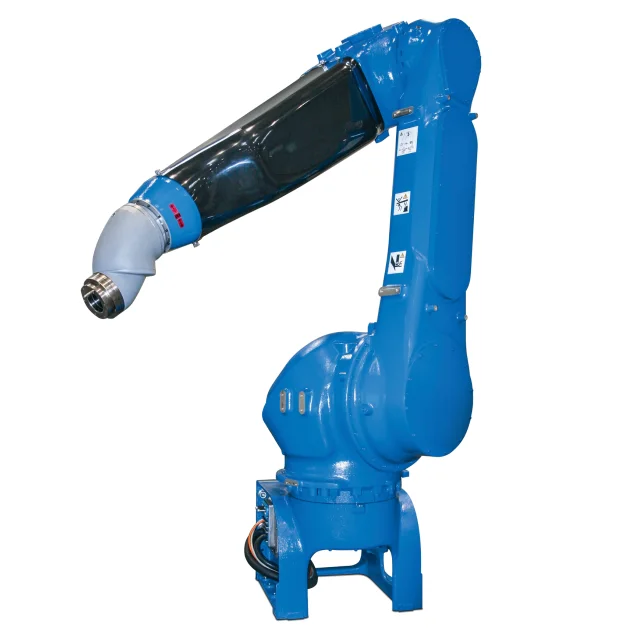

Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots

MPX3500 Introduction:

Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots

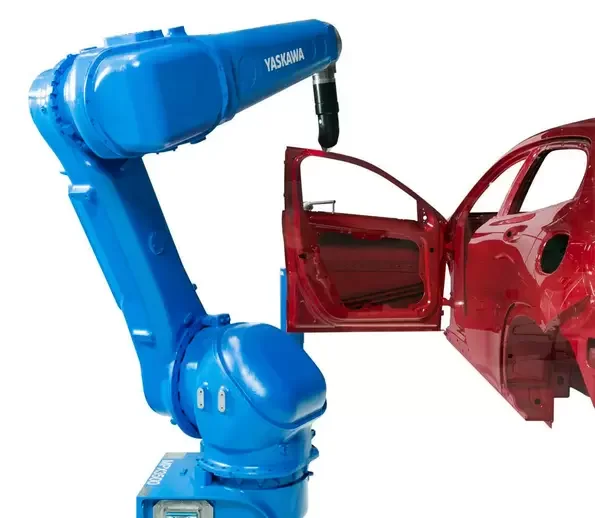

The fast and flexible MOTOMAN MPX3500 offers high performance in painting automobile bodies, bumpers, construction equipment and further more. A high-density layout saves space by reducing the size of the painting booth. The L axis is designed with no offset to enabled installation of the manipulator closer to a work piece, which saves space.

Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots

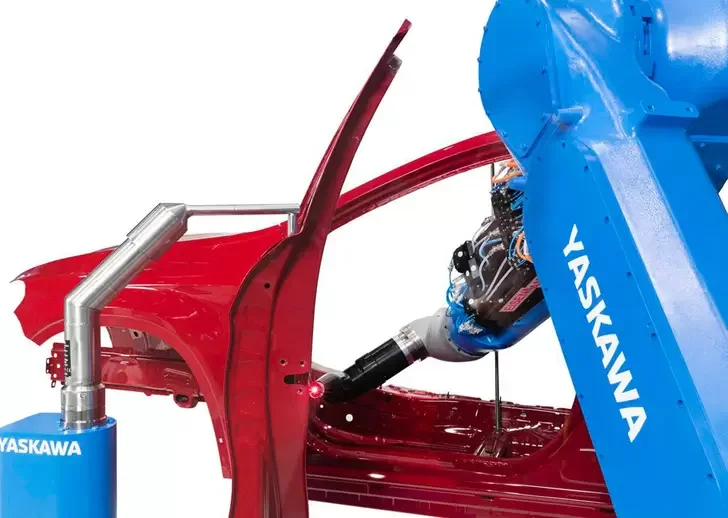

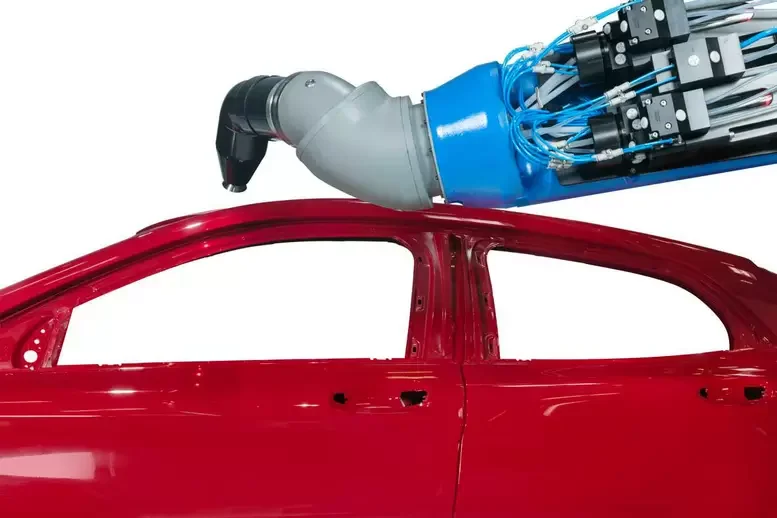

The time required for teaching large cells can be shortened by converting the data created for the robot on one side for the robot on the opposite side. The hoses and tubes of the MOTOMAN MPX3500 can be routed inside the wrist section to prevent interferences. The process arm and high payload of this robot allows the mounting of large bell applicators, which enable multi-color painting.

Industrial robot arm YASKAWA MPX3500 for painting 15kg Payload 2700mm Arm robots

The MOTOMAN MPX3500 is controlled by the high-performance MOTOMAN DX200 controller, which is available with the optional Functional Safety Unit (FSU) that offers a wide range of new safety functions.

KEY BENEFITS
• Flexible, fast and versatile
• Compact design
• Large motion range: Front area 2700 mm; wall mounted 3500 mm
• High Payload of wrist: 15 kg
• Process arm with enough space for potential separator and process technology
• Easy programming and installation
• Great availability

Applications:

Painting
