Product Description
HSR-340/450/660
unit type flexographic printing machine (SLEEVE TYPE) adopts the latest servo control system Baumuller from
Germany . Each printing unit is driven by double servo motor .there are 37 servo motors ， 3- Die cutting stations， and conveyors，12 colors printing ，ensuring high precision and stability during the machine runs in high speed .
Printing roller adopts air support shaft sleeve control by servo( without gear). easy convenient and fast to change the sleeve the printing quality and reduce the maintenance. Printing and ink transfer pressure adjustment : the printing roller working on rolling pillow way , when start to setup , only need to fine- tune the corresponding support frame on both side . after the roller changed,the printing pressure no need to do the big adjustment . while some special printing requirement need a little fine tuning more, that the printing efficiency will be greatly improved anvil roller equipped with water chiller , ensure unaffected by UV curing temperature when printing film material . unwinding unit equipped with corona , dust, Anti-static system,ensure the stability before printing.
Germany . Each printing unit is driven by double servo motor .there are 37 servo motors ， 3- Die cutting stations， and conveyors，12 colors printing ，ensuring high precision and stability during the machine runs in high speed .
Printing roller adopts air support shaft sleeve control by servo( without gear). easy convenient and fast to change the sleeve the printing quality and reduce the maintenance. Printing and ink transfer pressure adjustment : the printing roller working on rolling pillow way , when start to setup , only need to fine- tune the corresponding support frame on both side . after the roller changed,the printing pressure no need to do the big adjustment . while some special printing requirement need a little fine tuning more, that the printing efficiency will be greatly improved anvil roller equipped with water chiller , ensure unaffected by UV curing temperature when printing film material . unwinding unit equipped with corona , dust, Anti-static system,ensure the stability before printing.

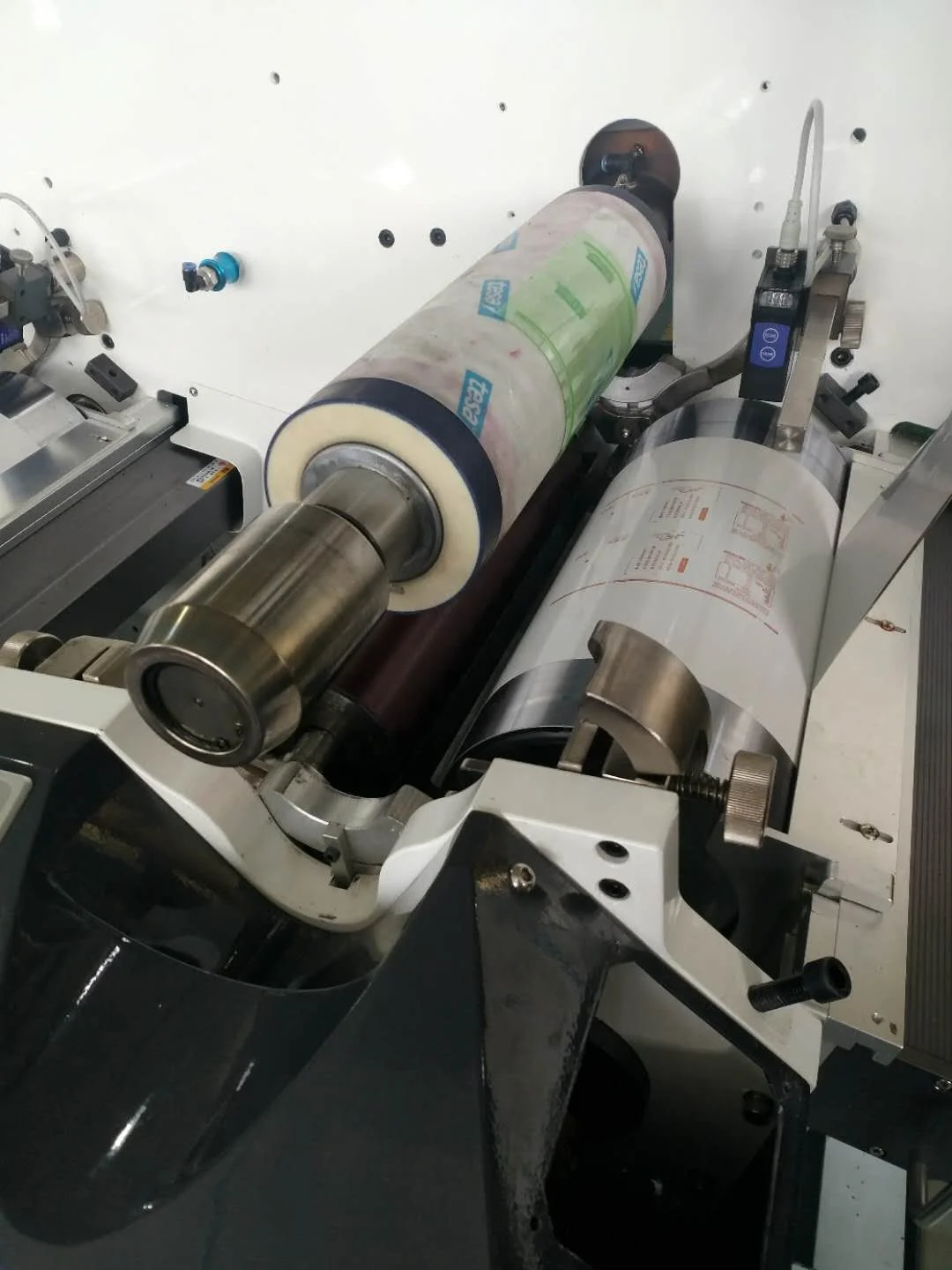

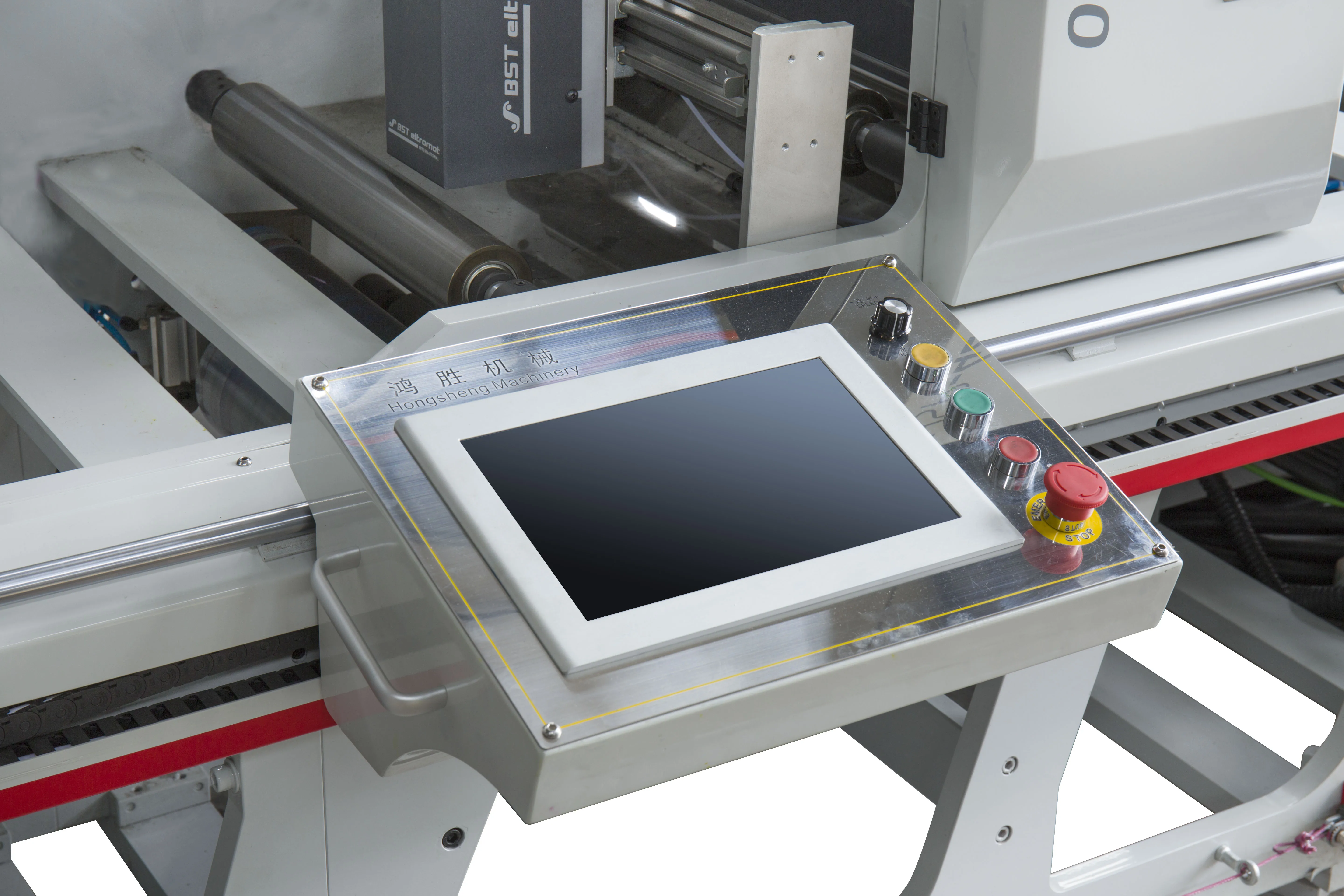

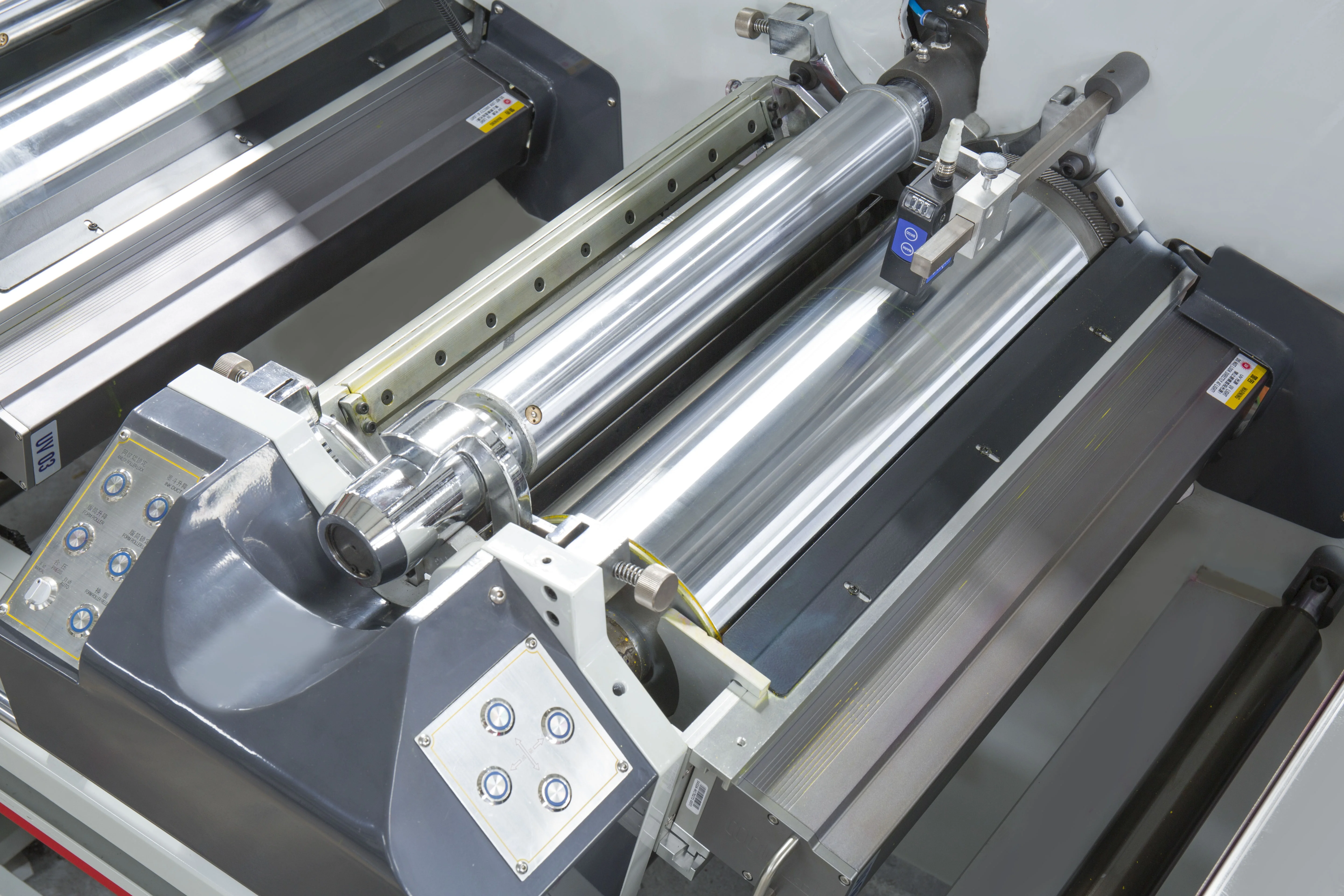

Detailed Images
Double servo flexographic printing machine is one of our flagship products.
Most of materials on the market are available on this machine, including film materials, shrink film materials and water-soluble labels, etc. This machine supports both water based inks and UV inks. Depending on the inks and materials, you can choose from different types of drying equipment. For every part of the machine, we’ve chosen the highest-end equipment on the market to ensure the stability of materials’ structure and quality before and after printing. While ensuring the stability, this machine can reach an ultra-high printing speed of 200 meters per minute, which greatly improves your production efficiency.
Most of materials on the market are available on this machine, including film materials, shrink film materials and water-soluble labels, etc. This machine supports both water based inks and UV inks. Depending on the inks and materials, you can choose from different types of drying equipment. For every part of the machine, we’ve chosen the highest-end equipment on the market to ensure the stability of materials’ structure and quality before and after printing. While ensuring the stability, this machine can reach an ultra-high printing speed of 200 meters per minute, which greatly improves your production efficiency.
Size Information
Size Chart of This Design
Model | HSR-340 | HSR-450 | HSR-660 |
Max. printing speed | 200m/min | 200m/min | 200m/min |
Max. web width | 350mm | 460mm | 670mm |
Max. printing width | 340 mm | 450mm | 660mm |
Max .unwind diameter | 1050 mm | 1050mm | 1050mm |
Max. exhaust diameter | 900 mm | 900mm | 900mm |
Max. repeat length | 254-609.6 mm | 254-609.6 | 254-609.6 |
Loading method | sleeve | sleeve | sleeve |
Horizontal overprint adjustment | motor drive | motor drive | motor |
Longitudinal overprint control | 360°servo drive | 360°servo drive | 360°servo drive |
Preliminary overprint | Automatic | Automatioc | Automatic |
Fast changing ink system | Ink swift change | Ink swift change | Ink swift change |
Hot air drying | Option | Option | Option |
Cold wave process (movable) | Option | Option | Option |
LED UV | Option | Option | Option |
Lubrication way | Automatic | Automatic | Automatic |
Packing&Shipping
Packed by stretch film and standard wooden case
After Sales Service
Warranty:
The warranty time is 12 months since the date on the name tag of the machine.
Within the warranty period, the supplier should provide the buyer with damaged or broken parts for free. But the buyer should cover the DHL shipping cost. We do NOT provide consumption parts like shoe brake for free. The supplier should provide the buyer with free technical assistance long-life time.
Within the warranty period, the supplier should provide the buyer with damaged or broken parts for free. But the buyer should cover the DHL shipping cost. We do NOT provide consumption parts like shoe brake for free. The supplier should provide the buyer with free technical assistance long-life time.
Company Introduction
Zhejiang Hongsheng Machinery Co., Ltd. is located in Ruian city if Wenzhou , with convenient transportation.
we are a manufacturer with many elites that they have been engaged in our company to do research, design, production and sales .
Therefore, Various new collections and design are coming out each month with the current styles and technical . our factory own the proficient skill and updated machine.
In addition, we have a very good procurement team that can help us find better resources and suppliers and reduce our machine costs. It makes our prices more reasonable and more competitive.
We produce a variety of machine, such as die cutter, slitter, rewinder, label inspector. What is worth mentioning is our honor products, sleeve flexographic printing machine andflower petal flexographic printing machine. There is a very large and experienced team of designer and engineers working on these machines. Therefore, for these two flexo printers, we’ve achieved great success that the quality of printing is very high.
We have been selling our products to India, Middle East, Southeast Asia & South America. Our total export amount was about 800,000.00 US dollars in 2017. Besides, all of our products have passed the CE and ISO9001 QMS certification.As for our customers, we have an experienced team to assist all of our clients to purchase more useful and more suitable machines. They can respond to every inquiry rapidly, gently and patiently. We also have a very robust system and clause in after sales. We have a permanent responsibility for every machine we produce. We’re here confident to be your smartest choice, and wait for your needs.
Our Services & Training
Installation:
The supplier should provide buyer with installation, adjusting service. But the buyer should take on all costs during the service period in buyer’s region, including visa procedure, round airplane tickets, accommodation, food, and salary 100 Usd/Day/personTraining:
In supplier’s factory, the supplier should guide the technicians of buyer’s to operate machine correctly.
FAQ
1. your company is a manufacture or a trading company?
We are a manufacturer and have own factory.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
We are a manufacturer and have own factory.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
