Усилители CCT регулируемый беспроводной трогательный пульт дистанционного управления 0-10 В Wi-Fi RGB DMX 12 24 светодиодный диммер
266,23 ₽ - 443,71 ₽
HOION DC12 24V 17A CW WW цветовой температуры двойной настраиваемый белый 2CH CCT светодиодный контроллер
- Категория: >>>
- Поставщик: Shenzhen Hoion Lighting Co. Limited
Сохранить в закладки 1600108576025:
Описание и отзывы
Характеристики
Product Description
RF 2.4GHz CCT controller for led dual white strips
low-voltage controller that uses advanced PWM control technology to control various dual white temperature constant-voltage LED lamps, such as: CCT LED strips, line lights, panel lights, etc., The LEDs can be dimmed or toned according to the needs of the application to make the environment more harmonious; this product adopts 2.4G wireless remote control and excellent synchronization technology, which can realize the wireless synchronization of all controllers.
Product Feature
1. It is a constant voltage controller for CCT LEDs, working voltage is DC12-24V;
2. With power-off memory storage function;
3. The PWM frequency is adjustable, 500Hz-15.6KHz, the factory default is 2KHz;
4. With high power watt output, the maximum current is 17A/CH, 12V200W/24V400W;
5. Adopt 2.4G wireless synchronous remote control, long distance, penetrability, good synchronization, which can realize synchronous control of countless controllers; the external antenna on the receiver can be extended out of the metal shell if needed;
6. Support knob dimming, the digital tube can display the brightness percentage, and can accurately select the desired brightness or color temperature;
7. The T4 version can be controlled by the remote control by default, and the T5 version cannot be controlled by the remote control by default, which is more convenient to adapt to the needs of different scenarios;
8. With short circuit protection function;
9. 3-year warranty.
1. It is a constant voltage controller for CCT LEDs, working voltage is DC12-24V;
2. With power-off memory storage function;
3. The PWM frequency is adjustable, 500Hz-15.6KHz, the factory default is 2KHz;
4. With high power watt output, the maximum current is 17A/CH, 12V200W/24V400W;
5. Adopt 2.4G wireless synchronous remote control, long distance, penetrability, good synchronization, which can realize synchronous control of countless controllers; the external antenna on the receiver can be extended out of the metal shell if needed;
6. Support knob dimming, the digital tube can display the brightness percentage, and can accurately select the desired brightness or color temperature;
7. The T4 version can be controlled by the remote control by default, and the T5 version cannot be controlled by the remote control by default, which is more convenient to adapt to the needs of different scenarios;
8. With short circuit protection function;
9. 3-year warranty.
Working temperature | -20-60℃ | Supply voltage | DC12-24V |
Output | 2 channel | Static power consumption | <1W |
Max. output current | 17A | Max. output power | 200W/12V; 400W/24V |
Net weight | 65g | External dimension | L103*W40*H24 mm |
Gross weight | 90g | Packing size | L140*W48*H35mm |
Memory function | Yes | PWM frequency | 2KHz (factory default), 500Hz,1KHz, 4KHz, 7.8KHz, 15.6KHz |
Max. output current | PWM<=2KHz: 17A PWM=7.8KHz: 13A PWM=15.6KHz: 10A | Max. output power | PWM<=2KHz:200W/12V; 400W/24V PWM=7.8KHz:150W/12V; 300W/24V PWM=15.6KH:120W/12V; 240W/24V |
Control method
This product supports both manual knob dimming and remote control dimming.
T4: can be controlled by any compatible remote control as default; if unique-control is needed, please matching the code beforeinstallation and using.
T5: cannot be controlled by remote control, please pair it to the remote control when remote control is required. Please refer to the corresponding remote-control manual for operation instruction in details.
T4: can be controlled by any compatible remote control as default; if unique-control is needed, please matching the code beforeinstallation and using.
T5: cannot be controlled by remote control, please pair it to the remote control when remote control is required. Please refer to the corresponding remote-control manual for operation instruction in details.

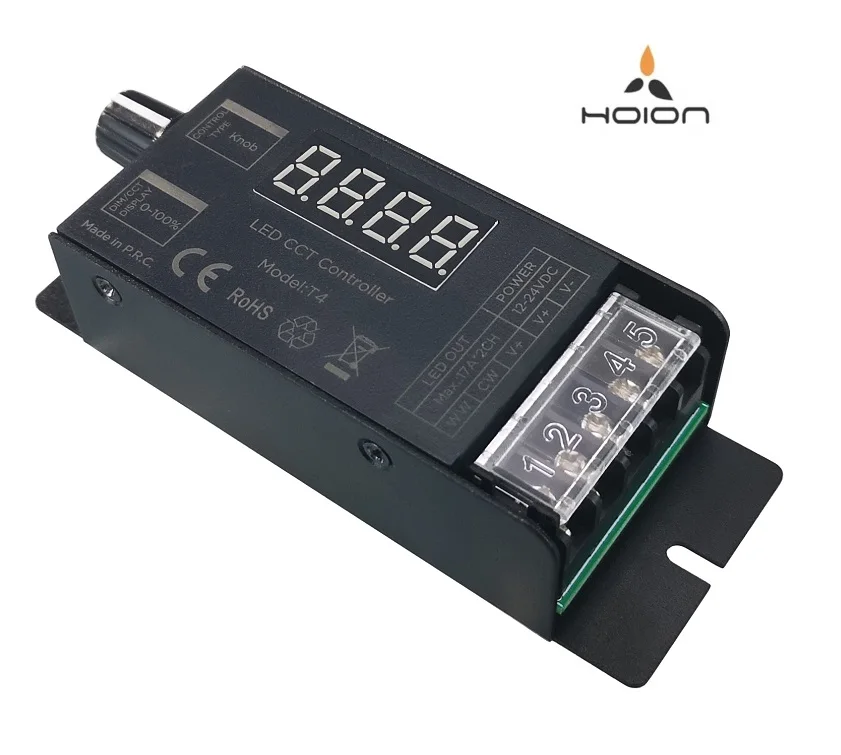

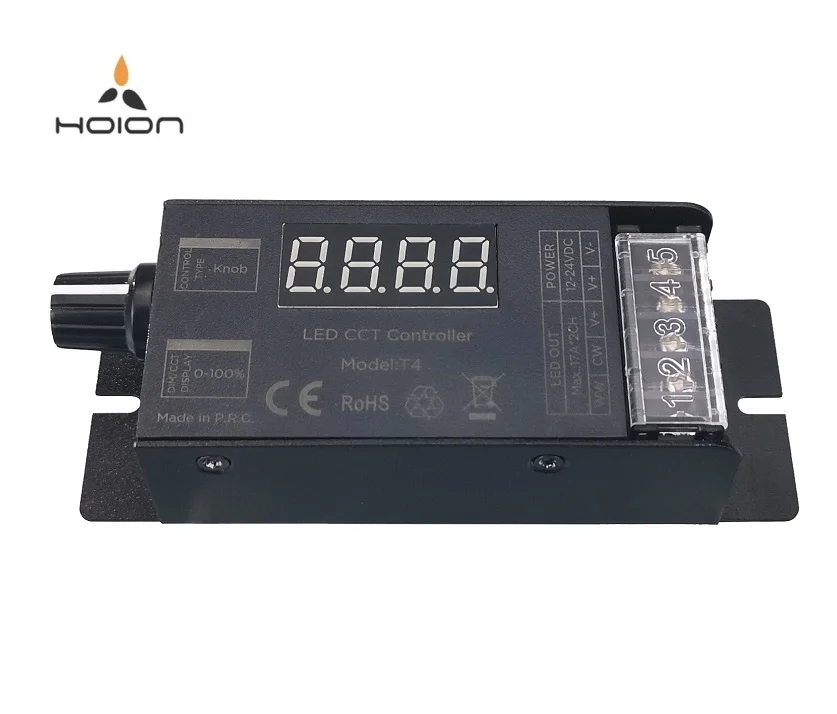

Detailed Images
Input and output with Transparent protective cover.
External antenna, convenient to extend the antenna outside the metal case when needed.
Adopt the knob control manner, soft dim function, display the brightness.
Connection port instruction
Direction for use
* Connect the load wire at first, followed by the power wire; Please ensure short circuit can not occur between connecting wire before turning on the power;
* The built-in button knob of the dimmer can realize the functions of dimming and color temperature, and the two functions can be switched by short pressing the knob button;
1) When dimming, the digital tube brightness display: d***, from d000 to d100, means 0%-100%;
2) When adjusting the color temperature, the color temperature display of the digital tube: C***, total 100 levels , from C000 to C100, means 100%WW-100%CW;
* The PWM frequency can be adjusted through the RFBT10 remote control or the knob button, and the digital tube PWM display: P***, there are 6 frequencies (the maximum load current value will also be relatively adjusted), as shown below:
* The built-in button knob of the dimmer can realize the functions of dimming and color temperature, and the two functions can be switched by short pressing the knob button;
1) When dimming, the digital tube brightness display: d***, from d000 to d100, means 0%-100%;
2) When adjusting the color temperature, the color temperature display of the digital tube: C***, total 100 levels , from C000 to C100, means 100%WW-100%CW;
* The PWM frequency can be adjusted through the RFBT10 remote control or the knob button, and the digital tube PWM display: P***, there are 6 frequencies (the maximum load current value will also be relatively adjusted), as shown below:
PWM frequency | Digital display | Max. output current/watt | ||
500Hz | P005 | 17A 200W/12V | 17A 400W/24V | |
1KHz | P010 | 17A 200W/12V | 17A 400W/24V | |
2KHz | P020 | 17A 200W/12V | 17A 400W/24V | |
4KHz | P040 | 13A 150W/12V | 13A 300W/24V | |
7.8KHz | P078 | 13A 150W/12V | 13A 300W/24V | |
15.6KHz | P156 | 10A 120W/12V | 10A 240W/24V | |
PWM Frequency Adjustment operation :
1) by HX-RFBT10-2.4G remote control: Press and hold the remote control “Set” for 10 seconds after switch off the dimmer by remote control(the dimmer is in off state) within10 seconds, display will show as: P***. Means enter “PWM adjusting” state. Press Brightness+/- keys to adjust the PWM frequency, pressing “Set” button again to save it after finish the setting operation. Then the dimmer return to power on state automatically.
2) by Knob button on controller: long press the knob button for 10S to enter PWM adjustment, the digital tube of the dimmer will display P***, then turn the knob to select PWM, and then short press the knob to save after selection.
Please note: PWM setting operation should be finished within 1 minute, will automatically exit PWM adjusting status without save it after 60 seconds.
2) by Knob button on controller: long press the knob button for 10S to enter PWM adjustment, the digital tube of the dimmer will display P***, then turn the knob to select PWM, and then short press the knob to save after selection.
Please note: PWM setting operation should be finished within 1 minute, will automatically exit PWM adjusting status without save it after 60 seconds.
Wireless-synchronization function
Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely.
Receivers will transmit the control signals from the remote control and self-inspection the work statues for each other, so multiple receivers in same zone will wireless-sync-work completely.

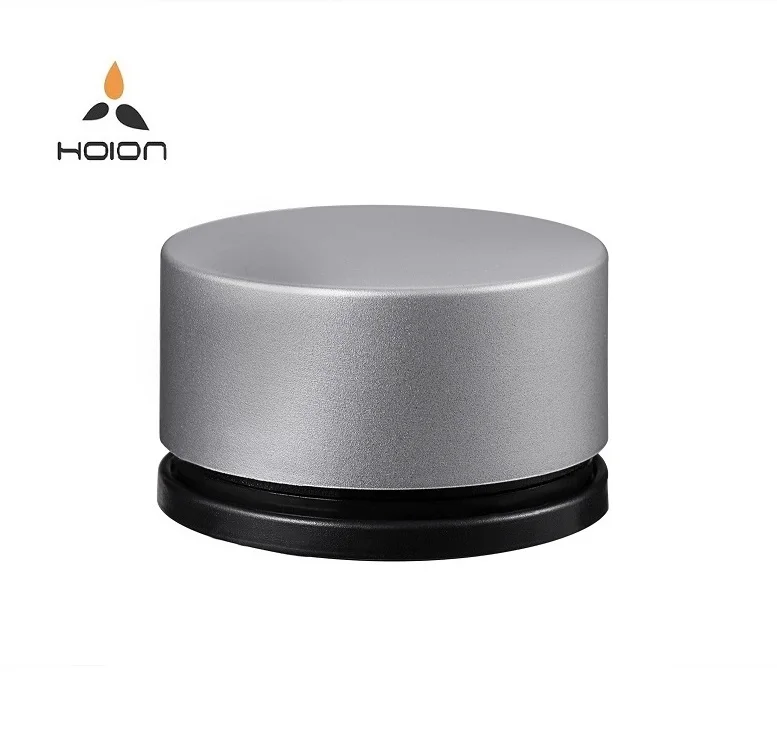

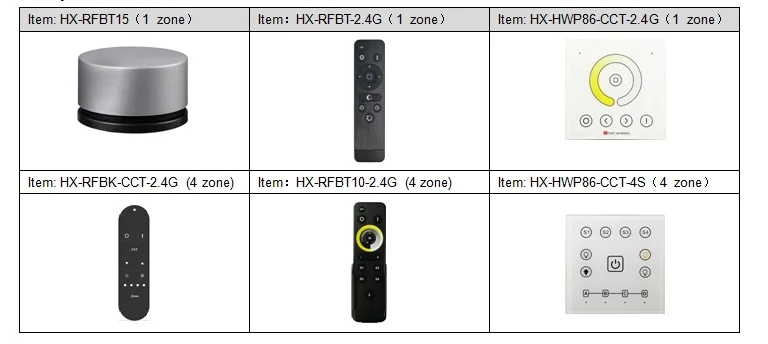

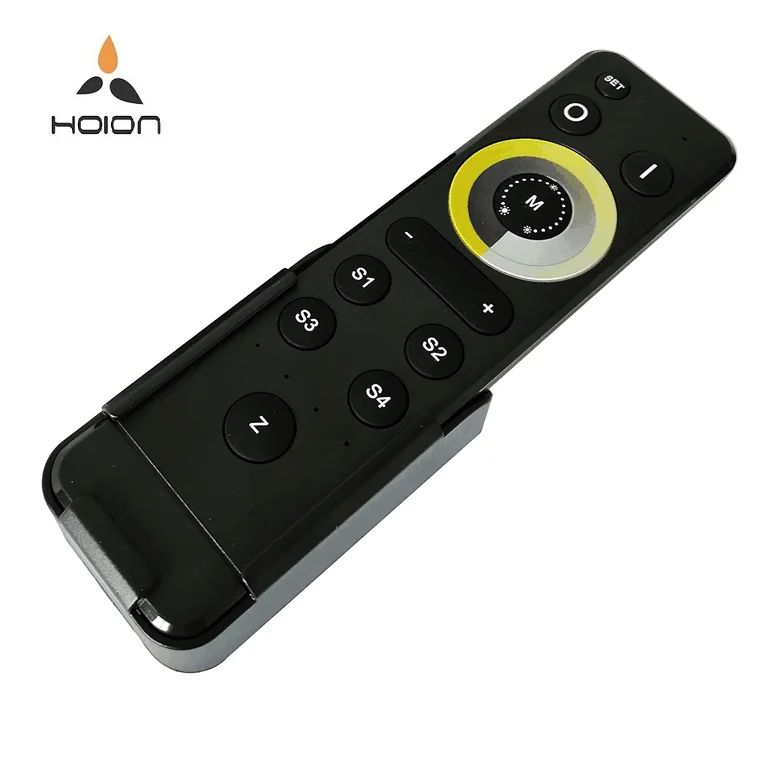

Compatible remote control

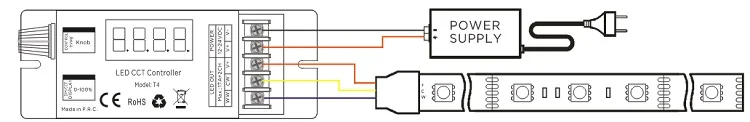

Typical Application Circuit:
Certificate
Related Products
Company Introduction
We are manufacturer and specialized in led control field from 2010 years.
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
■RGB controller ■Wireless RF controller ■IR remote controller ■LED dimmer,
■RGB amplifier ■SPI controller ■LED Audio Controller ■DMX512 decoder
Our main products include:
Constant voltage controllers for DIM/CCT/RGB/RGBW/RGBWW:
■RGB controller ■Wireless RF controller ■IR remote controller ■LED dimmer,
■RGB amplifier ■SPI controller ■LED Audio Controller ■DMX512 decoder
Constant current RF dimming driver for DIM/CCT:
■RF 2.4G SYNC dimming driver (DIM) ■RF 2.4G SYNC dimming driver(CCT)
■RF 2.4G remote control ■RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.Reliable cooperation based on ISO9001 quality control system and delivery time control.
3.Experienced on the OEM/ODM work.
■RF 2.4G SYNC dimming driver (DIM) ■RF 2.4G SYNC dimming driver(CCT)
■RF 2.4G remote control ■RF 2.4G multiple-zone remote control
Our advantage:
1.Stable quality---3 years warranty
2.Reliable cooperation based on ISO9001 quality control system and delivery time control.
3.Experienced on the OEM/ODM work.
Based on the years of the technical precipitation and production experience, we provide hundreds of (easy to use, reliable, low price) products for the whole world wide clients and projects.
In addition to the performance and cost considerations, we also pay attention to the long-term use of the product reliability. We have a rigorous standard control procedures and norms for each product from the technical research, product design, selection of materials, trial production to the final mass production; also have a efficient management mode from the front of the business process to the back of the production plan, incoming and quality control , Production process, product testing, shipping, etc. In
order to stabilize the quality and improve the production capacity , we introduced screw machines, product manual folding machines, shell printers and other automated production equipments.
In addition to the performance and cost considerations, we also pay attention to the long-term use of the product reliability. We have a rigorous standard control procedures and norms for each product from the technical research, product design, selection of materials, trial production to the final mass production; also have a efficient management mode from the front of the business process to the back of the production plan, incoming and quality control , Production process, product testing, shipping, etc. In
order to stabilize the quality and improve the production capacity , we introduced screw machines, product manual folding machines, shell printers and other automated production equipments.
