Product Description

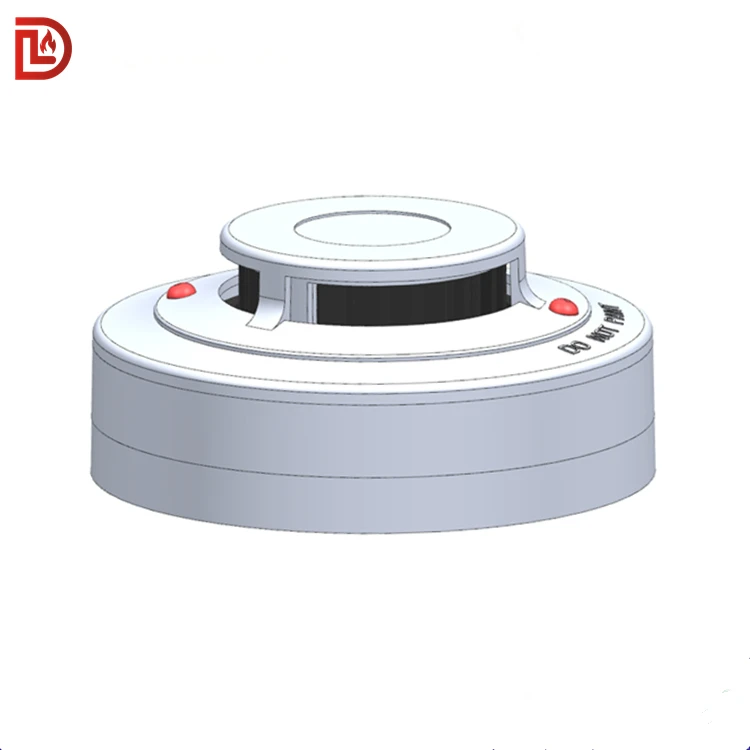

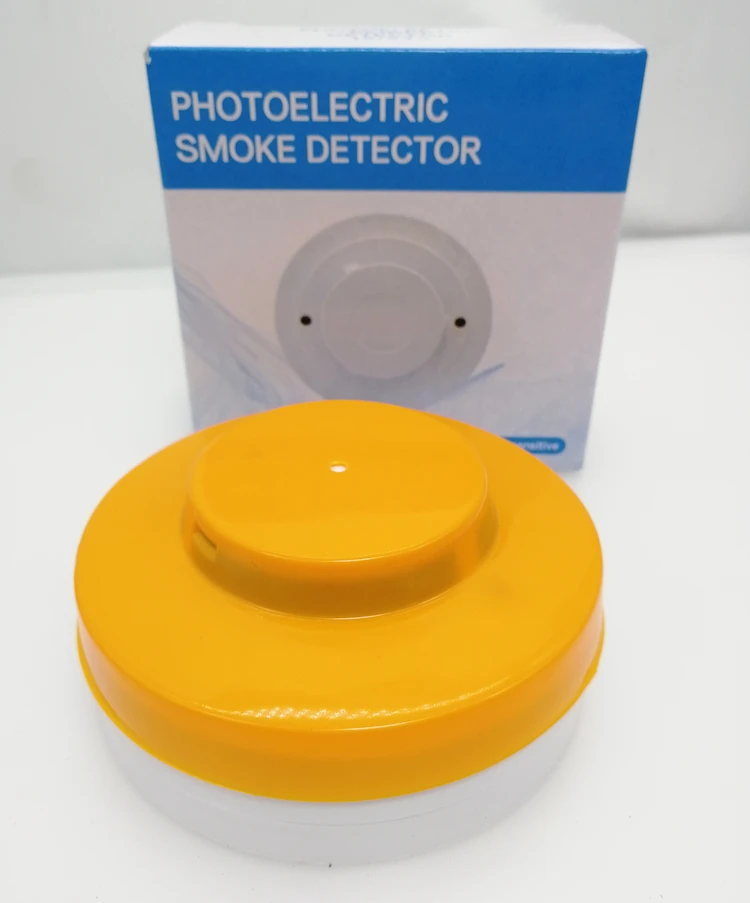

2 Wire 24V Addressable Smoke Detector fire Alarm System
The Addressable Type Photoelectric Smoke Detector (detector for short hereinafter) is a new generation infrared photoelectric Smoke Detector. It detects the smoke by a couple of infrared diodes, it can collect datas on spot and examines the voltage of both sides. Its perfect isolation measurement ensures a good anti-interference ability. Meanwhile, adopted with anti-humid, anti-corrosive and anti-mildew measures, the detector has got a good protective ability in littoral humid areas. The detector,applied with electro-encoding method, is used together with the Fire Alarm Control Panel produced by our company. At normal working state, the red LED is flashing per 6 seconds and when there is fire alarm signal inspected, the red LED flashing quickly.


Features
* STRONG ADAPT ABILITY FOR CIRCUMSTANCE
* SMT DESIGN, HIGH STABILITY
* 20-30VDC WIDE VOLTAGE
* 2 WIRES, NO POLARITY INPUT
* FLASHING LED POWER INDICATOR
* CONTROLED BY CONTROL PANEL


Product Name
addressable smoke detector wired photoelectric smoke detector
Operating voltage
loop 24V(18V~28V)
Operating voltage
loop 24V(18V~28V)

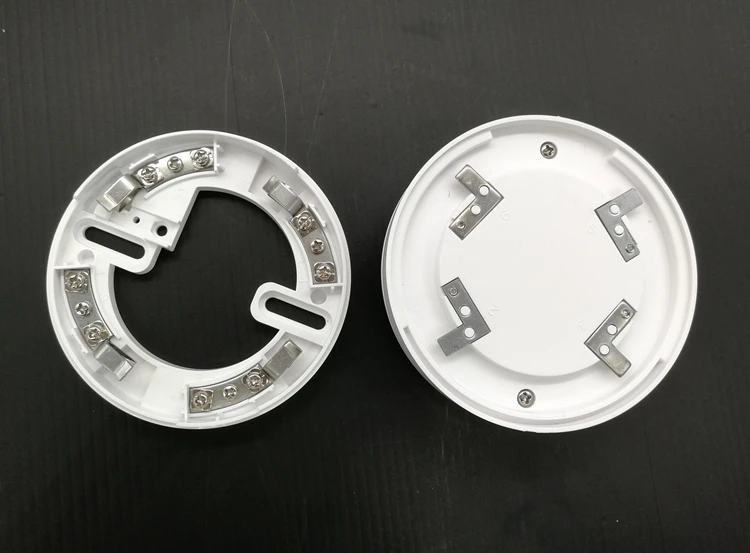

Wiringloop
two wire
FUNCTION
can realize electronic code and rewrite the address via coder in situ
Standby current
<0.3mA
Programmable range
1~220
Alarm current
<3mA
Reset
power off or auto reset
Alarm output
Remote led for 2 wires;Relay output for 4 wires
Sensitivity
0.13db/m(±0.05db/m)
Standard
ED54-7 UL268

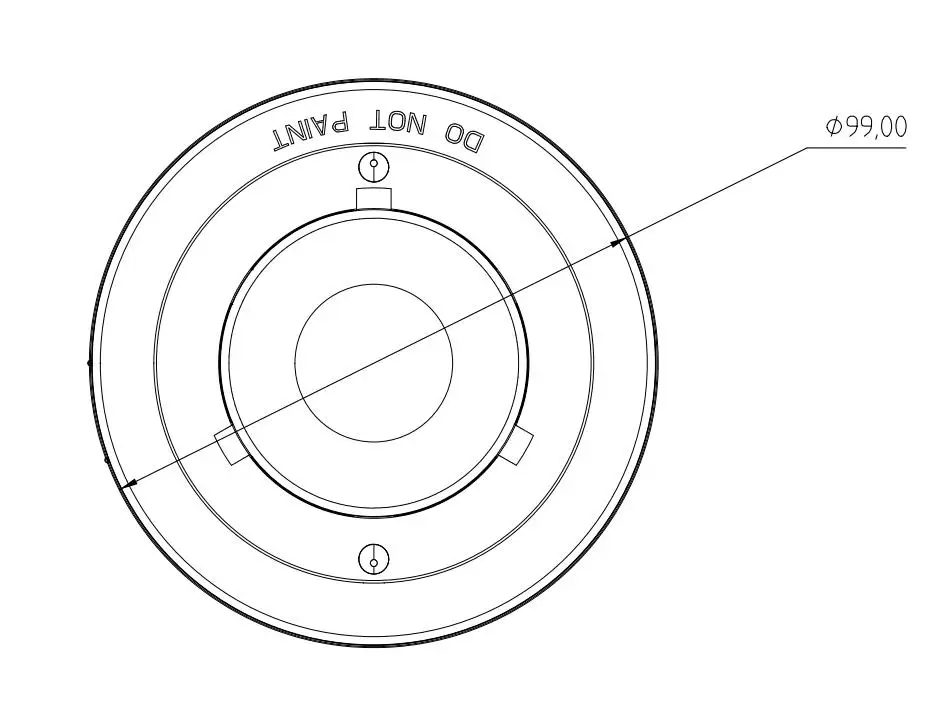

Size
D101MM*H49mm
Port
Port
