Products Description

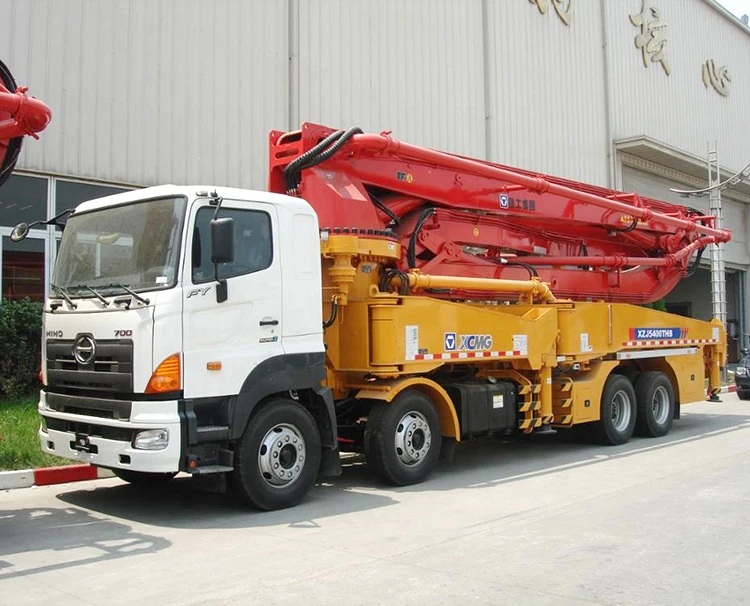

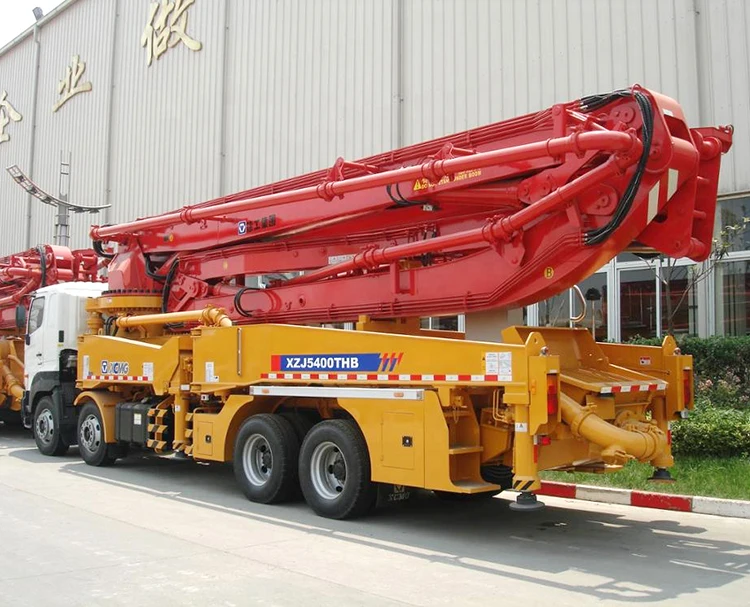

XCMG truck-mounted concrete pump HB48K 48m China truck mounted concrete pump for sale

1, XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

2, It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.

Product Paramenters

Description			Unit	Parameter value
Outline dimension			mm	12510×2500×3990
Overall weight			kg	33000
Chassis	Model		ZZ5347V484MC1
		Max. speed	km/h	90
		Max. grade-ability	%	40
		Wheelbase	mm	4800+1400
		Tire		315/80R22.5
Engine	Model		MC11.40-30
		Max. power	kW	297
		Max. torque	N·m/(r/min)	1900/1000~1400
		Displacement	L	10.518
		Emission standard		Eruo III
Pumping system	Theoretical output	m³/h	170
		Concrete pumping pressure	MPa	8
		Theoretical pumping times	Time/min	23~26
		Delivery cylinder diameter ×stroke	mm	φ260×2000
		Max. diameter of pumping concrete	mm	≤40
		Filling height	mm	1580
		Concrete slump range	cm	8~23
Placing boom	Reach height	m	47.5
		Reach depth	m	34
		Slewingradius	m	43.5
		Slewing angle	°	±270
		Unfolding angle of the 1st section	°	90
		Unfolding angle of the 2nd section	°	180
		Unfolding angle of the 3rd section	°	180
		Unfolding angle of the 4th section	°	240
		Unfolding angle of the 5th section	°	210
		Unfolding angle of the 6th section	°	120
Stabilizer span	Longitudinal span of stabilizer	mm	8955
		Transverse span of front stabilizer	mm	7884
		Transverse span of rear stabilizer	mm	9940
Others	Lubrication method		Automatic lubrication
		Control method		Manual/remote control
		Volume of water box	L	1300
