This machine is suitable for making honeycomb paper,geami wrapping paper from 70g to 100g.
The unwinding,paper cutting and rewinding in one process.
Main motor equipped with inverter for speed regulation.
Automatic ultrasonic web guide controller for unwinding.
Tension controlled by magnetic powder brake and clutch.
Automatic meter counting device,automatic stop after it reaches the length you set.
Technical parameters:
Machine model
YD-500Y
Web working width
600mm
Mould effective width
500mm
Unwinding diameter
0-1200mm
Unwinding stand weight
1Ton(can make more bigger)
Unwinding shaft
3 inch inflatable air shaft
Rewinding shaft
1inch/1.5inch/2inch/3inch
Machine size
2620*1640*1160mm(LWH)
Machine weigth
1000Kgs
Power supply
380V 3 Phases 5 wires
Air pressure
6-8kg/c Square meter
*the voltage can customize according to your country standards.
Application
Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning.It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,glassware etc.
Machine Display
Machine Details
Control Panel
You can control every functions in this control panel,the length,tension of each shaft,die cutting speed,edge/line position controller,etc.it's convenient for workers to operate the machine.
Engraved Cylinder
The mould effective width is 500mm,so that you can received 500mm honeycomb paper rolls.
Ultrasonic web guide Sensor
This machine is equipped with ultrasonic sensor.It can sensor the edge of roll material,make sure the material goes in straight line into the cutting station.
After-service
1. Training Service We can train your staffs how to run the machine efficiently and safely. 1.1 Free training in our factory available before delivering machines. 1.2 We also can arrange engineer to customer's plants for installation and training.
2. After Sales Service We offer not only the products, but also the solutions.We have plenty of cooperated professional supplier which make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
For all of our machines, we provide: 1. Operation Manual, Operation and repair Video. 2. 1 year guarantee, whole life technical support .we also offer some spare parts packing together with the machine. 3.24hours Email technical support, we will do our best to help the clients solve problems. 4.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
Packing & Delivery
PACKAGE: we use plywood case for packing the machine to make sure wooden case safe and strong, up to International trade standard. It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .we will use PE film for packing first before plywood case or pack it according to customers special .
SHIPPING : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder to help customers to deliver the machinery in first time .
Factory
Похожие товары
fine good quality fast take away food pe coated oil water proof embossed paper lunch meal box machine price
7 432,71 ₽ - 1 114 906,50 ₽

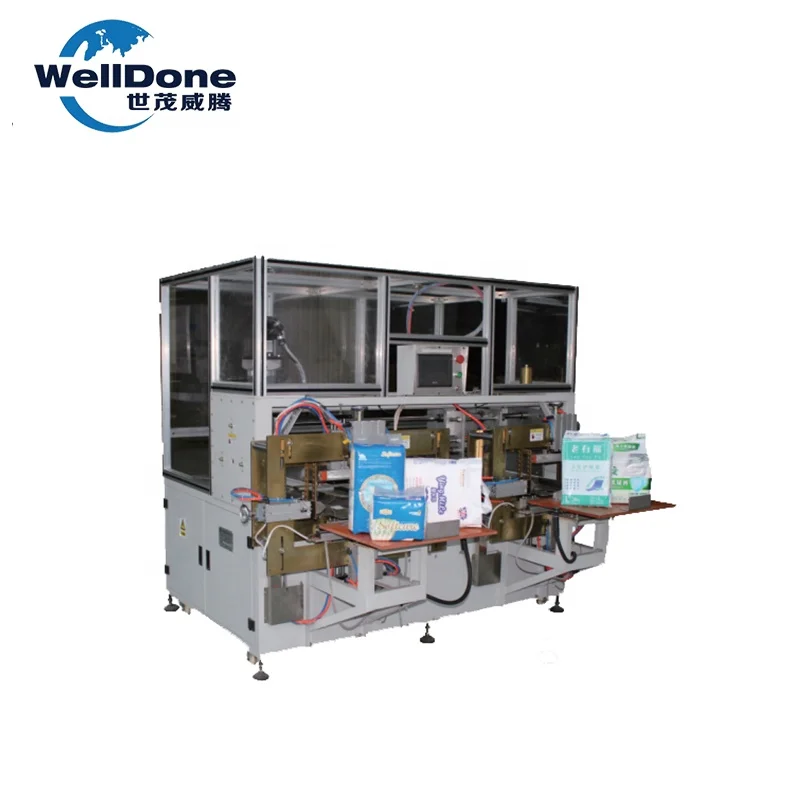

Используется машина для использования детских подгузников с упаковочной машиной для детских подгузников
743 271,00 ₽

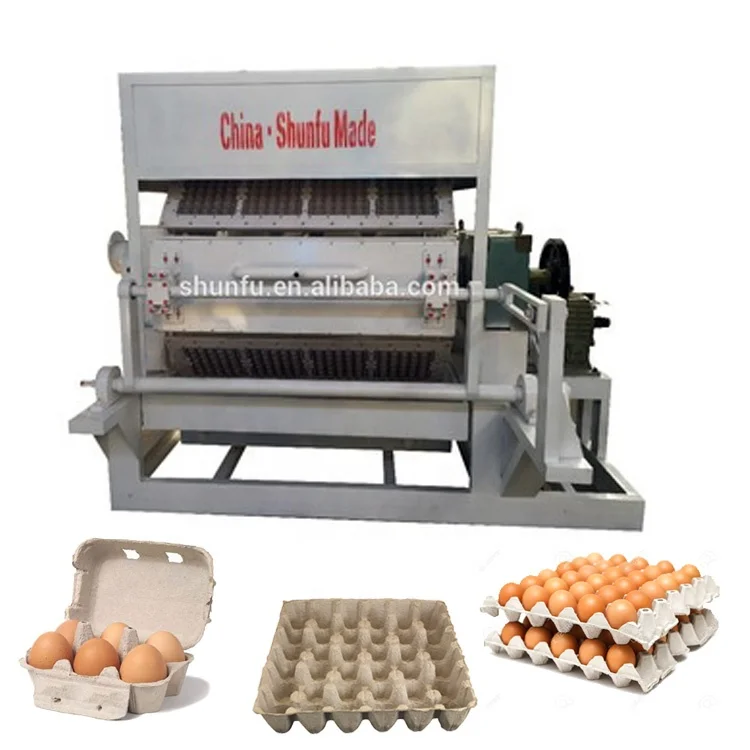

China Fully Automatic One Time Disposable Used Paper Egg Tray Making Machine Price
613 784,91 ₽
Машина для производства бумаги в виде сот шириной 500 мм
2 229 813,00 ₽

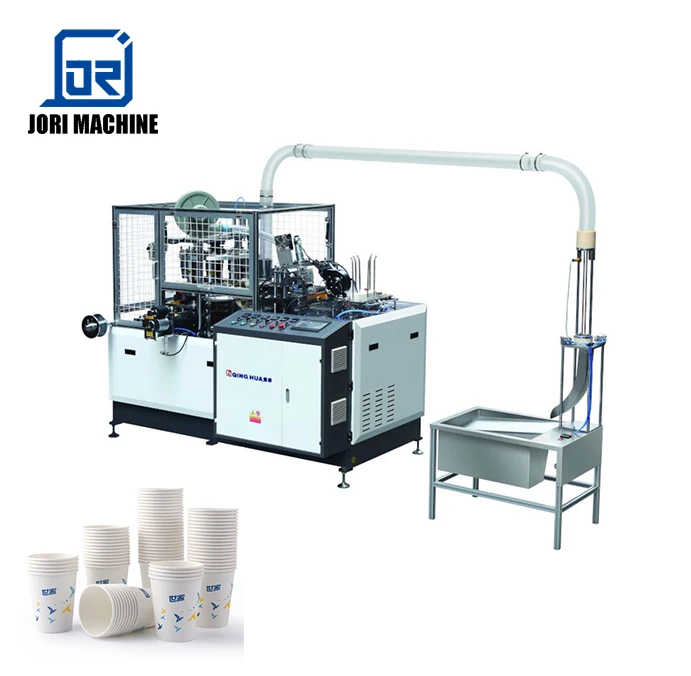

Полностью автоматическая ультразвуковая машина для изготовления чайных бумажных стаканчиков одноразовая машина для производства бумажных стаканчиков
3 716 355,00 ₽
Автоматическая Термоформовочная Машина для формирования коробок для яиц с горячим прессом
5 738 265,00 ₽

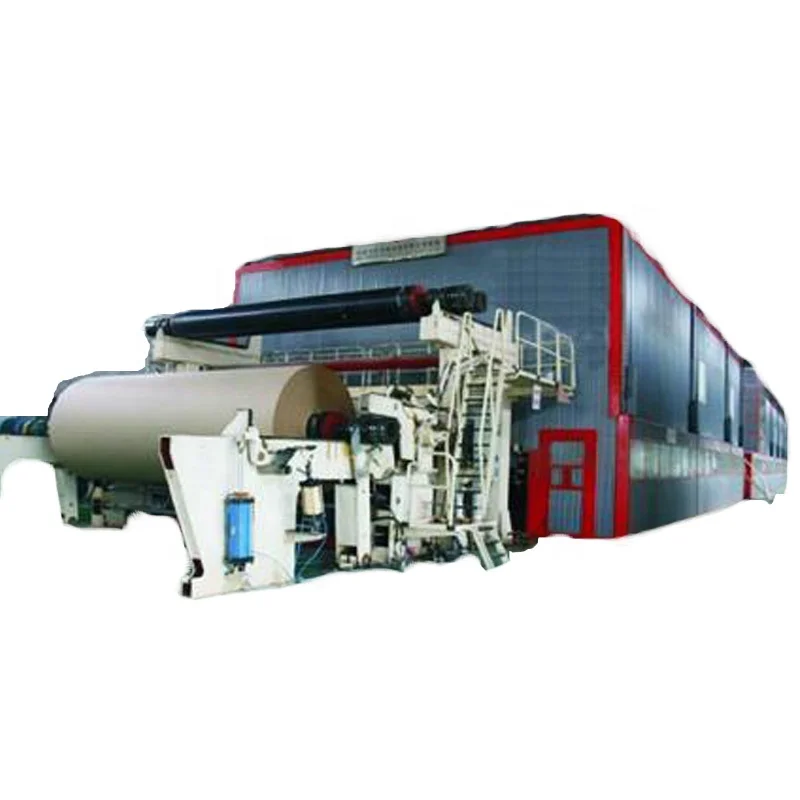

Машина для переработки картонной бумаги с производством
14 865 420,00 ₽ - 33 447 195,00 ₽

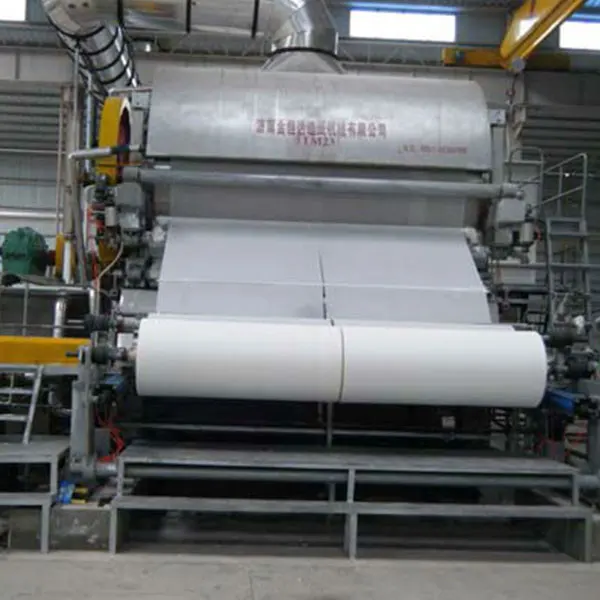

Машина для производства туалетной бумаги для малого бизнеса
