Полусферическая плата P40 800 каналов FOIF A90 gps gnss rtk поддержка иду 60 градусов
- Категория: >>>
- Поставщик: Shanghai Hexin Survey Instrument Company Ltd.
Сохранить в закладки 1600113547042:
Описание и отзывы
Характеристики
Hemisphere board P40 board 800 channels FOIF A90 gps gnss rtk support IMU 60 degree tilt survey
With a hi-tech, fully integrated design, the conveniently sized A90 is one of the most flexible device for any gps measuring task. Built-in Linux operating system, pre-loaded multiple smart applications such as IMU, electronic bubble calibration, NFC and voice DIY.

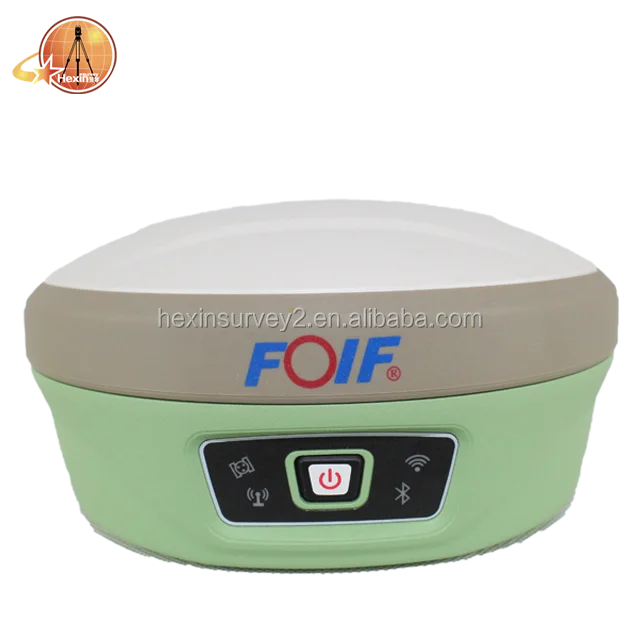

Overview On NEW GENERATION A90 CORS GNSS Receiver
New generation receiver--- Compact, lightweight and handling! Work anywhere and anytime!
Top Features:
1), Smart Design, more productive
With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot.
2), Brand new idea
In terms of cellular mobile and wireless system, we tend to introduce more and more creativities into our product. Besides a set of bluetooth, wireless radio and mobile network, we bring in the WIFI function which quite broaden data communications for GNSS.
3), Excellent performance:Embedded with high-sensitivity GNSS module , A90 can implement massive surveys:RTK, DGPS (SBAS) , Static, etc.
4), Professional GNSS satellites tracked simultaneously (GPS, GLONASS,GALILEO, BeiDou)
5), Automatic date collection during centering
6), Support the IMU function. When the pole 60 degrees,A90 still could get the right point bate by automatic correct system
7), Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status

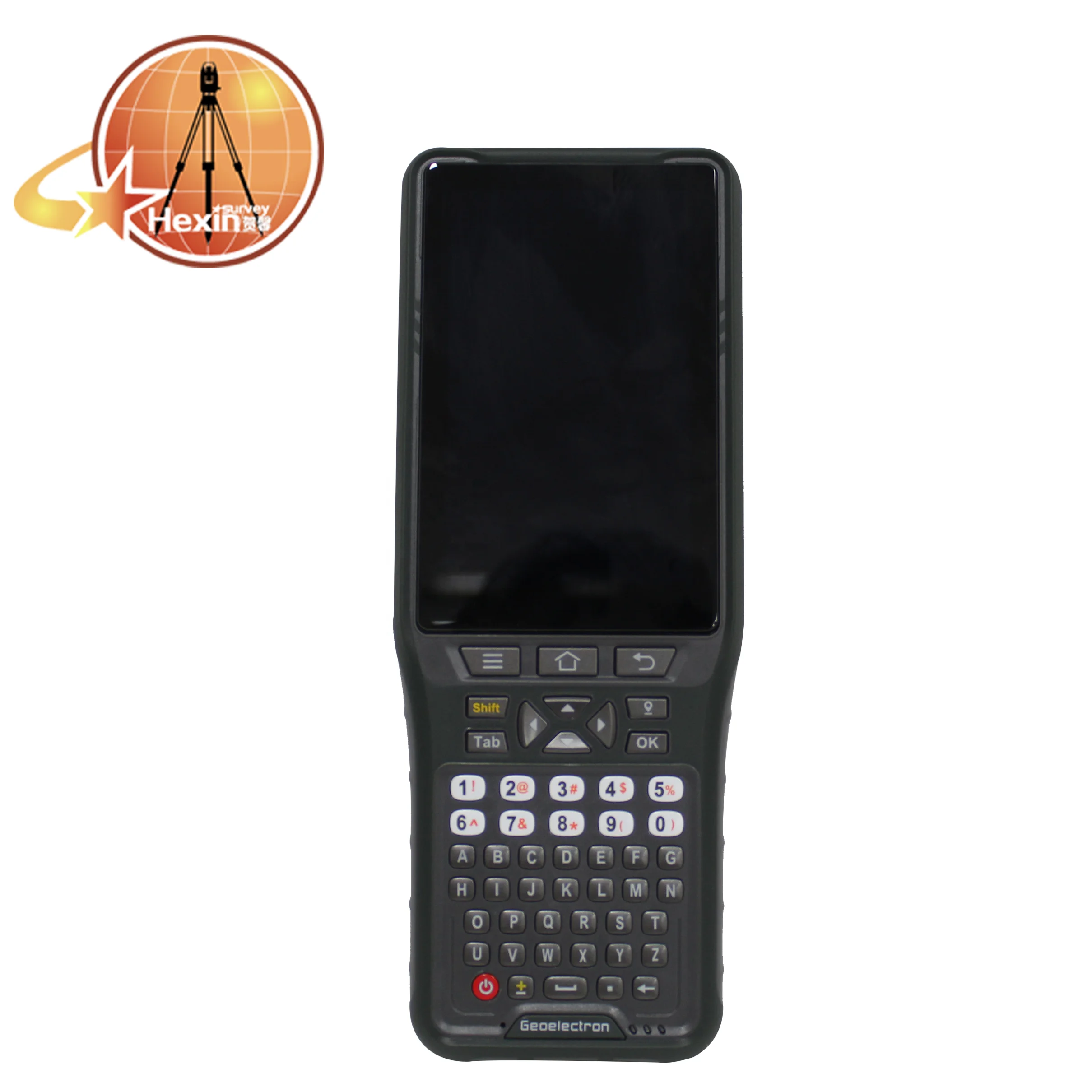

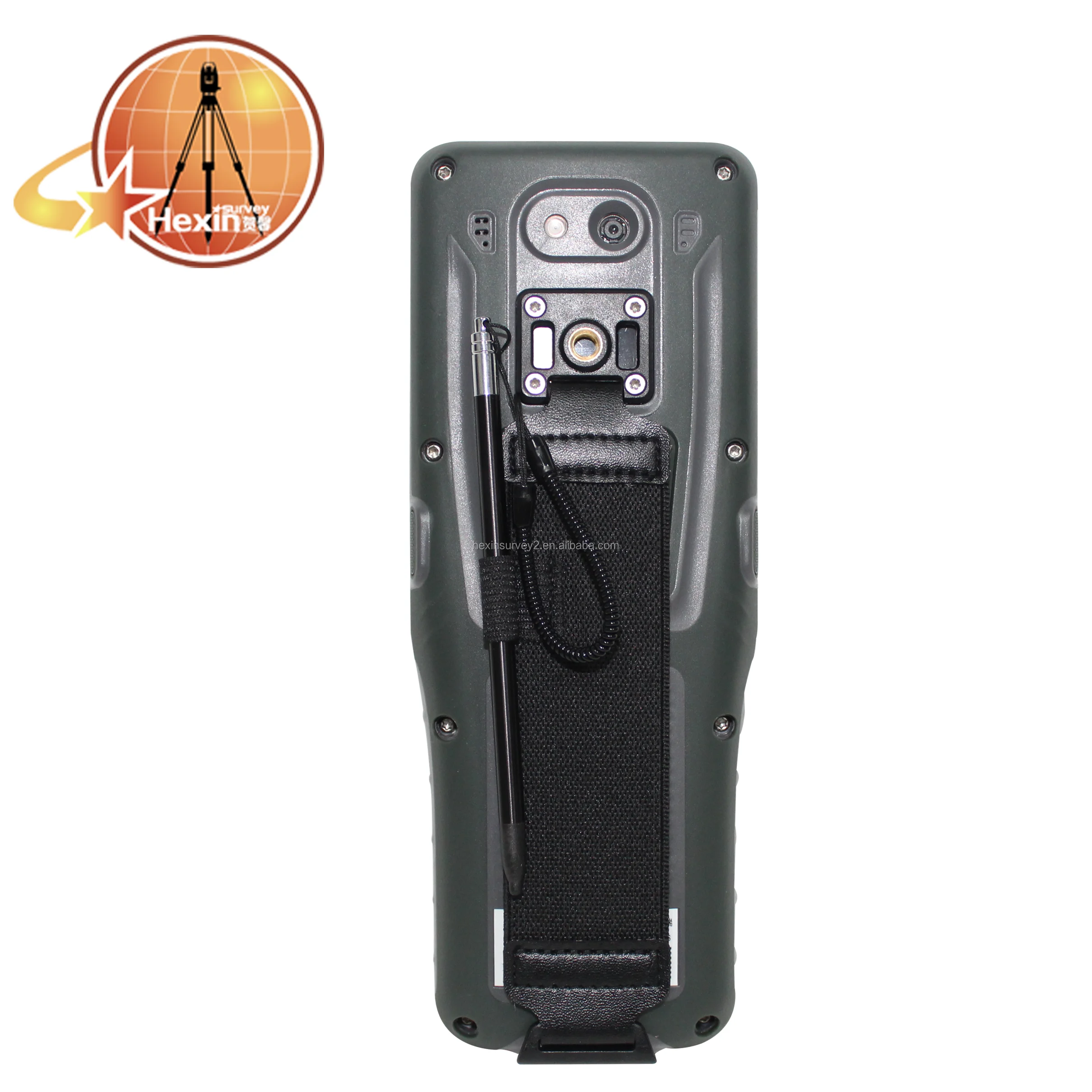

8), Bundled Android field software brings a big changes in user experience and accessibility
9),FOIF A90 gps gnss rtk with Hemisphere board P40 board 800 channels support IMU max 60 degree tilt survey.
Product Description
Advanced interface detection | GPS L1,C/A,L2E, L2C,L2E, L5 |
GLONASS L1,C/A,L1P, L2,C/A ,L2P,L3,L5; | |
BeiDou B1 B2 B3 | |
Galileo E1,E5,ALTBOC,E5A,E5B,E6 | |
SBAS(WAAS,MSAS,ENGOS)L1,C/A,L5; | |
GLOVE-A\\B L1 BOC(CBOC)-E5A/B, E5AltBOC | |
RTCM2.3, RTCM3.X, RTCM3.2, CMR, CMR+ | |
Channels | 800channels |
Performance specifications | |
Time to first | Cold start;<40s ; hot start <19s |
RTK initialization time | <10s |
RTK initialization reliablity | >99.9% |
Receiver accuracy | |
Static post processing accuracy | H:±2.5mm+1×10 ·D;V:±5.0mm+1×10 ·D |
RTK Positiong accuracy | H: ±8mm+1×10 ·D; V:±15mm+1×10 ·D |
Code different positioning accuracy | 0.45m |
Single point positioning | 1.5m |
DATA LINK | |
TX/RX Radio | Internal radio RX/TX 5KM-10KM |
External radio

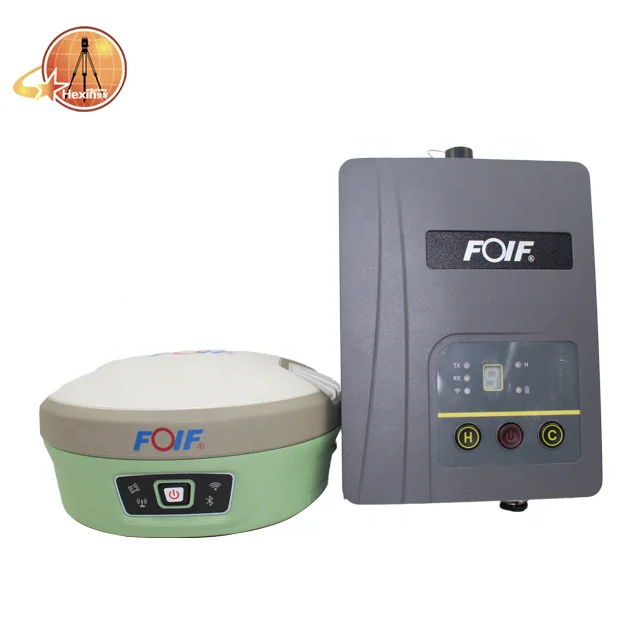

| FOIF external radio Rx & Tx(FDL-5, 2/35W selectable) |
50KM WORKING RANGE | |
WIFI
| WIFI connect controller |
WEB UI wireless management | |
GNSS upgrating /downloading/setting/base &rover | |
configuration | |
Operating system | Based on Linux, support Web UI |
voice | Multi language support |
IMU Tilt survey | IMU 60 degree |
3G/4G
| GSM/GPRS/EDGE (class 10) |
Quad-band | |
GSM/GPRS: 850/900/1800/1900MHz band | |
CDMA(Optional) | |
OTHERS | |
Battery
| 7.2V 6800mAh , removable battery |
over 13 hours when simultaneous use of 2 batteries | |
Display
| 4 led light; |
1 button key; | |
NFC Survey
| Internal electrical Bubble; |
Capacity for second general NFC Survey | |
Memory | 4G ,supports extending 32GB |
Interface
| RS232*2 / Bluetooth *1 / USB*1 SIM *1 / |
TF*1 / Internet *1 | |
Anti-dust & Anti-water | IP68 |
Temperature
| working model:-30℃~+65℃ |
store model:-40℃~+80℃ | |
Packaging & Shipping

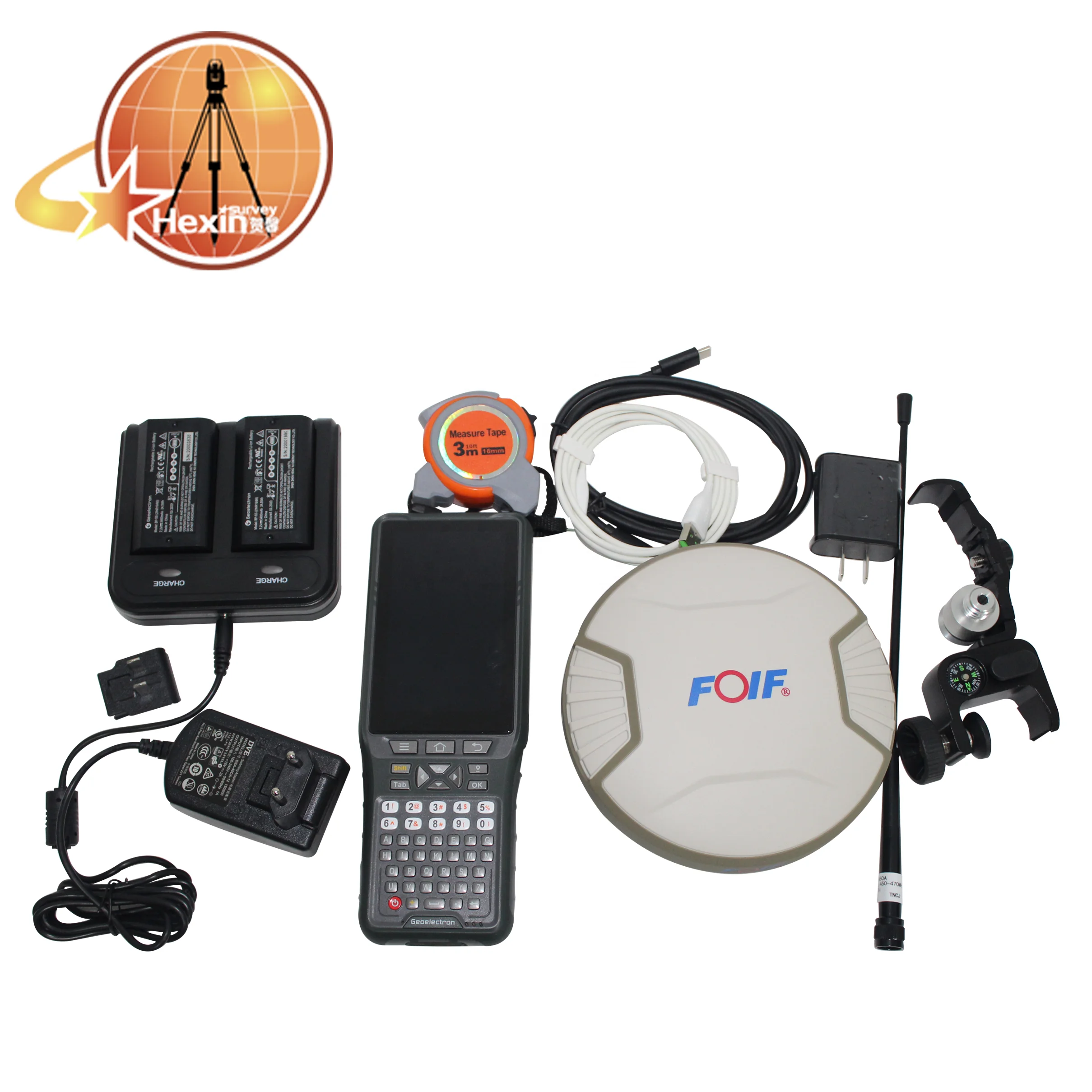

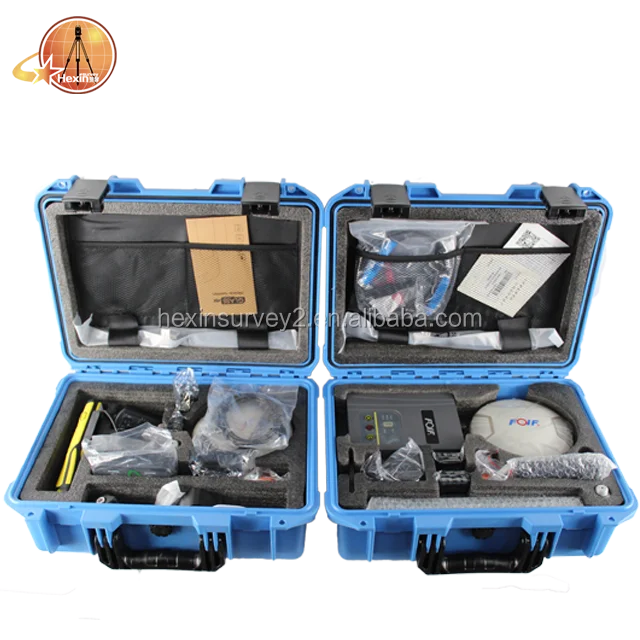

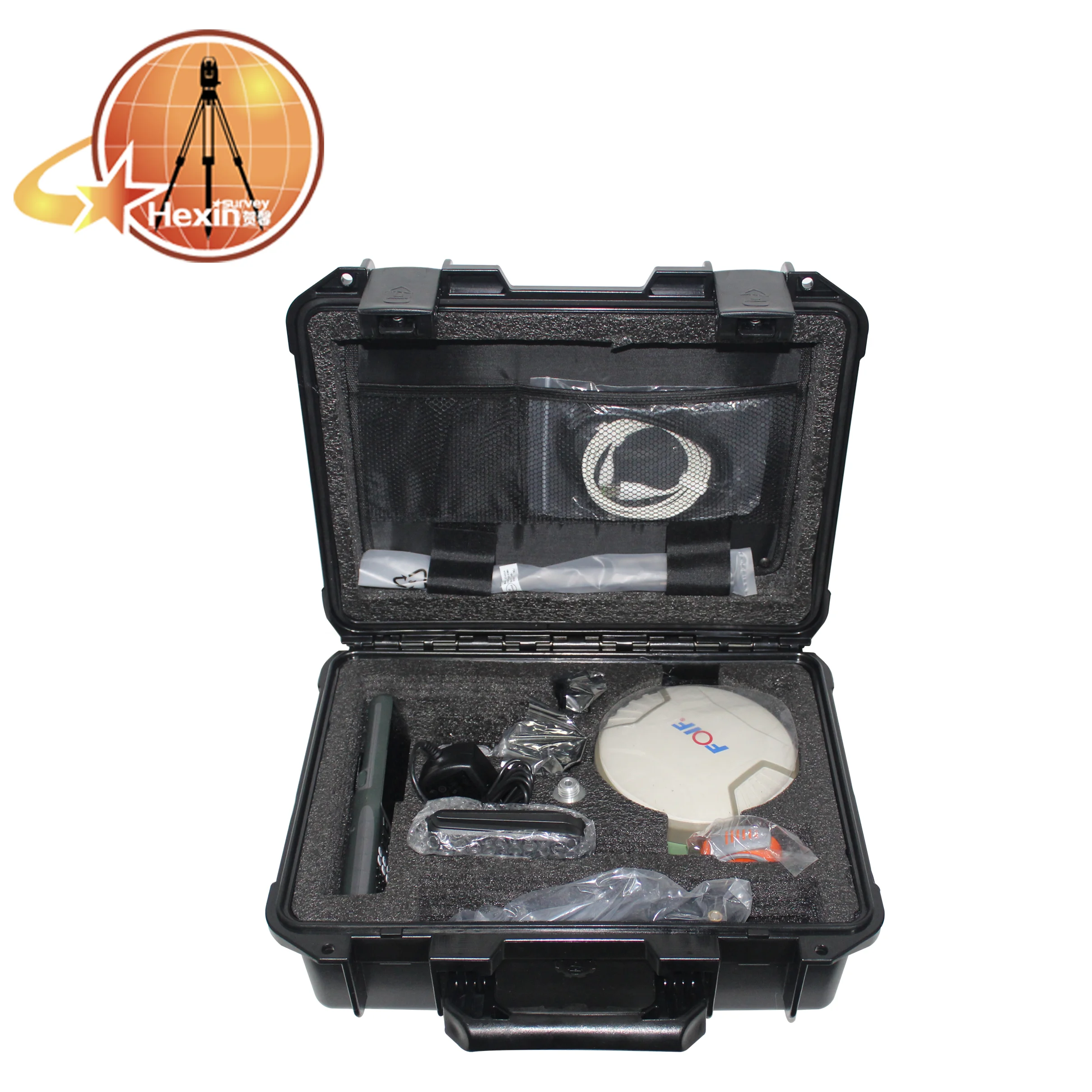

Packaging is absolutely fine, high-end and upscale. We have been dealing with foreign clients for more than 8 years. Before leaving the factory, every part is strictly tested.Please rest assured that we have all the necessary accessories for the instrument.
We have strong cooperation with DHL, TNT, UPS, FEDEX,EMS,China Air Post.
You can also choose your own shipping forwarder.
Payment
Generally, we accept Trade Assurance, Paypal, Advance T/T, and West union.
If you prefer other payment terms, please let us know.
Company Information
Company Information
With 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Payment:
Generally, we accept Trade Assurance, Paypal, Advance T/T, and West
union.If you prefer other payment terms, please let us know.
Delivery:
1.Usually, we will send out the products within 3-5 working days after the payment confirmed.
2.Before shipment, pls supply the following information to us :
Contact person or company name
Detail address
Telephone No
Zip code
3.The buyer are responsible for the tax and/or duty charged by their country.
Return and warranty:
1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
Feedback:
Customer's feedback will be high appreciated after receive the items. Since your feedback are very important four our business development.
If you have any questions, please feel free to contact me.
Please click on me to let you have more surprise !
Please click on me to let you have more surprise !
Похожие товары

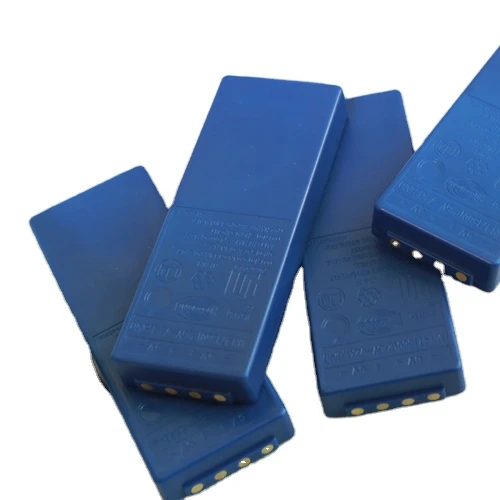

HBC пульт дистанционного управления бетононасос батарея горячая Распродажа батарея для бетононасоса пульт дистанционного управления
19,00 $ - 29,00 $
Автоматическая электрическая безопасная кофемолка 1000 г
75,00 $ - 88,00 $
Лидер продаж на Amazon, 1 л, гидрат, не содержит Бисфенол А, мотивирующий маркер времени, 32, 64 унции, милая дешевая пластиковая бутылка для воды
1,89 $ - 2,69 $
Нескользящие резиновые напольные коврики в рулонах, водонепроницаемые промышленные и коммерческие резиновые коврики

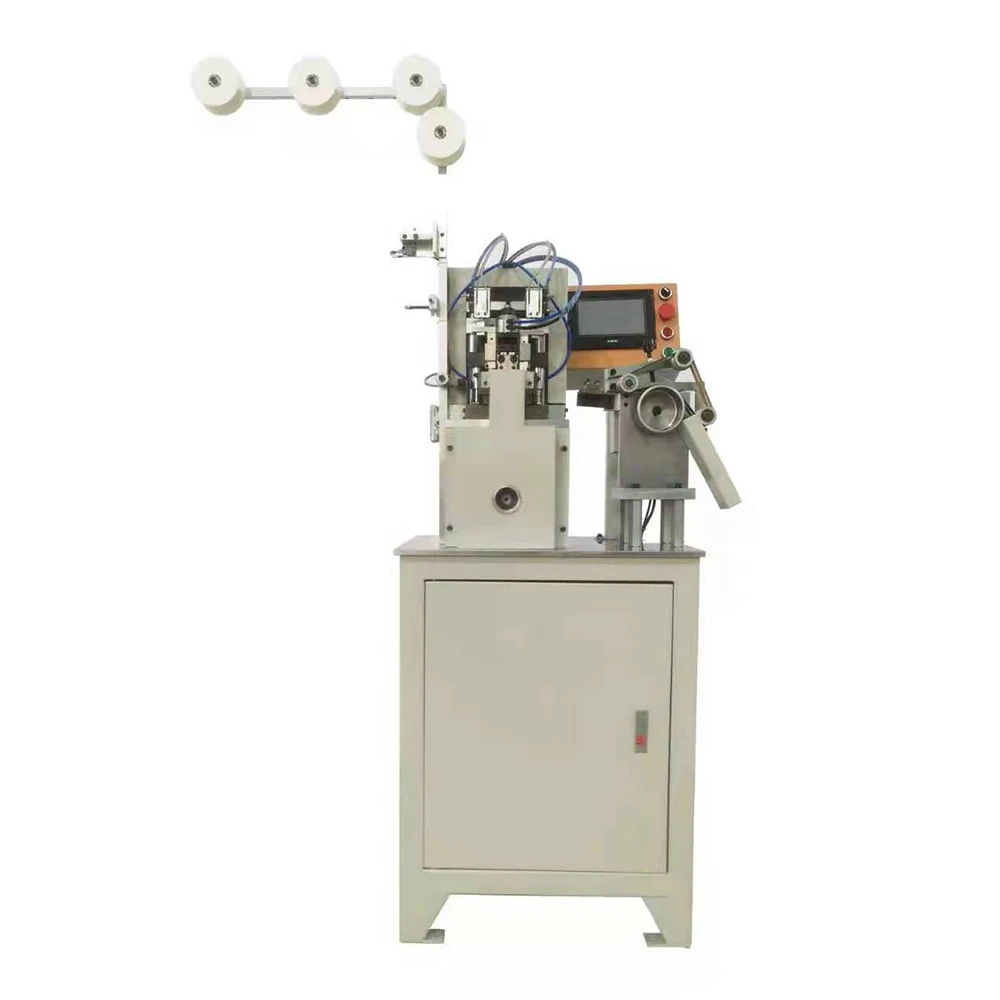

Новый продукт, 2022 нейлоновая молния, полностью автоматическая катушка, машина для чистки молний и половинных зубцов
5 600,00 $ - 6 000,00 $
Оптовая продажа из Китая профессиональный Красочный натуральный травяной крем для волос с низким содержанием аммиака органический Полупостоянный цвет
0,50 $ - 1,58 $

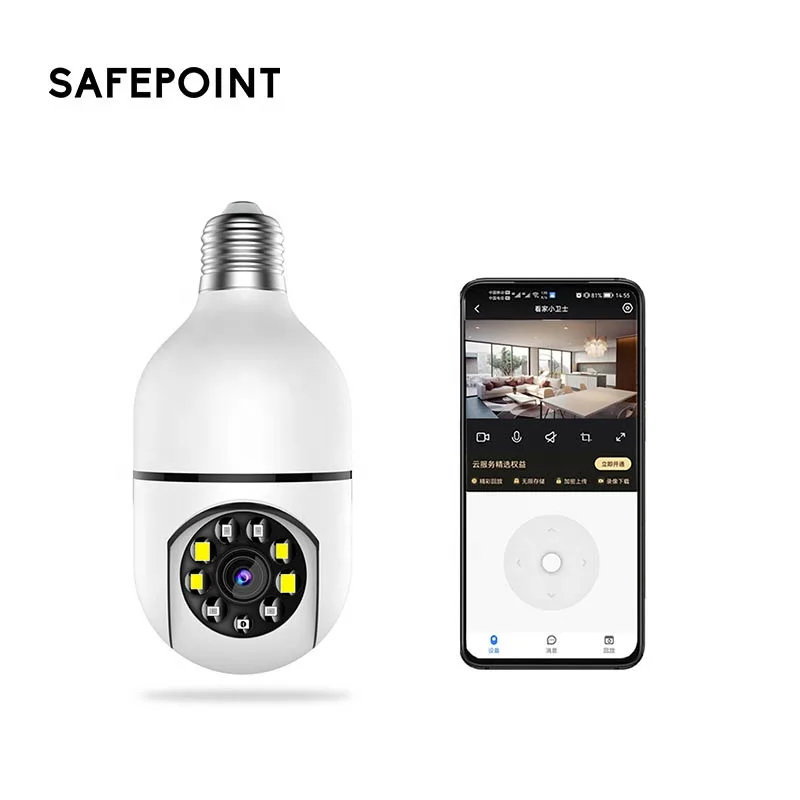

Панорамная камера видеонаблюдения SAFEPOINT SFC14 с углом обзора 360 градусов, сетевая VR-камера «рыбий глаз», IP-камера для домашней безопасности с Wi-Fi
