Products Description

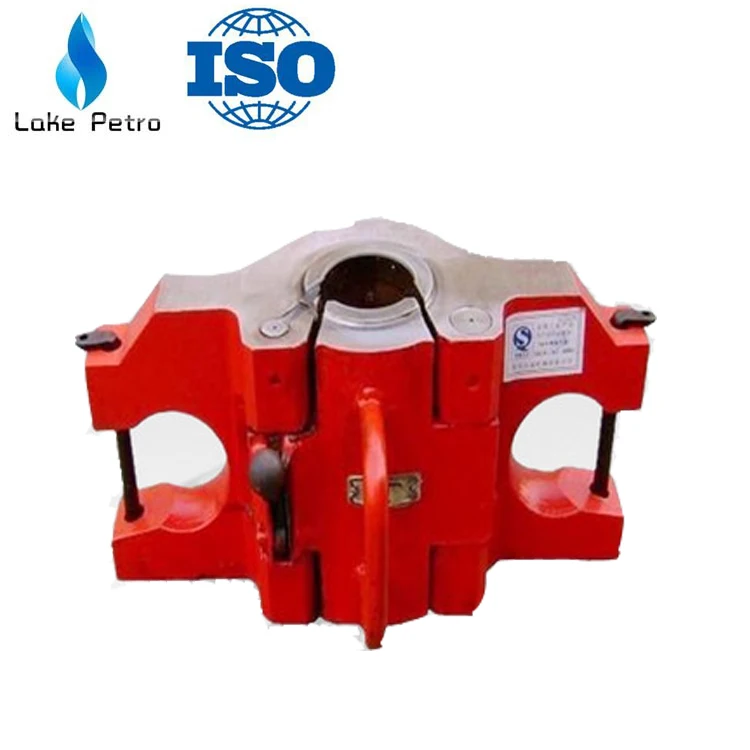

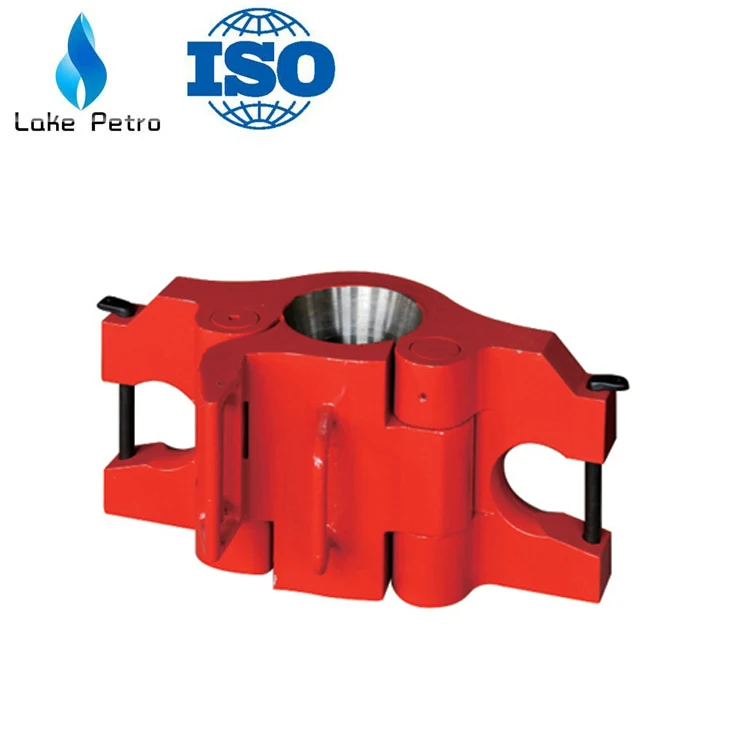

API Spec 8A/8C Type CDZ Elevators
CDZ series side opening taper drill pipe elevator is an important tool for lifting or lowering tapered step drill pipe in drilling oil, gas well or geological exploration. The side opening taper drill pipe elevator is reasonable in design, convenient in operation, safe and reliable in material selection. It is meticulously manufactured with advanced scientific and technological achievements and special strengthening and Toughening Heat treatment process. Through strict strength test and non-destructive testing, it has excellent structural strength and wear resistance. It can hold the drill pipe with diameter of 23 / 8eu-51 / 2ieu. The maximum load of elevator is 150t (1350kn), 200t (1800KN), 250t (2250kN), 350t (3150kN), 500t (4500kN).

The technical parameters and performance of taper drill pipe elevator meet the requirements of SY / T 5035, API Spec 8a and API Spec 8C.


Product Overview




Product Parameters


Main technical parameters:


Model
Size(in)
Rated Capacity
(short tons)
CDZ-150
2 3/8~5 1/2
150
CDZ-250
2 3/8~5 1/2
250
CDZ-350
2 7/8~5 1/2
350
CDZ-500
3 1/2~5 1/2
500
