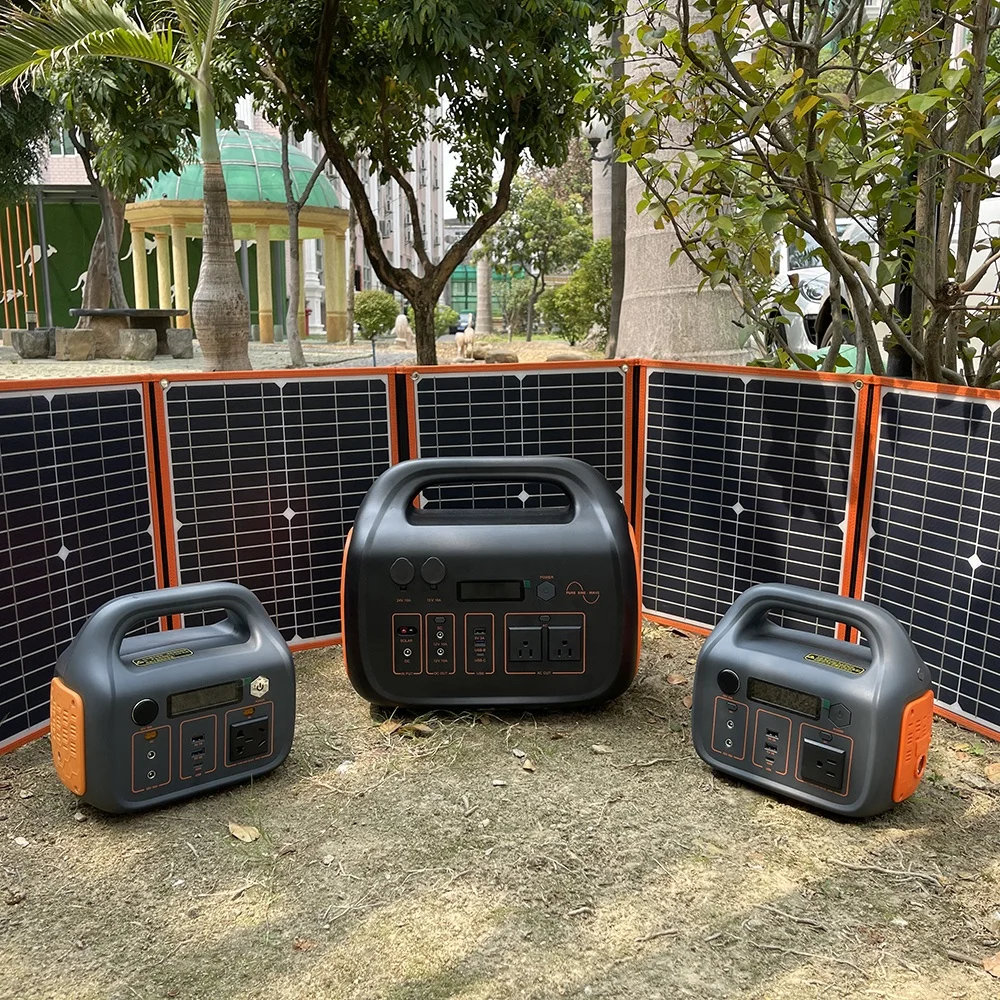

Tycorun 300 Вт/500 Вт/1000 Вт/2000 Вт/3000 Вт аварийная батарея Powerbank Аренда зарядная станция портативный солнечный генератор электростанция
296,00 $ - 316,00 $

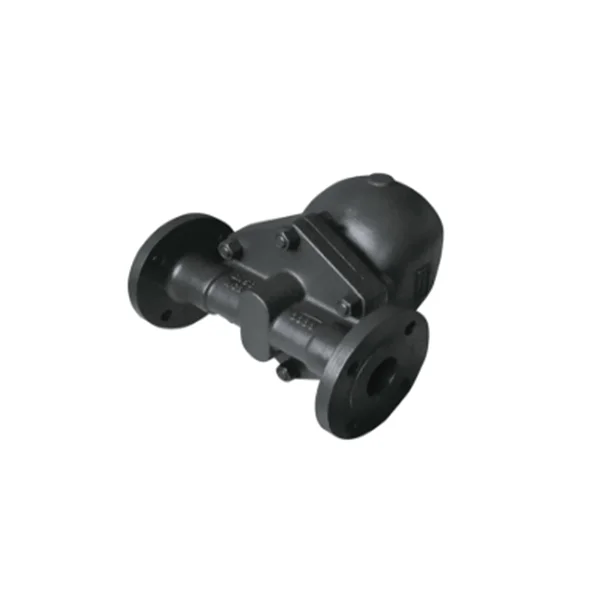

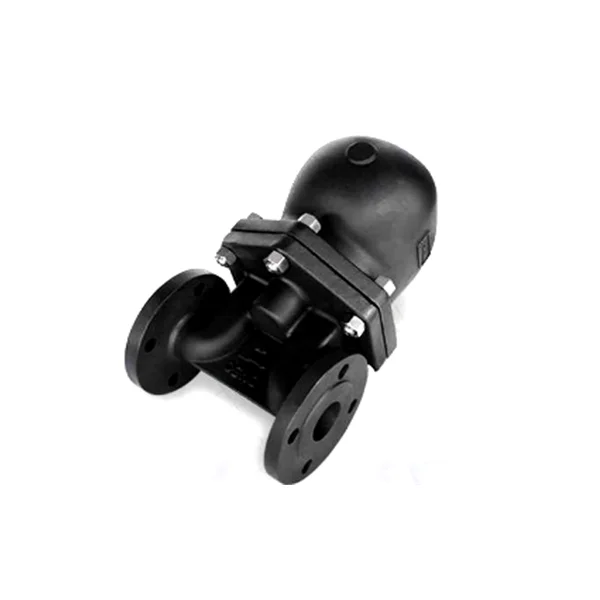

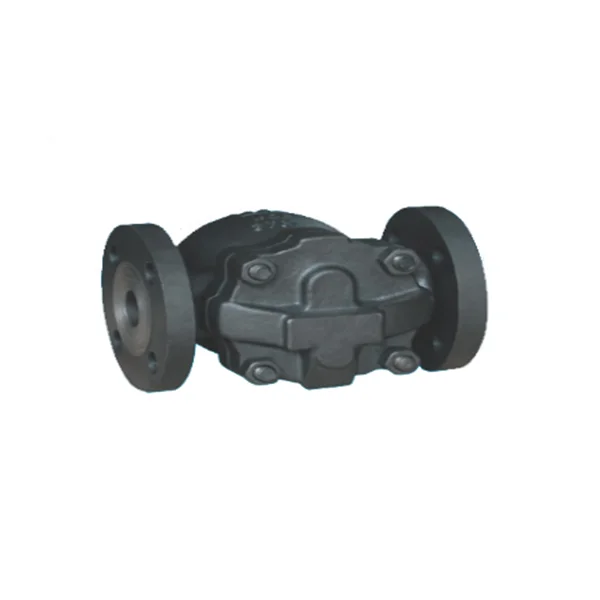

Нержавеющая сталь рычаг поплавкового типа ловушка фланцевый шаровой Поплавковый Конденсатоотводчик
- Категория: >>>
- Поставщик: Fujian Hanji Environment Technology Co. Ltd.
Сохранить в закладки 1600118838205:
Описание и отзывы
Характеристики
Product Description
Technical parameters of lever float steam trap | ||
Nominal diameter DN(mm) | DN15～DN250 (1/2"～10") | |
Nominal pressure | 1.6MPa-10.0Mpa | |
Applicable medium | steam、water | |
proper temperature | 0℃-425℃ | |
Body material | Carbon steel, cast steel, stainless steel | |
Connection method | Thread connection, flange connection | |
Material table of main parts of lever float trap | ||
Part Name | Material name | |
Valve body, valve cover | WCB, HT250 stainless steel | |
Valve seat, valve core | stainless steel | |
Float | stainless steel | |
Control frame | stainless steel | |
Thermal element | Hastelloy | |
Install and use
1. Check the valve cavity and sealing surface before installation, no dirt or sand is allowed to be attached;
2. The bolts of each connecting part shall be tightened evenly;
3. Check the packing parts to ensure the tightness of the packing and flexible opening of the gate;
4. Before installing the valve, the user must check the valve model, connection size and pay attention to the flow direction of media to ensure the consistency with the valve requirements;
5. When installing the valve, the user must reserve the necessary space for valve drive;
6. The wiring of the driving device shall be carried out according to the circuit diagram;
7. The knife gate valve must be maintained regularly. It is not allowed to collide and squeeze randomly, so as not to affect the sealing.
1. Check the valve cavity and sealing surface before installation, no dirt or sand is allowed to be attached;
2. The bolts of each connecting part shall be tightened evenly;
3. Check the packing parts to ensure the tightness of the packing and flexible opening of the gate;
4. Before installing the valve, the user must check the valve model, connection size and pay attention to the flow direction of media to ensure the consistency with the valve requirements;
5. When installing the valve, the user must reserve the necessary space for valve drive;
6. The wiring of the driving device shall be carried out according to the circuit diagram;
7. The knife gate valve must be maintained regularly. It is not allowed to collide and squeeze randomly, so as not to affect the sealing.

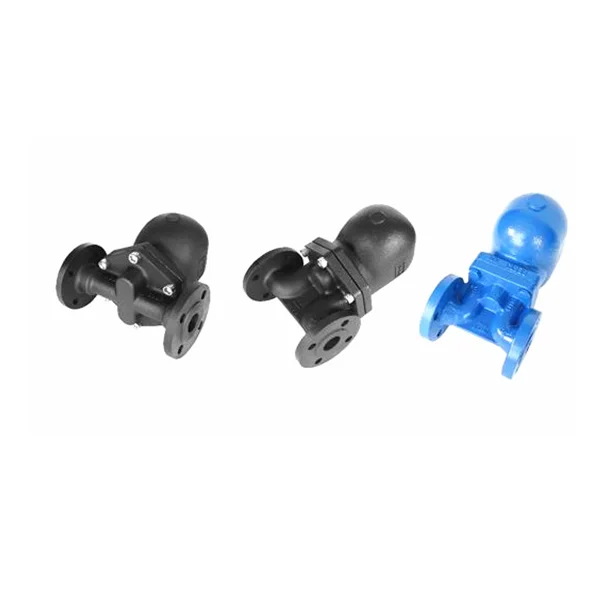

Products Description
(I) Working principle of lever float ball steam trap
When the valve is just started, the automatic air exhaust device quickly eliminates the non-condensing gas in the system. When the steam and hot condensate enter the valve chamber, the temperature rises and the air exhaust device automatically closes. The float ball rises and falls according to the change of condensation level, which drives the lever to adjust the opening of the seat hole and continuously discharge the condensate water. When the condensate stops entering, the float drops by its own weight, driving the lever to drive the spool to close the drain seat hole.
(ii) Performance, advantages and disadvantages of lever float ball steam trap
Advantages;
1. Able to work freely under both high and low loads. The lever structure minimizes the wear of moving parts, and has a good air discharge performance with automatic air discharge device.
2. It can adapt to the rapid and large fluctuation of load and pressure, so it is the best choice of equipment with automatic temperature control or process steam trap.
3. "lever float ball float trap" and "free float ball trap" with steam lock device are the only choices for water delivery of equipment with steam lock.
Faults;
Exposure to low temperatures may be affected by freezing
(3), lever float ball type steam trap application occasions
1, high condensate water load 2, various continuous large discharge drainage occasions 3, large boiler equipment 4, heat absorption system 5, air treatment coil 6, heat exchanger 7, drying process 8, water heater equipment 9, plastering equipment 10, steam process equipment
When the valve is just started, the automatic air exhaust device quickly eliminates the non-condensing gas in the system. When the steam and hot condensate enter the valve chamber, the temperature rises and the air exhaust device automatically closes. The float ball rises and falls according to the change of condensation level, which drives the lever to adjust the opening of the seat hole and continuously discharge the condensate water. When the condensate stops entering, the float drops by its own weight, driving the lever to drive the spool to close the drain seat hole.
(ii) Performance, advantages and disadvantages of lever float ball steam trap
Advantages;
1. Able to work freely under both high and low loads. The lever structure minimizes the wear of moving parts, and has a good air discharge performance with automatic air discharge device.
2. It can adapt to the rapid and large fluctuation of load and pressure, so it is the best choice of equipment with automatic temperature control or process steam trap.
3. "lever float ball float trap" and "free float ball trap" with steam lock device are the only choices for water delivery of equipment with steam lock.
Faults;
Exposure to low temperatures may be affected by freezing
(3), lever float ball type steam trap application occasions
1, high condensate water load 2, various continuous large discharge drainage occasions 3, large boiler equipment 4, heat absorption system 5, air treatment coil 6, heat exchanger 7, drying process 8, water heater equipment 9, plastering equipment 10, steam process equipment
Product Usage
Features of lever float ball steam trap:
his super large displacement steam trap, in the whole working pressure range without adjustment and replacement of the inner parts, can fully eliminate a lot of suspected water. The supercooling degree of drainage can be up to 0℃, especially suitable for the working place with large water volume.

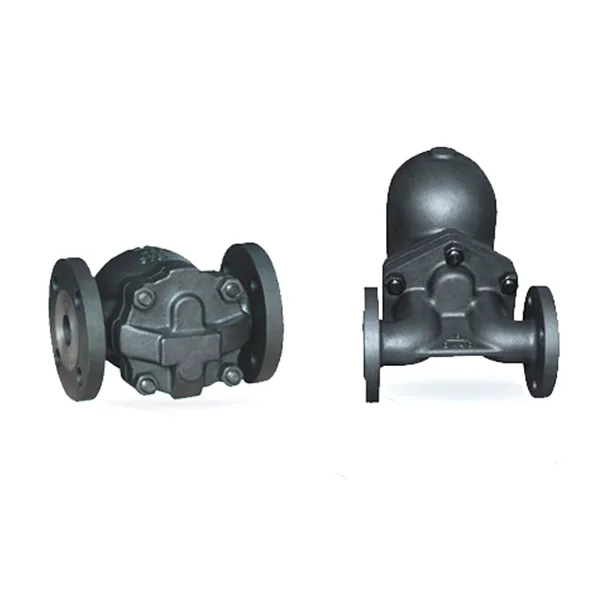

Structural features and working principle of FT44H lever float ball trap:
1, the use of rolling valve installation machinery (new SCCV switching mode), with excellent sealing and durability.
2, balanced double valve seat design, than the general hydrophobic valve body volume and large, large displacement field and can play a better advantage.
3. Built-in bimetallic air automatic discharge valve can prevent air blockage and steam lock.
4. U-type bimetal air vent can greatly shorten the starting time of the equipment.
5. All parts are installed on the valve cover, and the valve can be maintained without being removed from the pipe, which is simple and convenient.
Structural features and working principle of FT44H lever float ball trap:
1, the use of rolling valve installation machinery (new SCCV switching mode), with excellent sealing and durability.
2, balanced double valve seat design, than the general hydrophobic valve body volume and large, large displacement field and can play a better advantage.
3. Built-in bimetallic air automatic discharge valve can prevent air blockage and steam lock.
4. U-type bimetal air vent can greatly shorten the starting time of the equipment.
5. All parts are installed on the valve cover, and the valve can be maintained without being removed from the pipe, which is simple and convenient.
Related Products
Packing&Shipping
Packing: Can be exported to wooden boxes or specified by customers
Transportation: We ship to customers worldwide through UPS, DHL, air or sea
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Company Introduction
Fujian Hanji Environmental Technology Co., Ltd., with a registered capital of 10 million, the company has a number of cooperative factories, mainly engaged in: production, sales, installation, maintenance, equipment leasing, engineering design, technology of refrigeration and air conditioning equipment, heating and cooling equipment and energy-saving environmental protection equipment R&D, technology transfer, technical consultation, technical services, VOC environmental protection equipment, sludge drying equipment and accessories, inhibitor ethylene glycol, corrosion inhibitor, refrigerant synergist and other cold storage assembly and ammonia storage transformation,
In cooperation with us, LIK valves were certified by DIN EN ISO 9001 quality management system in 1995, and then by CE certification, TA-LuFT certification, so we can ensure that LIK valves provide customers with high quality valves. Therefore can enter the world valve high precision technology market competitors. In 1999, LIK Valves opened a modern foundry and became operational. This foundry covers all the high quality castings needed for valves, and offers low cost and environmentally friendly products.
In cooperation with us, LIK valves were certified by DIN EN ISO 9001 quality management system in 1995, and then by CE certification, TA-LuFT certification, so we can ensure that LIK valves provide customers with high quality valves. Therefore can enter the world valve high precision technology market competitors. In 1999, LIK Valves opened a modern foundry and became operational. This foundry covers all the high quality castings needed for valves, and offers low cost and environmentally friendly products.
Certifications
FAQ
1. What is the application field of your product?
A: Our products have been widely used in many industries, such as: injection molding, automotive, electronics, metallurgy, machinery manufacturing, petrochemical, steel and other industrial fields.
2. Can you customize?
A: Yes, we have strong technical design and manufacturing capabilities and can provide any customization for OEM/ODM according to your needs.
3. Do you provide product guarantee?
Answer: Yes, we provide a 1-year warranty for our products.
4:How long is your lead time?
a：Our delivery time is usually about 30 days.This depends on the quantity and model ordered by the customer.
5:What about the quality of your products?
A:Each of our products has strict production quality certification, with the corresponding qualification certificate and qualification。
6. Can the product be customized?
A:Of course, we have a professional production line, please tell us。
7.How can I place an order?
A:You can send email or inquiry to us through alibaba.
A: Our products have been widely used in many industries, such as: injection molding, automotive, electronics, metallurgy, machinery manufacturing, petrochemical, steel and other industrial fields.
2. Can you customize?
A: Yes, we have strong technical design and manufacturing capabilities and can provide any customization for OEM/ODM according to your needs.
3. Do you provide product guarantee?
Answer: Yes, we provide a 1-year warranty for our products.
4:How long is your lead time?
a：Our delivery time is usually about 30 days.This depends on the quantity and model ordered by the customer.
5:What about the quality of your products?
A:Each of our products has strict production quality certification, with the corresponding qualification certificate and qualification。
6. Can the product be customized?
A:Of course, we have a professional production line, please tell us。
7.How can I place an order?
A:You can send email or inquiry to us through alibaba.
Похожие товары
Экологичная стойка frp, садовые стойки из стекловолокна для растений, стойки из стекловолокна
0,10 $
Пищевой Подсластитель, кристальная игла, цикламат натрия nf 13, оптовая цена
2022 новый дизайн 100% корзина для белья из морской травы и сладкой травы, Смешанная корзина для белья квадратной формы из бангладеш

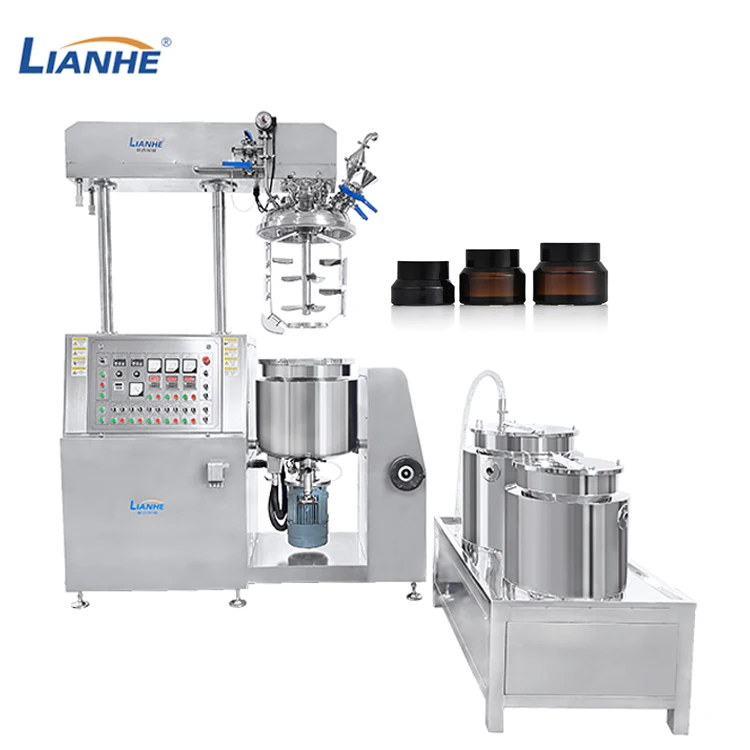

Внутренний и внешний гомогенизатор Lianhe 100L-5000L, эмульгатор, вакуумная смесительная машина, блендер, реактор
9 500,00 $ - 10 800,00 $
Кувшин Jibbi для бариста, 400 мл, кувшин для взбивания молока с покрытием из нержавеющей стали для латте, искусства, эспрессо, капучино, молочный кувшин для взбивания взбитого молока

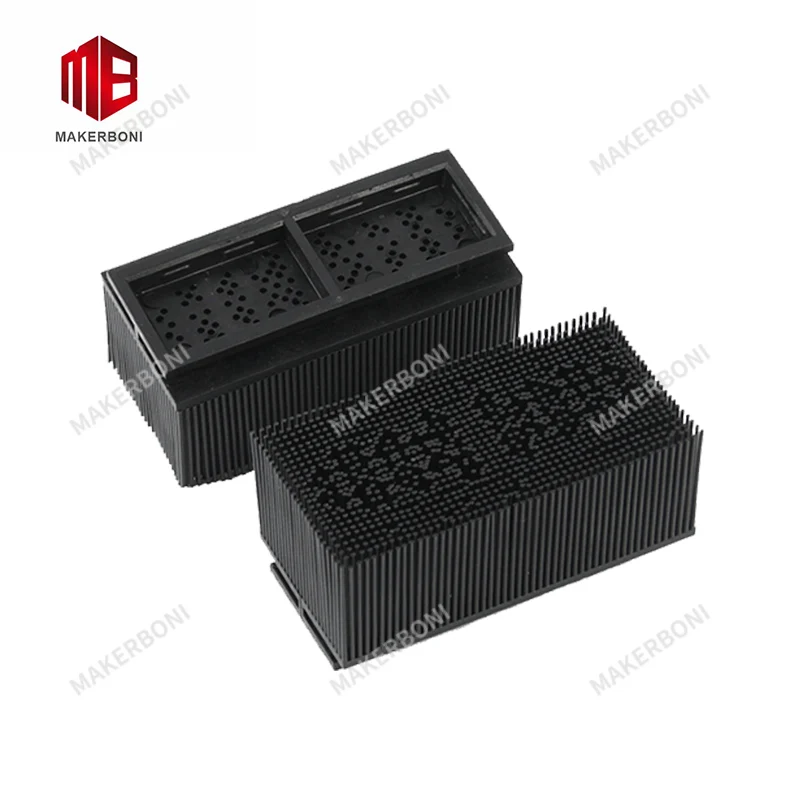

Блок нейлоновой щетины для машины для резки Инь
