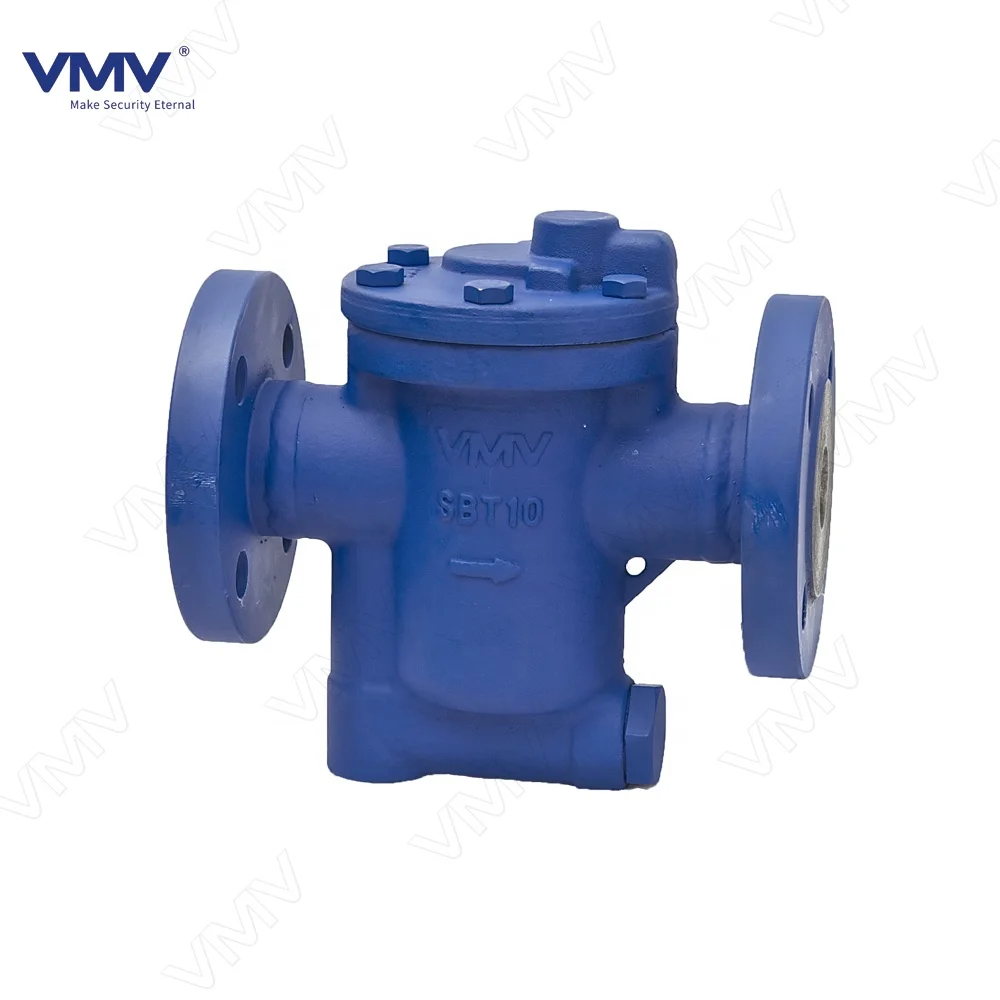

Перевернутая Паровая ловушка ведра с винтовым фланецем для паровой системы, перевернутая Паровая ловушка ведра
57,10 $ - 64,30 $

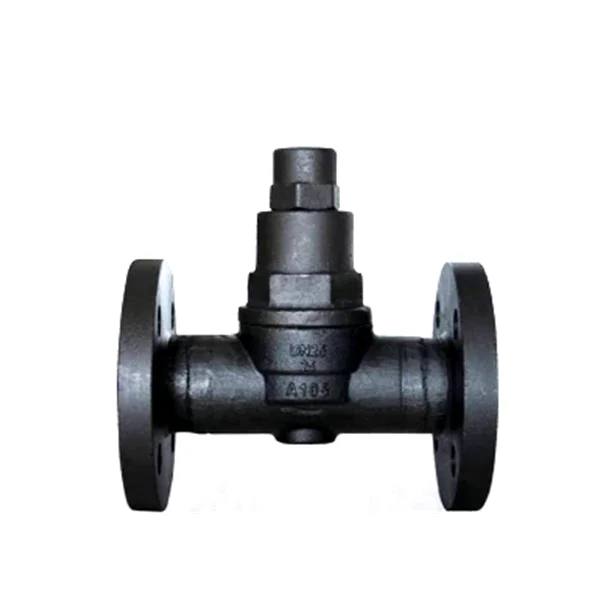

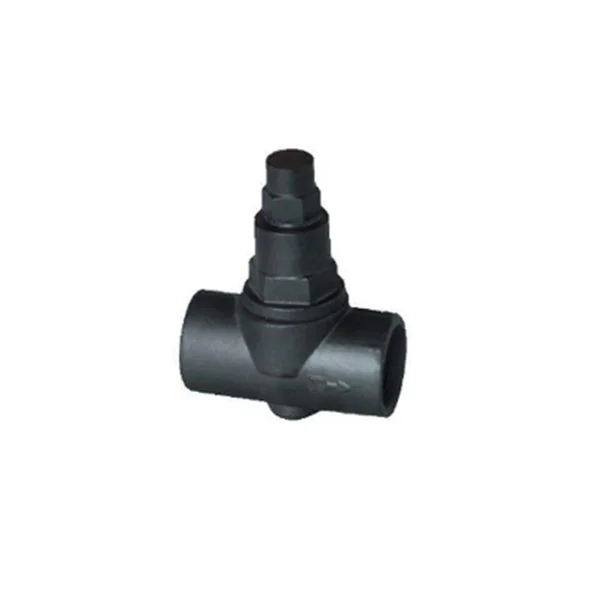

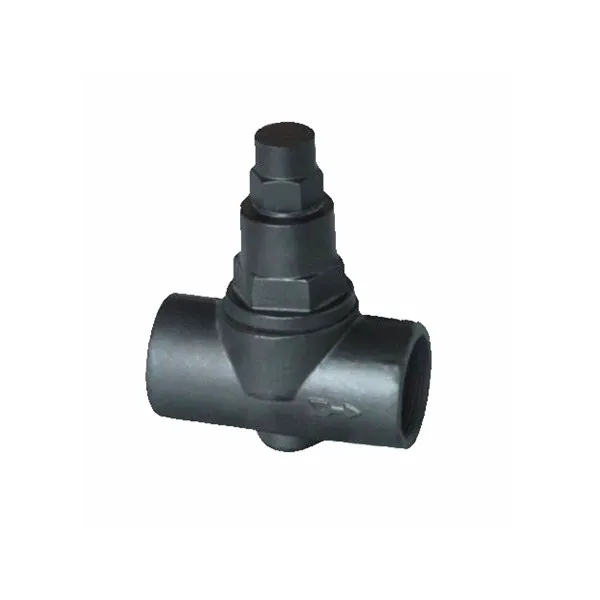

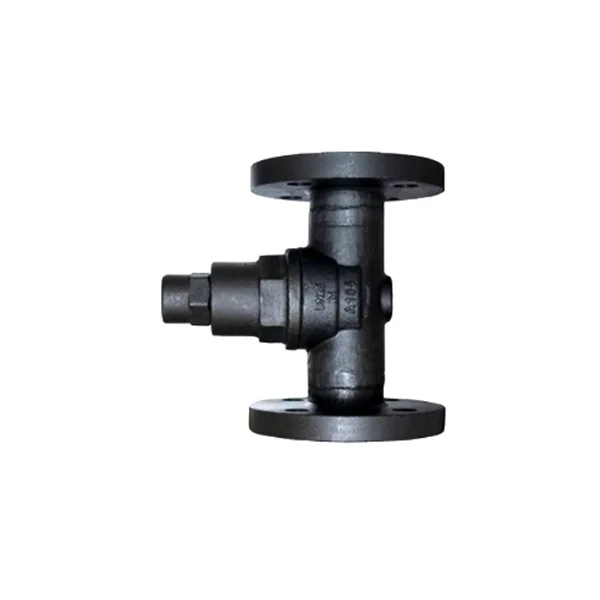

Клапан из нержавеющей стали биметаллическая регулируемая температура ловушка Паровая
- Категория: >>>
- Поставщик: Fujian Hanji Environment Technology Co. Ltd.
Сохранить в закладки 1600118880333:
Описание и отзывы
Характеристики
Product Description
Technical parameters of metal temperature adjustable trap | ||
Nominal diameter DN(mm) | DN15～DN250 (1/2"～10") | |
Nominal pressure | 1.6MPa-10.0Mpa | |
Applicable medium | steam、water | |
proper temperature | 0℃-425℃ | |
Body material | Carbon steel, cast steel, stainless steel | |
Connection method | Thread connection, flange connection | |
Material of main parts and components | ||||||
Name | Material | Name | Material | |||
Valve body | A105 | Seal seat | 2Cr13 | |||
Seal ring 1 | PTFE | Spring | 304 | |||
Sealed | 2Cr13 | bushing | 2Cr13 | |||
card | 304 | Bimetal | - | |||
washer | 304 | Mandrel | 2Cr13 | |||
Screw | 2Cr13 | Nut | 45 | |||
Cap | Q235 | Seal ring 2 | PTFE | |||
The cover | A105 | Filter | 304 | |||
Products Description
Product overview
According to the change of temperature, the bimetal temperature regulating steam trap causes the distortion of the temperature sensing bimetal steam, so as to drive the valve core to open and close the valve seat hole, to prevent the steam emission. Adjustable constant temperature steam trap is widely used in steam tracing hot line, vessel heating line, equipment insulation, general steam distribution, small steam equipment.
According to the change of temperature, the bimetal temperature regulating steam trap causes the distortion of the temperature sensing bimetal steam, so as to drive the valve core to open and close the valve seat hole, to prevent the steam emission. Adjustable constant temperature steam trap is widely used in steam tracing hot line, vessel heating line, equipment insulation, general steam distribution, small steam equipment.
Product Usage
Overview of metal temperature regulating steam trap products
According to the change of temperature, the bimetallic temperature regulating steam trap causes the deformation of the sensing bimetallic strip, which drives the valve core to act as the main multiple displacement opening and closing seat hole to prevent steam discharge. Its heat sensitive element adopts imported material, high sensitivity, strong and durable. Condensate water is always prepared in front of the valve to form water seal without steam leakage. Good exhaust performance, water hammer resistance, and can be installed at any Angle
According to the change of temperature, the bimetallic temperature regulating steam trap causes the deformation of the sensing bimetallic strip, which drives the valve core to act as the main multiple displacement opening and closing seat hole to prevent steam discharge. Its heat sensitive element adopts imported material, high sensitivity, strong and durable. Condensate water is always prepared in front of the valve to form water seal without steam leakage. Good exhaust performance, water hammer resistance, and can be installed at any Angle
Related Products
Packing&Shipping
Packing: Can be exported to wooden boxes or specified by customers
Transportation: We ship to customers worldwide through UPS, DHL, air or sea
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Company Introduction
Fujian Hanji Environmental Technology Co., Ltd., with a registered capital of 10 million, the company has a number of cooperative factories, mainly engaged in: production, sales, installation, maintenance, equipment leasing, engineering design, technology of refrigeration and air conditioning equipment, heating and cooling equipment and energy-saving environmental protection equipment R&D, technology transfer, technical consultation, technical services, VOC environmental protection equipment, sludge drying equipment and accessories, inhibitor ethylene glycol, corrosion inhibitor, refrigerant synergist and other cold storage assembly and ammonia storage transformation,
In cooperation with us, LIK valves were certified by DIN EN ISO 9001 quality management system in 1995, and then by CE certification, TA-LuFT certification, so we can ensure that LIK valves provide customers with high quality valves. Therefore can enter the world valve high precision technology market competitors. In 1999, LIK Valves opened a modern foundry and became operational. This foundry covers all the high quality castings needed for valves, and offers low cost and environmentally friendly products.
In cooperation with us, LIK valves were certified by DIN EN ISO 9001 quality management system in 1995, and then by CE certification, TA-LuFT certification, so we can ensure that LIK valves provide customers with high quality valves. Therefore can enter the world valve high precision technology market competitors. In 1999, LIK Valves opened a modern foundry and became operational. This foundry covers all the high quality castings needed for valves, and offers low cost and environmentally friendly products.
Certifications
FAQ
1. What is the application field of your product?
A: Our products have been widely used in many industries, such as: injection molding, automotive, electronics, metallurgy, machinery manufacturing, petrochemical, steel and other industrial fields.
2. Can you customize?
A: Yes, we have strong technical design and manufacturing capabilities and can provide any customization for OEM/ODM according to your needs.
3. Do you provide product guarantee?
Answer: Yes, we provide a 1-year warranty for our products.
4:How long is your lead time?
a：Our delivery time is usually about 30 days.This depends on the quantity and model ordered by the customer.
5:What about the quality of your products?
A:Each of our products has strict production quality certification, with the corresponding qualification certificate and qualification。
6. Can the product be customized?
A:Of course, we have a professional production line, please tell us。
7.How can I place an order?
A:You can send email or inquiry to us through alibaba.
A: Our products have been widely used in many industries, such as: injection molding, automotive, electronics, metallurgy, machinery manufacturing, petrochemical, steel and other industrial fields.
2. Can you customize?
A: Yes, we have strong technical design and manufacturing capabilities and can provide any customization for OEM/ODM according to your needs.
3. Do you provide product guarantee?
Answer: Yes, we provide a 1-year warranty for our products.
4:How long is your lead time?
a：Our delivery time is usually about 30 days.This depends on the quantity and model ordered by the customer.
5:What about the quality of your products?
A:Each of our products has strict production quality certification, with the corresponding qualification certificate and qualification。
6. Can the product be customized?
A:Of course, we have a professional production line, please tell us。
7.How can I place an order?
A:You can send email or inquiry to us through alibaba.
Похожие товары

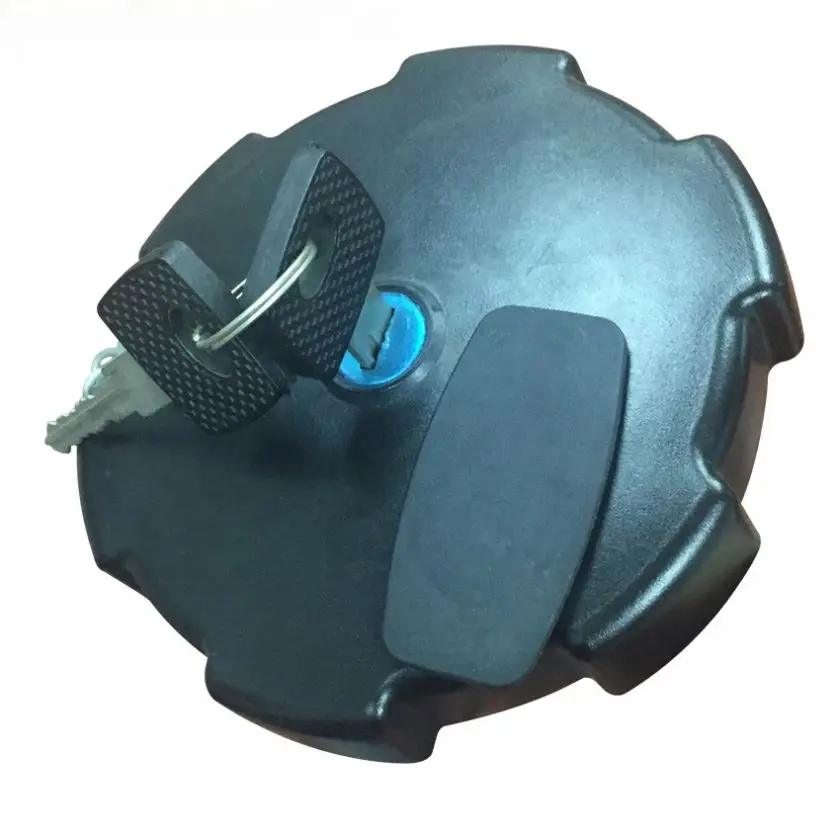

Крышка для дизельного экскаватора с 2 ключами (Часть № 332/F4780 331/11403)
4,00 $ - 6,50 $

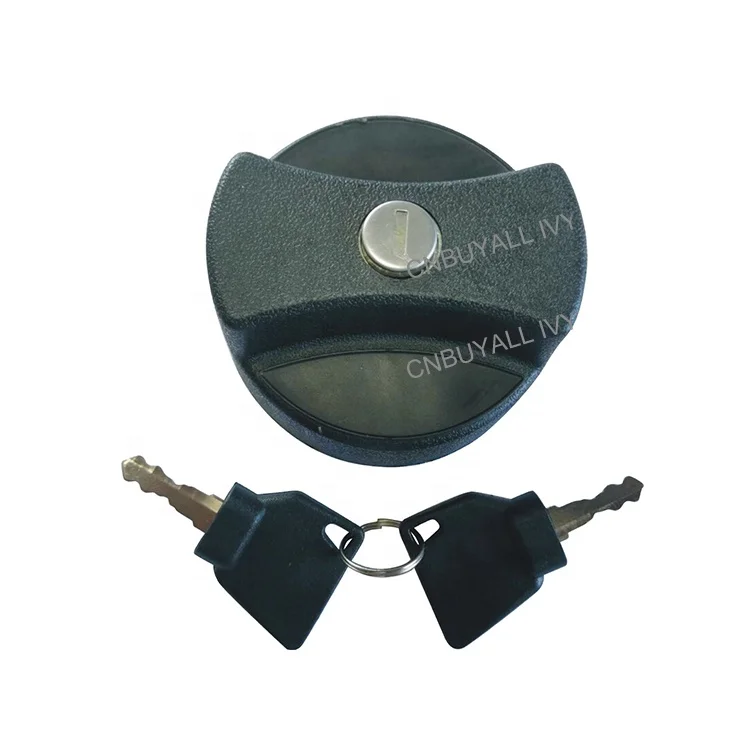

Дизельное устройство защиты от кражи-противоугонные крышки топливного бака для Jeep JL
Шаровары для мужчин и женщин, мешковатые штаны Aladdin для йоги, один размер, подходит для всех, штаны для йоги, свободные
4,50 $ - 9,50 $

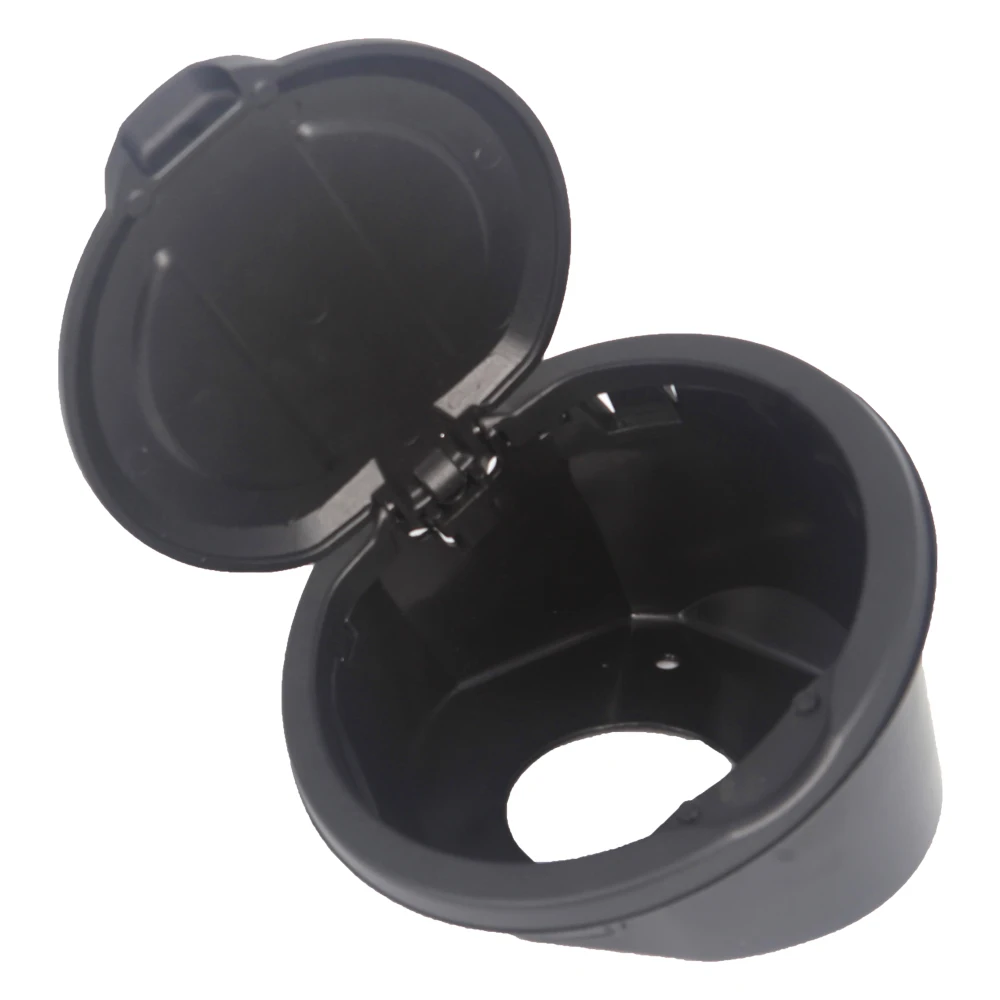

Крышка Топливного наполнителя для грузовика Actros MP2 MP3 A0004700405
KGT детали для 3d-печати cnc Kossel Mini MGN9 9 мм миниатюрная линейная направляющая скольжения 1 шт. MGN9 линейная направляющая + 1 шт. MGN9 C каретка 1000 мм
16,70 $

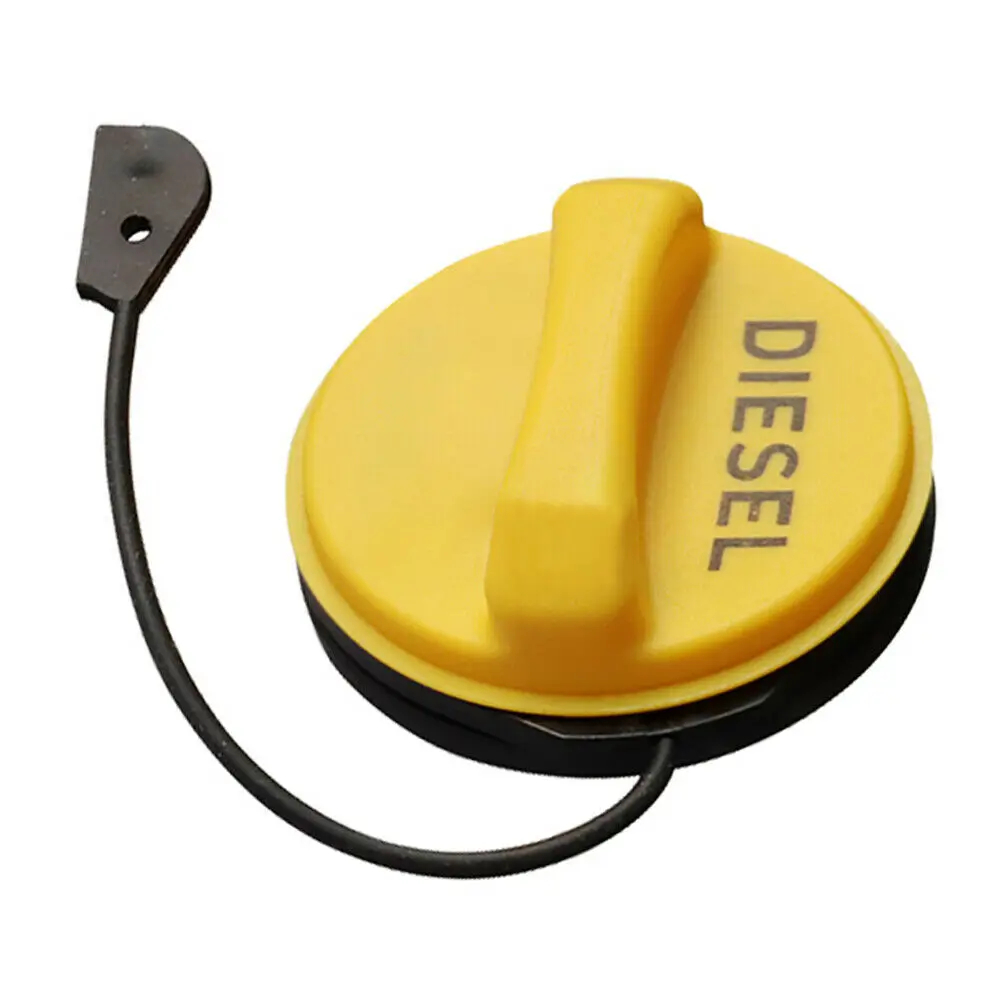

Крышка дизельного топлива BAJUTU заменяет экологически чистый топливный бак крышка для LAND ROVER RANGE ROVER EVOQUE LR053666G
31,02 $

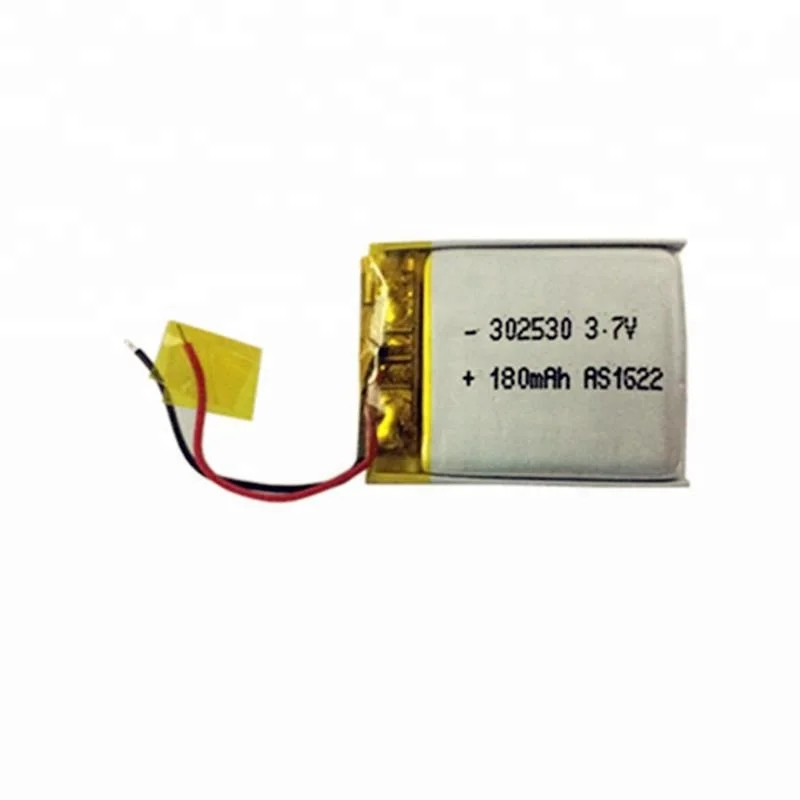

OEM-Сервис 302025 3,7 в 110 мАч литий-полимерная аккумуляторная батарея
