Seeder for seedlings cell tray farm machinery seeders
automatic tray filling machine
Soil Feeding—Pressing Cell Holes—Seedling(with needle absorb)—Cover Soil
Technical parameter of GGSXC-750 | |
Model | GGSXC-750 |
Size | 3350*890*1220mm |
Seedling tray size | Standard Size:54*28cm(32—288cells tray) |
Seeds | Seedsdiameter: around 0.1-5.0mm (There is no fluff on the seed surface and no pelleting is required) |
Sowing way | Needle suction seeding |
Sowing precision | Globular seeds≥95%,Nonspherical seeds≥90% |
Sowing efficienty | 750 tray per hour |
Tray specification | Samples |
| Air suction type with blowing function |
Air blower |
|
Air blower brand | Taiwan KIMPO High vacuum air blower |
Power | 220VAC 50HZ 2P |
Soil container | 1.5 stainless steel |
| Sawtooth conveyor belt,SS conveyor shaft diameter 75mm |
Machine frame | 45x75x2.0 SS square pipe,Side plate:1.5mm SS |
Transmit chain | Stainless steel (SS) 08B Chain,and side plate, block plate 1.5mm SS |
Bottom plate | 20mm thickness ---pvc foaming plate |
Sowing system | 1.5mm SS,track plate: 2.5mm SS |
Power system | 250W Precision gear reducer |
Overview

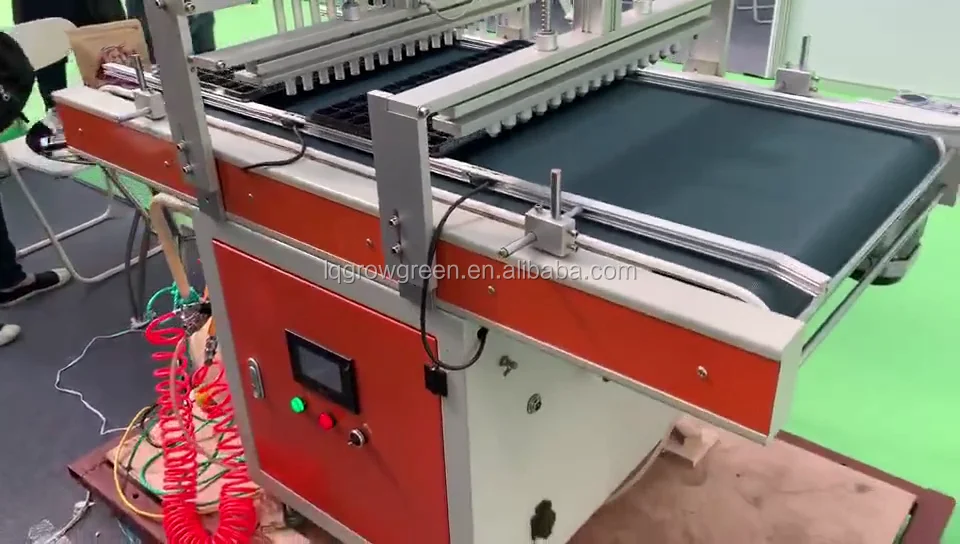

This Vacuum Plug Tray Precision Seeder is designed and produced according to the
actual request of domestic vegetable flower seedling production, research and development. It fully meets the technical request of seed planting from large and medium-sized seedling
production enterprises, agricultural production cooperatives, private farms and flower production
base. It greatly increases the efficiency for plug tray seedling planting and seedling productivity. It also greatly reduces the labor costs in planting seedling production.
This Plug Tray Seeder is easy to operate. Users only need provide 220v universal power and it can work immediately, no need professional maintenance staff. The machine is small size, light weight, flexible operation and simple structure. Completing hole pressing /seed
sucking/seed sowing continuously.
1.750w high quality turbo fans with strong suction power.
2.Main structure is made of high-quality stainless steel.
3.According to different seeds and sowing requirement, it will be equipped with corresponding
sowing plate and the suction needles. The machine is applied to the biggest seeds like pumpkin,
peas, corn, peas, melons, etc., the smallest seeds like petunias (tens of thousands of grain per
gram), celery, cabbage, etc. and conventional seeds like hot pepper, tomato, grass, etc.
4.The optional sowing plates can match international standard 54*28cm plug tray with 288, 200,
128, 105, 98, 72, 50, 32 holes. (This machine is specially equipped with full set of plates for 288
holes, 200 holes and 105 holes. For big seeds like pumpkin seed, please use 105-hole and
below plug tray)
5.One tray at a time while sowing. Sowing speed 400-500 trays per hour. Sowing rate: 95% - 98%.

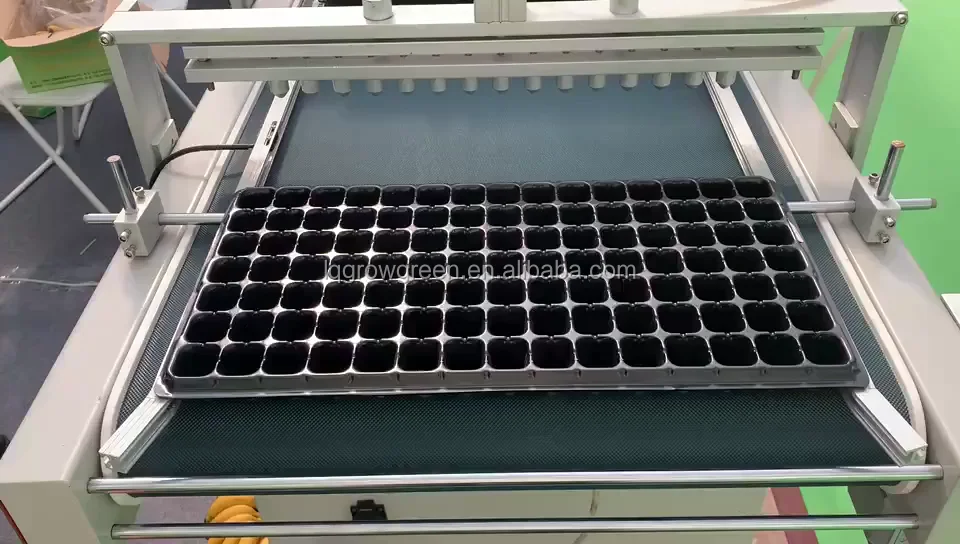

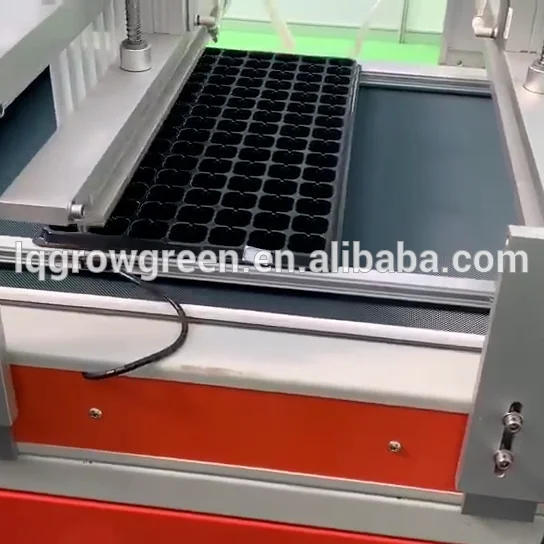

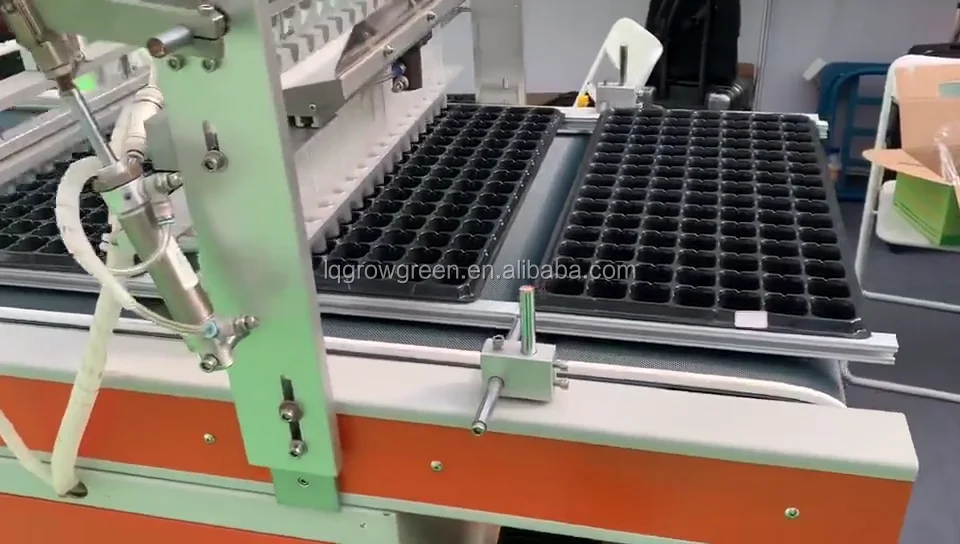

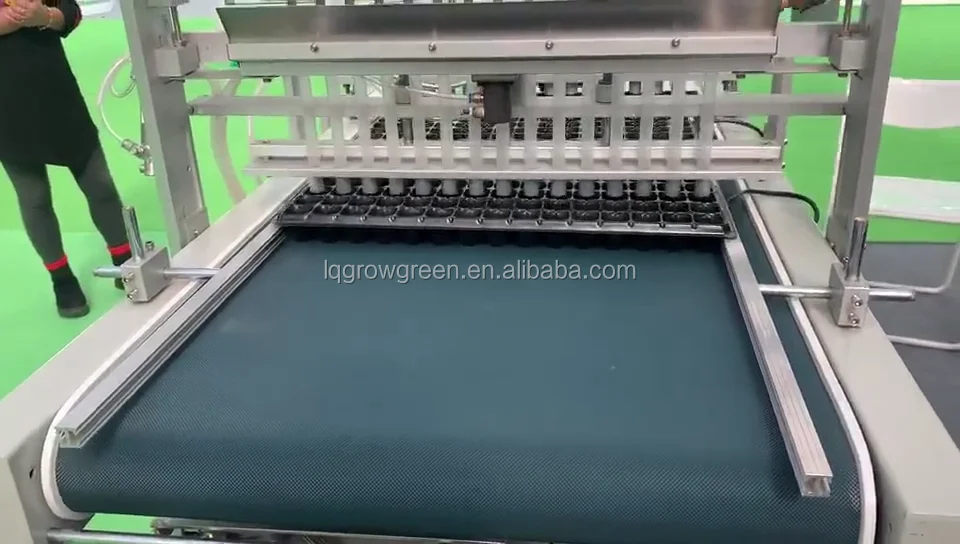

Full Tray Seed Sucking and Sowing
Faster and accurater
Suck different kinds of seeds
Single Parts to Sell
Packing and Delivery
OTHER AVAILABLE SEEDER MACHINE MODELS
CUSTOMIZED SERVICE:
DIFFERENT NURSERY TRAYS CAN BE USED ON OUR SEEDER MACHINE (FOAM NURSERY TRAYS ARE AVIALABLE TOO)
PS Nursery Trays to Ship together
