10 стеклянных дверей 27*11 1 * футов холодильная камера внешнего размера

10 стеклянных дверей 2711 1 футов холодильная камера внешнего размера

Категория: >>>
Поставщик: Foshan Haiyao Frozen Equipment Co. Ltd.

Цена:13 800,00 $ - 15 300,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

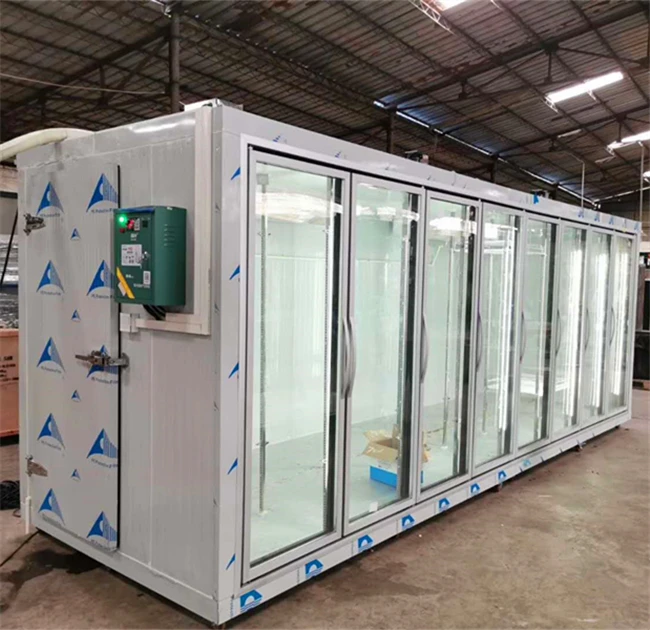

10 Glass Doors 27 *11.1 *10.5FT Outer Dimension Freezing Storage Room

Features

1. The cold room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel

density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel

and durable for anti-scratch.

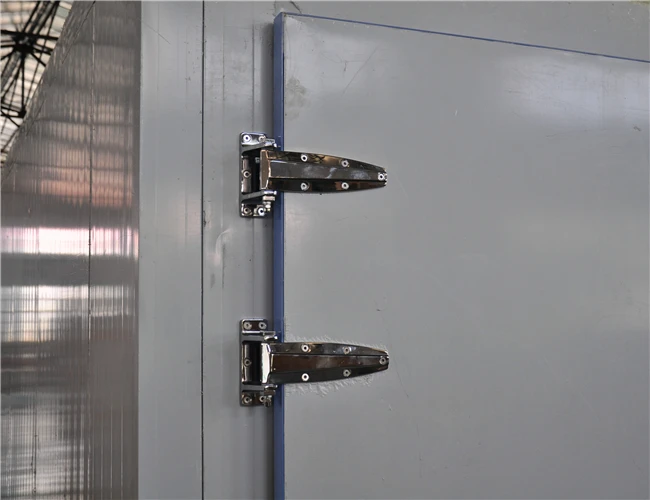

4. The hinged door panel of our cold room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high

quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasteners for tight connection and sealing of the cold room.

Polyurethane panels specification

Standard Coldroom is Polyurethane panels are of 100% Polyurethane insulation, they have certain dimension, standard width is 1183mm, the maximum length is 12 meter. Equipped with highly efficient refrigeration units. Panel has a flame retardant.
Standard Coldroom is Polyurethane panel steel finish.
A. Stucco embossed aluminum
B. Stainless steel
C. Painted galvanized steel
D. PVC steel

Panel thickness
Panel THK(mm) Operating Temp.
50mm 5C (or above)
75mm -5C(or above)
100mm -25C (or above)
150mm -45C (or above)
200mm -55C (or above)

Dimension	Length (m) Width (m)Height (m) According to client's requirement .
Panel	polyurethane insulation panel,43kg/m3, fire retardant
Foaming material	BASF
Panel thickness	50mm,75mm,100mm,150mm,200mm
Steel cover	stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell
Panel connection	Inserted panel type, use insert to assemble and disassemble
Type of door	hinge door, convex door, sliding door
Temp.of room	-45~+20 degree, optional
Purpose of cold room	fruit,vegetable,flower,fresh/frozen meat etc
Refrigeration unit	Copeland / Bitzer / Sanyo etc
Refrigeration type	air cooled / water cooled
Fittings	all necessary fittings are included, optional
Place to assemble	indoor/out door(concrete construction building/steel construction building)
Voltage	220V/50HZ, 220V/60HZ, 380V/50HZ optional

Panel Testing Specification

No.	Inspection Item	Unit	Technology requirement	Inspection result
1	Density	kg/m3	32~50	43
2	Compressing strength(10%deformation)	Kpa	≥ 160	200
3	Bending Stregth	Kpa	≥ 245	331
4	Absording rate	%	≤ 4	3
5	Heating coefficient	W/m.k	0.024	0.021
6	Average burning time(vertical)	S	≤ 30	3
7	Average burning height(vertical)	s	≤ 250	250

Detail Pictures

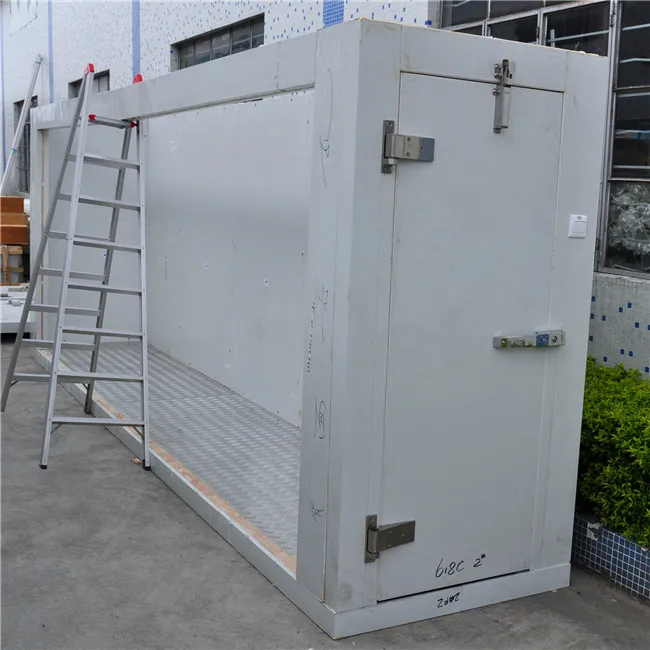

Easy assemble and disassembel
