Dongfeng LHD or RHD telescopic boom crane truck high cost performance truck mounted crane


1. Truck crane is specially designed and produced on the basis of common cargo trucks or dump trucks, but need strong chassis frame with high strength to support the crane when lifting heavy cargos.


2. Our product type is available in 1 tons~200 tons capacity crane, correspondingly the truck chassis wheel drive from4x2/4x4/6x2/6x4/6x6/8x4/x10x4.


3. Special crane design:common the end of crane is a hook linked with stee rope, but we can mount a gripping device, holder or other special designed mechanism to achieve the functions of gripping action to hold cargos, not always hooking cargo.


4. Hydraulic system: all the actions of crane and outriggers are driving by hydraulic system, high quality sealed oil cylinder and hydraulic pipe,etc.


5. Control system: for lifting capacity under 6 tons, crane is controlled by the operation handles on both sides; over 8 tons, on the top of crane, there is a seat and operation handles on the top of crane.


6. Cargo box: box length from 3meters to 10 meters and can produce according to your special requirements, you can check from the following photos below.





Dongfeng LHD or RHD 2 4 5 8 10 12 16 tons telescopic boom crane truck high cost performance truck mounted crane


(for example,16 tons crane truck with sps40000 hydraulic arm 21m telescopic boom palfinger crane with truck datasheet as below, other models datasheet please feel free to contact with us )
























































































































Main Technical Parameter
Product Name16 tons boom crane on DongFengOverall Dimension(L*W*H)(mm) 11000*2500*3300
Wheelbase(mm)1350+4350+1350 Compartment Dimension(L*W*H)(mm)8000*2300*800
F/ R suspension(mm)1032/1663Front/Rear tread(mm)1940/1860
Number of Axles 4 Curb weight(kg)8790 Approach/ departure angle (° ) 32/15
Max Speed (km/h) 90Number of Axles 4
Cab capacity 3Cab TypeFlat proof, one and half row
Chassis Parameter
Chassis Model DF5250NJ20D3Chassis manufacturerDongFeng Truck Motor Co., Ltd
Gear Box12 shiftsTransmission typeManual
Steering TypeLHD or RHDTraction Type8*4
Brake SystemAir brakeNumber of Tire 12 with a spare
Leaf Spring number9/10+8 Tire size/type12.00R20
Engine parameter
Engine Modelwp615 Engine manufacturer Weichai Engine
Displacement(ml)9700Fuel typeFuel type diesel
Emission stand Euro 2 or Euro 3 Power(kw)  (336hp)
Operation SystemElectrically Hydraulic Control Electric system24Vdc
Equipment & Performance 1 .Equipped with straight arm sps40000 6arms Crane,
2. Max lift quality:16000kg, Max Lifting Moment:40(T.M)
3. Work radius:18.6m, Max lift height:21.5m, span:5.6m
4.Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast
 5. H- type front and rear hydraulic outrigger

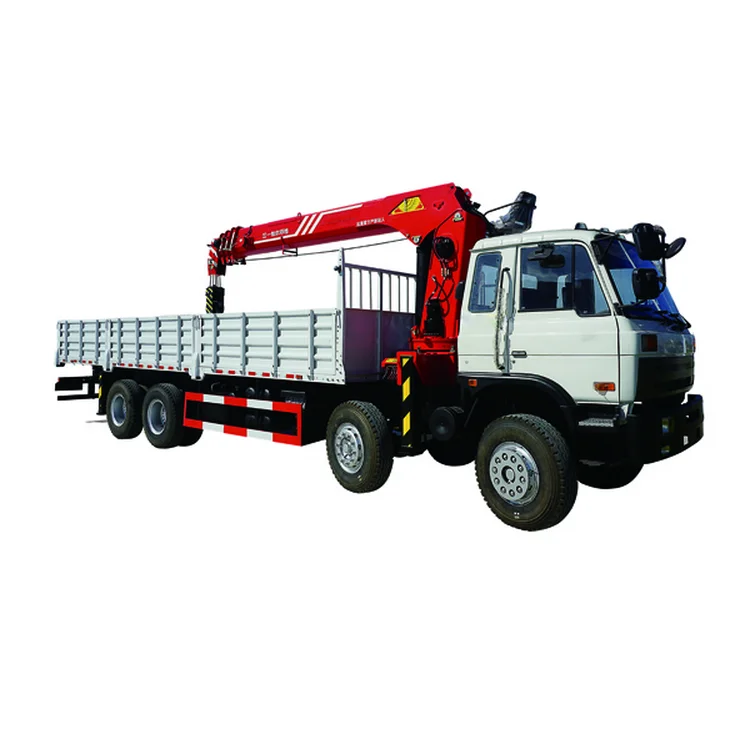

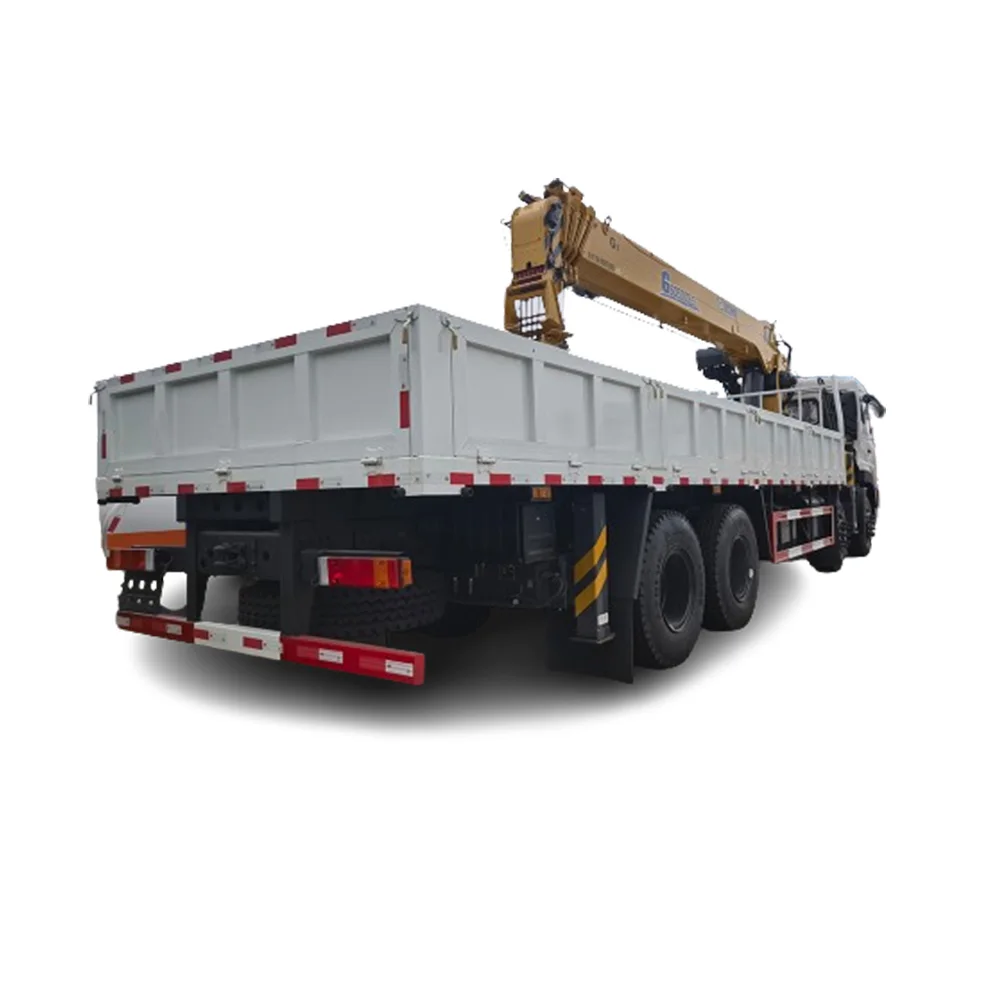

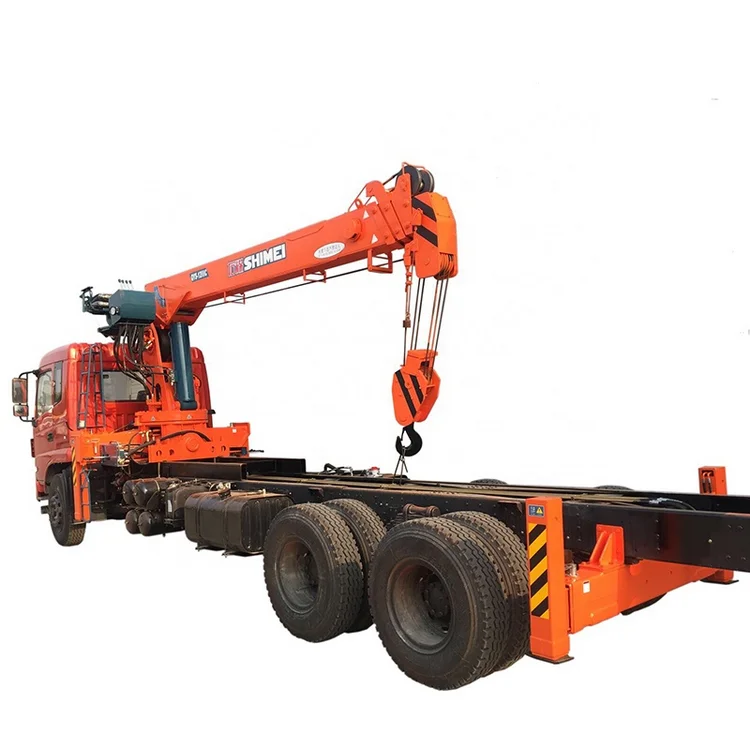

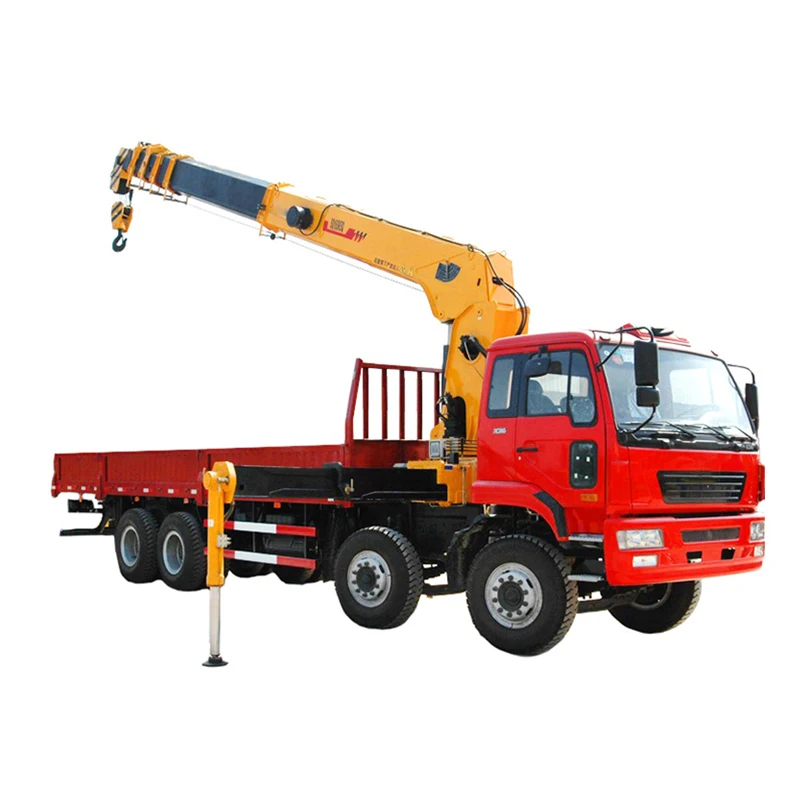

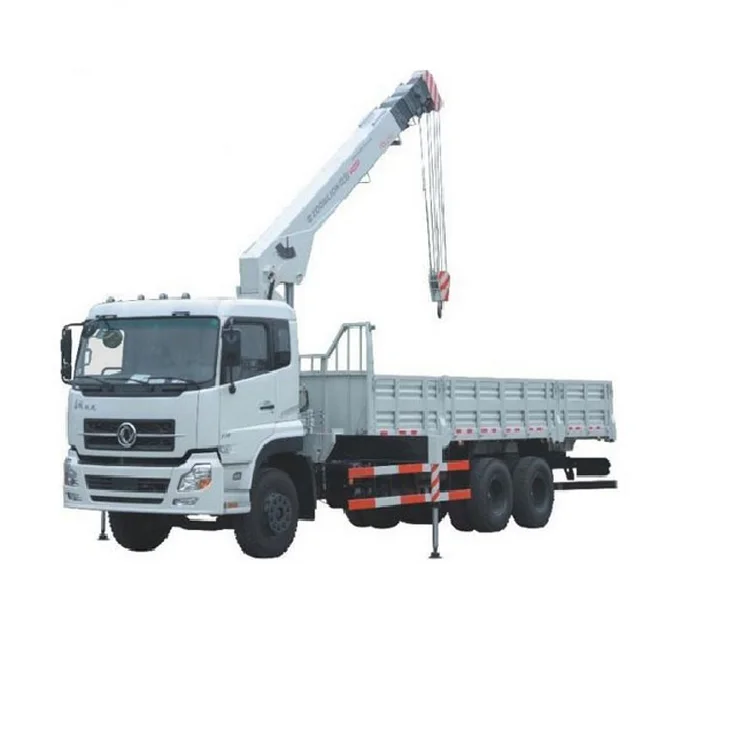

16 tons 10wheels rhd or lhd cargo truck mounted 16 tons crane for hot sales production pictures:


8X4 crane truck (14).png8X4 crane vehicle(5).png8X4 crane vehicle(8).png8X4 crane vehicle(4).png8X4 crane vehicle(12).png


8X4 crane vehicle(3).png





About our crane on truck:


Our company is a professional manufacturer in special purpose truck area, guarantee all goods Brand-New and China-Origined.:


1. Chassis Model: Dongfeng,FAW,Foton,Sinotruck,JAC,JMC,etc.


2. Engine Model:Cummin,Yuchai,Weichai,Jiechai,etc.


3. Drive Model: 4*2, 6*2,6*4, 8*4, and three axis crane semi-tailer.


4. Crane rotation angle: 360 degree with hydraulic systems.


5. Telescopic/Articulated boom crane loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T 25T or others.


6.  Crane Brand optional: CLW, ZOOMLION, SMJ, SANY or others.


CRANETRUCK0023 (5).png





CRANETRUCK0023 (4).png


CRANETRUCK0023 (2).png


CRANETRUCK0023 (1).png




Company Information









Our Main Products







Packaging & Shipping





delivery pic.png





Contact us


Sales Manager: Mr.Eric Tao


WhatsApp/Wechat: (0086) 18727960291
Company : Chengli Special Automobile Co.,Ltd
Address: CLW Industrial Park,Southern Suburb of Zengdu District, Suizhou City, Hubei Province, China
