Машина для производства пластиковых труб из ПВХ подачи воды/дренажных

PVC one cavity production line

--one cavity PVC pipe extrusion line

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC

pipes with various diameters and wall thickness used in the industries such as agricultural and

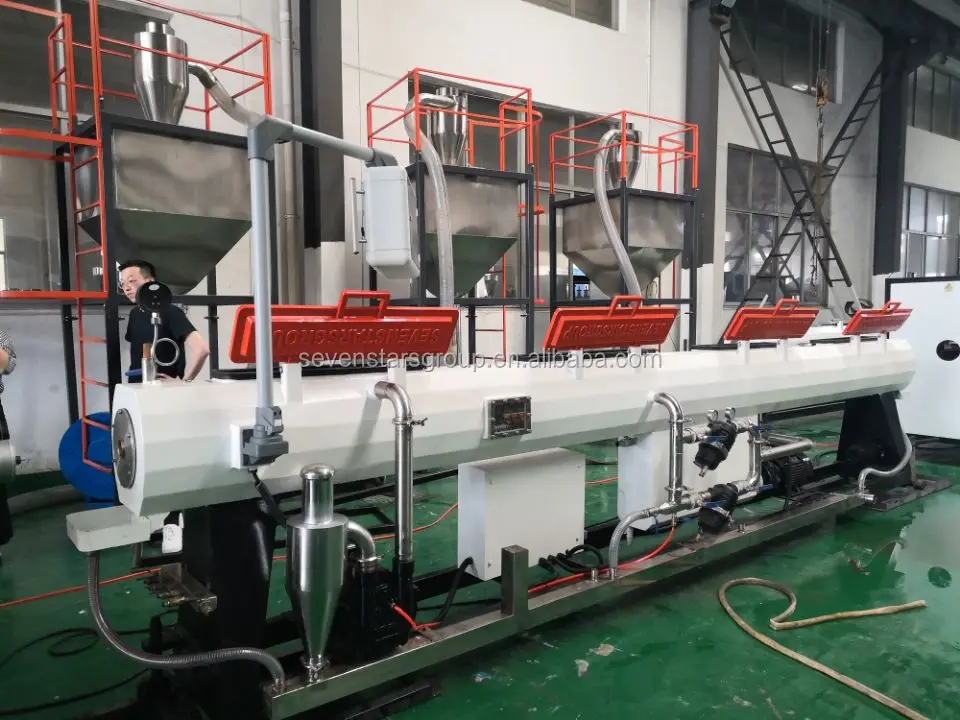

constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder,Vacuum

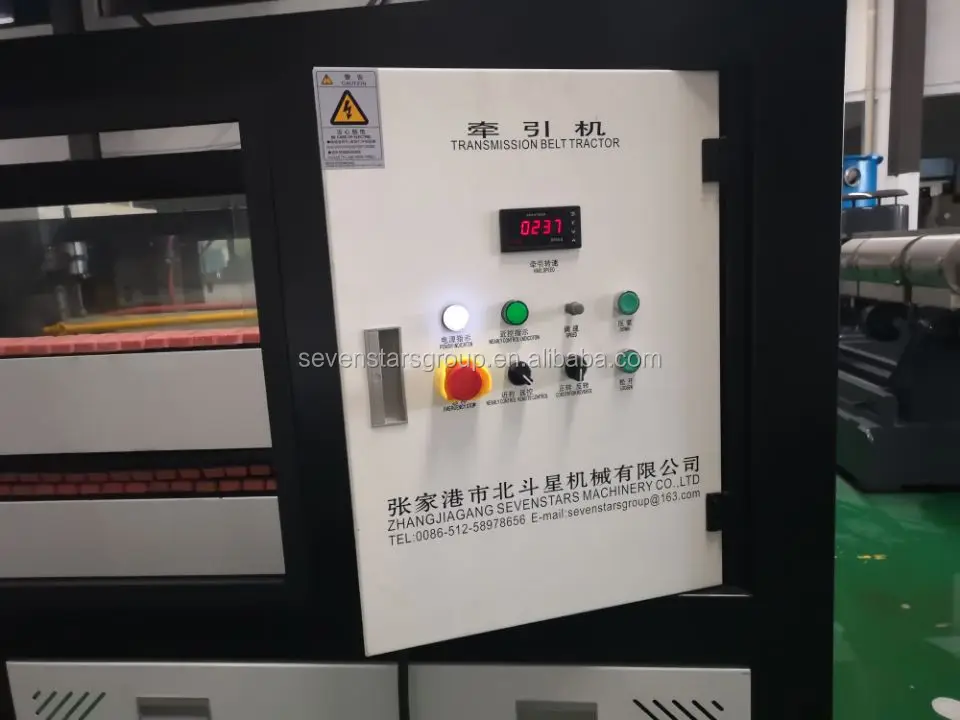

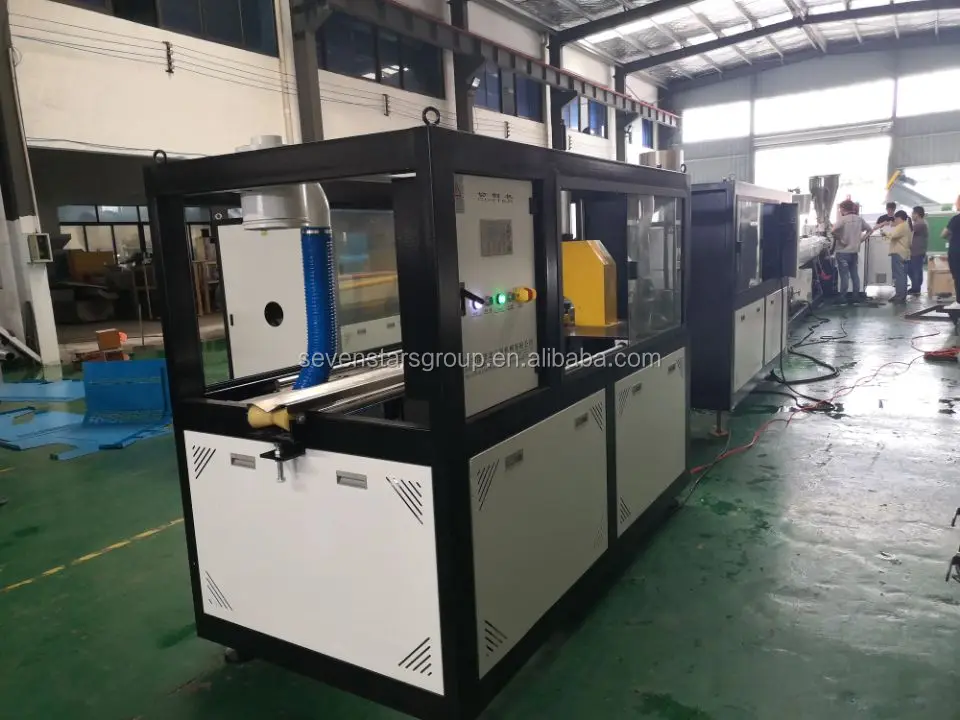

calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,

three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting

type or planetary cutting type. It is aditionaly attached with length counter and intensifying device.

This line with reliable performance and high production eficiency. Our company can also manufacture

special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your

requirements.

PVC double-pipe production line

--two cavities PVC pipe extrusion line

The production line is developed with the advanced technology of west Europe by our company. The

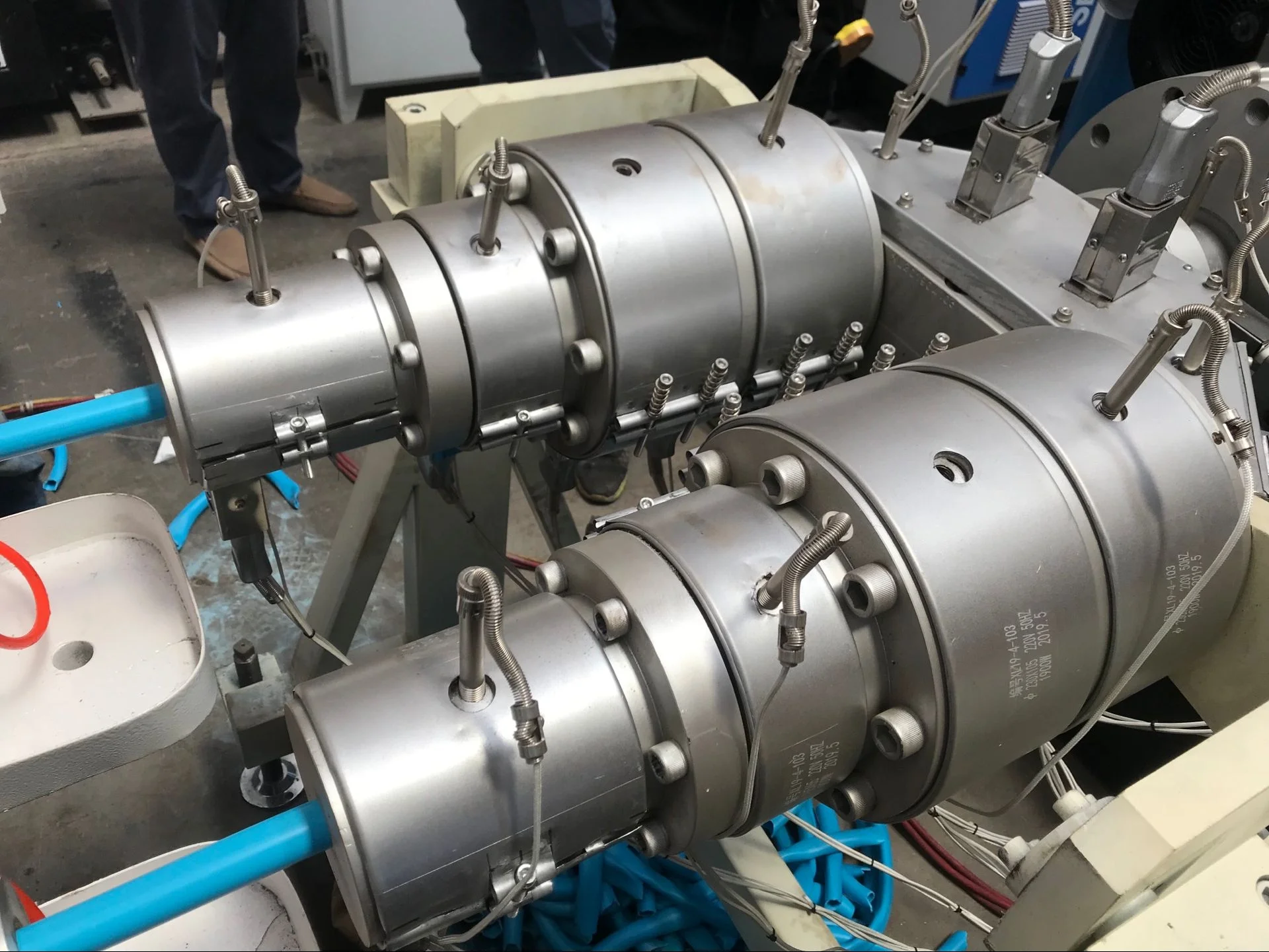

main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube

single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted

and the other one is affected. The auto single-control double drawing machine and cuting machine are

combined with the front double calibration technology to make operation more flexible let you enjoy

 economic benefit which is brought by separate-control double tube extruding.

PVC four cavities production line

--four cavities PVC pipe extrusion line

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on

one machine.This line can save investment cost in factory buiding and production,which increase the

capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5

ton/per day,the production speed take 16mm as example can get more than 8-10m/min.

The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling

calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
