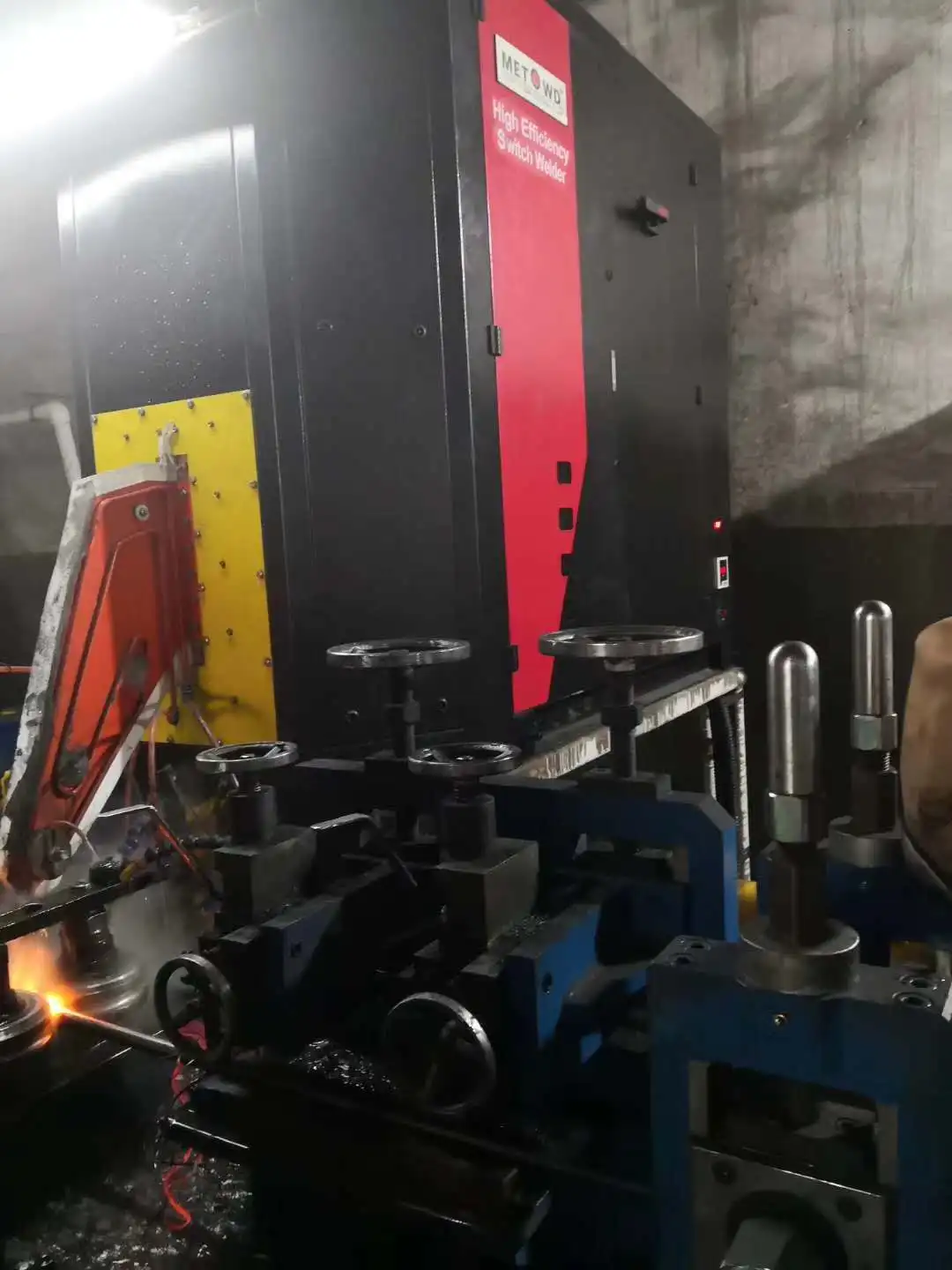

Высокоэффективный сварочный аппарат HF высокочастотный из углеродистой стали по выгодной цене 200 кВт
- Категория: Seam Welders >>>
- Поставщик: Baoding ZSHC Electrical Co. Ltd.
Сохранить в закладки 1600121071517:
Описание и отзывы
Характеристики
Products Description
The high-efficiency switch welder (all-in-one machine) is mainly composed of full-bridge rectifier, filter, modular power
module(consisting of high-power IGBT and other power devices), secondary rectifier circuit, inverter circuit (consisting of MOS pipe),load and other components. It includes Inverter Unit,DC power unit, Central Control Unit, Water-water heat exchange unit.
module(consisting of high-power IGBT and other power devices), secondary rectifier circuit, inverter circuit (consisting of MOS pipe),load and other components. It includes Inverter Unit,DC power unit, Central Control Unit, Water-water heat exchange unit.
Name | IGBT High Frequency Single Cabinet Welder |
Color | Black |
Power | 200KW |
Voltage | 380V/415V/440V or customized |
Frequency | 50Hz 60Hz or customized |
Package | Wooden Crate |

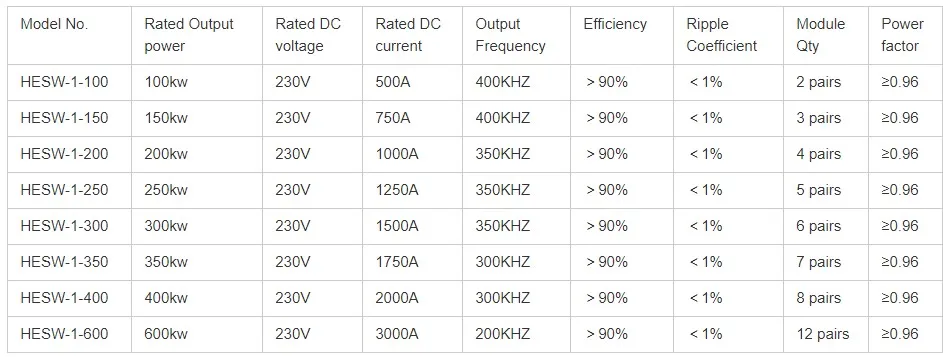

High Efficiency Switch Welder Main Parameters
Details Instructions of each Unit
Inverter Unit
The inverter trigger circuit completely selects high-reliability integrated circuit chip and high-power driver chip, which reduce
the number of components in peripheral circuits and fundamentally decreases the possibility of failure; its anti-interference
ability and work stability are far better than the circuit composed of single chip or other chips. The board has the following
features:
1) Inverter has wide adaptation scope in working status, and does not need to adjust the working status after replacement of steel
specifications or sensor.
2) It has the phase-locked loop circuit, with excellent automatic frequency tracking capability;
3) It has the unique start phase locking detection function.
4) It has complete protection functions: high phase protection, low phase protection, frequency over-limit protection,
over-voltage protection and low supply voltage protection of control board.
the number of components in peripheral circuits and fundamentally decreases the possibility of failure; its anti-interference
ability and work stability are far better than the circuit composed of single chip or other chips. The board has the following
features:
1) Inverter has wide adaptation scope in working status, and does not need to adjust the working status after replacement of steel
specifications or sensor.
2) It has the phase-locked loop circuit, with excellent automatic frequency tracking capability;
3) It has the unique start phase locking detection function.
4) It has complete protection functions: high phase protection, low phase protection, frequency over-limit protection,
over-voltage protection and low supply voltage protection of control board.

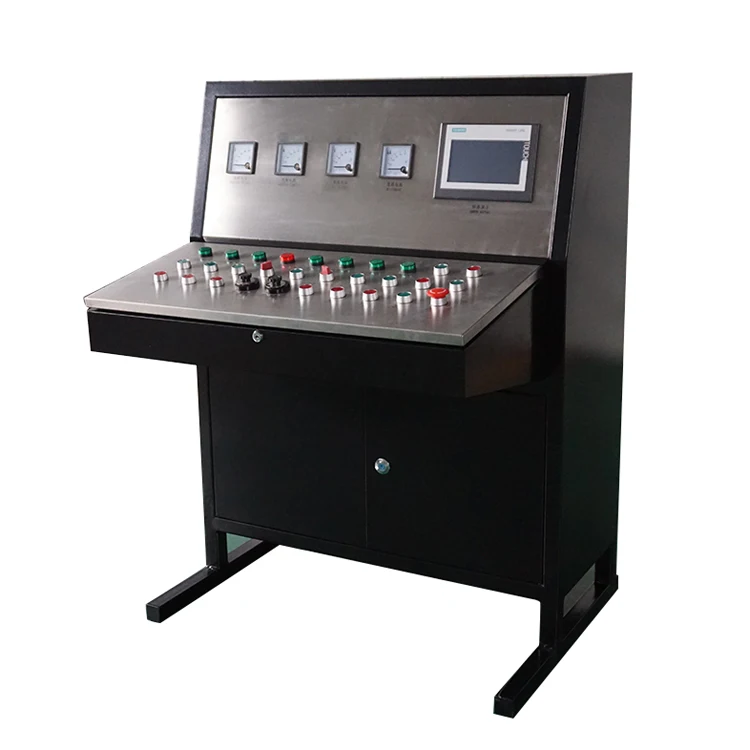

Central Control Unit
The control of DC motor, high-efficiency switch all-in-one machine and cooler on the welding pipe production line is concentrated
in the central control board for the convenience of overall control. The display screen is established to show DC current, DC
voltage, armature voltage, armature current, excitation voltage and excitation current indication and welder status.Install with
Siemens Touch Screen
in the central control board for the convenience of overall control. The display screen is established to show DC current, DC
voltage, armature voltage, armature current, excitation voltage and excitation current indication and welder status.Install with
Siemens Touch Screen

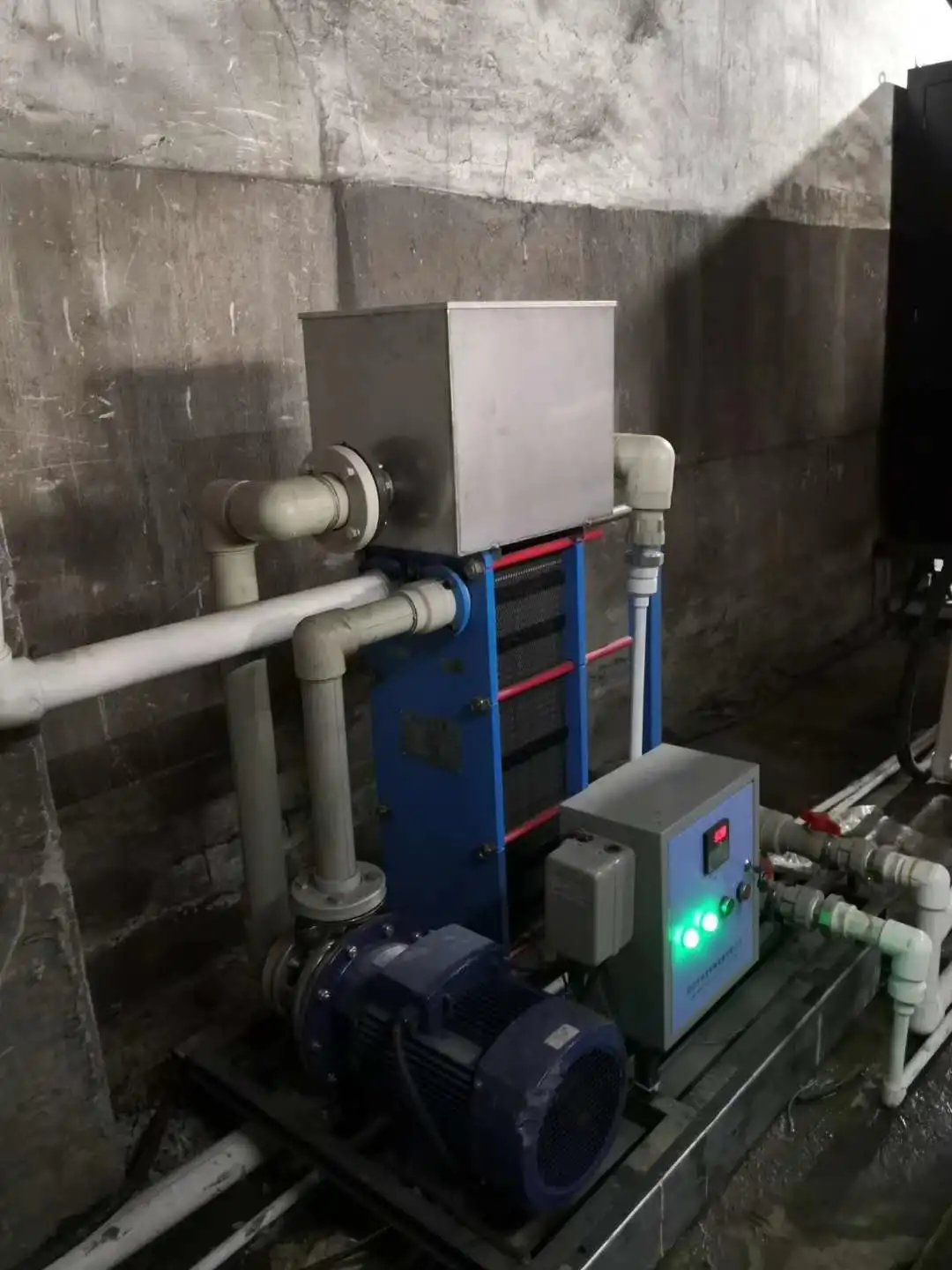

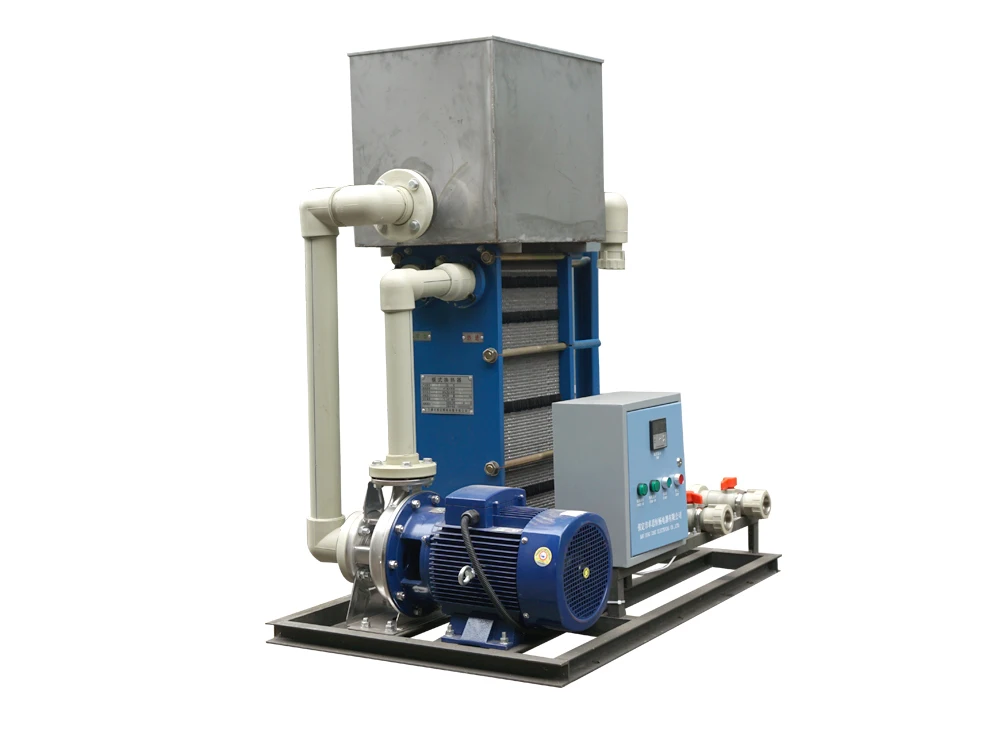

Water-water Heat Exchange Unit
1. Operating principle
The distilled water is used for internal circulation to cool the equipment. The ordinary water is used for external circulation to
cool distilled water, and finally reach the purpose of cooling the equipment.
2. Composition:
Stainless steel plate-type heat exchanger, circulating pump, circulating inner water tank, water pressure relay, external cooling
water interface, electrical control part and base. 3. Advantages of application in industrial heating equipment cooling system:
The internal circulating water is distilled water, so that equipment water line has no water scale, and does not appear the
phenomenon of electric erosion, making equipment operation failure greatly reduced.
The closed circulation prevents foreign matter from entry, so that the pipeline will not be blocked.
The distilled water is used for internal circulation to cool the equipment. The ordinary water is used for external circulation to
cool distilled water, and finally reach the purpose of cooling the equipment.
2. Composition:
Stainless steel plate-type heat exchanger, circulating pump, circulating inner water tank, water pressure relay, external cooling
water interface, electrical control part and base. 3. Advantages of application in industrial heating equipment cooling system:
The internal circulating water is distilled water, so that equipment water line has no water scale, and does not appear the
phenomenon of electric erosion, making equipment operation failure greatly reduced.
The closed circulation prevents foreign matter from entry, so that the pipeline will not be blocked.
Main technical advantages of high-efficiency switch welder
1. Simple line and convenient installation2. Complete protection and easy maintenance
3. Small harmonic interference and no pollution to the power grid
4. Safety without high pressure and no sparking by sensor to steel pipe
5. High efficiency and remarkable energy conservation
6. Small welding spatter and good welding quality
7. Load matching technology (optional)
3. Small harmonic interference and no pollution to the power grid
4. Safety without high pressure and no sparking by sensor to steel pipe
5. High efficiency and remarkable energy conservation
6. Small welding spatter and good welding quality
7. Load matching technology (optional)

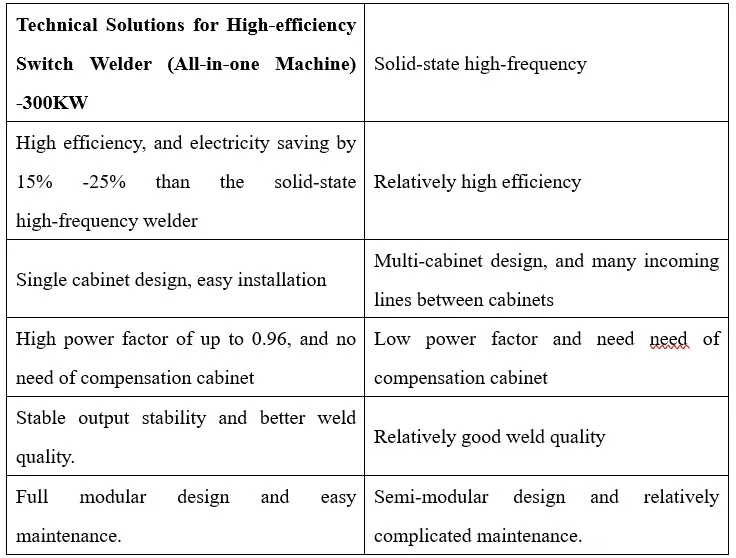

Comparison of switch welder and solid-state high-frequency welder
Features
1 Simple circuit and flexible installation
2 Complete protection and easy maintenance
3 Small harmonic interference, no pollution to the power grid
4 High efficiency, power saving and less cooling water
5 Less welding spatter, good welding quality
6 Load matching technology (optional)
2 Complete protection and easy maintenance
3 Small harmonic interference, no pollution to the power grid
4 High efficiency, power saving and less cooling water
5 Less welding spatter, good welding quality
6 Load matching technology (optional)
Packing&Shipping
222
1.Export Wooden Package
2.Free Fumigation Certification
3.Pallet for Fork Truck
4.Mark as buyer's requirement
Exhibition
Company Introduction
ZSHC Electrical Co., Ltd. was established in 2009, covering 20,000 square meters, with more than 100
employees. It has developed into a comprehensive enterprise integrating R&D, production, sales and service.
The company mainly engaged in products: solid-state high-frequency welding machine, high-efficiency switch welding machine, high-frequency straight welded pipe mill line, intermediate-frequency annealing equipment, zinc spraying machine, shear butt welding, cooling equipment, palletizer, ultra-audio equipment and so on.
employees. It has developed into a comprehensive enterprise integrating R&D, production, sales and service.
The company mainly engaged in products: solid-state high-frequency welding machine, high-efficiency switch welding machine, high-frequency straight welded pipe mill line, intermediate-frequency annealing equipment, zinc spraying machine, shear butt welding, cooling equipment, palletizer, ultra-audio equipment and so on.
Contact Us
1. Field Commissioning
The seller would send one technical engineer to the equipment worksite to commissioning the Solid State H.F welder.
2. One Year Warranty Period
12 months from the date of the equipment is qualified to be commissioned by the Seller’s technician at the Buyer’s site.
3.Sufficient spare parts inventory
4. Provide 7 x 24 hours full response service.
5. Life-long paid service, and spare parts
The seller would send one technical engineer to the equipment worksite to commissioning the Solid State H.F welder.
2. One Year Warranty Period
12 months from the date of the equipment is qualified to be commissioned by the Seller’s technician at the Buyer’s site.
3.Sufficient spare parts inventory
4. Provide 7 x 24 hours full response service.
5. Life-long paid service, and spare parts
Recommend Products
Похожие товары

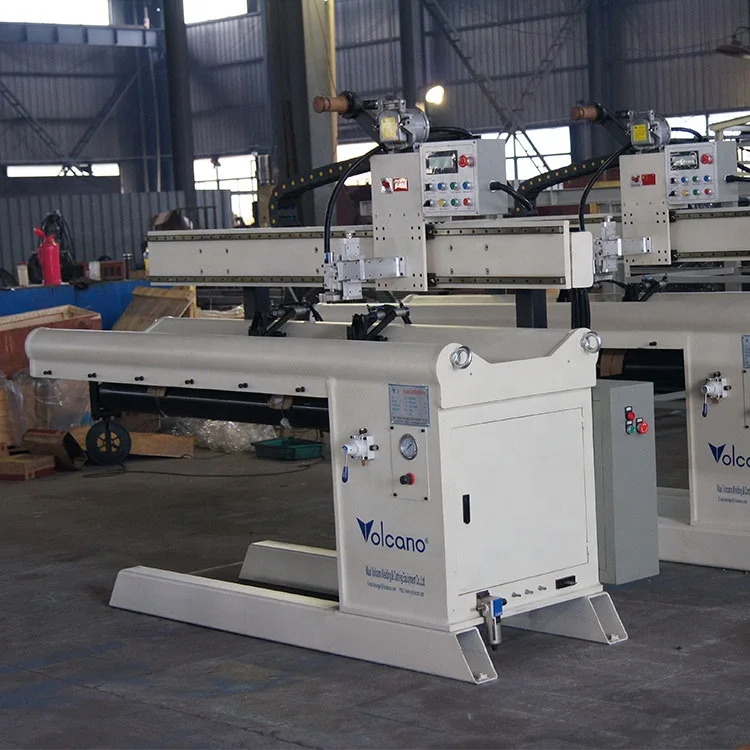

Горизонтальный автоматический сварочный аппарат TIG/MIG
Автоматический сварочный аппарат, цена
382 551,00 ₽

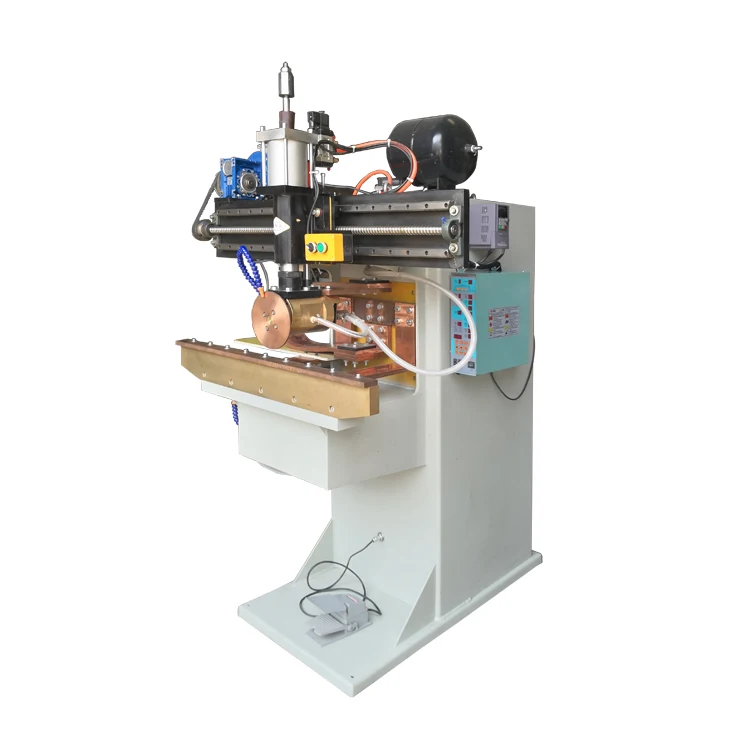

Продольный автоматический сварочный аппарат с тонким резервуаром толщиной 0,5 мм
765 102,00 ₽
Новый дизайн, автоматический прямой Продольный сварочный аппарат
229 530,60 ₽ - 612 081,60 ₽

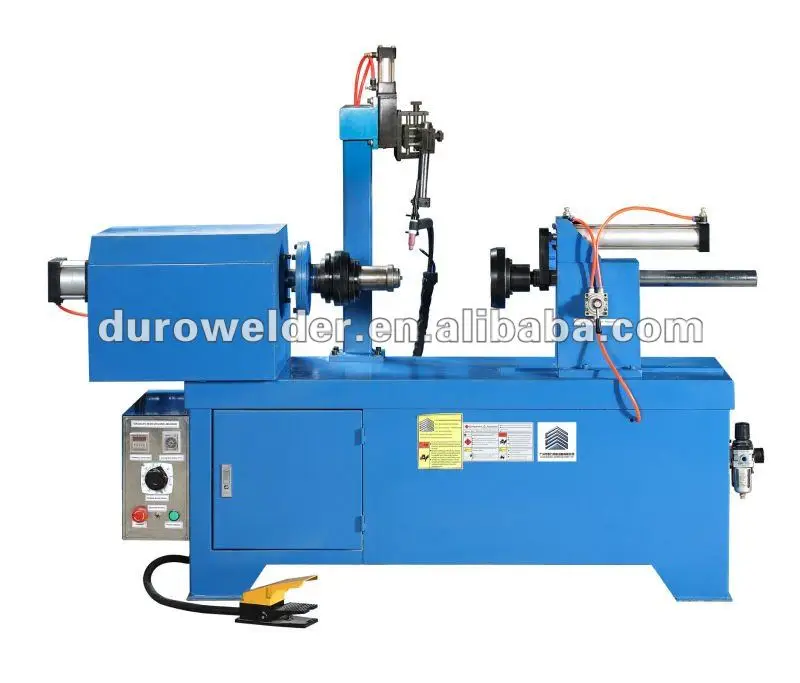

Танковый сварочный аппарат, цена
229 530,60 ₽ - 765 102,00 ₽

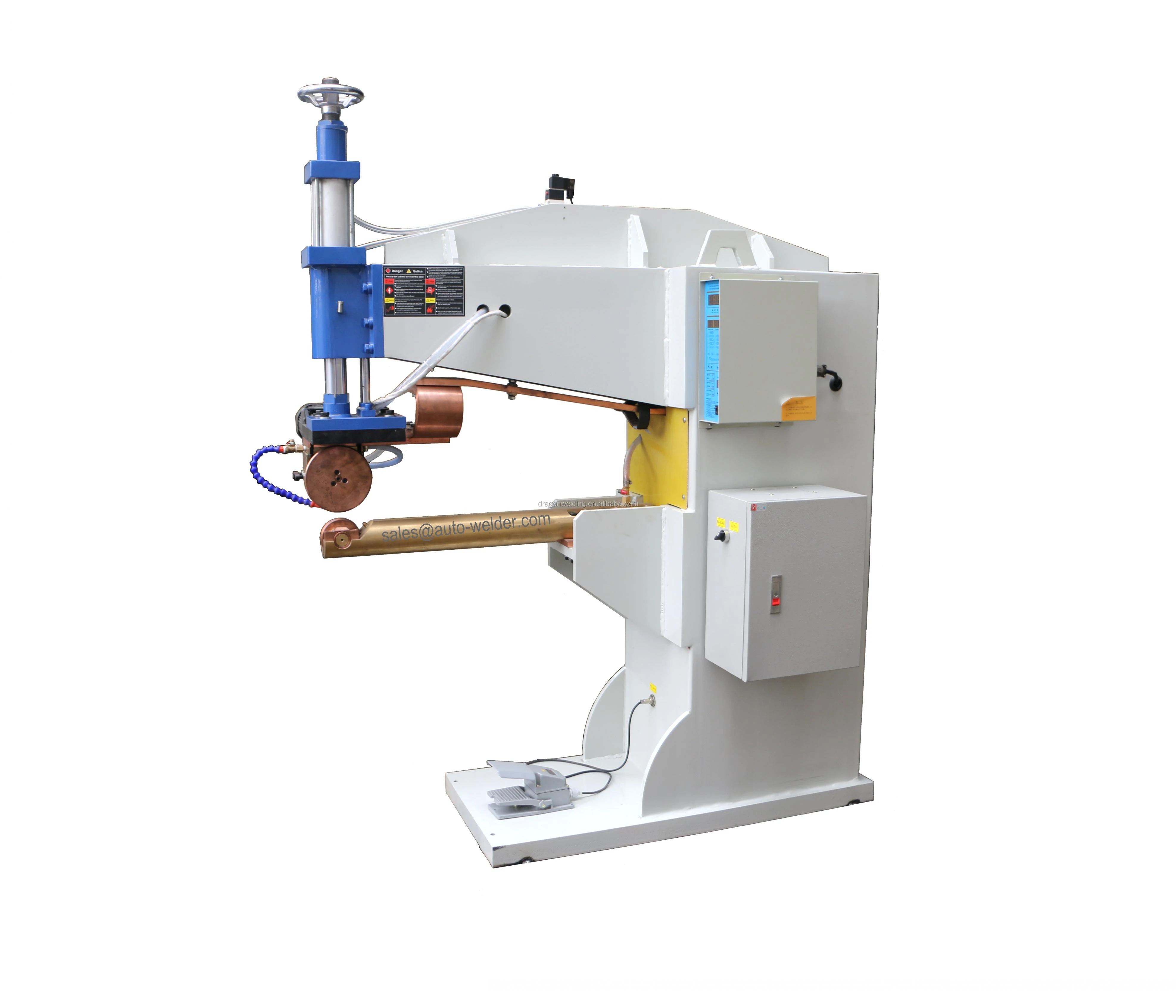

Производство Oem, сварочный аппарат с прямым швом
416 231,76 ₽

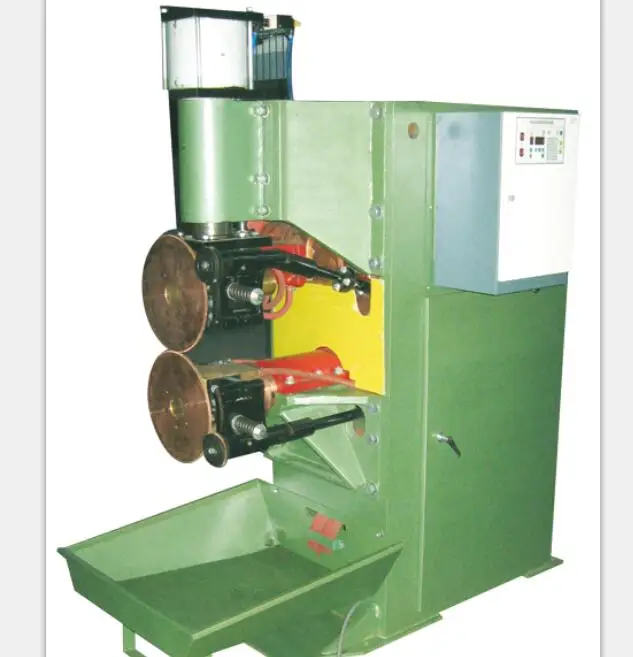

FN-150K AC ролик продольного шва сварочный аппарат
