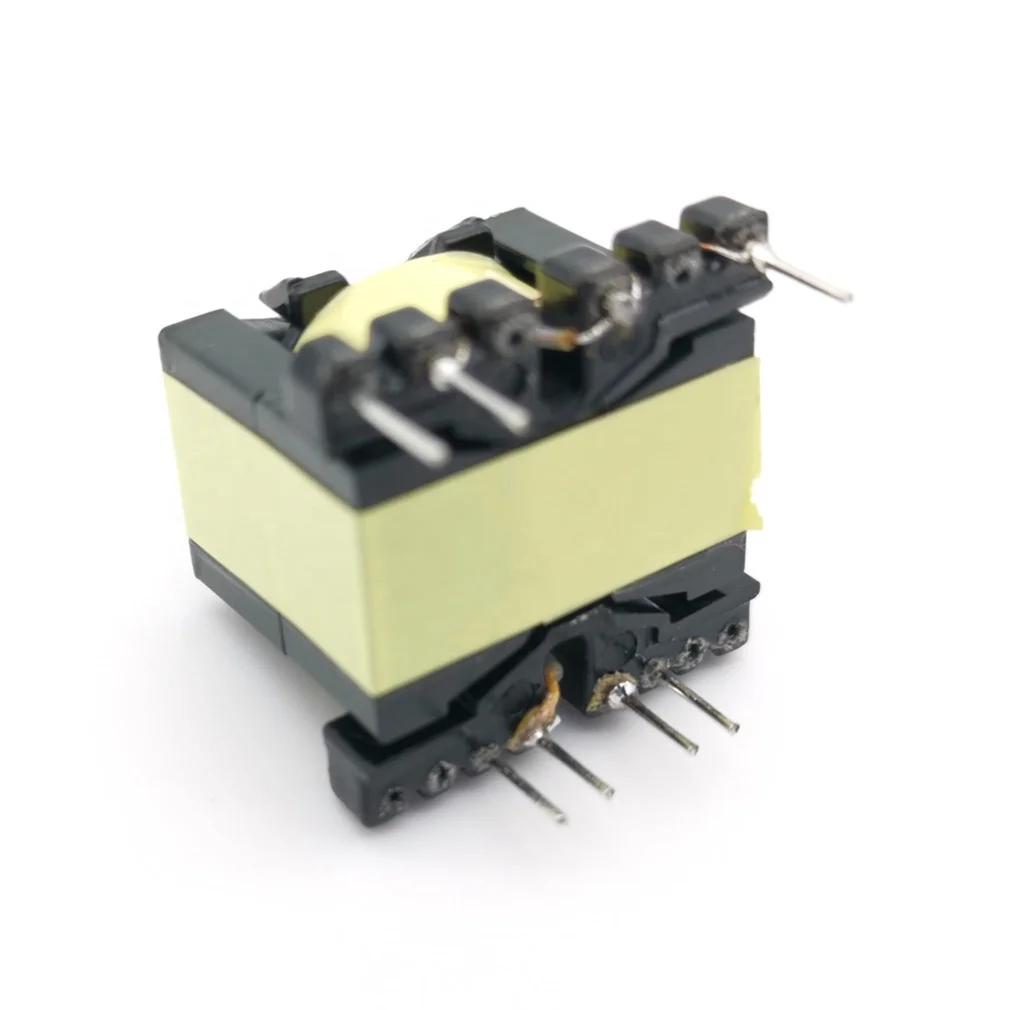

Ферритовый трансформатор 220 В до 110 120 Вт PQ35 PQ40

Ферритовый трансформатор 220 В до 110 120 Вт PQ35 PQ40

Категория: >>>
Поставщик: Nantong Tianyi Electronics Co. Ltd.

Цена:0,32 $ - 0,35 $*

Количество:

В избранное

Описание и отзывы

Характеристики

_01

We can produce all PQ type tranaformers with good quality and price.

High efficiency, high quality materials.

Low working temperature and long service life.

Good insulation and high resistance to electric power.

Good anti-interference performance and high reliability.

Low energy consumption and high dc superposition.

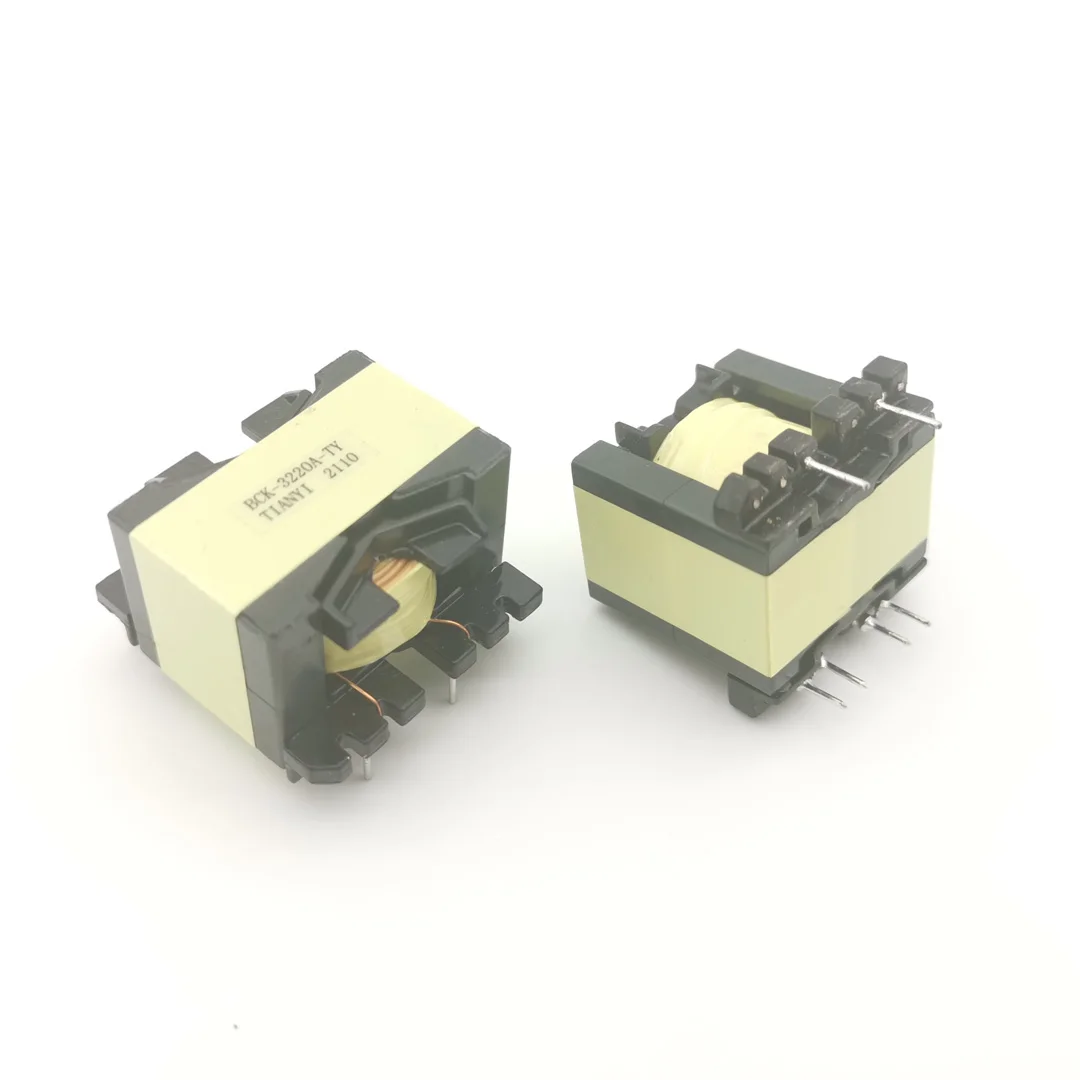

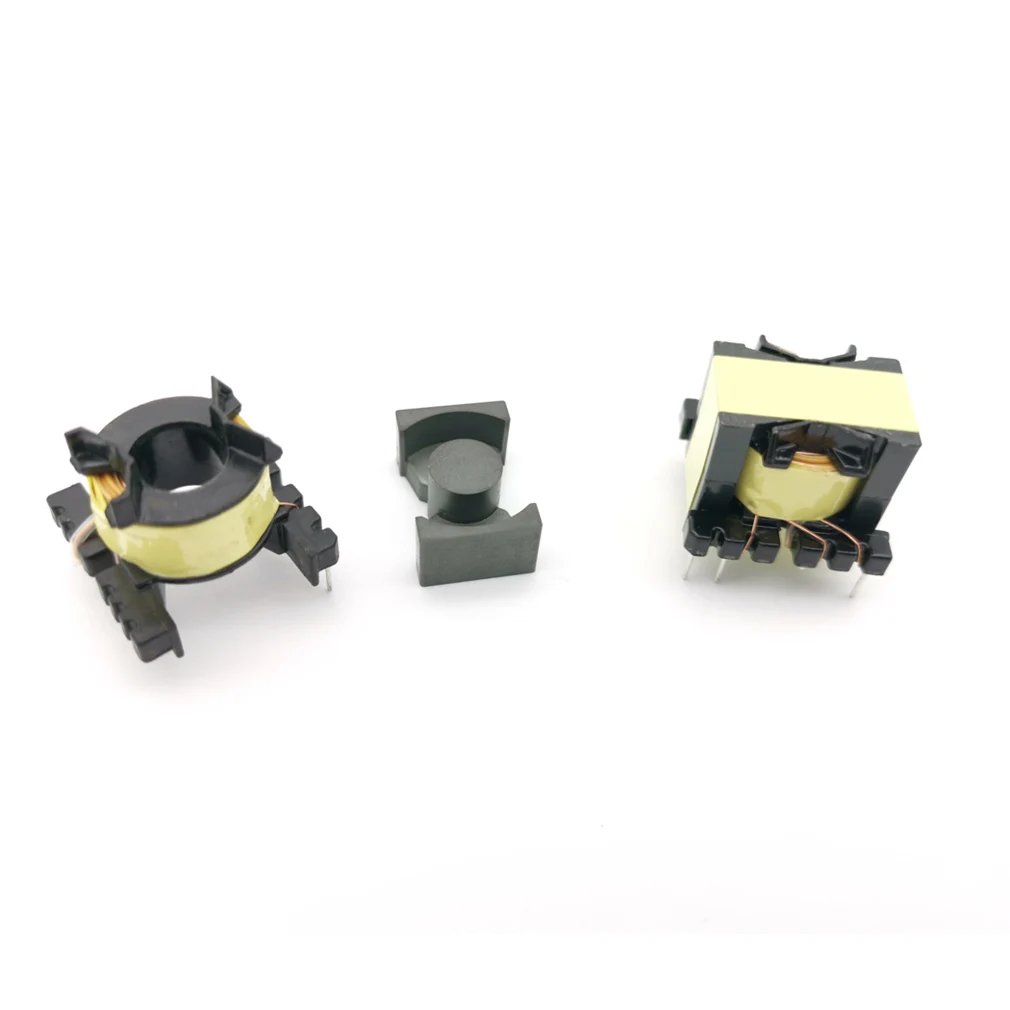

PQ3230 transformer

Hot-selling products-High Frequency Transformer - PQ2625 Type

This type of products is used in Power unit for program-controlled exchanger, module power supply, etc.

All raw materials are certified.

Part No.:

TYH-PQ2625-17

Materials:

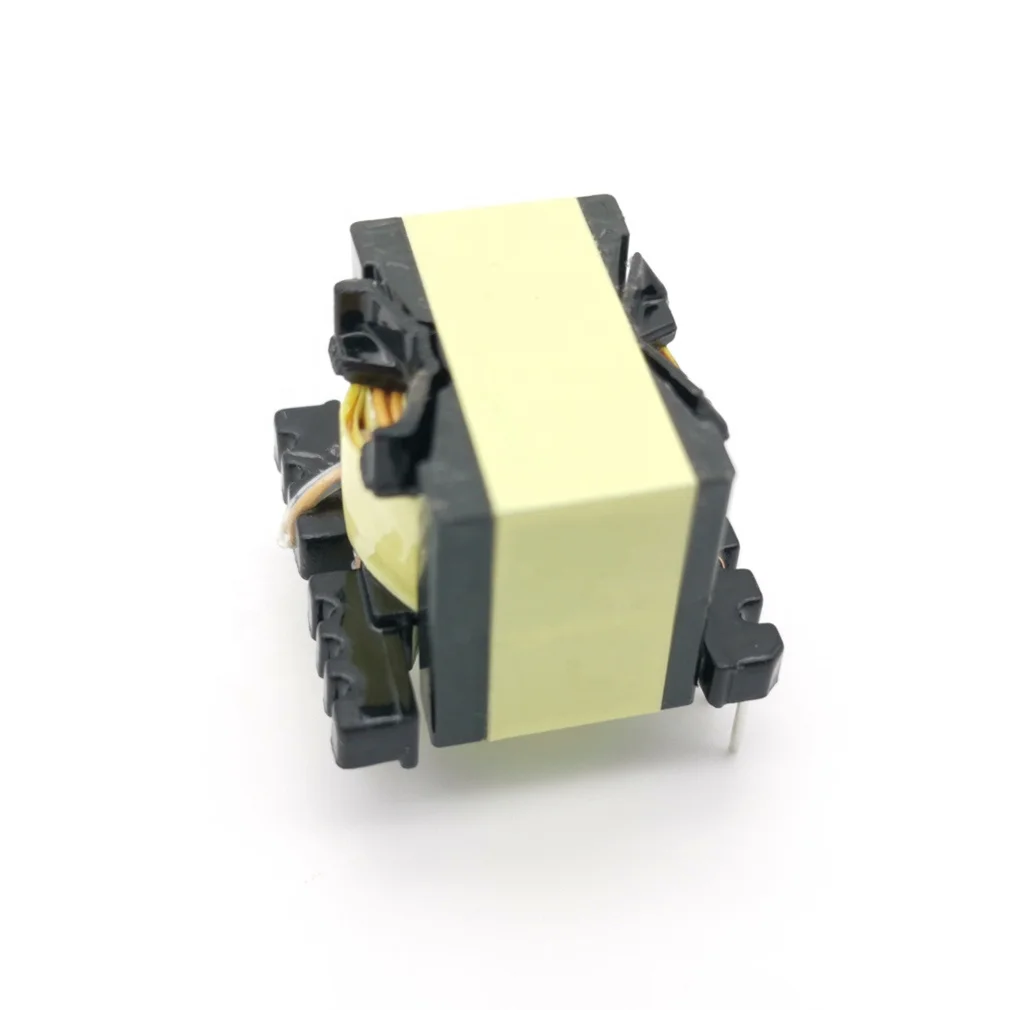

Product Picture:

Features:

Ferrite core:PQ2625/PC40

Customizable

Phenolic bobbin:PQ2625/T375J

Small transfer capacitance

Copper wire: 2UEW Φ0.25, Φ0.35 /130℃/NP; TIW-B Φ0.25 /130℃/NS

Higher inductance

Lower loss

Tape: JY-133/130℃

Could be main transformer,driving
transformer,auxiliary transformer and
isolation or matching transformer

Varnish: T4260(a)/155℃

Tube:TFL-600V/200℃

Soldier:W8(Sn-0.7Cu)

Dimensions:(Unit:mm)

Electrical Charactersistics:

No.

Items

Test Terminals

Specification

Test Conditions (At 25℃)

Test meters

Inductance

1-4

1mH±5%

10KHz/0.25V

HP-4284

LK Inductance

1-4

30uH Max

10KHz/0.25V

HP-4284

DC. Resistance

1-4

1.6Ω Max

NF2511

Hi-Pot

PRI.-SEC.

4KV /5SEC.

50HZ ,2mA

DZ2672B

PRI.-CORE

1KV /5SEC.

50HZ ,2mA

DZ2672B

SEC.-CORE

4KV /5SEC.

50HZ ,2mA

DZ2672B

All types:

NO.

Product Name

TYPE

Detailed Type

High frequency transformers

EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85

EC/ER

ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49

ETD

ETD29, ETD35, ETD40, ETD49

EF16, EF20, EF25

EFD

EFD15, EFD20/21, EFD25/26, EFD30

EDR

EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008

EP7, EP10, EP13

EPC

EPC11.5, EPC13, EPC19, EPC25

EQ2512, EQ2610, EQ3209, EQ4013,

POT

POT3016, POT3930

PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49

RM6, RM8, RM10, RM12, RM14

Common mode chokes(Line filters)

Bobbin

EE8.3, EE12, EE19, EE25

UU9.8, UU10.5, UU16

ET20, ET24, ET28, ET35

SQ1212, SQ1515, SQ2418

FT20-22, FT20-21, FT20-15, FT20-13, FT20-10

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core)

Inductors(Choke coils)

Peaking/Drum

4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20

Toroidal

6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16

Rod

3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30

Bobbin

EE8.3, EE10, EE13, EE16, EER(PFC)

SMD power inductors

Unshielded

MT, MTQ, MTF, MTG

Shielded

MTH, MTHII, MTP, MTB, MTE, MTL, MTF

Low frequency transformers

EI14, EI16,EI19, EI24,EI28, EI30, EI35, EI38.5, EI41,EI48, EI57, EI60, EI66, EI74, EI76, EI86, EI96, EI105, EI114

packingshipping

1. Are you a trading company or a manufacturer?

We are a manufaturer, and have our own trading company(Nantong Meican International Trading Co., Ltd.)

2. What are the advantages of your products?

We have more than 12 years of experience in this industry.
We have a batch of top class production equipment, such as full-automatic coil winding machines, full-automatic assembling, packing and testing all-in-one machines.
We have passed ISO9001, CQC and CE certification.
Our products comply with international quality standards and measure up to the environmental protection standards of EU.

We hold several patents in this field.
Competitive price,delivery on time.

3. How about your after-sale service?

We will reply customer within an hour when there is quality complaint. Also we need customer's help to provide relevant pictures and videos, and finish the accident investigation within 24 hours.

If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced.

The warranty period is 2 years.

4. Do you provide customizable products?

Yes, we can customize products as your requirements.

5. Is the sample free?

Yes, it is.

6. What about the lead time?

Samples need 2-7 days, mass production time is usually about 1-3weeks, but it depends on the order quantity.

7. What is your MOQ for mass production?

500PCS, but any small trial orders are welcomed.

8. What is your terms of payment?

We accept T/T, L/C.

9.Do you test all your proudcts before shipping?

Yes, we 100% test before shipment, and we have full-automatic testing facilities which can reduce human error.

10.Where is your shipping port?

Normally Shanghai.

11.What's your express service?

Fedex, DHL, EMS, SF Express with great discount.

12. What's your trade term?

EXW, CFR, FOB, CIF, DDU, DDP are all acceptable, or online transactions.
