Натяжной фиксатор предварительно напряженный кабель пластиковый бетонный прокладка

Post Tension Anchorage Prestressed Cable Plastic Concrete Spacer

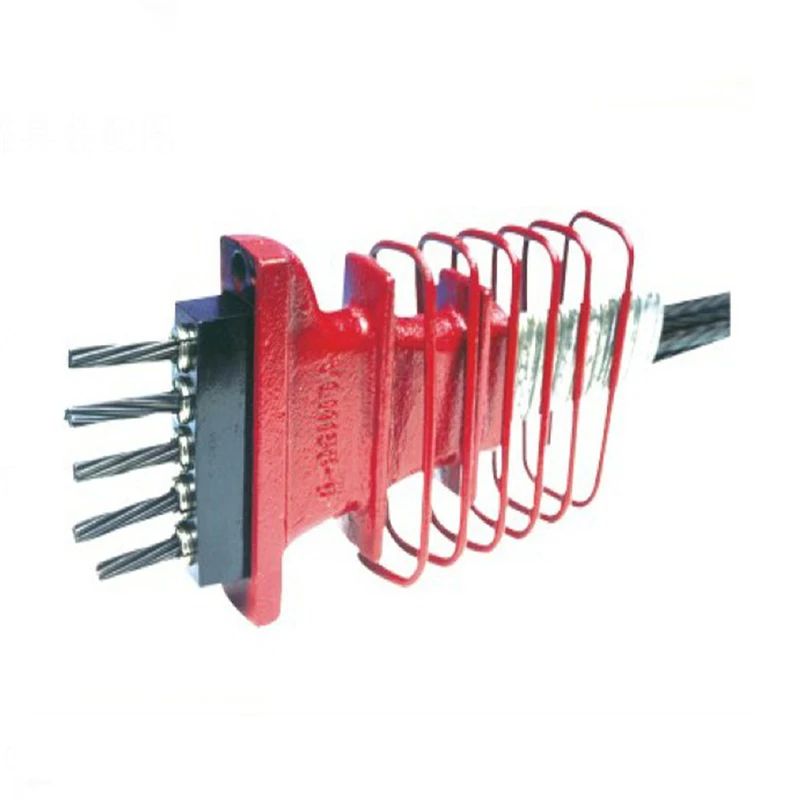

Prestressed anchor is widely used for many field, for example, bridge construction, railway and highway construction, buildings and channel construction, etc.

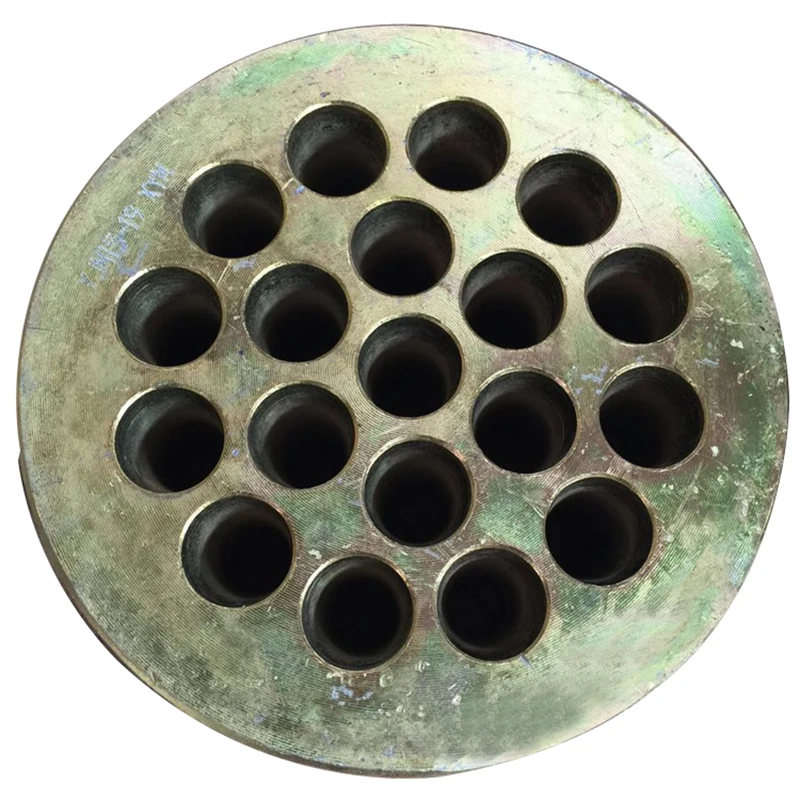

Anchor head is the key part of bearing the prestressing tension, The round anchor head is made by 45# high-quality carbon construction steel.

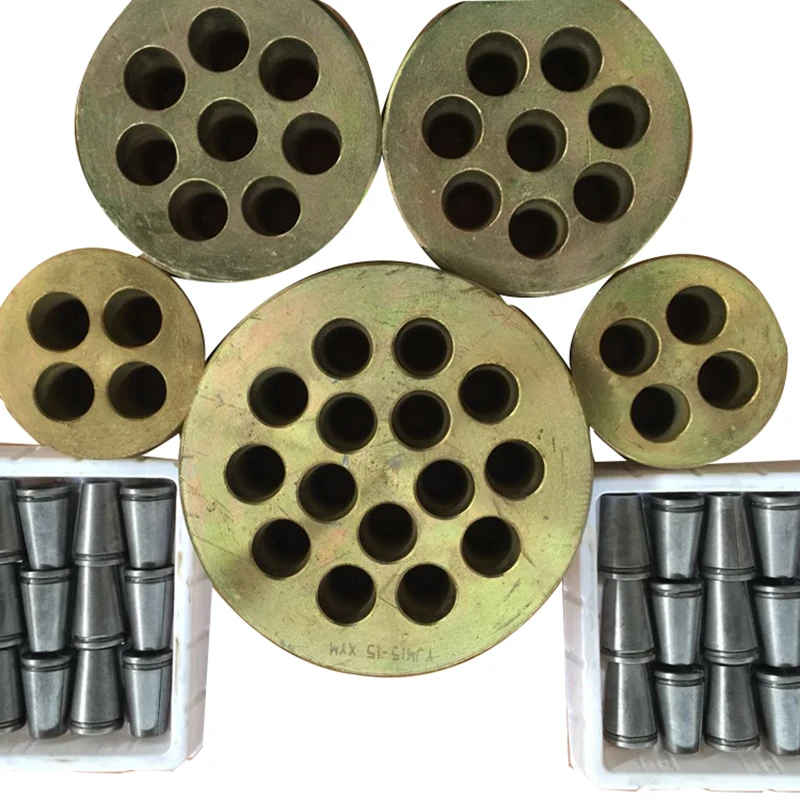

 We have anchors with different number of holes and support customization!

Contact Us

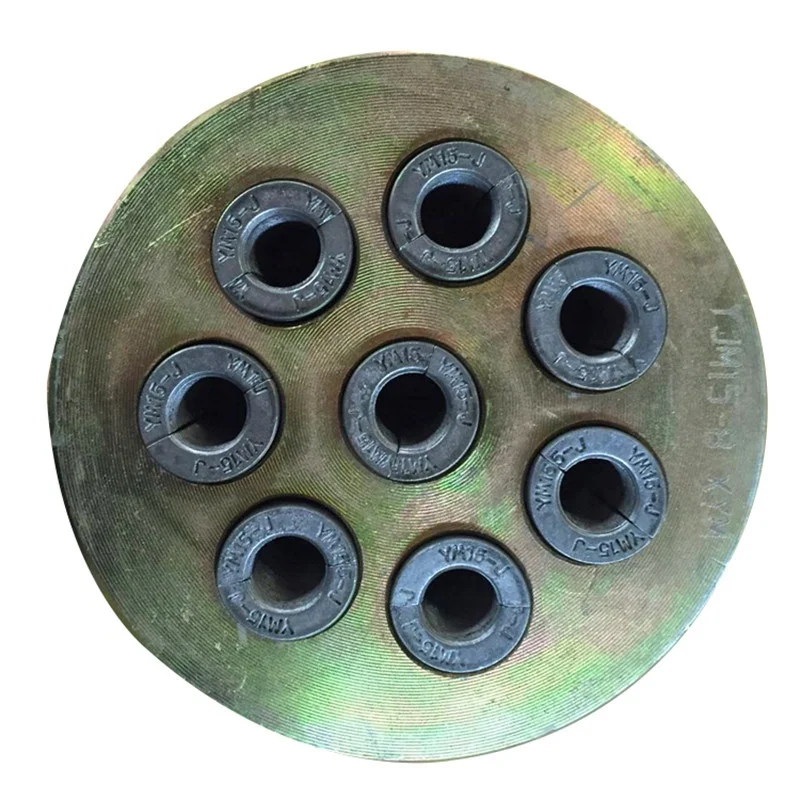

Wedege is the key part of anchor system, which is made by high-class alloy steel 20CrMnTi. Its form is divided into two-chip and three-chip. The system apply to the two-chip GYM15 series, it can be used for round anchorage, flat anchorage, but also used for porous coupler.

bearing plate is the key component, which transfer the load from anchor head to concrete under anchor. The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete. Bursting reinforcement used for distributing the concrete. For prevent concrete from crazing, and use the bursting reinforcement for strengthening tendons.

Anchor system has below features:

Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm.

GYM Anchor System Assembly

Technical data

We can also provide:

Post tension jack with pump: The equipment can be used to tighten various steel strand anchors, and has a matching hydraulic oil pump.

PC strand: 12.7 mm and 15.2mm prestressed concrete wire strand.

Prestressed anchor: Anchor head, bearing plate, anchor wedge, spiral reinforcement, metal corrugated ducts, PC strands. Good tensile performance, continuous stability, high efficiency coefficient, convenient operation.

PC strand pusher machine: PC strand pusher machines are widely used in prestressing jobs. The operation is simple and the maintenance is convenient, saving manpower and improving work efficiency.

Grout pump: The equipment can be used for grouting of prestressed Bridges.

Duct making machine: The machine can produce bellows for bridge prestressing and small, efficient, easy to operate.

All the machines can be customized according to client’s requirements, supply the best quality and serve. Our warranty is 2 years.

Contact Us

The prestressed anchor packaging generally uses a square wooden box, which has better pressure resistance and impact resistance.

We have 15 years of production experience, our engineers is one of the first generation of anchorage developer in China. And there are 43 intermediate and expert in our company, kinds of advanced equipment 76 sets and advanced testing equipment. The capacity of product is over 1,500,000 sets of anchorage and kinds of machine 1,500 sets. Our main product is XYM series of anchor system, series of KBM anchor system, series of DM anchor system, and other new design anchor system. And we also are the one of factory for passing ISO9001 Quality Certificate.
