Автоматическая стиральная машина с линейной циркуляцией стеклянных бутылок
- Категория: >>>
- Поставщик: Nantong Bolang Machinery Technology Co. Ltd.
Сохранить в закладки 1600122665187:
Описание и отзывы
Характеристики
Our Product Advantages
1.We have many high quality and reliable suppliers.
2.We have young and powerful sales team, and have enough exported experience.
3. Our products are of excellent quality and fast processing speed.
4.Rich experience, more than 1,500 global customers, more than 20 years of factory history.
5. Rich product categories, products support OEM and customer customization.
6. One-year warranty, can provide overseas installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description
Product Function

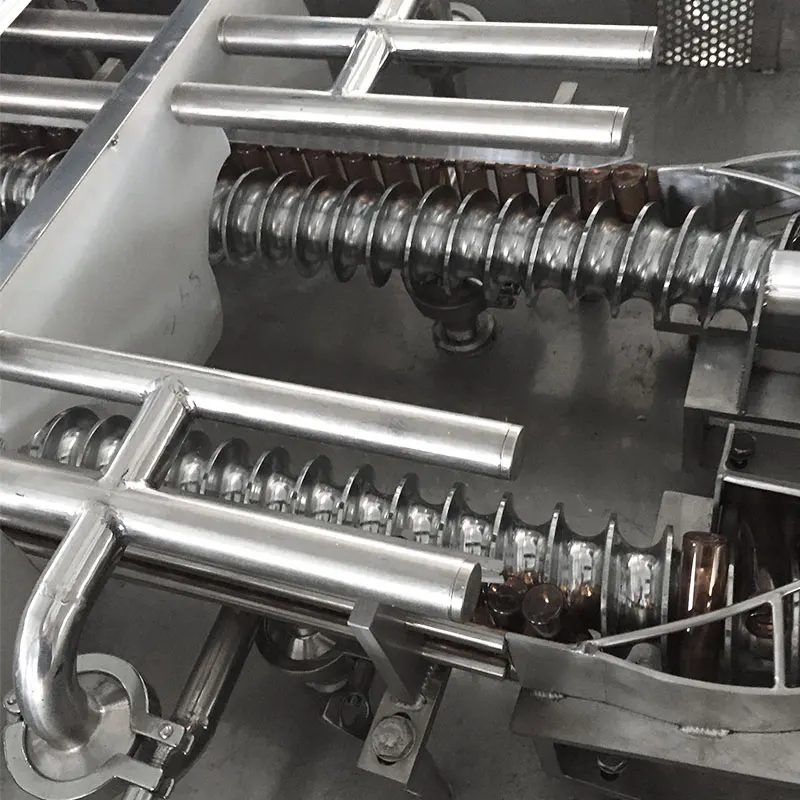

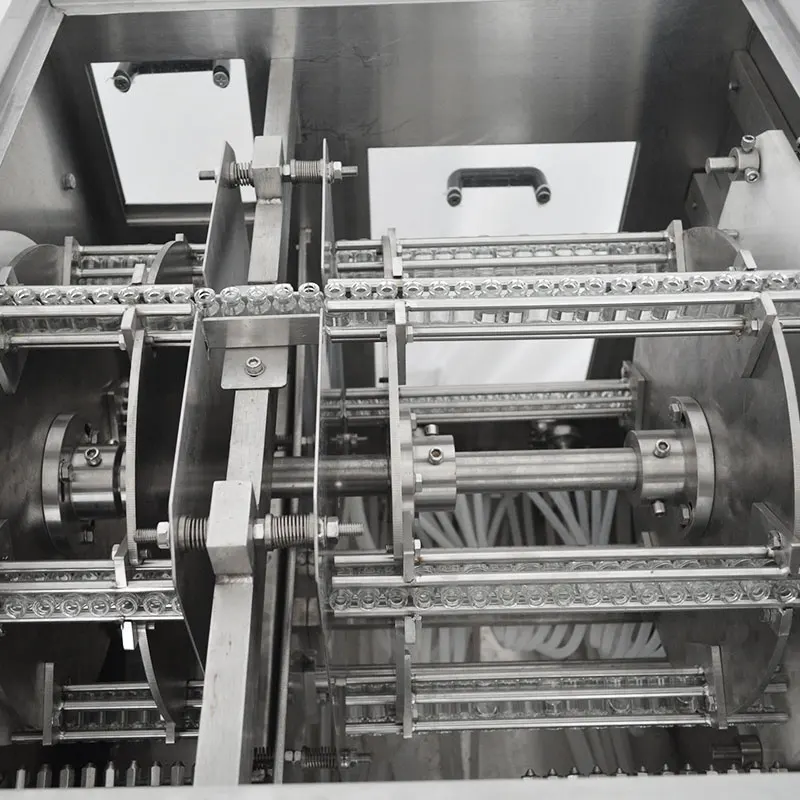

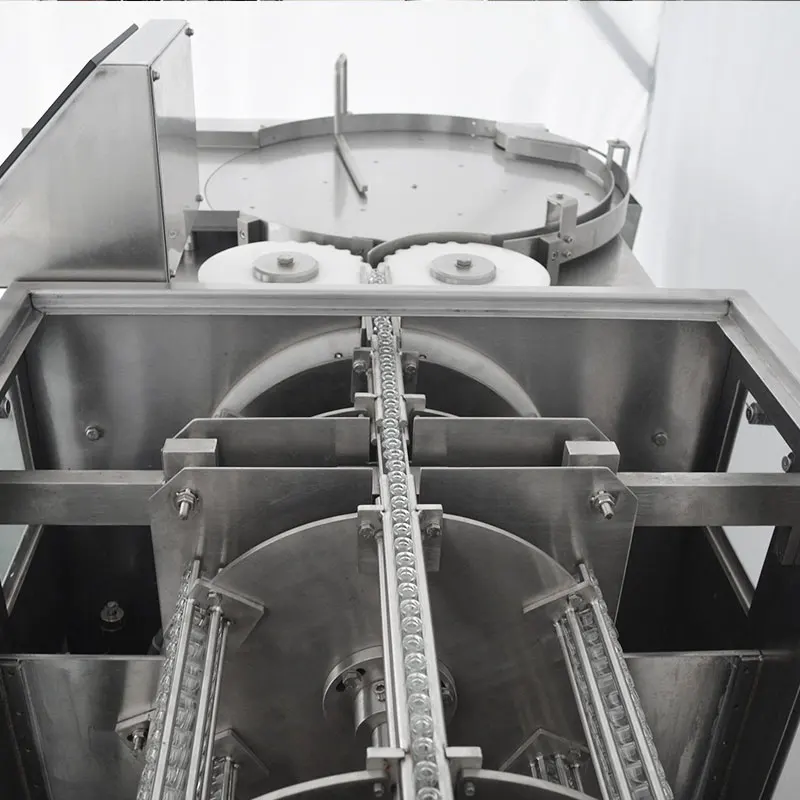

1. This machine is a bottle cleaning equipment in the plastic bottle liquid filling production line, which is mainly used to clean the dust inside the plastic bottle.2. After the bottle into the gas wash box flip 180 degrees, the jet into the bottle for showering, after the completion of flip 180 degrees after the air wash tank. Gas inside the exhaust box by a dedicated centrifugal fan sucked out of the room.
Production capacity | 5000~7000(10000 ~ 15000) bottles / hour |
Applicable bottles | 10~20ml straight bottle |
Way | straight, hot air circulation |
Drying temperature | 120 ~ 140 ℃ |
Reuse water consumption | 0.8m³ / h Pressure: 0.2 ~ 0.3 MPa |
Purified water consumption | 0.6m³ / h Pressure: 0.2 ~ 0.3MPa |
Purified compressed air consumption | 0.5m³ / min Pressure: 0.3 ~ 0.4MPa |
Power | 380V 50Hz three-phase four-wire system |
Power | 16Kw |
Overall dimensions | 2700 × 900 × 1450 |
Main device component configuration
No. | Name | Model or Material | Supplier |
1 | Frequency Converter | S310-201-H1BCD150 | Taiwan TECO |
2 | stainless steel pumps | CDXM120 / 20 | South pump |
3 | solenoid valve | NT20 | SNS |
4 | temperature controller | XMT6000 | Shanghai |
5 | SCR | KS50A | Shanghai |
6 | other electrical components | CHINT Technology | |
7 | water tank | SS304# | Nantong Bolang |
8 | transmission | components | Nantong Bolang |
9 | cleaning system | SS316L | Nantong Bolang |
10 | heating system | components | Nantong Bolang |
11 | hot air circulation system | components | Nantong Bolang |
12 | side panels, panel | components (304 #) | Nantong Bolang |
13 | rack, platen | assembly (A3) | Nantong Bolang |
Company Profile
Our company is one of the member units of China Pharmaceutical Equipment Industry Association. Its predecessor is Haimen Nantong Precision Machinery Co.,Ltd.It has a history of more than 20 years.It specializes in the design and manufacture of pharmaceutical,food and chemical machinery,and has a far-reaching impact on the national pharmaceutical and food industries.The company has strong design ability.The products are also exported to Southeast Asia,Central Asia and other countries and regions,and are favored by users.
Delivery&Certificate
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
