Product Overview

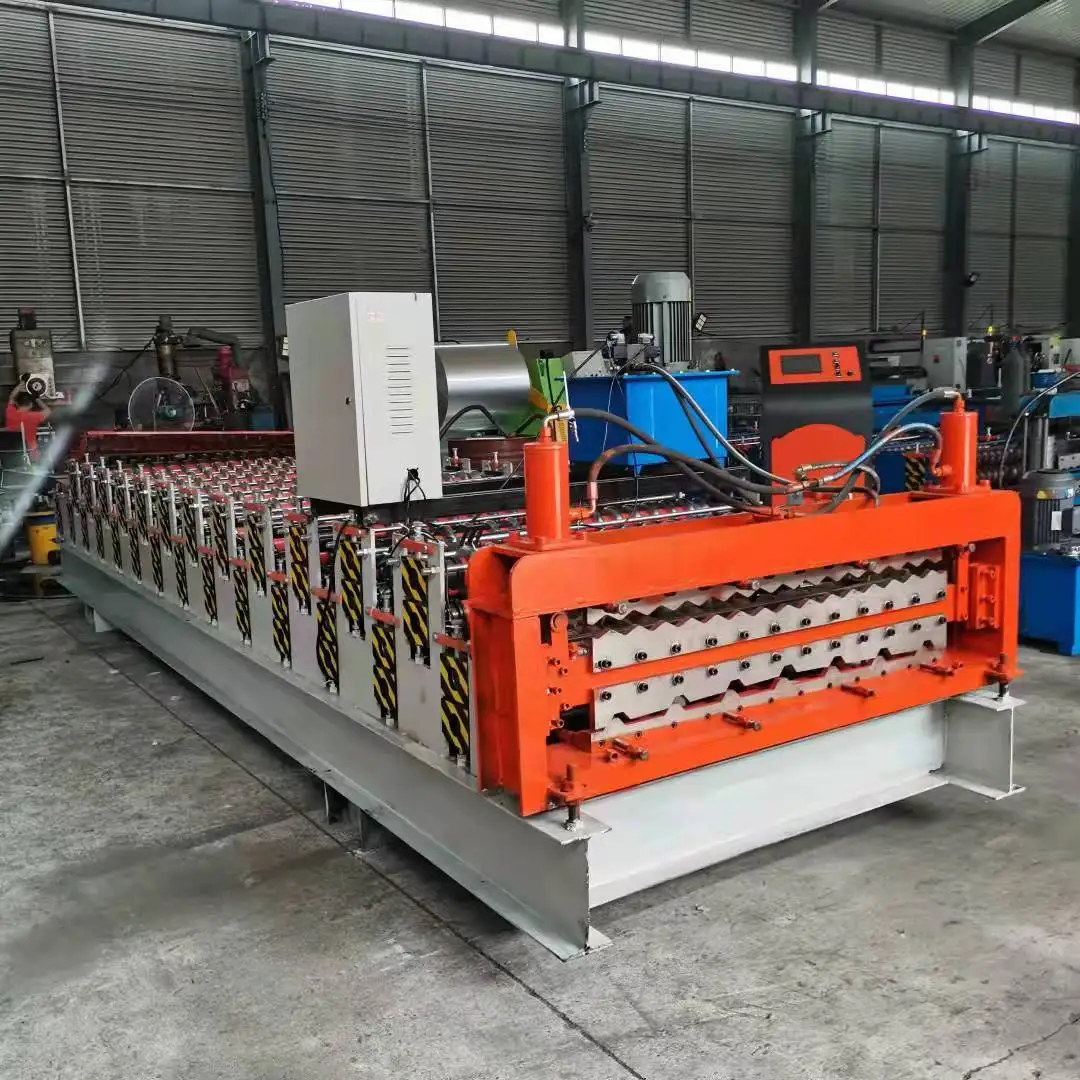

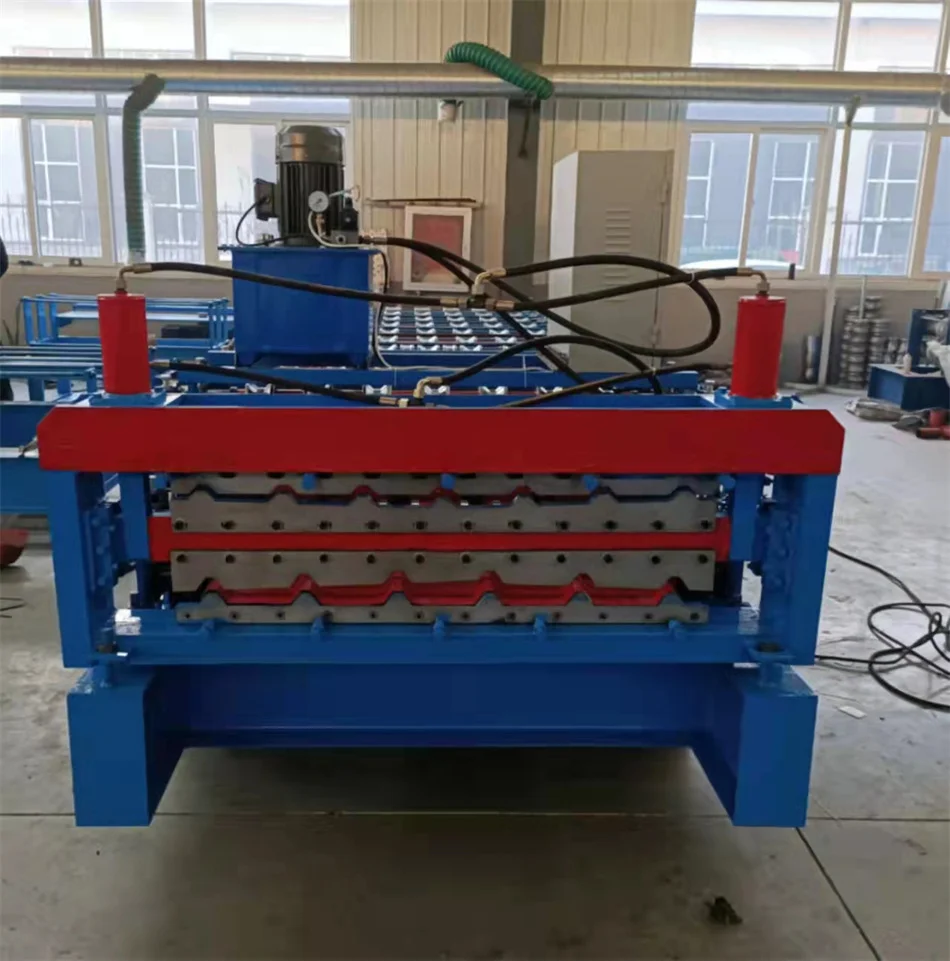

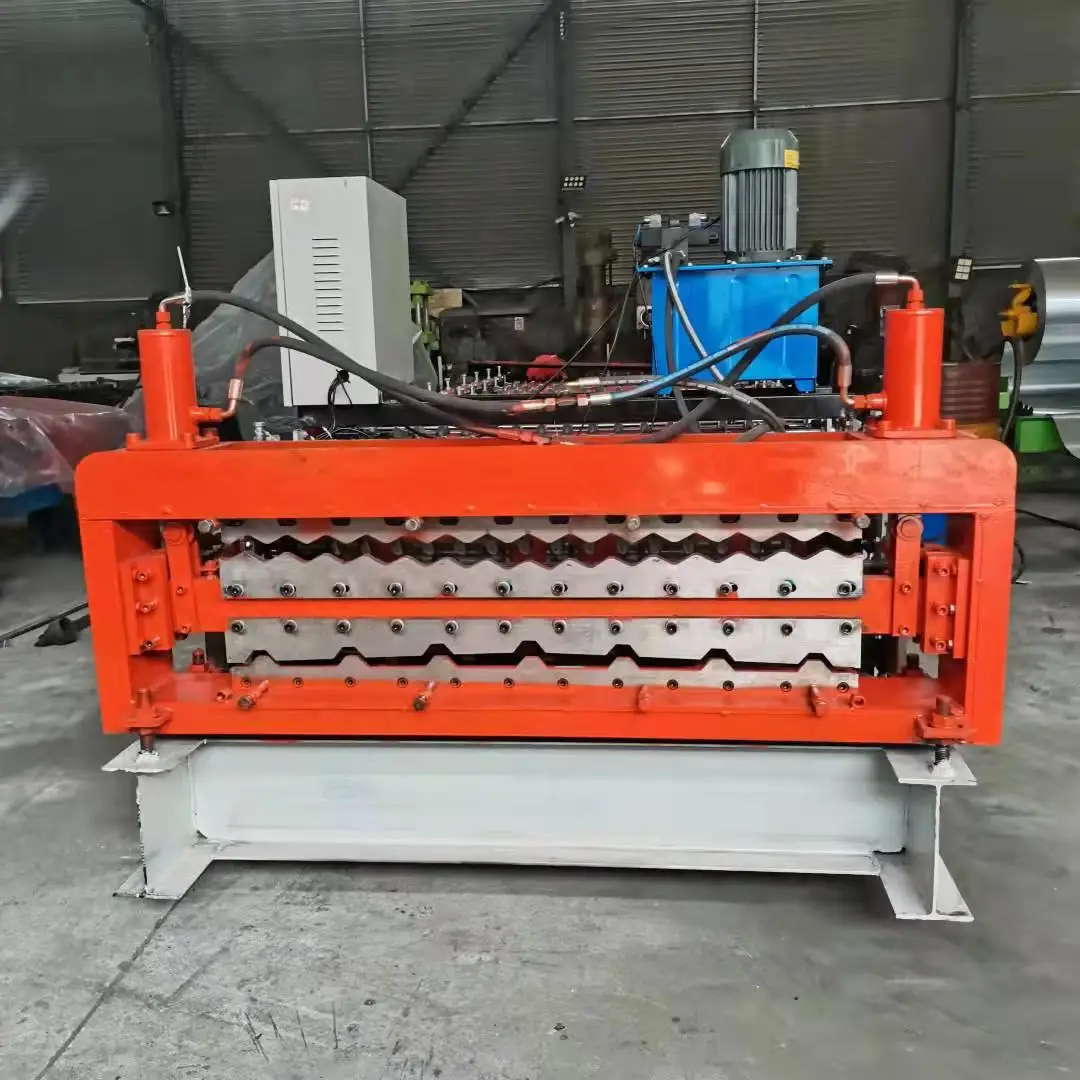

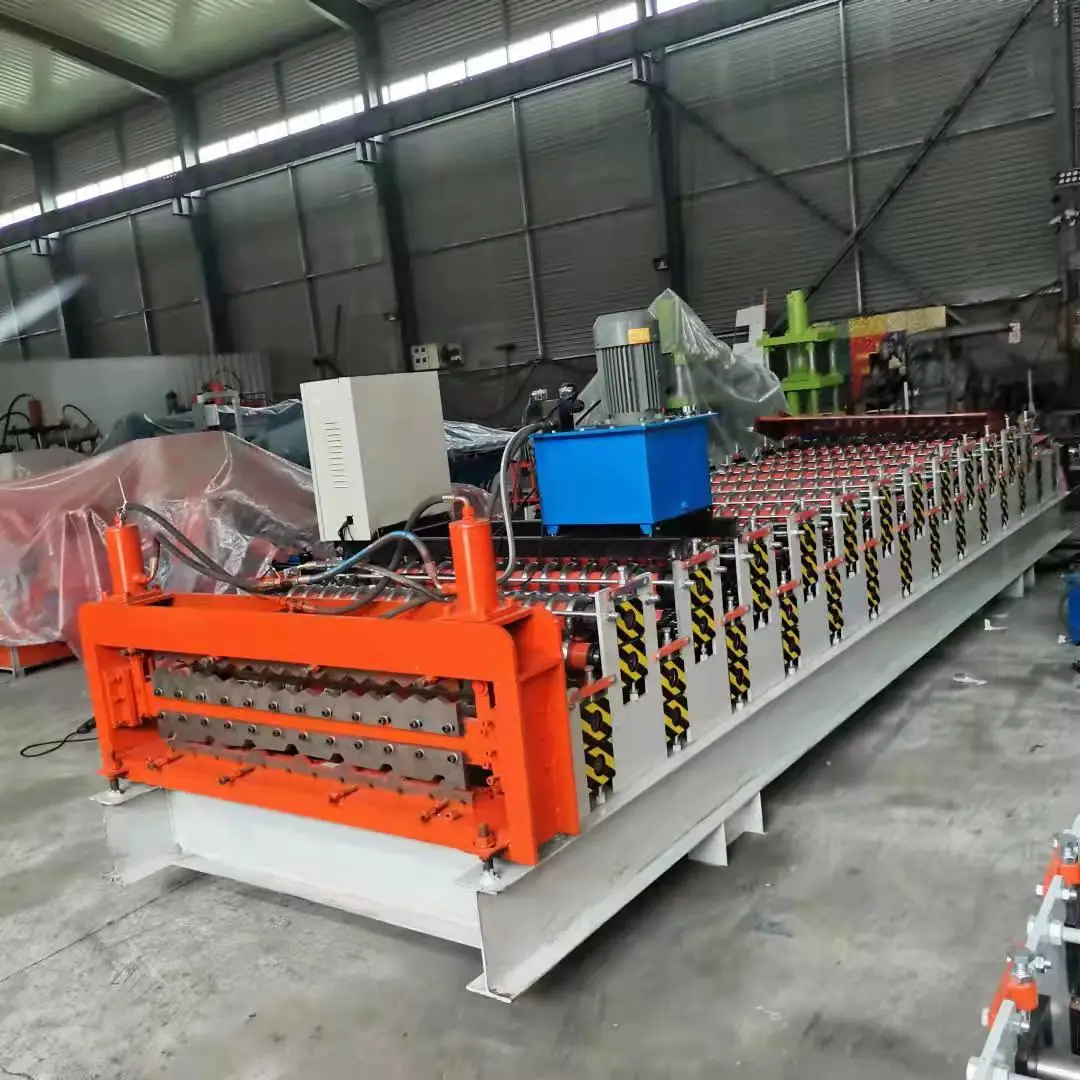

Double Layer Roll Forming Machine
Roof Sheet Double Layer Forming Machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet double layer roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Raw material width | 1000-1200 mm |
2 | Sheet effective width | 750-1000 mm |
3 | Raw material | Color steel sheet or galvanized steel sheet |
4 | Material thickness | 0.3-0.8 mm or customized |
5 | Forming roller material | 45# steel plated with chrome |
6 | Shaft diameter | 70 mm |
7 | Forming roll station | 8-16 steps |
8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
9 | Hydraulic power | 4 KW (according to type) |
10 | Control system | PLC control |
Roof sheet double layer roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Details Images
Decoiler
roof sheet double layer roll forming machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.
This loading frame decoiler also can use in other type machine, customer can buy it alone.
Machine frame
roof sheet double layer roll forming machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
Forming roller
roof sheet double layer roll forming machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
Control part
roof sheet double layer roll forming machine control parts have different types, standard type are button control, through press buttons to realize different function.
PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.
Successful Project
Project in Thailand
Project in India
Project in Russia
Company Profile
Henan Wadley is specialized in the production of roll forming machinery.Our company was established in 2017, it is located in the capital of Henan Province - Zhengzhou, which is the center of the business and economy. Our products have passed the international ISO9001: 2008 quality management system certification. We have established good relationship with our customers from more than 100 countries .
Main products: Roll forming machine, Roof sheet make machine, C Z purlin roll forming machine,CNC lathe, CNC machine center, boring machine, drilling machine, milling machine, sawingmachine, gear hobbing machine, metal tapping machine and so on. any requires please contact us
Main products: Roll forming machine, Roof sheet make machine, C Z purlin roll forming machine,CNC lathe, CNC machine center, boring machine, drilling machine, milling machine, sawingmachine, gear hobbing machine, metal tapping machine and so on. any requires please contact us
SIMILAR PRODUCTS
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
