Solid State High Frequency Welder Factory Introduction
Ronen Group Is committed to designing and manufacturing of induction heating equipment, which are widely used in Machinery, Building Materials,Metallurgy, Paper Making, Automobile Manufacturing and other fields, to fully meet the needs of Steel Pipe Seam Welding,Stainless Steel Pipe Welding, Strip Heating, Vacuum Melting, Copper Pipe Welding, Steel Pipe Annealing, Refrigerator Tube Welding,Metal Heat Treatment, Metal Smelting, Welding, Brazing, Thermal Assembly and other Induction Heating Process Requirements, mainly include Spring Steel Wires, High-Strength Pipe Piles PC Steel Rods / PC Bar, Prestressed Steel Wire, Prestressed Concrete Strand, Rebar, Aluminum-Plastic Pipes, Wires and Cables Production Equipment lines.
Ronen Group Domestic market share is more than 60%, and In recent years, we have exported our machines to USA, Europe, Russia, Egypt, Japan, Korea etc. more than 25 countries.
Ronen will always be here for you!
Solid State High Frequency Welder Introduction
Domestic Water ( Potable ) Plumbing Systems Making Machine Solid State High Frequency Welder /Pipe, Tube Making Machine/Welding Machine
Solid State High Frequency Welder

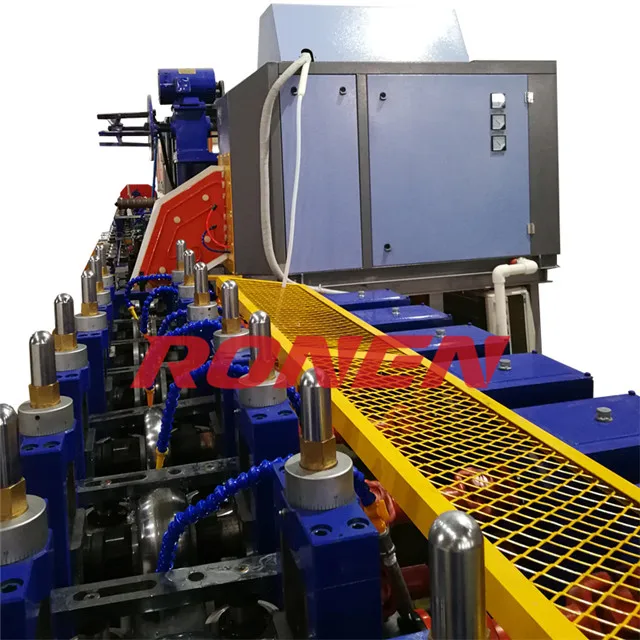

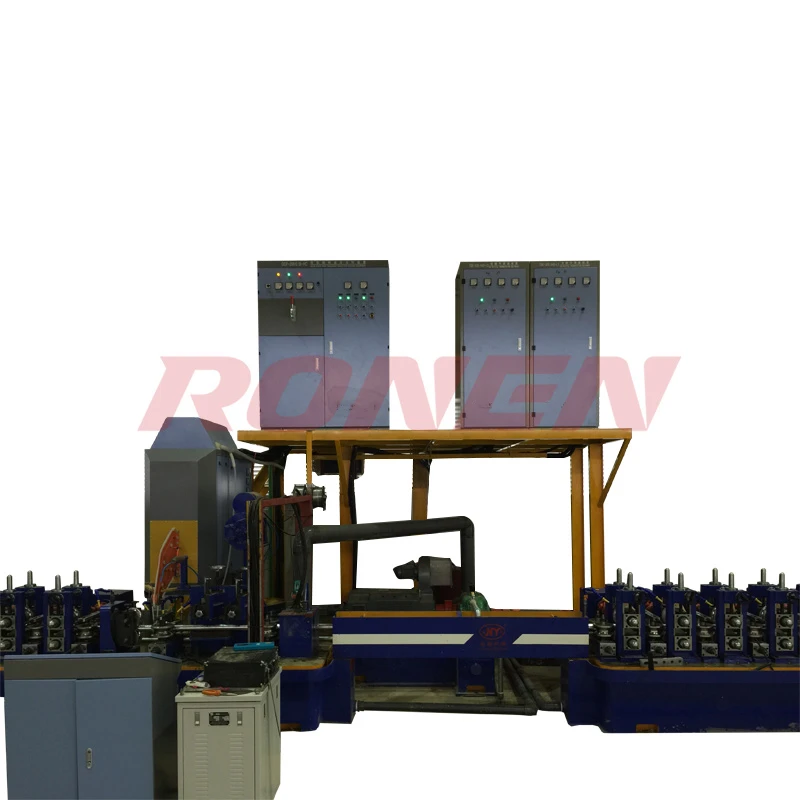

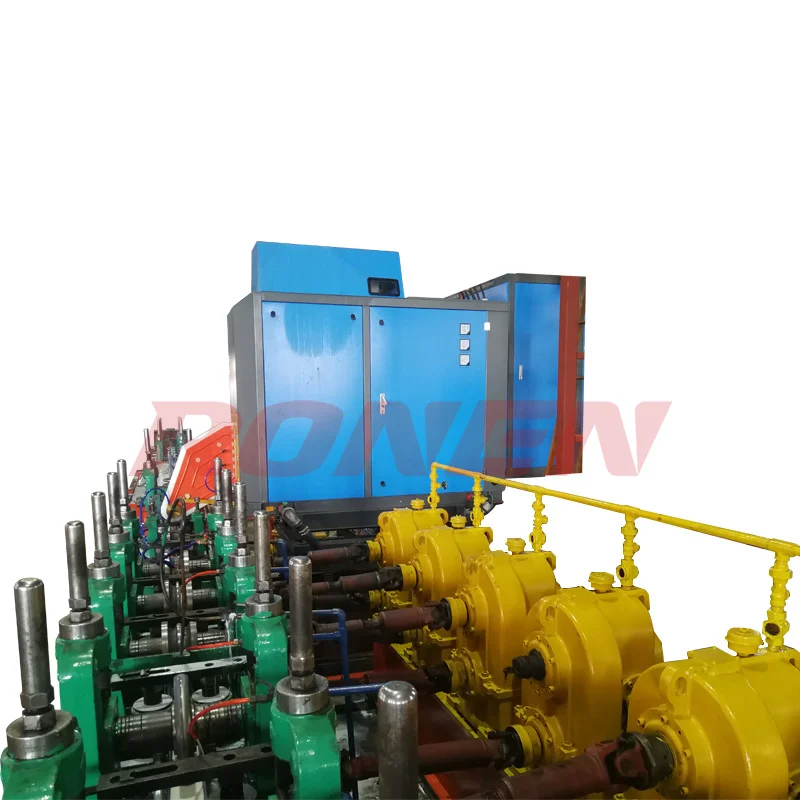

Induction Heating Welder Tube Making Machine
Solid State High Frequency Welder Switchgear rectifying cabinet
Designed with integration of switchgear cabinet and rectifying part, except achieving switchgear cabinet functions, it also has rectifying control functions of solid state H.F. welders.
1.Installed line-in switch, line-in current meter, voltage meter (can be switched) and line-in voltage indication lamp;
2.Installed 3-phase full-controlled thyristor rectification bridge to realize power adjustment of the HF welder;
3.Installed flat-wave reactor, flat-wave capacitor and filter to improve the flat-wave coefficient.
1.Installed line-in switch, line-in current meter, voltage meter (can be switched) and line-in voltage indication lamp;
2.Installed 3-phase full-controlled thyristor rectification bridge to realize power adjustment of the HF welder;
3.Installed flat-wave reactor, flat-wave capacitor and filter to improve the flat-wave coefficient.
Solid State High Frequency Welder

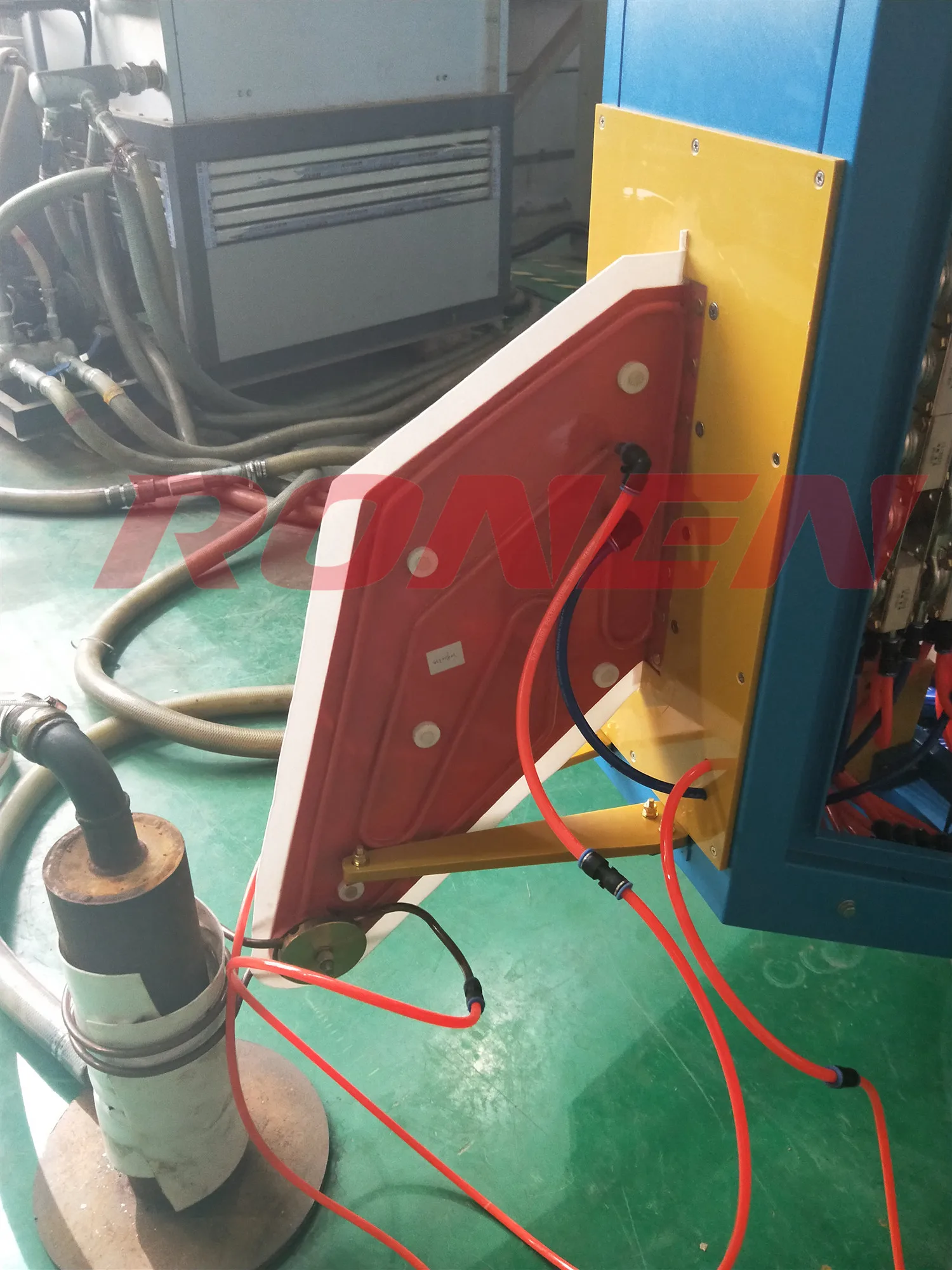

Inverter output cabinet1.The inverter part is consisted of MOSFET single-phase inverter bridge connected in parallel. The power of single-phase bridge is 120kW; the inverter bridge adopts the building block method to realize power superposition. Every piece of bridge plates is designed in the shape of a drawer, which is very easy to install and repair;
2.The matching transformer is adopted for power combination, also it adopts the output method by of secondary resonance and non-welding transformer, tank circuit resonance capacitor (low voltage) resonates with the inductor directly, and the output pole plate offers required power transmission for pipe welding;
3.Adopted sealed equipment case, installed with air conditioner.
2.The matching transformer is adopted for power combination, also it adopts the output method by of secondary resonance and non-welding transformer, tank circuit resonance capacitor (low voltage) resonates with the inductor directly, and the output pole plate offers required power transmission for pipe welding;
3.Adopted sealed equipment case, installed with air conditioner.
Solid State High Frequency Welder
Central operation console
1.Mounted with HMI composed of PLC and LCD touch screen, which is easy to be operated and monitored by user at site.
2.Installed with various AC and DC meters and operation buttons for the working status display for the welder.

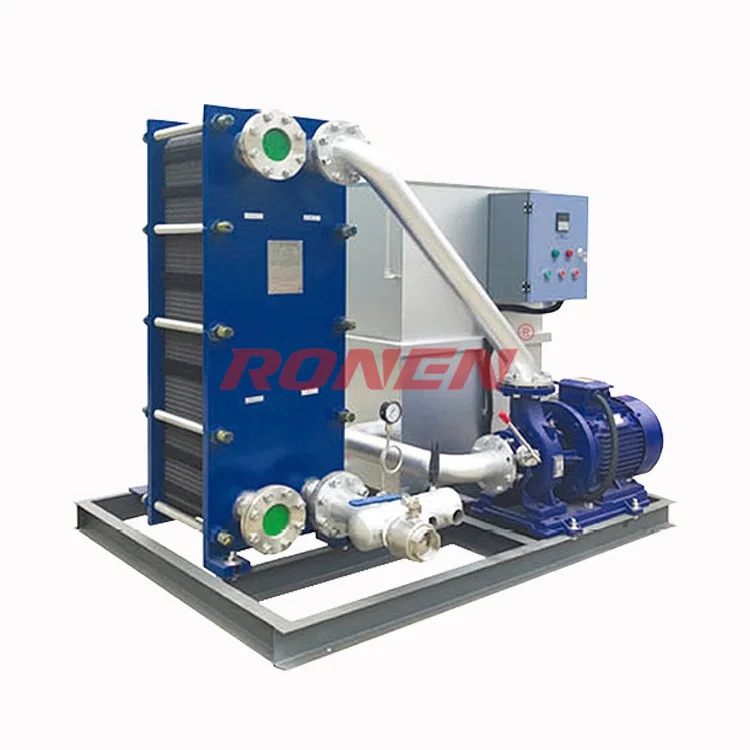

Circulation soft water cooling system
cabinet, resonance tank circuit etc with designing of indication and protection of temperature and water level.

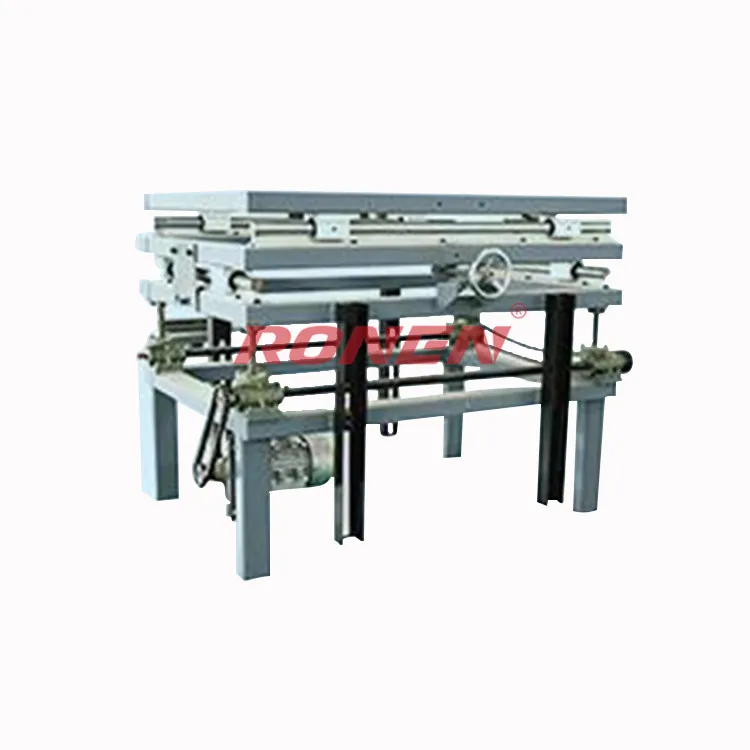

Mechanical adjustment device
inductor position can be adjusted manually.
●3-D adjustable bracket:For induction/contact welding mode, applied with installation and adjustment of inverter output cabinet
the inductor position can be adjusted by electric or manual.
the inductor position can be adjusted by electric or manual.
Solid State High Frequency Welder Technique Parameter
Welder model | AC input | Rated DC voltage | Rated DC current | Output Power | Frequency Range | Electrical efficiency | Working state |
GGP-60/0.8-HC | 3AC380V 50/60Hz | 450V | 130A | 60kW | 650~800kHz | ≥85% | continuous |
GGP-100/0.45-HC | 3AC380V 50/60Hz | 450V | 220A | 100kW | 400~450kHz | ≥85% | continuous |
GGP-150/0.4-HC | 3AC380V 50/60Hz | 450V | 330A | 150kW | 350~400kHz | ≥85% | continuous |
GGP-200/0.35-HC | 3AC380V 50/60Hz | 450V | 440A | 200 kW | 300~350kHz | ≥85% | continuous |
GGP-250/0.3-HC | 3AC380V 50/60Hz | 450V | 550A | 250 kW | 250~300kHz | ≥85% | continuous |
GGP-300/0.3-HC | 3AC380V 50/60Hz | 450V | 660A | 300 kW | 250~300kHz | ≥85% | continuous |
GGP-400/0.25-HC | 3AC380V 50/60Hz | 450V | 880A | 400 kW | 200~250kHz | ≥85% | continuous |
GGP-500/0.2-HC | 3AC380V 50/60Hz | 450V | 1100A | 500 kW | 150~200kHz | ≥85% | continuous |
GGP-600/0.2-HC | 3AC380V 50/60Hz | 450V | 1300A | 600 kW | 150~200kHz | ≥85% | continuous |
GGP-700/0.2-HC | 3AC380V 50/60Hz | 450V | 1500A | 700 kW | 150~200kHz | ≥85% | continuous |
GGP-800/0.2-HC | 3AC380V 50/60Hz | 450V | 1800A | 800 kW | 150~200kHz | ≥85% | continuous |
GGP-1000/0.2-HC | 3AC380V 50/60Hz | 450V | 2200A | 1000 kW | 150~200kHz | ≥85% | continuous |
GGP-1200/0.2-HC | 3AC380V 50/60Hz | 450V | 2700A | 1200 kW | 150~200kHz | ≥85% | continuous |
GGP-1500/0.15-HC | 3AC380V 50/60Hz | 450V | 3300A | 1500 kW | 100~150kHz | ≥85% | continuous |
GGP-1800/0.15-HC | 3AC380V 50/60Hz | 450V | 4000A | 1800 kW | 100~150kHz | ≥85% | continuous |
Note: The parameters of the welding machine in the above table are conventional design, and our company would like to accept customized types according to the clients actual requirement.
Pipe Welding Equipment Advantage
1.Pollution-free, low noise, no waste water and no waste gas. Circulating water is used in production to cool down, save energy, protect environment and save labor.
2.Suitable for all walks of life such as agriculture and industrial production.
3.Welded pipe equipment have good quality, good welding seam condition, less burr, fast speed, saving energy and cost.
4.Good welding quality, fast welding speed and low power consumption, it has been widely applied and implemented.
5.Save a lot of metal, processing time and parts
333
Solid State High Frequency Welder Company Catalog
PC (Prestressed Concrete) steel bar production lines
PC (Prestressed Concrete) steel wire production lines
PC (Prestressed Concrete) Strand wire production line
Spring steel wire quenching and tempering production line
MOSFET solid state high frequency welder

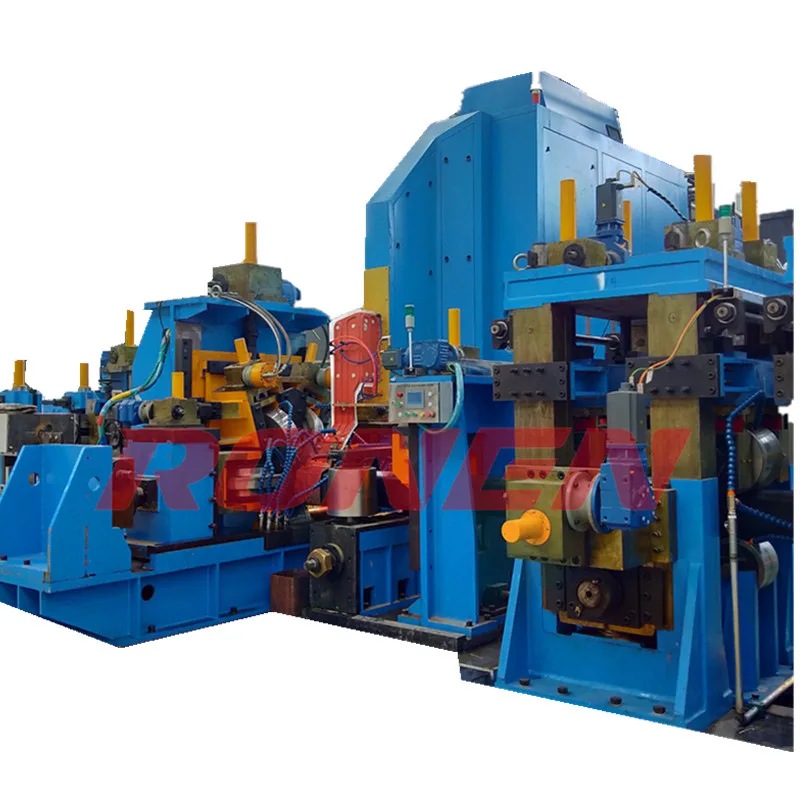

Tube Rolling Mill Welding Making Machine
Accessories List
Inverter Drive Board
PLC
Rectifier Drive Board
Current Hall
Inverter Bridge
Power Filter Board
We Can Also Supply
Pipes Shot Blasting Machine
Pipes Bending Machine
Pipes Diameter Reducing/Expanding Machine
Pipes Drilling Cutting Welding Machine
Roof Rolling Forming Production Line
Guard Rails Rolling Forming Production Line
H Beam Production Line
Electrical Lighting Poles Production Line
Pipes Full/Semi Automatic Hot-dip Galvanizing Production Line
Pipes Bending Machine
Pipes Diameter Reducing/Expanding Machine
Pipes Drilling Cutting Welding Machine
Roof Rolling Forming Production Line
Guard Rails Rolling Forming Production Line
H Beam Production Line
Electrical Lighting Poles Production Line
Pipes Full/Semi Automatic Hot-dip Galvanizing Production Line
Ronen Group Workshop Show
Solid State High Frequency Welder Delivery Wrokshop
Solid State High Frequency Welder Test Workshop
Solid State High Frequency Welder Inventory Workshop
Solid State High Frequency Welder Accessories Shop
Solid State High Frequency Welder Assembly Workshop
Steel Tube Welding Mill Technology Department
Ronen Group Cooperate Customer
Ronen Group Exhibition
Tube Welding Equipment Package
Ready to load
Packing
Wooden packing
Finish Packing
Transport to port
Container
Certifications
FAQ:
Q: Are you manufacturer?A:Yes, We are manufacturer.
Q: What is our factory product range?
A:PC steel bar production line;PC steel wire production line;PC strand production line;Spring wire production line etc.
Steel tube welding machine,Copper tube welding machine,Aluminum tube and profile welding , Fin tube welding, Metal tube heat treatment, Wire heat treatment , Drawing machine ,Heat treatment ,etc
Q: How to order?
A:Please send us your inquiry by email, send message through Alibaba , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can accept L/C，T/T，Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details, and B/L copy will be send to buyer after finished production. We will arrange shipment and provide original B/L after the buyer finished to pay the balance.
