Ronen Group Factory Introduction
Nut Making Machine Factory Introduction
Ronen Wuhe is one special manufacture for producing Cold Forging Machines (Fastener Nut) in China. Have Taiwan Technology level engineers team, and with strict technical monitoring and production process, the plant area is 15000㎡+。
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership."
Cold Forging Machines / Nut Former produced by Ronen Wuhe is suitable for auto parts, construction hardware, construction fasteners, bearing producing, machinery, electronics, etc. industrial fields , we have big share in domestic market, and In recent years, we have exported to Europe, USA, Korea, Russia, India, Indonesia, Vietnam etc. counties. At present, the largest model can reach WH-41B6S, sizes from M3~M27, model from 11B~41B, 6 stations to 9 stations. PKO type and standard type.
In addition, in the future, Ronen Wuhe also plans to gradually move in the direction of mold design, Tapping Machine design and technical consulting. "Manufacturing is like a service industry. After all, who can provide diversified services will have orders and market leadership."

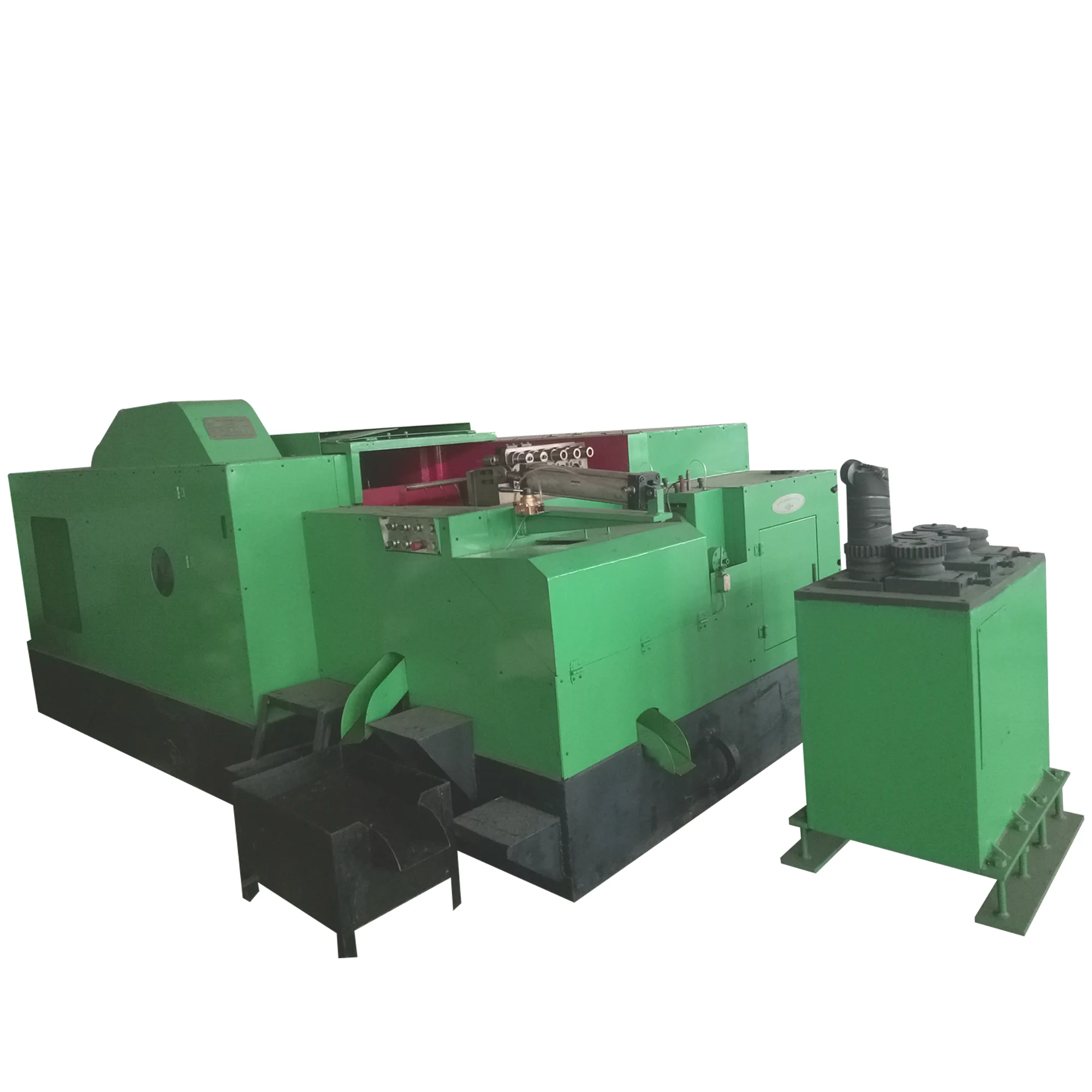

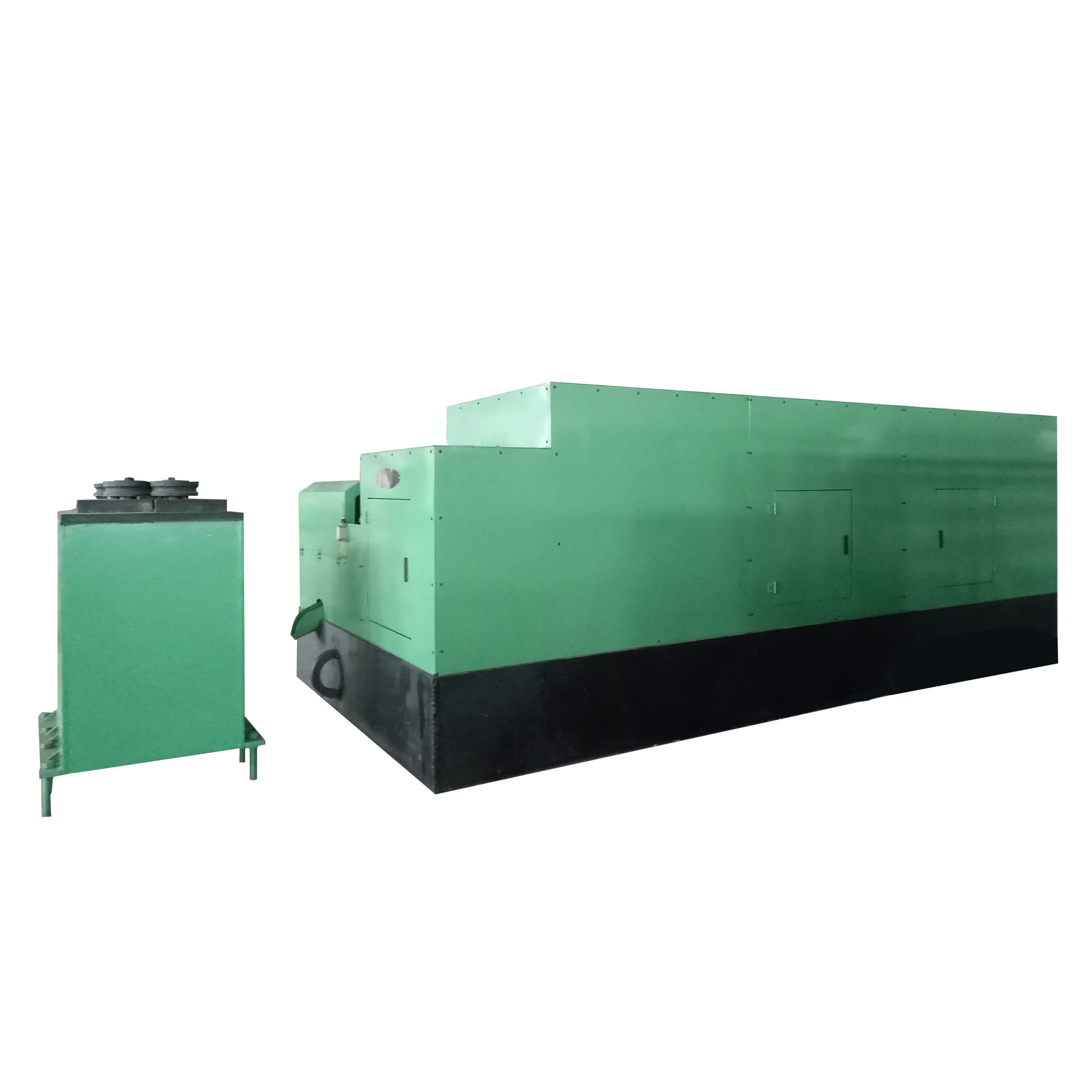

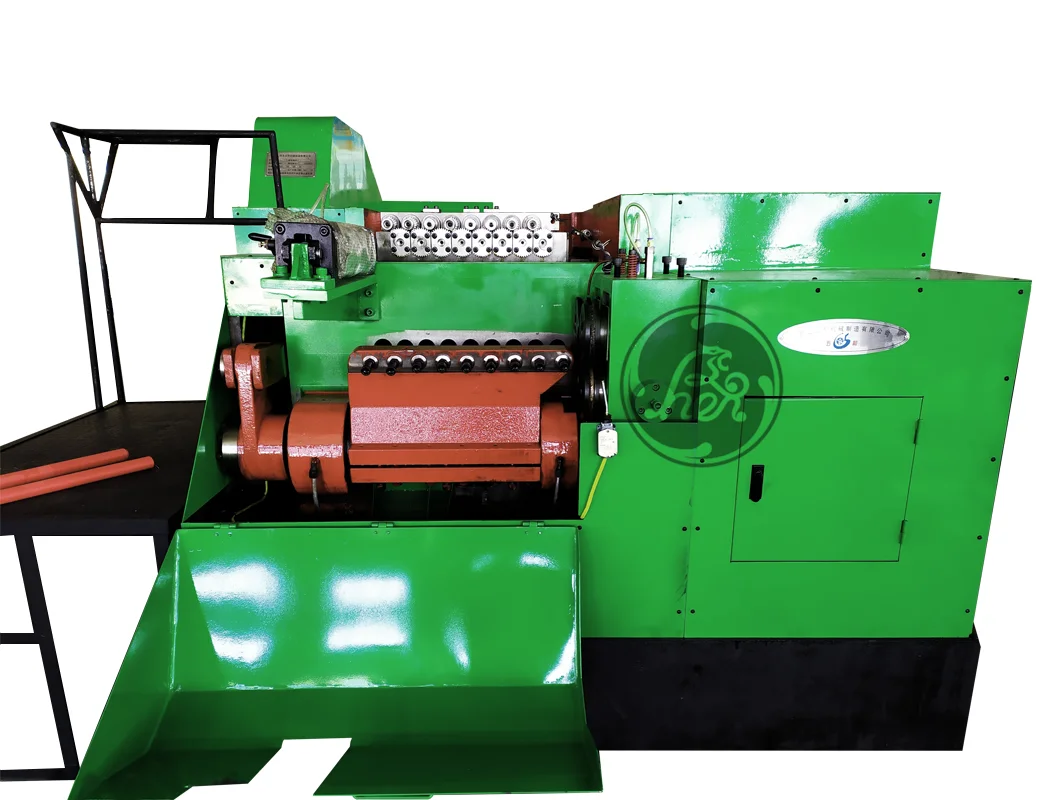

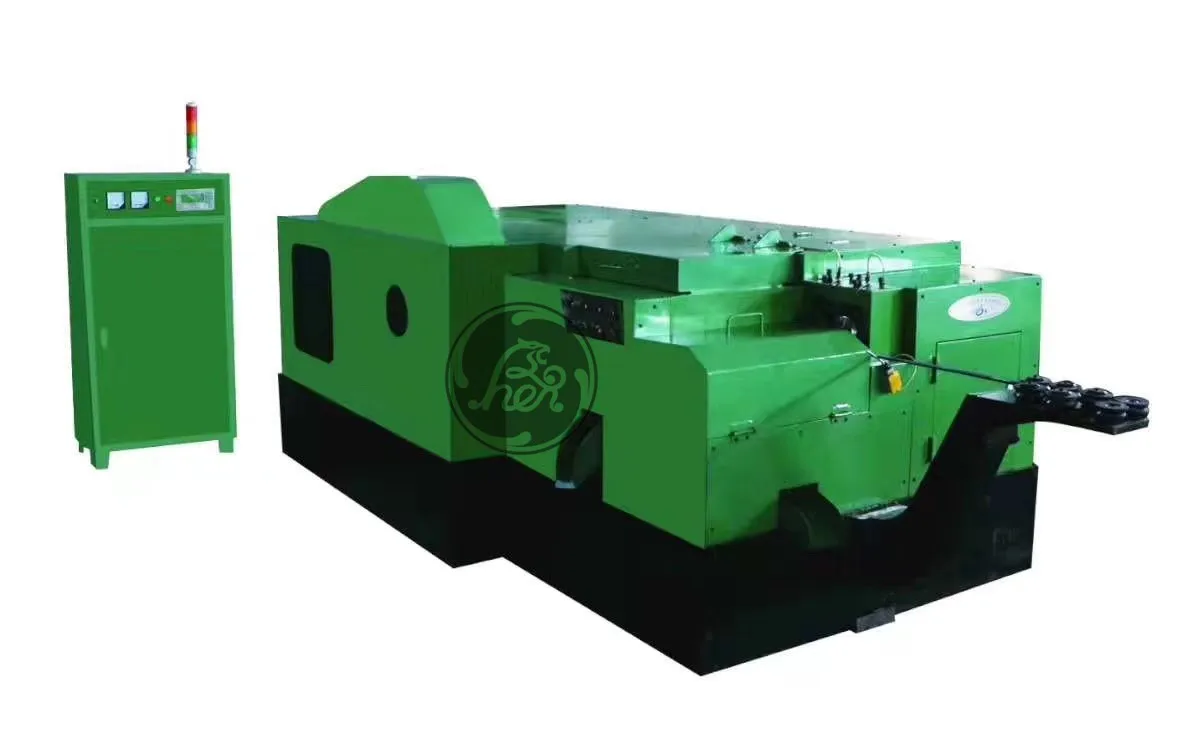

Nut Making Machine Products Description
Nut Making Making / Part Former
Cold Forming Machine / Nut Cold Heading Machine
Product Range of Nut Making Machines
Developed products include standard parts and non-standard parts, such as: Hexagon Nuts, Flange Nuts, Welding Nuts, Square Nuts, T-nuts, Rivets (hollow, semi-hollow) Nuts, Bushings, Sleeves, Four Claws Nuts, Nylon Nuts, Cap Nuts, Lock Nuts, Furniture Nuts, Automotive Fasteners Nuts, etc.
Specification / Model | Unit | WH-NF 11B6S | WH-NF 14B6S | WH-NF 19B6S | WH-NF 24B6S | WH-NF 33B6S | WH-NF 41B6S |
Forging Stations | No. | 6 | 6 | 6 | 6 | 6 | 6 |
Across Flats Of Nut | mm | 5.5-12.7 | 10-17 | 14-22 | 17-26 | 24-33 | 30-41 |
Suitable Hex Nut | DIN | M3-M6 | M6-10 | M8-M14 | M10-M18 | M16-M22 | M20-M27 |
Cut-Off Dia | mm | 11 | 16 | 19 | 24 | 31 | 40 |
Dies Pitch | mm | 50 | 60 | 80 | 100 | 140 | 165 |
Forging Power | Ton | 60 | 90 | 135 | 230 | 360 | 450 |
Main Motor | Hp | 15 | 20 | 50 | 75 | 150 | 200 |
Lubrication Motor | Hp | 1.5 | 1.5 | 1.5 3 | 1.5 3 | 3 | 3 |
Installed Quantity | SET | (1) | (2) | (1) (1) | (1) (1) | (2) | (2) |
Lubricant | L | 700 | 1000 | 1200 | 1700 | 1900 | 2200 |
Approx Weight | Ton | 4.5 | 8 | 14 | 25 | 45 | 72 |
Nut Making Machine Related Products
Nut Tapping Machine
Big Size Nut Making Machine
In order to provide more comprehensive and professional services to Ronen Wuhe clients, we also supply following accessory machines:
Rust Remover
Conveyor Belt
Conveyor Belt with Oil Removing
Oil Purifier
Centrifuge
Mold
Bolt Nut Assembly Machine
Punch
Rivet Air Gun
Nut Making Machine Workshop Show
Ronen Wuhe Cooperative Customers
Customer Evaluation
Nut Making Machine Certificate
FAQ
1. -Can your machinery produce non-standard parts?
-Yes, we can. Our machinery can produce non-standard parts, at the same time, we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
-Yes, we can. Our machinery can produce non-standard parts, at the same time, we can also customize according to your parts drawings.
2. -Does your factory have customers in our country?
-We have rich experience in export. Europe, Asia, Africa, North America, South America, Oceania, all have our customers.
3. -Can you provide debugging video and samples?
-Sure. We will update the information (photos, videos, etc.) with you during and after debugging, and send samples. The shipment will be arranged only after you confirm it is correct.
4. -Can you arrange the delivery time according to the contract?
-Of course. We will deliver the goods to you as soon as possible on the basis of the contract. It will not affect your use.
5. -If it is beyond the warranty period, can we check the technical problems with you?
-Must will. What we provide is a lifetime service, no matter what time, what problem, we are willing to help you.
