PDC Anchor Bit Diamond Compact for Mining

Description of PDC Anchor Bit Diamond Compact Bit For Mining

Usage:

Used for drilling anchor net support holes in mining, hydropower, transportation and other departments. The cutting teeth are made of high-quality diamond composite discs (PDC), and the drill body is made of special metal materials with high wear resistance, high toughness and high quality. It has the characteristics of wear resistance, impact resistance, strong toughness, no diameter reduction, and high drilling efficiency, which greatly improves Drilling efficiency and high hole formation rate can improve construction efficiency, reduce construction labor intensity, and have a wide range of adaptability. It can be used in rock formations with f≤14.
1) Half-piece ordinary PDC bolt bit is suitable for soft formation with f<6;
2) The whole piece of ordinary PDC bit is suitable for f=6-10 relatively complete hard rock;
3) The whole piece of fine PDC bit is suitable for relatively complete hard rock with f=10-12;
4) Natural diamond table-set drill bits are suitable for relatively complete and hard rock formations with f=12-18.
Features:
1)Significantly improve the drilling speed and drilling efficiency of the medium-hard rock layer (sandstone);
2)The blade has good wear resistance, strong resistance, does not need repeated grinding, and has a long drill life;
3)Diameter reduction is not easy, and the hole formation rate is high, which greatly reduces the waste of medicine coils and anchor rods, improves construction efficiency, reduces labor intensity of workers, and has a wide range of lithology;
4)The drill bit adopts a new type of superhard material diamond composite sheet, and the bit life span.

Parameters of PDC Anchor Bit Diamond Compact Bit For Mining

Drill diameter: 28-32mm
Drill depth: 10m
Rotation degree: 360
Type: PDC
Type I: soft rock
Type II: hard rock
Drill pipe diameter: 26mm--40mm
Screw: M14*1.5
Usage: Mine drilling
Material: Alloy steel

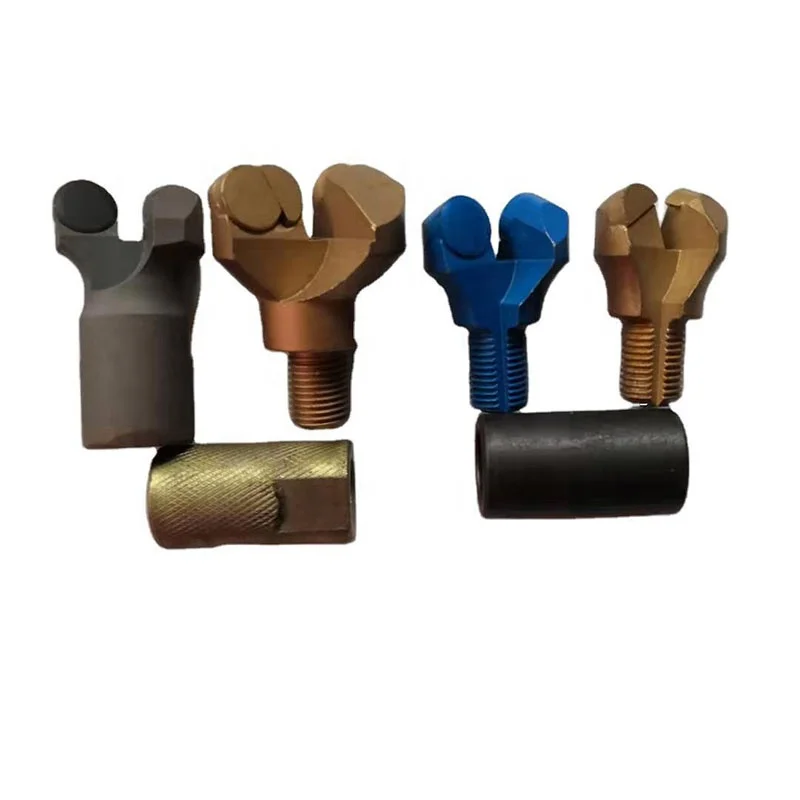

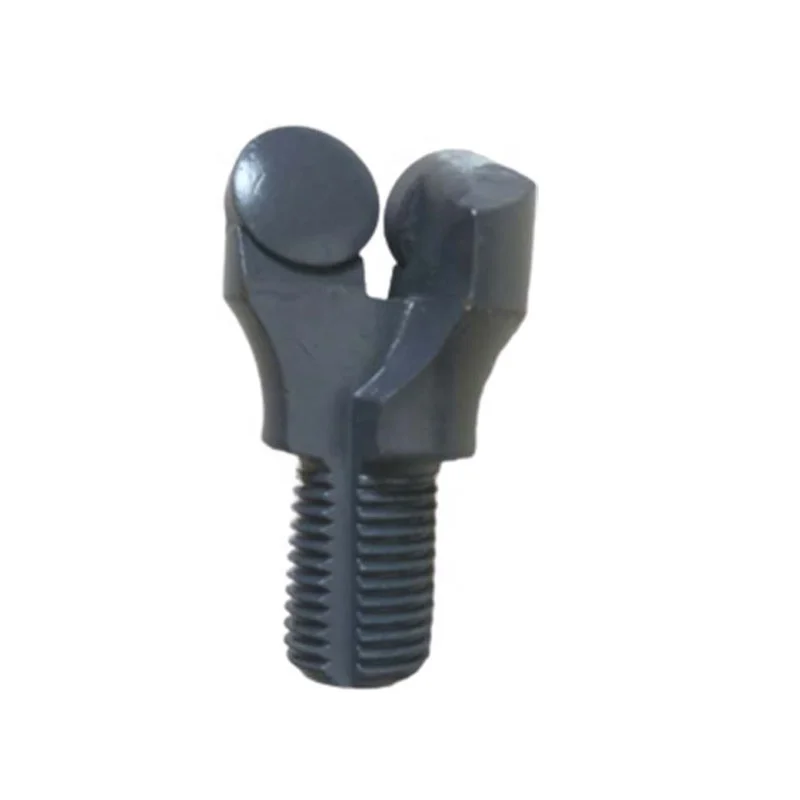

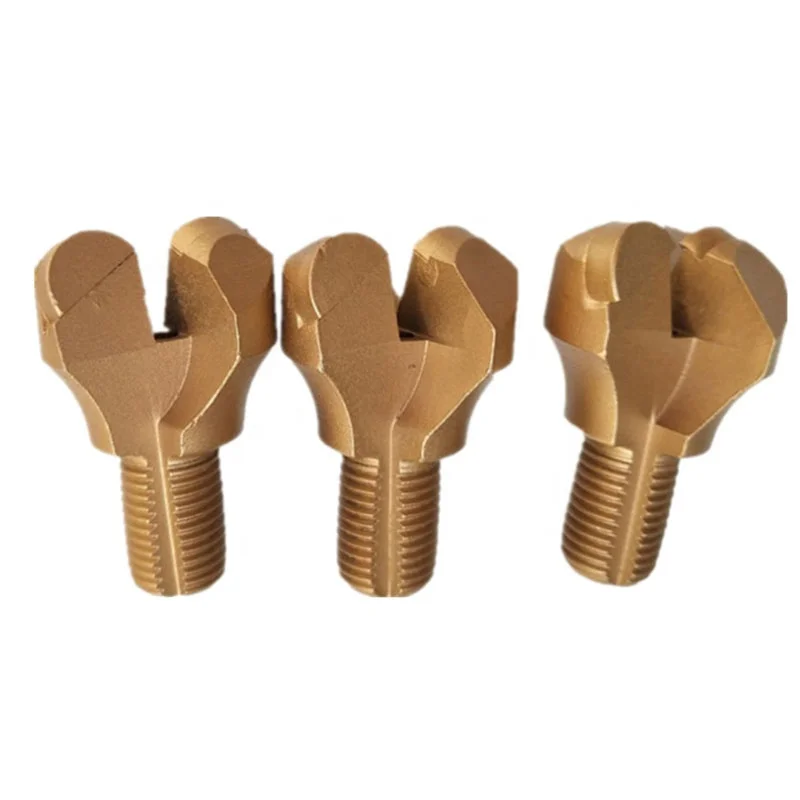

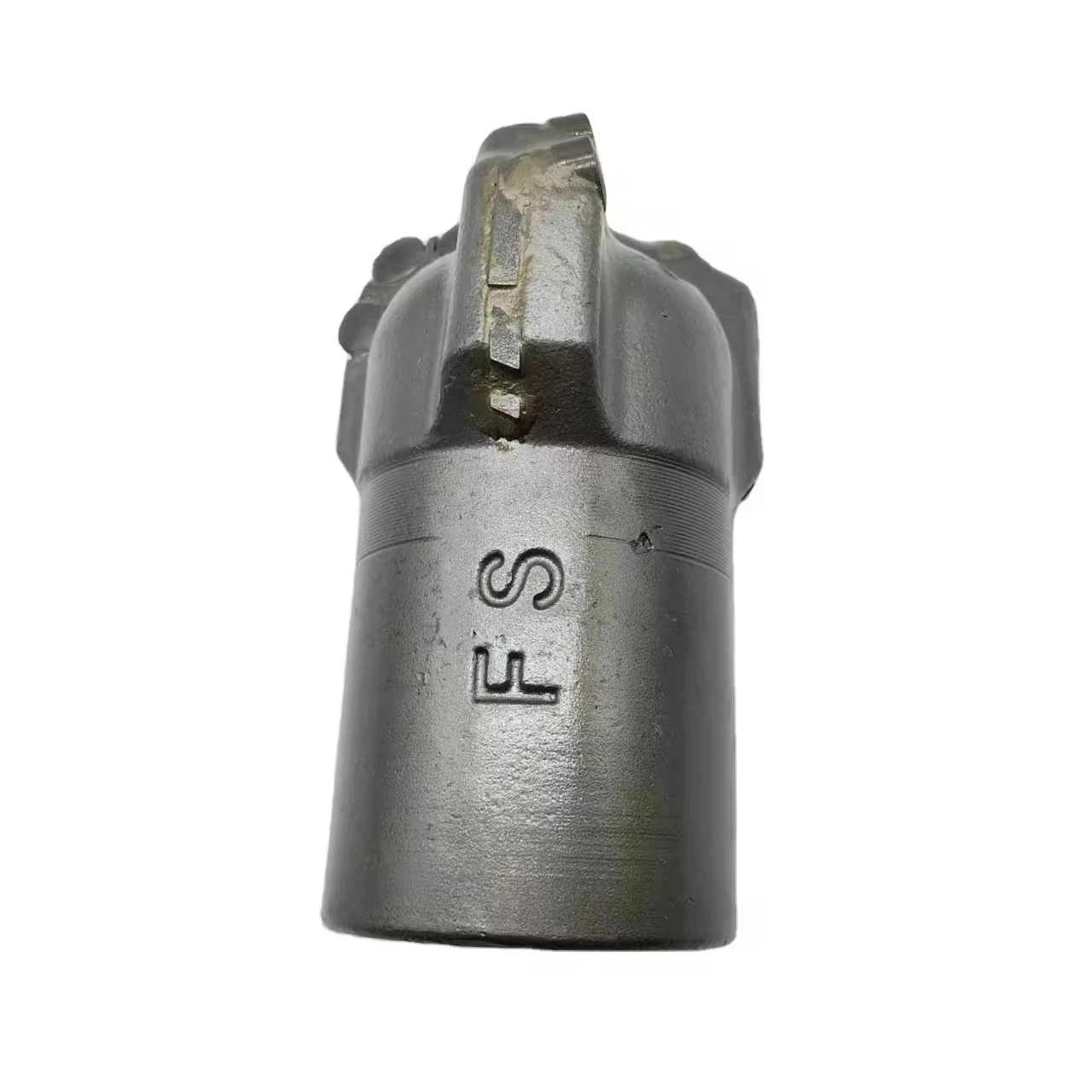

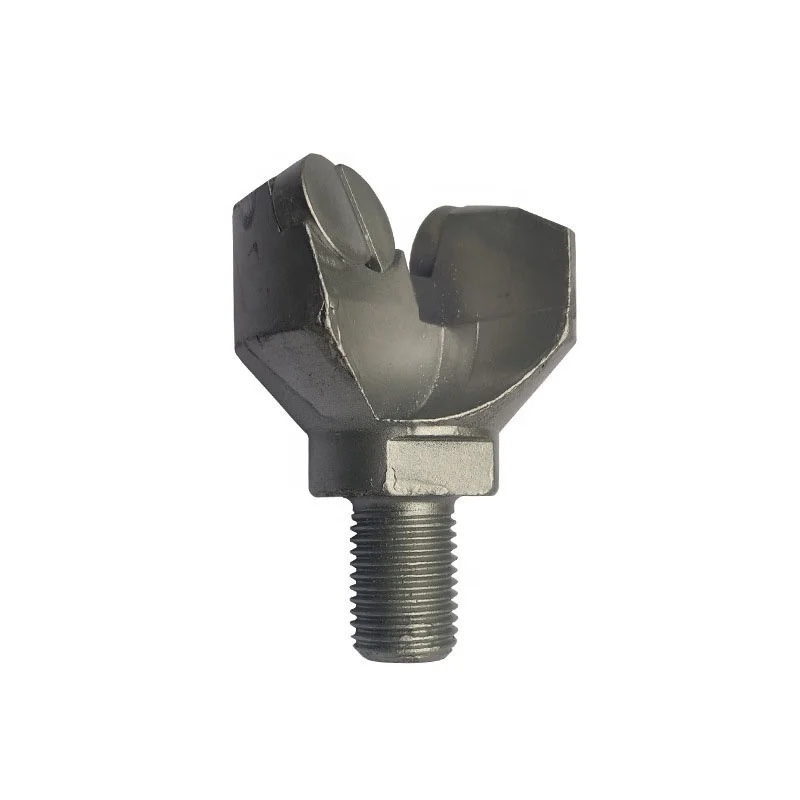

Photos of PDC Anchor Bit Diamond Compact Bit For Mining
