0 7 тонный мини бойлер 700 кг домашний Газовый Бойлер для центрального отопления
- Категория: >>>
- Поставщик: Henan Swet Boiler Co. Ltd.
Сохранить в закладки 1600129969500:
Описание и отзывы
Характеристики

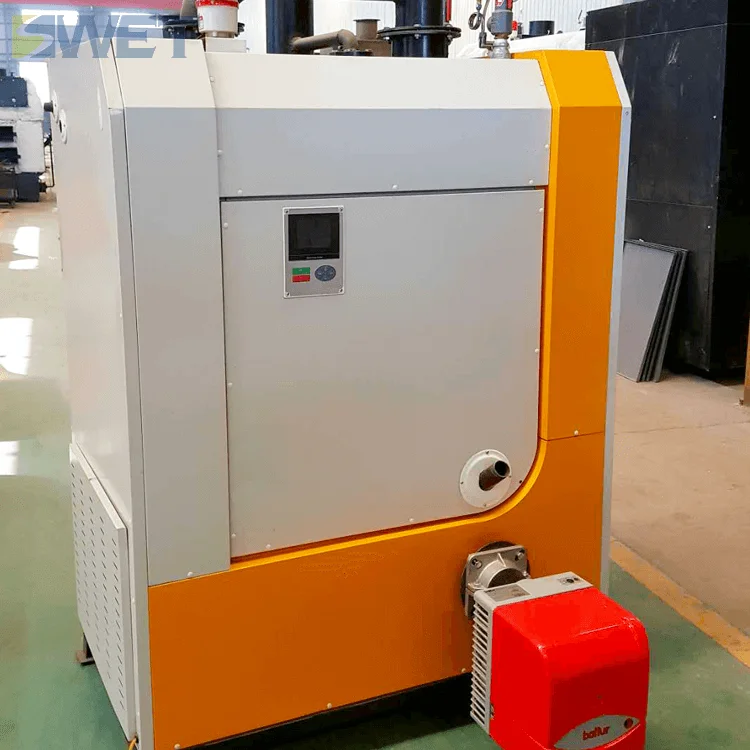

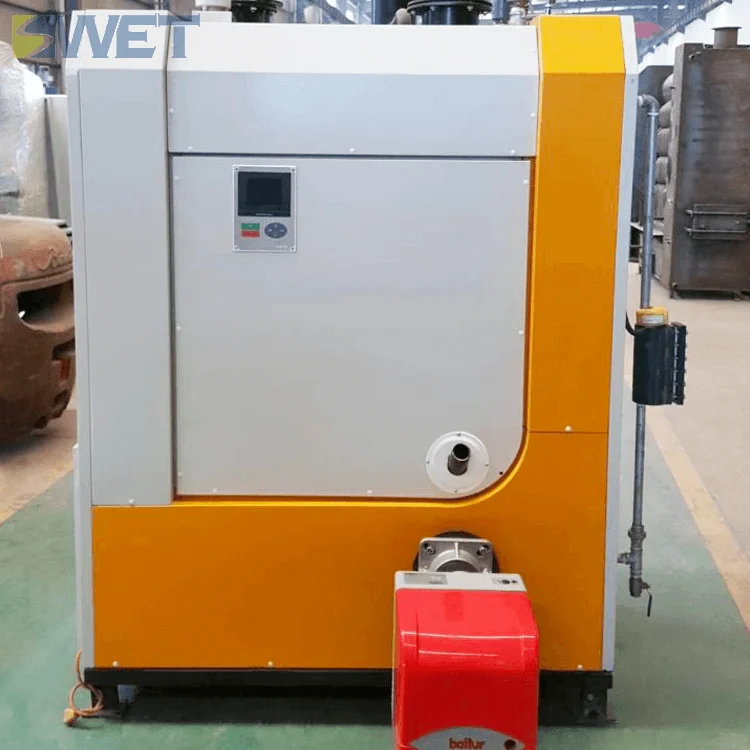

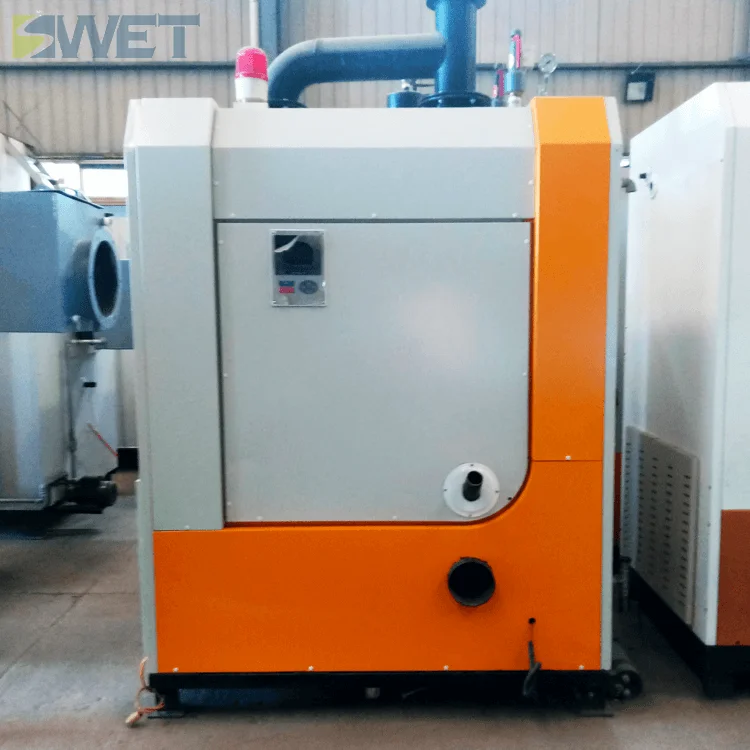

0.7 ton mini boiler 700kg home gas boiler for central heating
The boiler has strong adaptability to load. The well-designed built-in steam separator device meets the requirements of users for higher quality steam. The furnace body facilitates the cleaning of the inside of the furnace, which makes maintenance and maintenance extremely convenient.
The boiler safety is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.
Small steam boiler technical parameters
| Fuel Cost analysis (Take 100 kg per hour as an example) | ||||
Equipment selection | Steam volume | Energy consumption | Unit Price | Operating costs |
Electrothermal steam boiler | 100kg | 72 kw/h | 0.08 USD/kw | 10.91 USD |
Fuel steam boiler | 100kg | 7 kg/h | 0.53 USD/kg | 7.42 USD |
Gas steam boiler | 100kg | 8 m³/h natural gas | 0.34 USD/m³ | 5.45 USD |
Biomass steam boiler | 100kg | 20 kg/h wood pellet | 0.08 USD/kg | 3.03 USD |
Gas steam boiler technical parameters | ||||||||||||
Rated evaporation | Rated pressure | Rated steam temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load gas consumption | ||
L | W | H | ||||||||||
Kg/h | Mpa | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | m³/h |
300 | 0.7 | 170 | 93 | <29 | 25 | 25 | 25 | 2400 | 1500 | 1600 | 1.9 | 22.7 |
400 | 0.7 | 170 | 93 | <29 | 32 | 25 | 25 | 2400 | 1500 | 1800 | 2 | 30.3 |
500 | 0.7 | 170 | 93 | <29 | 32 | 25 | 25 | 2700 | 1600 | 2400 | 3.6 | 37.9 |
| 700 | 0.7 | 170 | 93 | <29 | 40 | 25 | 25 | 2700 | 1600 | 2400 | 3.7 | 60.7 |
1000 | 0.7 | 170 | 93 | <29 | 50 | 25 | 25 | 2800 | 1600 | 2400 | 3.8 | 75.8 |
Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable.
Fully automatic control system with automatic high and low water level protection, saving manpower.
Small steam boiler applicable scenario
For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
For biological equipment industry: sterilizer, school laboratory, thermal test.
Our engineering case
Company Information
Henan kaifeng Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland.
In 1987 China's first circulating fluidized bed boiler was born in our factory.
In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
OUR FACTORY
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
OUR ENTERPRISE HONOR
OUR ADVANTAGES
The China’s first circular flow bed (CFB)boiler manufacturer.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.

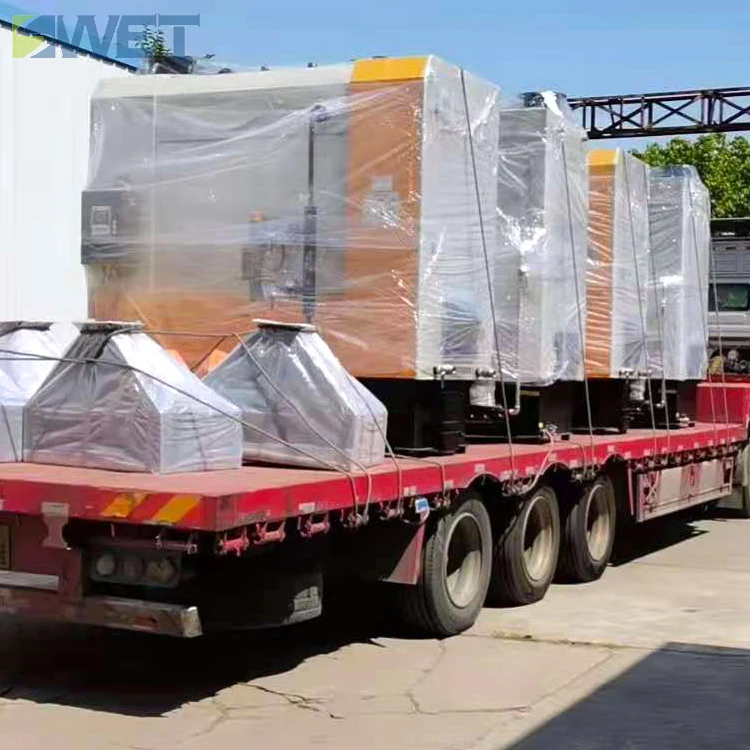

Packaging & Shipping
Some of our domestic customers
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
Our Customer Visit
Contact us
Pre-sale technical guidance, including the host, auxiliary equipment selection and layout. Provide a full set of installation services, such as self-installation, can provide on-site technical guidance, including furnace wall masonry, cooking, commissioning and so on.
After the sale of professional and technical personnel to train the customer burner, until its complete grasp, independent operation. Usually 24 hours to accept telephone consultation, timely service.
Any Question, Please contact us ,we serve you 24 hours !
