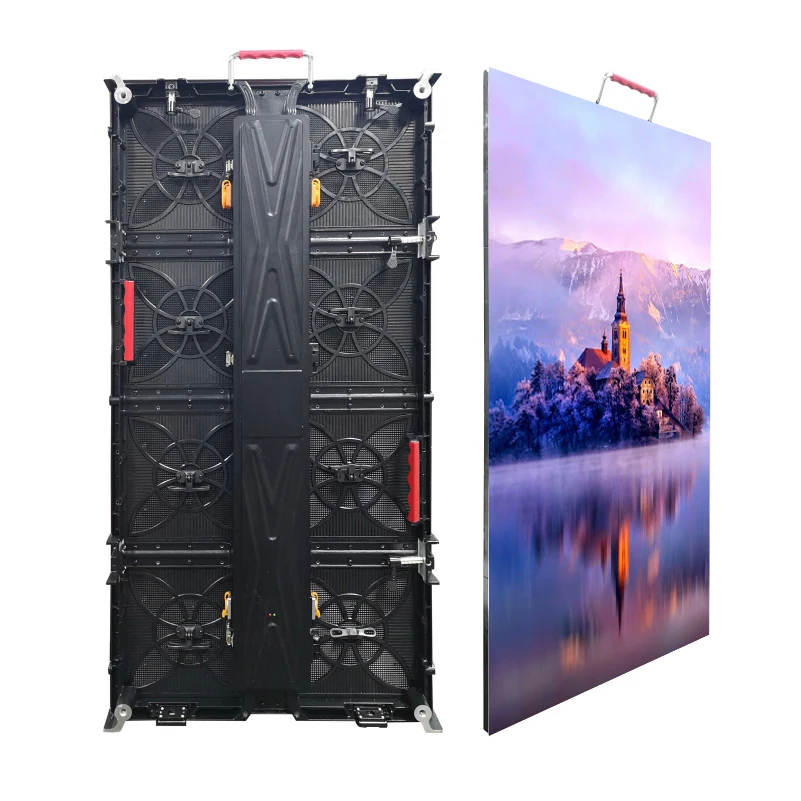

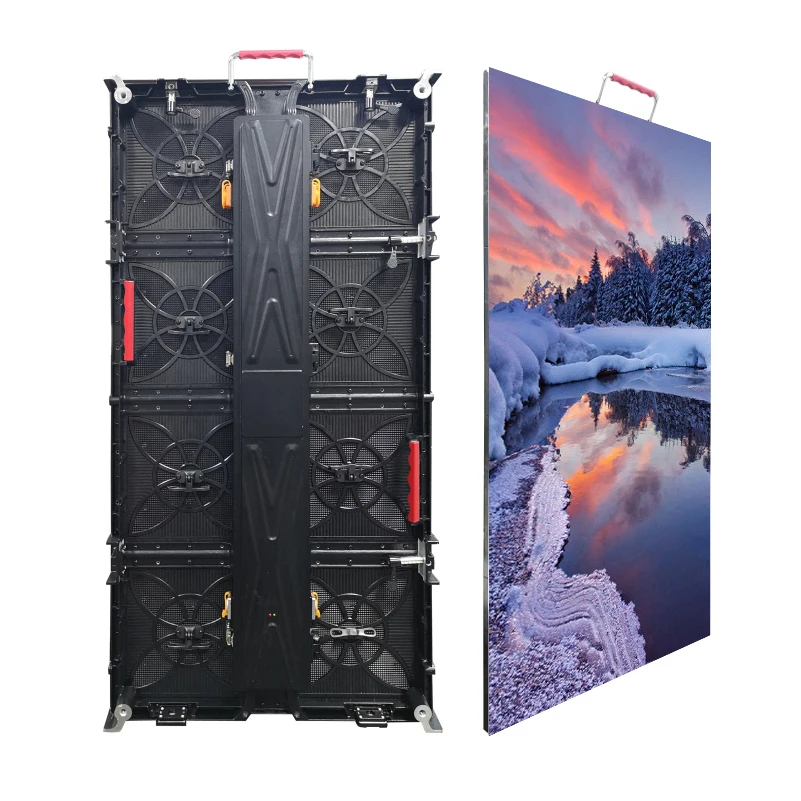

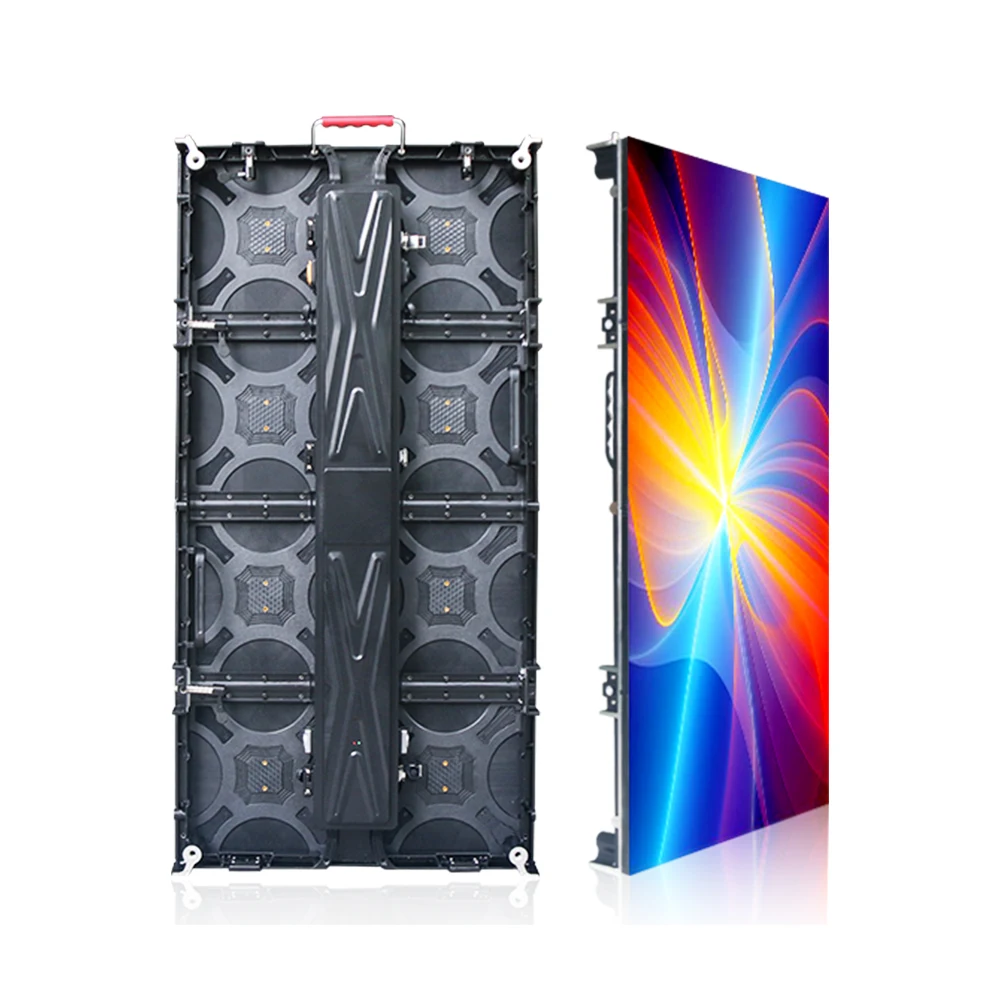

Горячая Распродажа внутренняя светодиодная видеостена 500*1000 мм P3.91 рекламный экран панталы светодиодный прокатный дисплей
- Категория: >>>
- Поставщик: Chipstar LED Co. Ltd.
Сохранить в закладки 1600130427518:
Описание и отзывы
Характеристики
Application
Product Description
Our Advantages

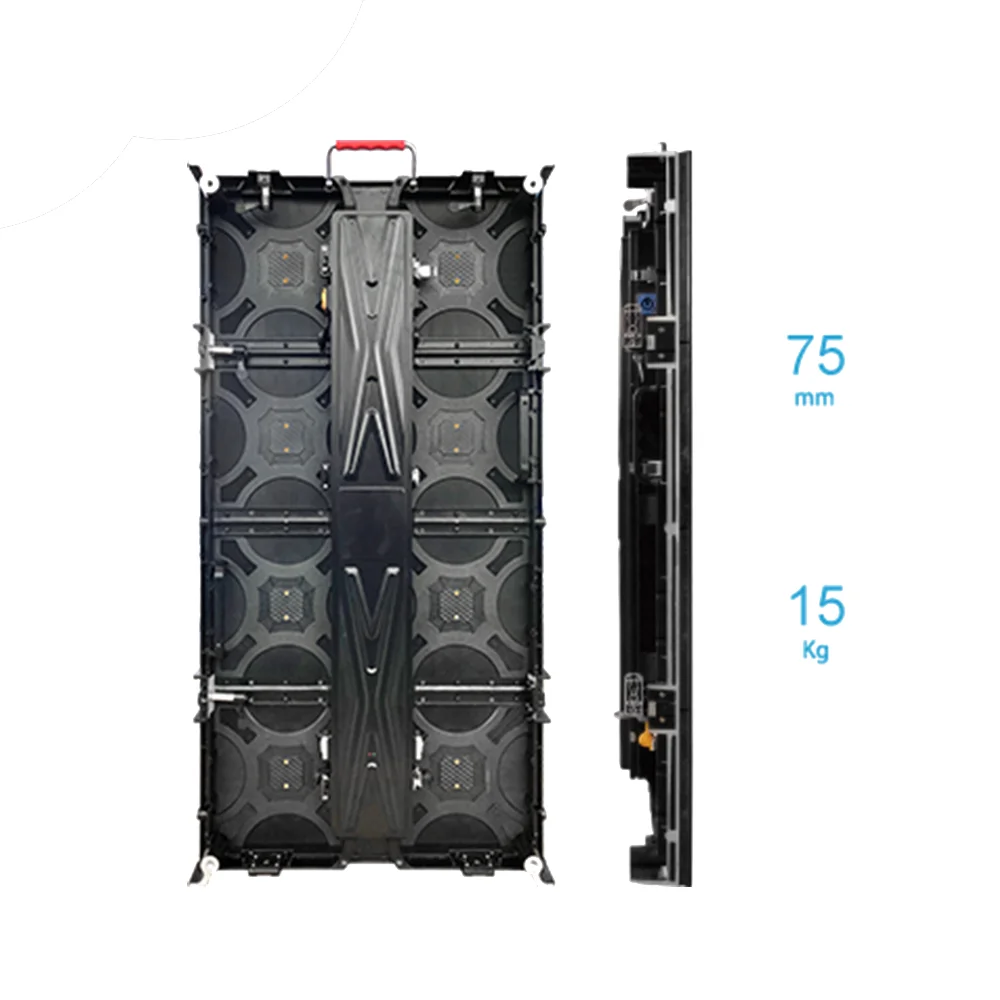

Ultra Lightweight and ultra thin
40% lighter than traditional iron cabinet, sturdy and durable, seamless splicing, good flatness, exquisite image quality.
World Vision
Vertical 160,horizontal 120 viewing visual,make your screen has a larger viewing area.Can get high-quality viewing information
whatever which direction you are in.
whatever which direction you are in.
The refresh rate could reach to 3840Hz/S No trailing, no strobe for the image, It helps to solve the problem of high regresh with
loss of gray scale, to ensure the high definition image.
loss of gray scale, to ensure the high definition image.
Specification
Module Number | PH2.604 | PH2.976 | PH3.91 | PH4.81 |
Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Physical Density | 147456 pixels/m2 | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
Led Arrangement | 3 in 1SMD | 3 in 1 SMD | 3 in 1SMD | 3 in 1 SMD |
Module Resolution | 96*96 pixels | 84*84 pixels | 64*64 pixels | 52*52 pixels |
Module Dimensions | 250*250 mm | 250*250mm | 250*250 mm | 250*250mm |
Cabinet Resolution | 192*384 pixels | 168*336 pixel | 128*256 pixels | 104*208 pixel |
Cabinet Dimensions | 500*1000 mm | 500*1000 mm | 500*1000 mm | 500*1000 mm |
Cabinet Weight | 15kg | 15kg | 15kg | 15kg |
Brightness | ≥1000 nits | ≥1000 nits | ≥1000 nits | ≥1000 nits |
Max Power Consumption | 360w/panel | 360w/panel | 360w/panel | 264w/panel |
Ave Power Consumption | 120w/panel | 120w/panel | 120w/panel | 88w/panel |
Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
IP Rating | IP43 | IP43 | IP43 | IP43 |
Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
Certificate | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |
Company Profile
Why Choose Us
Packing & Delivery
Packaging and Shipment.
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing Shipping
Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and seaport name if you want we check the shipping cost for you!
Method:
by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and seaport name if you want we check the shipping cost for you!
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
Contact Us
Похожие товары
Экологичная пластиковая полипропиленовая декоративная тарелка для фруктов с подставкой
Базовые фиолетовые красители, базовые фиолетовые красители, базовые красители
Оптовая продажа, набор одноразовых деревянных ложек, вилок, ножей с салфеткой
32DN4 полный экран высокой четкости tvsuper тонкий ЖК-телевизор Новое поступление 55 дюймов Асано телевидения ТВ
84,00 $ - 87,00 $
Щековая дробилка, запчасти для машин, щековая дробилка, щековая дробилка

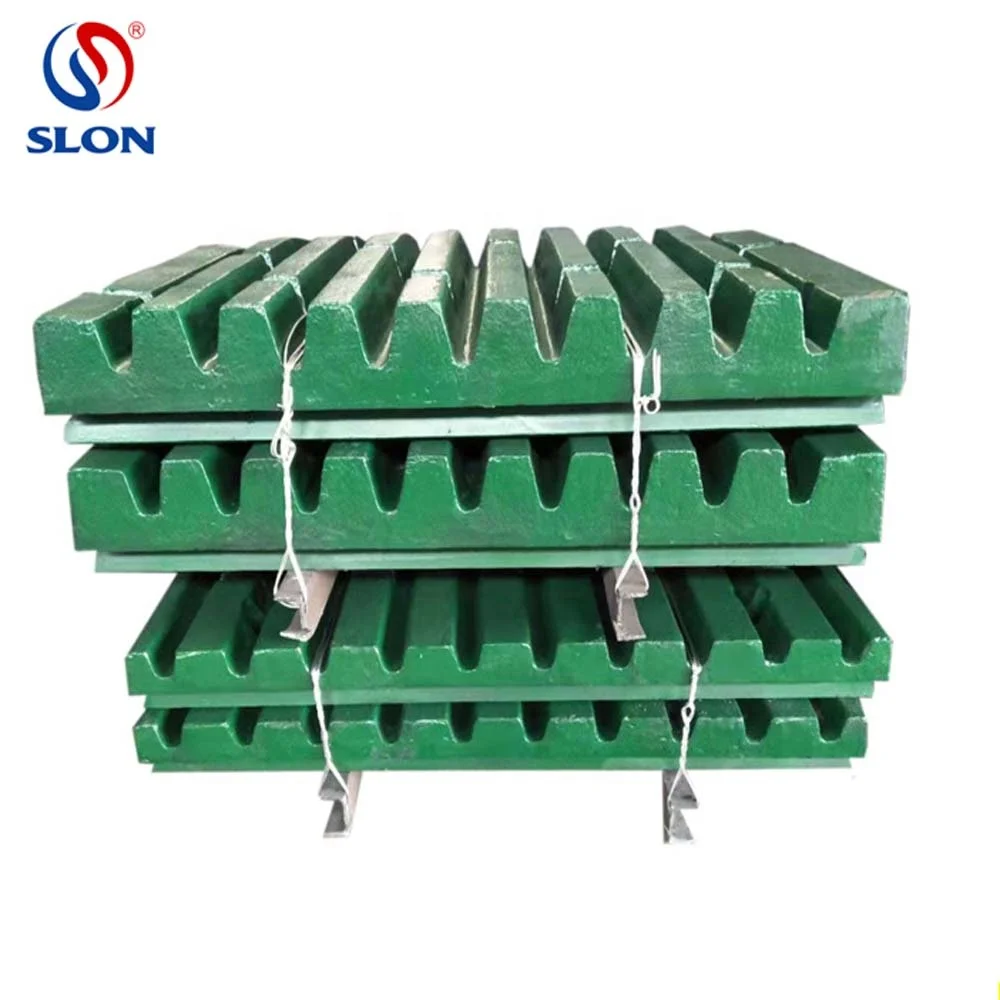

Щековая дробилка камня JM1208, дробилка для камня, Дробилка Из высокомарганцевой стали, запасные части для зубчатой Щековой пластины
1 164,24 $ - 1 188,00 $

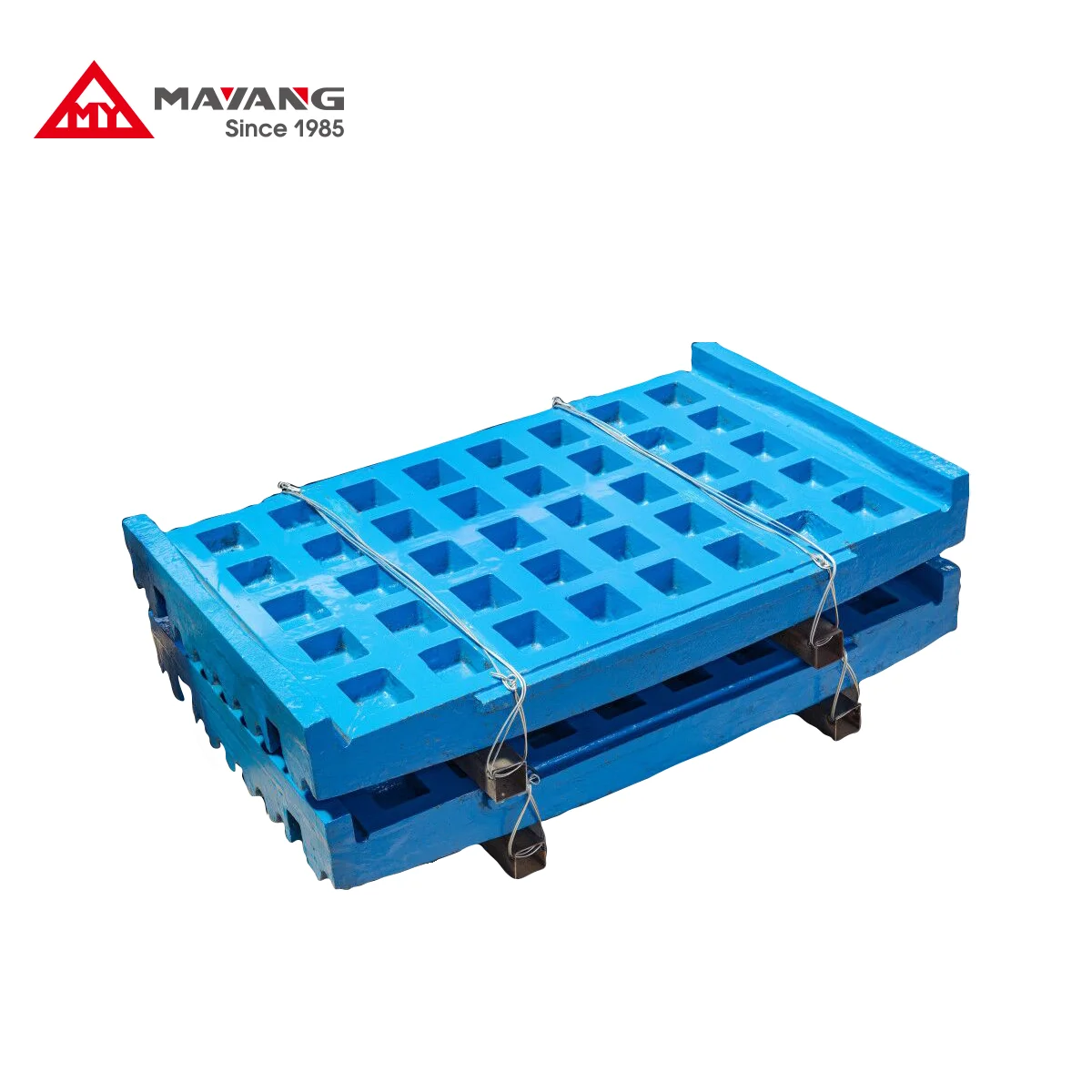

Щековая дробилка C140 после продажи, детали 814328598900, фиксированная Щековая подкладка, карьерные зубья
