Solar Charge Controller with TK60D LCD display Remote meter
Product Description
TK series is a new series of intelligent multi-purpose solar charge controller
It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly .installation and operation.All in all,it is a popular high-efficient product.
1.Connection diagram

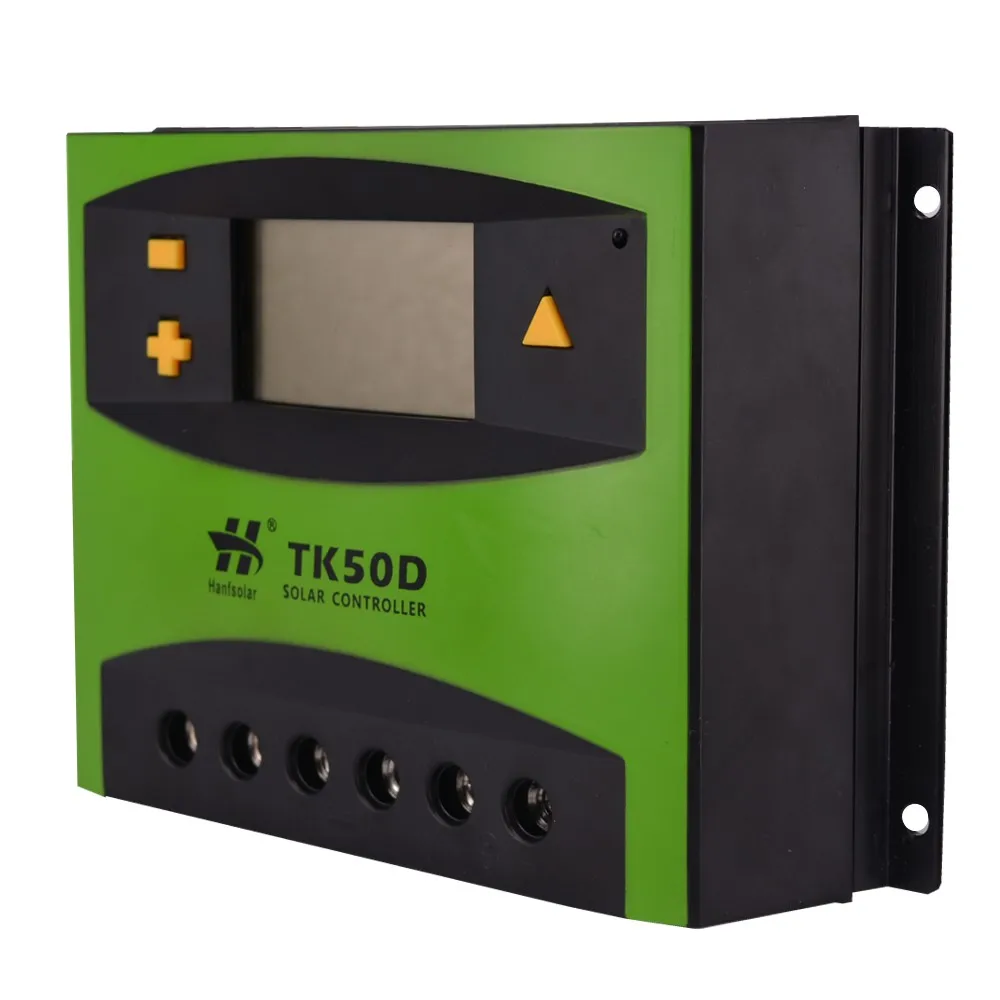

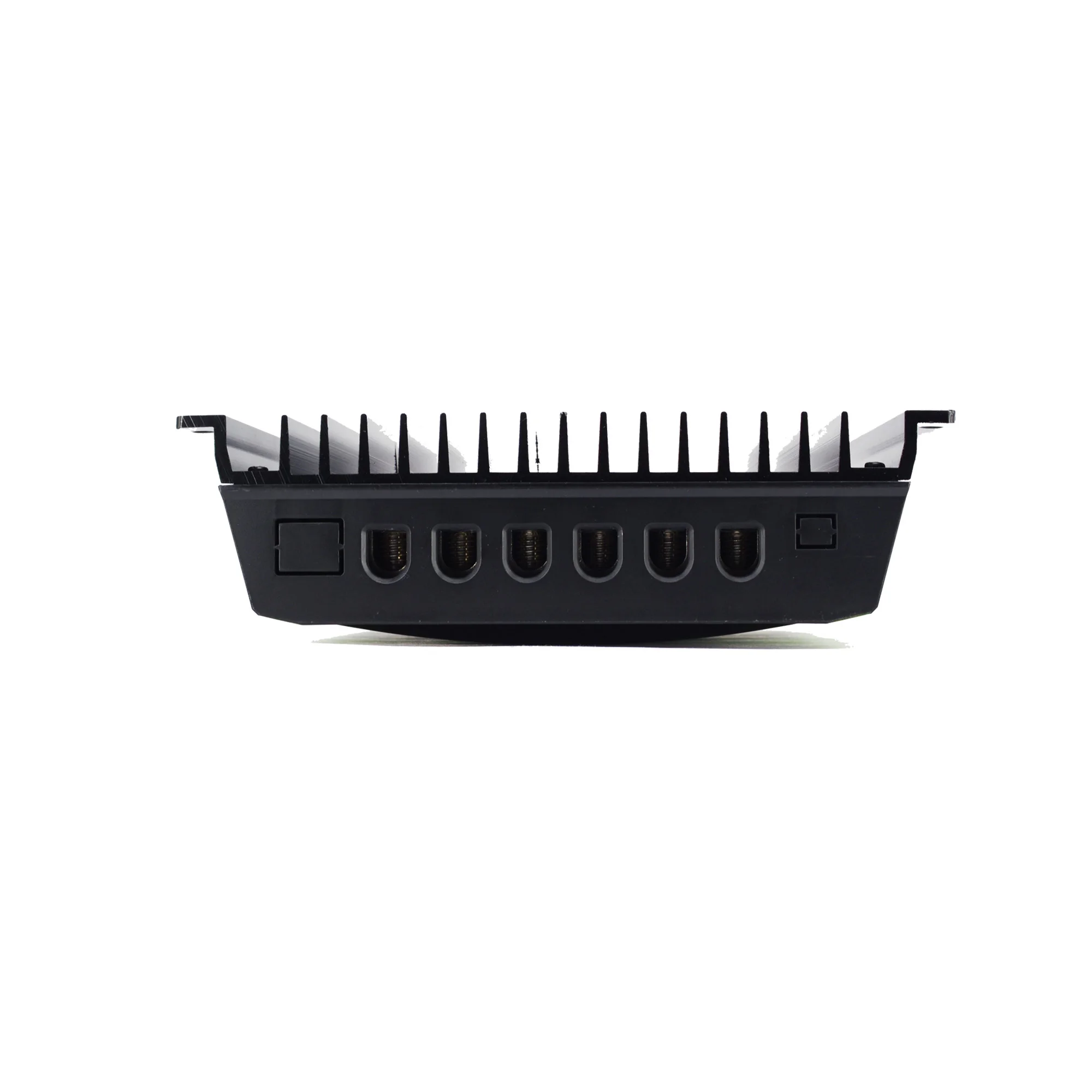

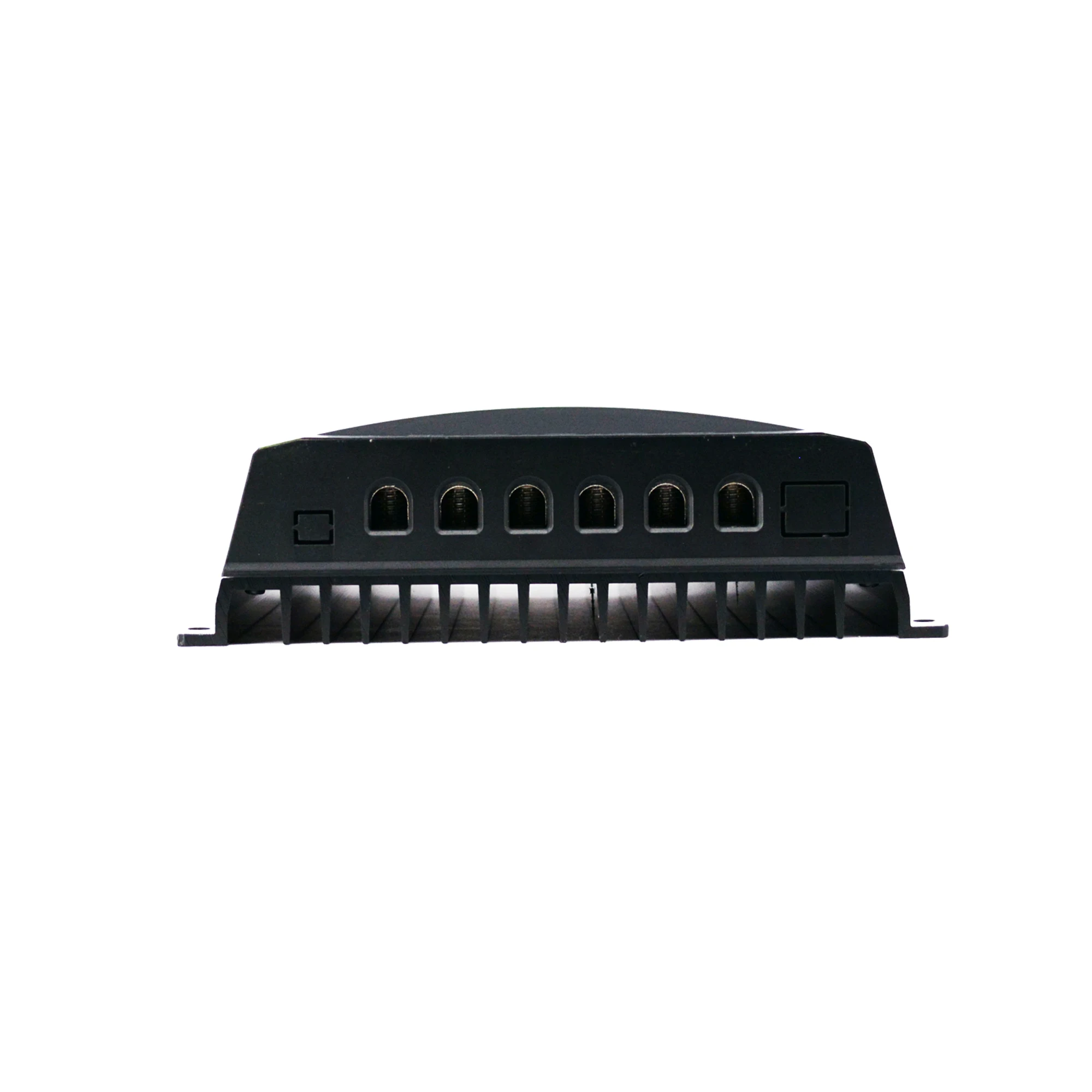

2.product details
3.Features:
(1)Vivid LCD graphic symbols
(2)Simple button operation
(3)Automatic identification of system voltage level
(4)Intelligent PWM charging mode
(5)Adjustablecharge-discharge protection
(6)Automatic temperature compensation
(7)Settable operation mode of load
(8)Battery reverse-discharge protection
(9)Battery low voltage disconnection(LVD)
(10)Battery reverse connection protection
(11)Overcurrent protection
(12)USB output
4.Technical data
| Model | TK60DU | TK6048D |
| Input | ||
| PV voltage | ≤50V | ≤100V |
| Rated Current | 60A | |
| Output | ||
| System Voltage | 12V/24V Auto | 48V Auto |
| HVD | 16.00V×1/×2/×3/×4 | |
| Rated discharging current | 60A | |
| No-load loss | ≤14mA(12V) | ≤16mA(24V) |
| Charge loop voltage drop | ≤0.20V | ≤0.25V |
| Discharge loop voltage drop | ≤ 0.12V | |
| Charging mode | PWM 4-stage(bulk, absorption,float, equalized) | |
| Voltage of float charging | 13.8(13V~15V)×1/×2/×3/×4 | |
| Voltage of absorption charging | 14.4V(13V~15V) ×1/×2/×3/×4 | |
| Duration of absorption charging | 2hs | |
| Voltage of equalized charging * | 14.6V(13V~15.5V) ×1/×2/×3/×4 | |
| Duration of equalized charging | 2hs | |
| LVD | 10.8V(10V~14V) ×1/×2/×3/×4 | |
| LVR | 12.6V(10V~14V) ×1/×2/×3/×4 | |
| Load working mode | Regular control mode | |
| Light control with switch-off point at night and switch-on point before dawn | ||
| Light control mode | ||
| Light control voltage | 5V(1V~10V) ×1/×2/×3/×4 | |
| Battery type | GEL, SLD, FLD and USr(default) | |
| USB | 5V 1A | |
| Other | ||
| Man-machine interface | LCD, 2 buttons | |
| Wiring | PCB terminal, ≤25mm2 | |
| Working temperature | -20 ~ +55 °C | |
| Storage temperature | -30 ~ +80 °C | |
| Working humidity | 10% ~ 90%, no condensation | |
| Dimension | 188x125x56mm | |
| Net Weight | 701g | |
| IP Code | IP30 | |
| Optional function | Remote communication,TTL, standard ModBus protocol | |

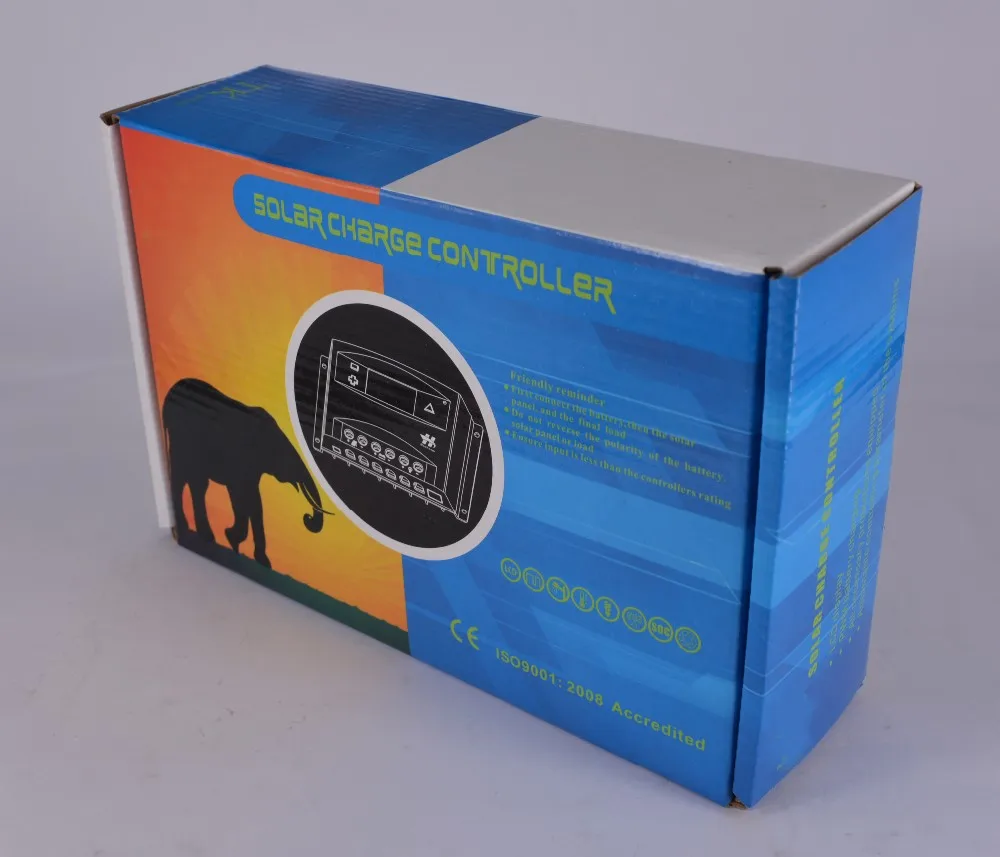

Package information:
Product size: 188*125*56mm
1pc/color box,24pcs/ctn
Ctn size:545x425x205mm
CBM/ctn:0.047
G.W:20.8kg
