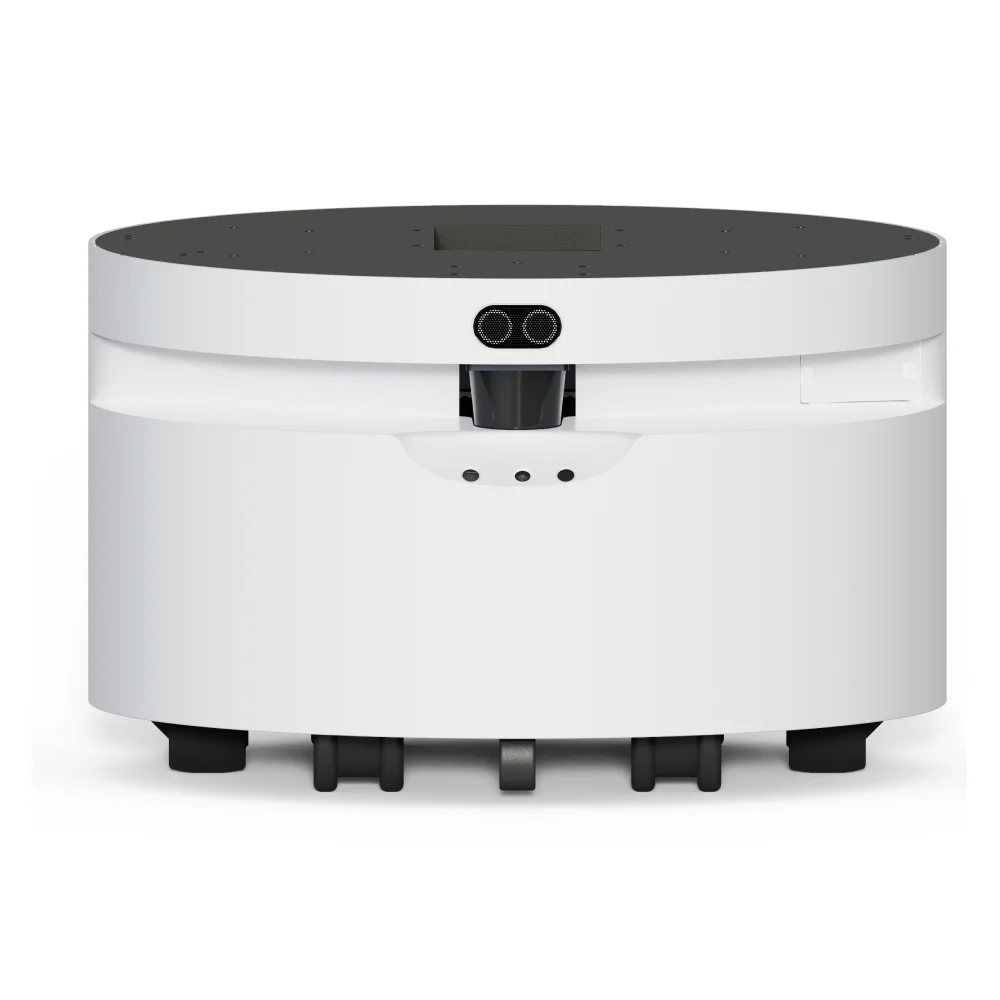

Интеллектуальная автономная навигационная платформа робота шасси
209 400,37 ₽ - 253 484,89 ₽

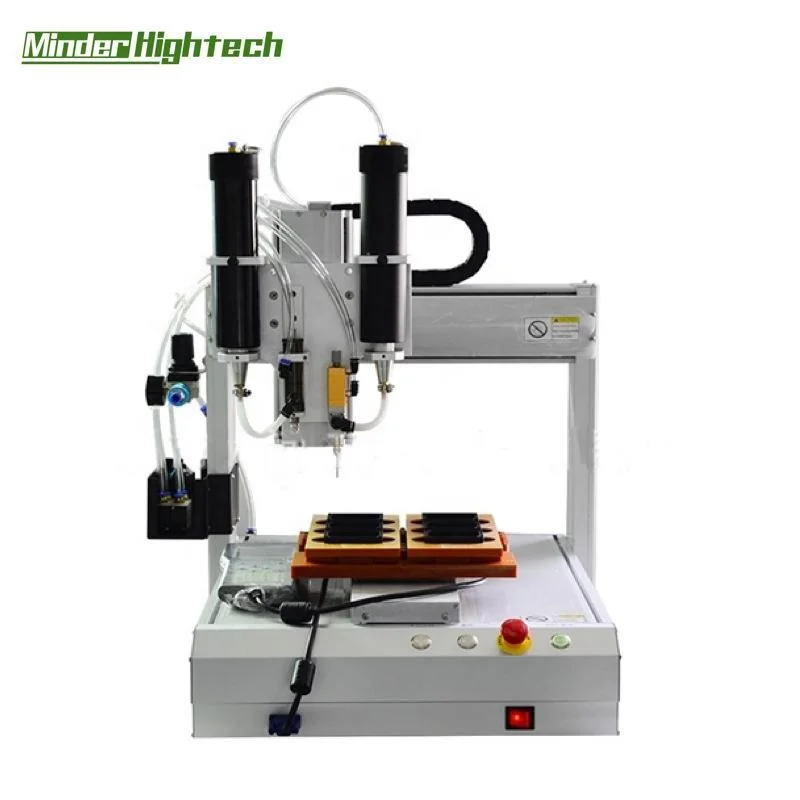

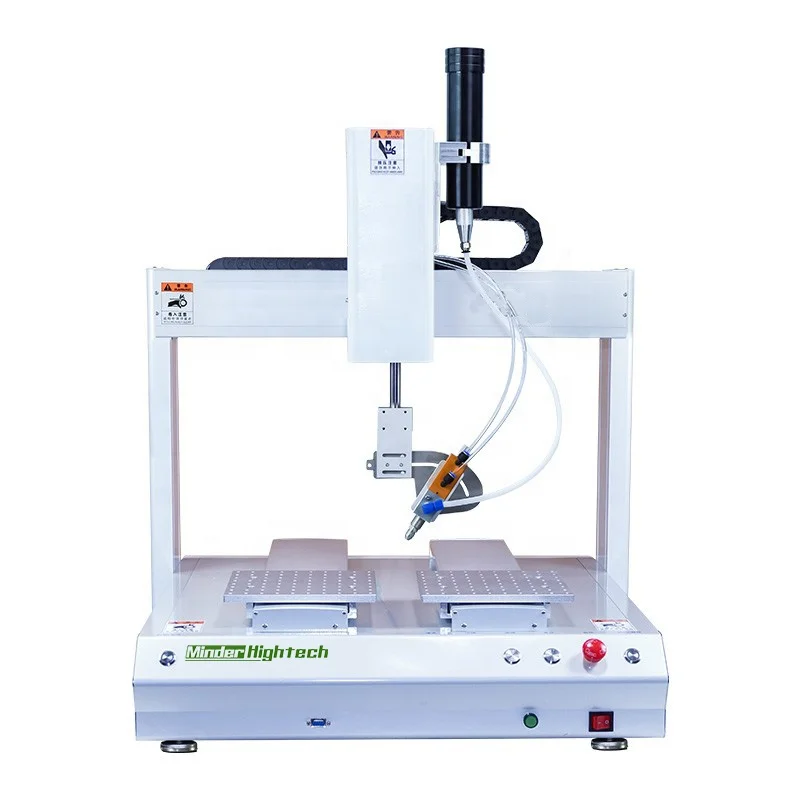

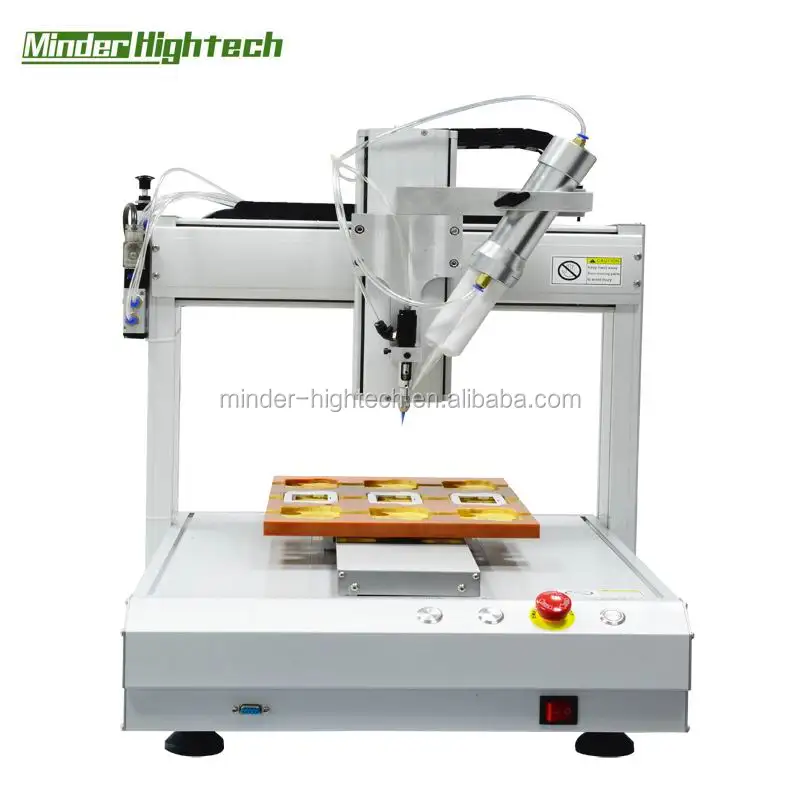

Промышленный автоматический вращающийся диспенсер машина для дозирования силиконового клея/автоматический робот клея
- Категория: >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 1600133771044:
Описание и отзывы
Характеристики
Products Description
The automatic dispensing machine can replace manual operation to realize mechanized production; stand-alone operation is simple, convenient, fast and accurate; SD card storage mode is convenient for data management and file transmission between machines; it can be equipped with a two-component pumping system to form a double Liquid automatic dispensing machine; can be equipped with a dispensing controller, dispensing valve and other accessories to form a floor-standing dispensing equipment; can be equipped with a spiral locking mechanism, configured as an automatic locking screw machine; can be upgraded to an online robot. It is used for various automated assembly, with strong carrying capacity and large processing space.
Specification
Model | MD-PT331 | MD-PT5331 | |||||||
Trip(mm) | 300/300/100 | 500/300/300/100 | |||||||
Programmatically | Import teaching programming or graphics | ||||||||
Motion graphics | Point, line, arc, curve, polyline, spiral, ellipse | ||||||||
Dispensing head | Plastic needle/TT needle | ||||||||
Dispensing cylinder | 3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC | ||||||||
Minimum discharge | 0.01ml | ||||||||
The glue frequency | 5 times/SEC | ||||||||
Load | Y/X axis load | 10kg | |||||||
Z axis load | 5kg | ||||||||
Axial dynamic speed X/Y/Z | 0-600mm/sec | ||||||||
Resolving power | 0.01mm/Axis | ||||||||
Repeatability positioning | Screw drive | 0.01-0.02 | |||||||
Synchronous belt drive | 0.02-0.04 | ||||||||
Program record mode | At least 100, 5000 points each | ||||||||
Display mode | LCD Teaching box | ||||||||
Motor system | Japan precision micro stepping motor | ||||||||
Drive mode | Guide | Taiwan HIWIN guide rail | |||||||
Wire rod | Taiwan HIWIN screw rod | ||||||||
Belt | Italy ELATECH synchronous belt | ||||||||
XYZ axis synchronous belt for standard configuration, Z axis screw rod is optional, XXYZ axis screw rod for customization | |||||||||
Motion filing function | 3 Axis | ||||||||
Input power | Full voltage AC 110V-220V | ||||||||
External control interface | RS232 | ||||||||
Motor control shaft number | 4 axis | 3 axis | |||||||
Axis range(mm) | X | 300 | 500 | ||||||
Y | 300 | 300 | |||||||
Y | 300 | ||||||||
Z | 100 | 100 | |||||||
R | 360° | 360° | |||||||
Outline size | 530/589/630 | 730/589/832 | |||||||
Body weight | 50KG | 75KG | |||||||
Features
Distinguishing Feature
1.It is independent of the mold . It is an aluminum profile castingstructure with beautiful appearance
2.It has a hand-held teaching programmer , which is fast and easyto program .
3.Its glue speed and glue amount can be set separately
4.It is controlled by a high precision stepping motor , and the trailis accurate
5.It can finish any shape point glue , such as space point , line , arc , etc .

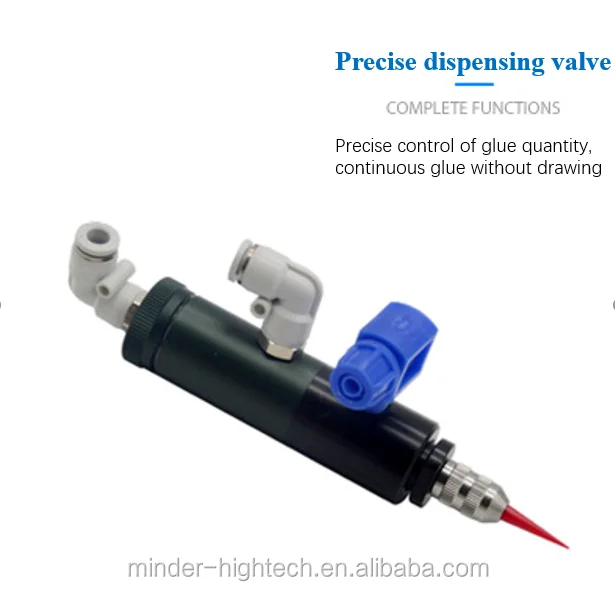

6.It contains a variety of glue needles , syringes , glue valves andcontrollers to meet different requirements .
2.It has a hand-held teaching programmer , which is fast and easyto program .
3.Its glue speed and glue amount can be set separately
4.It is controlled by a high precision stepping motor , and the trailis accurate
5.It can finish any shape point glue , such as space point , line , arc , etc .
6.It contains a variety of glue needles , syringes , glue valves andcontrollers to meet different requirements .
Main Configuration.
●HIWIN lead rail
●Shinano Kenshi
●Italy Lartey belt
●Taiwan Meanwell power
●OMRON relay
●ONPOW Metal switch
●Italy Lartey belt
●Taiwan Meanwell power
●OMRON relay
●ONPOW Metal switch

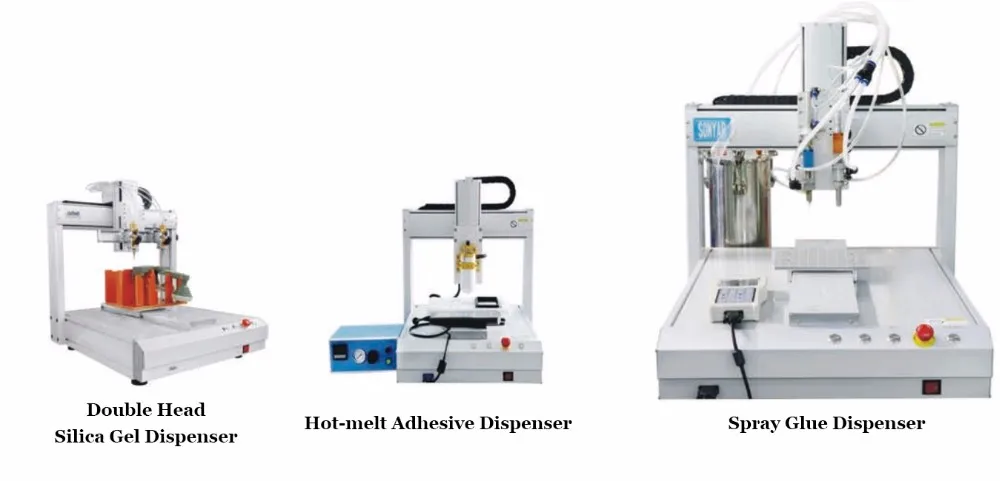

Applications
Our services
1. Help customer analyze product project and provide solution.
2. Freely sample test.
3. Provide shipping/delivery information checking service.
4. One year guarantee, all life maintain promise.
5. 24 hours feedback speed by email of others.
2. Freely sample test.
3. Provide shipping/delivery information checking service.
4. One year guarantee, all life maintain promise.
5. 24 hours feedback speed by email of others.
FAQ
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or sea shipment.
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or sea shipment.
Похожие товары
KT200 двухстороннее наземное оборудование для технического обслуживания Интеллектуальный робот-платформа
25 150 218,66 ₽ - 25 172 260,92 ₽
KT200 двухрычажное наземное оборудование для технического обслуживания Интеллектуальный робот-платформа
25 150 218,66 ₽ - 25 172 260,92 ₽
KT200 двухрычажное наземное оборудование для технического обслуживания Интеллектуальный робот-платформа
25 150 218,66 ₽ - 25 172 260,92 ₽

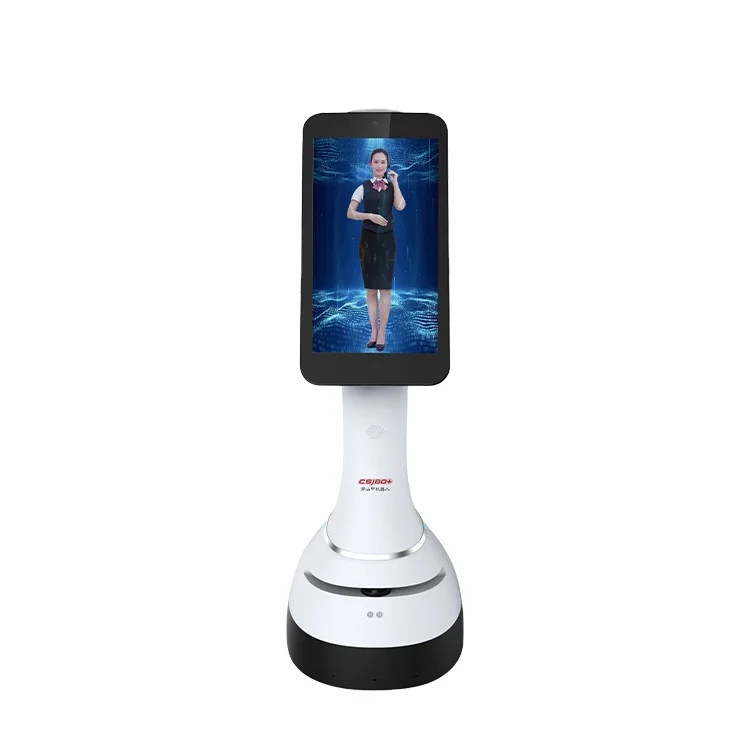

Профессиональный робот-консультант AI для торговых центров
1 310 191,94 ₽ - 1 640 825,84 ₽

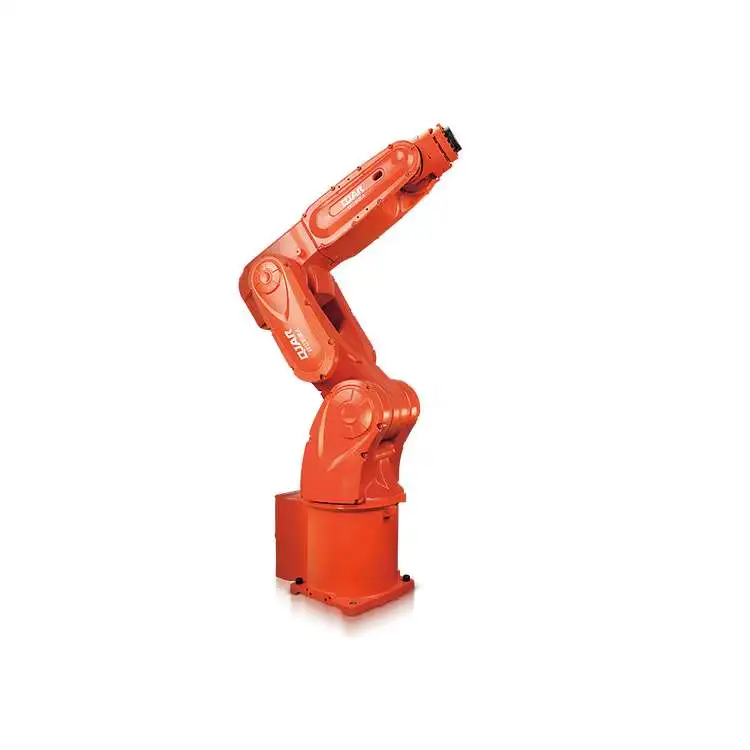

Сборка робот Китай QJR6S-1 6 оси Роботизированная рука от китайского производителя с компактной структурой для роботов в сборе
