Conveyor blet mesh band Dryer

Introduction

 Mesh band dryer conveys raw material by steel mesh for drying, and very suitable for flow process. It is widely used in chemical industry, food industry, medicine industry, building materials, electronic industries, especially good at drying material in slice shape, strip particles. It has the advantages of low investment, high drying speed, high evaporation strength, high efficiency, and good quality of product.

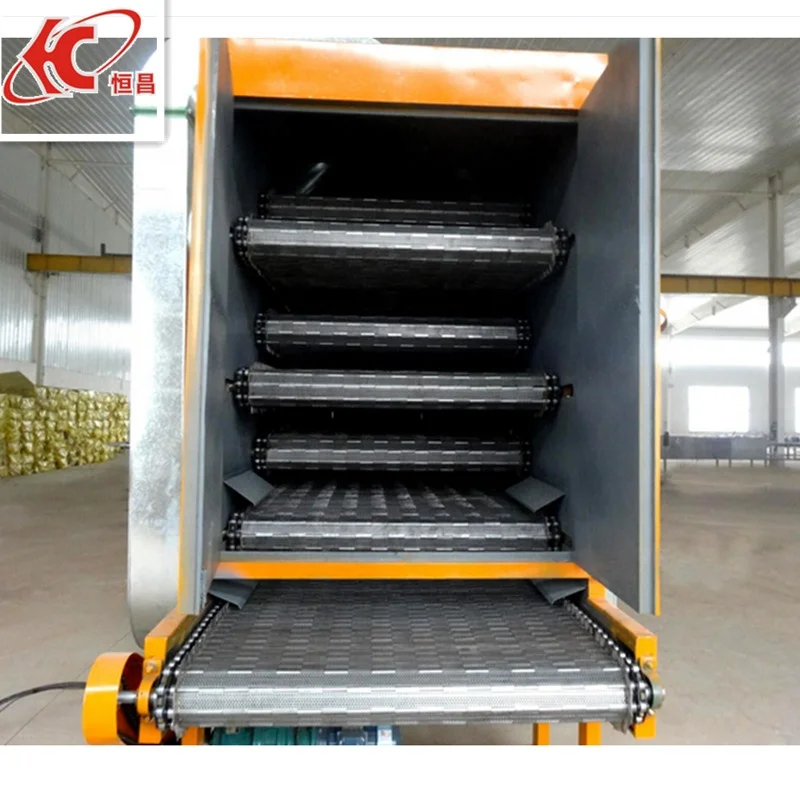

 Mesh belt dryer is composed by the main frame, tail frame, the way among frame, traction chain, nets chain, guide, automatic tensioning device,automatic heating equipment components. The material is the top charging hopper dryer with upper net belt into the dryer, the net belt running smoothly to the dryer, along the chute into the lower, and then back to the machine head, and so on, and the material in the hot air under the baking, gradually dry, by the tail department is sent out.

1. Features of mesh band dryer

1 .investment is small.fast drying ,evaporation intensity  is high .

2,high efficiency, large output , good quality products

3.standardization of production,,according to the yield to increase the number of segment

 2. Working principle of mesh band dryer

 The principle of Mesh belt dryer is as follows: laid evenly on the mesh belt, driven by the transmission device, the materials move back and forth in the dryer, where hot wind passes through the material and the water vapor is discharged from the weep hole, so as to achieve the purpose of drying.

3. Application of mesh band dryer

It is mainly for drying of plate, strip and granular materials with better ventilation.

Technical Parameters:
