Сертифицированный ETL импульсный источник питания 48 В постоянного тока 800

SPECIFICATIONS

            Item NO

K18C-UP 800S12/F

K18C-UP 800S24/F

K18C-UP 800S30/F

K18C-UP 800S36/F

K18C-UP 800S48/F

K18C-UP 800S60/F

OUTPUT

OUTPUT VOLTAGE

+12VDC

+24VDC

+30VDC

+36VDC

+48VDC

+60VDC

OUTPUT RATED CURRENT

58.4A

33.4A

26.7A

22.3A

16.7A

13.4A

CURRENT RANGE

0-58.4A

0-33.4A

0-26.7A

0-22.3A

0-16.7A

0-13.4A

RATED POWER

700.8W

801.6W

801W

802.8W

801.6W

804W

RIPPLE & NOISE

150mVp-p

300mVp-p

350mVp-p

400mVp-p

400mVp-p

600 mVp-p

DC VOLTAGE ADJ.

±5%

OUTPUT ACCURACY

±1%

LINE REGULATION

±0.5%

LOAD REGULATION

±0.5%

SETUP,RISE,HOLE UP TIME

300ms,20ms,12ms

INPUT

INPUT VOLTAGE RANGE

100-240V AC

AC CURRENT

3.8A @ 230V AC,7.6A@115VAC

INPUT FREQUENCY

47-63 Hz

EFFICIENCY

>91%

>92%

>92%

>93%

>93%

>93%

POWER FACTOR

>0.99@100V;>0.95@230V

INRUSH CURRENT

COLD START 25A/115V,50A/230V

LEAKAGE CURRENT

<0.5mA@240V AC

PROTECTION

OVERLOAD PROTECTION

100~130%,TYPE:HICCUP RESET:AUTO RECOVER

OVER VOLTAGE

>120%Vout,shut down out voltage ,re-power on to recover

OVER TEMP. PROTECTION

>105℃,recovers automatically after temperature goes down

ENVIROMENT

WORKINGTEMP., HUMIDITY

-20~50℃,10~90% RH,non-condensing

STORAGE TEMP., HUMIDITY

-20~85℃,10~95% RH

TEMPERATURE DRIFT

±0.03%/℃(0~50℃)

VIBRATION

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

SAFETY&EMC

SAFETY STANDARD

GB4943-1,EN60950-1,EN62368-1

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

INSULATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC STANDARD

MEET EN55022 CLASSB,EN61000-3-2

OTHERS

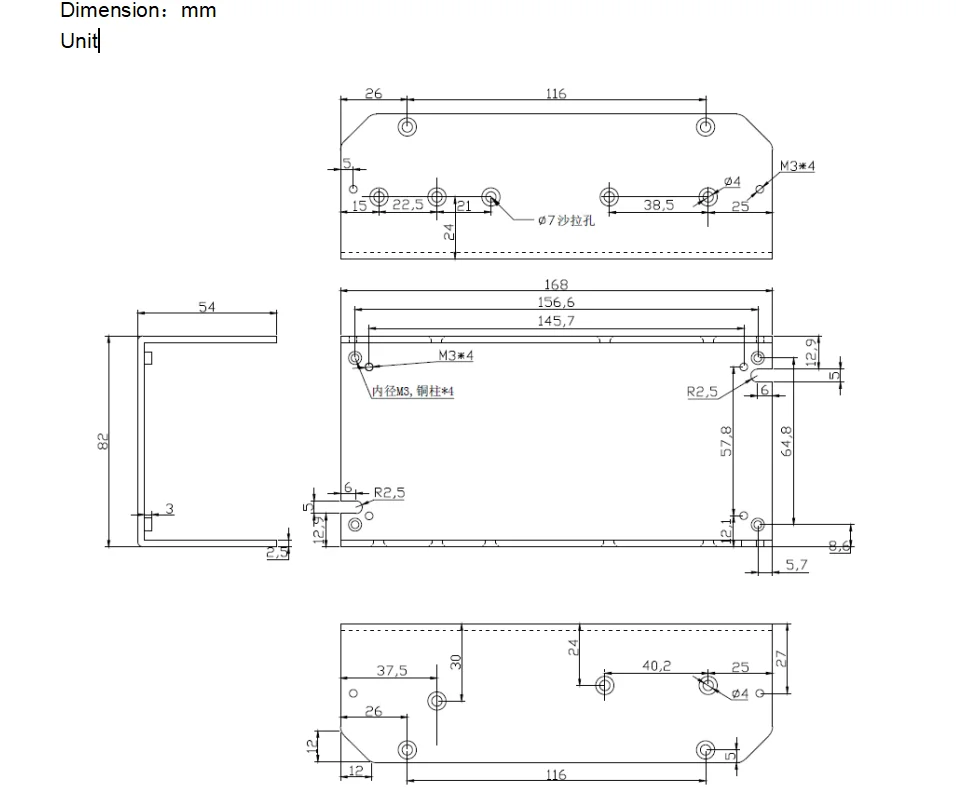

DIMENSION

168*82*41mm(WITHOUT DC FAN),168*82*60mm(WITH DC FAN)

WEIGHT

0.7Kg(WITHOUT DC FAN),0.9Kg(WITH DC FAN)

NOTE

1. ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.

2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.

3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.

4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD. 5.LOAD REGULATION IS MEASURED FROM 20% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.
