Установка для производства кислорода медицинская установка больничный генератор
- Категория: >>>
- Поставщик: Toplink Chemical Technology (Chengdu) Co. Ltd.
Сохранить в закладки 1600136415999:
Описание и отзывы
Характеристики
Product Description

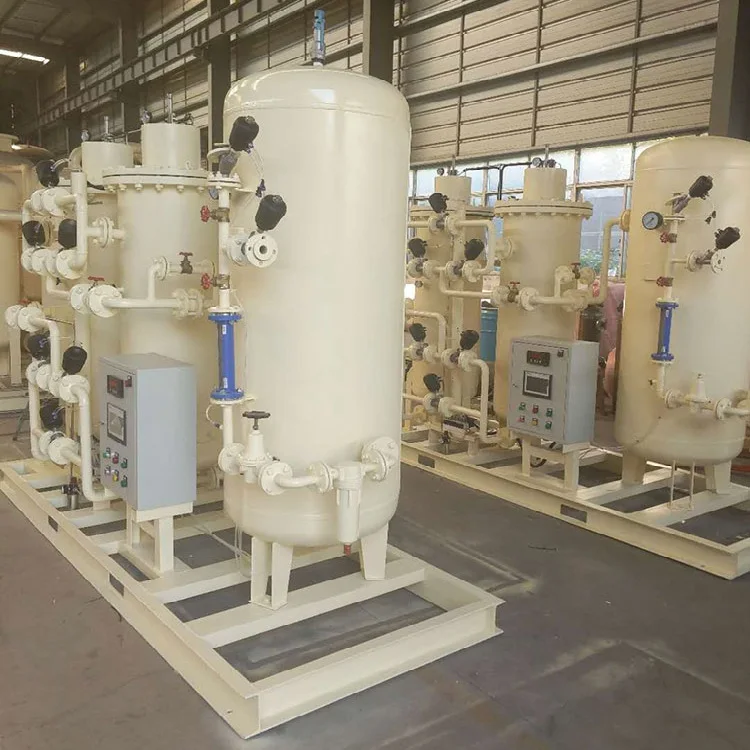

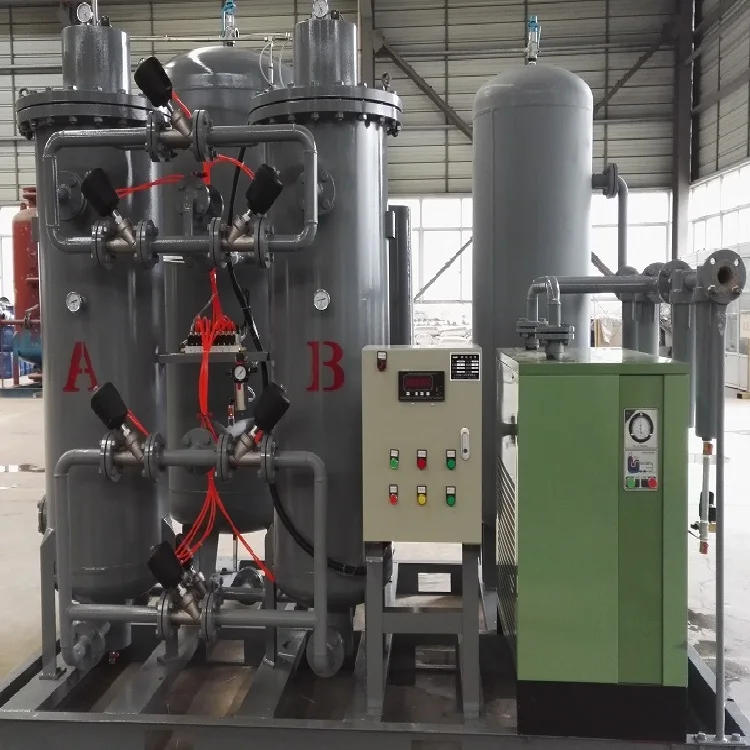

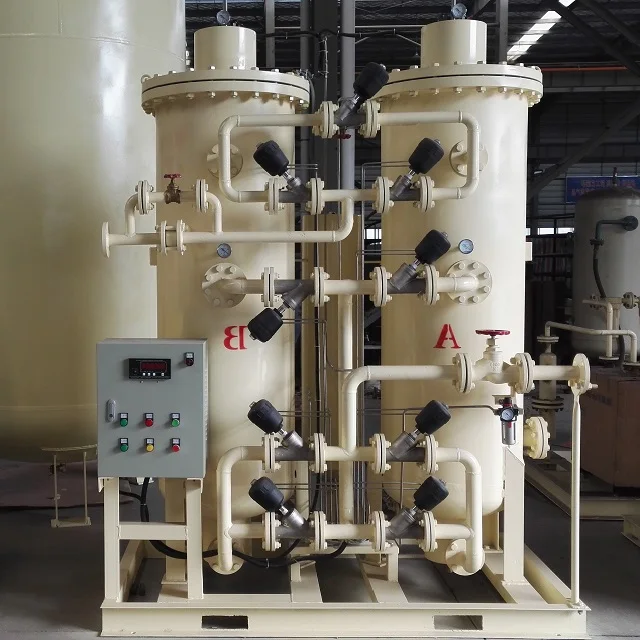

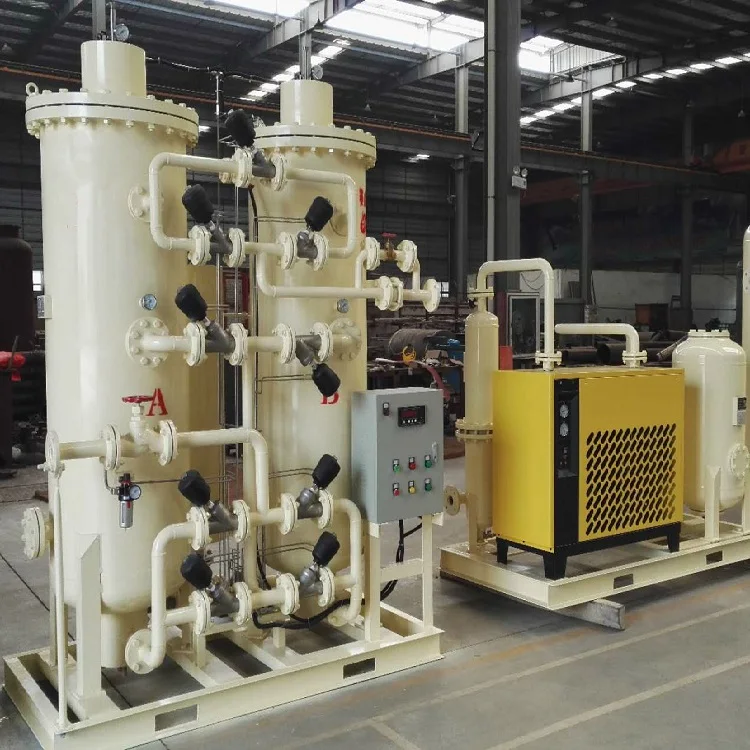

Small scale oxygen production plant oxygen gas plant industrial
The compressed air passes through the air purification system to remove the impurities, such as oil, water and dust, and into the adsorption tower with zeolite molecular sieve. The nitrogen, carbon dioxide and water vapor in the air are adsorbed in large quantities by molecular sieves, and oxygen and nitrogen are separated because of the high diffusion rate of oxygen.
When the nitrogen and other impurities in the adsorption tower reach saturation, the pressure is reduced and the zeolite molecular sieve is regenerated and reused. The two adsorption towers are operated under the control of PLC and continuously produce high quality oxygen.
When the nitrogen and other impurities in the adsorption tower reach saturation, the pressure is reduced and the zeolite molecular sieve is regenerated and reused. The two adsorption towers are operated under the control of PLC and continuously produce high quality oxygen.
Technical indicators
● Oxygen production：5 ～ 200Nm3/h
● Purity of oxygen：90% ～ 95%
● Oxygen pressure：0.1 ～ 0.4MPa(Adjustable)
● Oxygen production：5 ～ 200Nm3/h
● Purity of oxygen：90% ～ 95%
● Oxygen pressure：0.1 ～ 0.4MPa(Adjustable)
● Dew point：-40℃ or -60℃
Technical characteristics
⊙ The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.
⊙ Perfect process design and best use effect;
⊙ Modular design is designed to save land area.
⊙ The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.
⊙ Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow;
⊙ Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
⊙ The key components of famous brands are the effective guarantee of equipment quality.
⊙ The automatic emptying device of national patent technology guarantees the nitrogen quality of finished products.
⊙ It has many functions of fault diagnosis, alarm and automatic processing.
⊙ Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.
⊙ The equipment has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity.
⊙ Perfect process design and best use effect;
⊙ Modular design is designed to save land area.
⊙ The operation is simple, the performance is stable, the automation level is high, and it can be realized without operation.
⊙ Reasonable internal components, uniform air distribution, and reduce the high speed impact of airflow;
⊙ Special carbon molecular sieve protection measures to extend the life of carbon molecular sieve.
⊙ The key components of famous brands are the effective guarantee of equipment quality.
⊙ The automatic emptying device of national patent technology guarantees the nitrogen quality of finished products.
⊙ It has many functions of fault diagnosis, alarm and automatic processing.
⊙ Optional touch screen display, dew point detection, energy saving control, DCS communication and so on.
Specification
Model | O2 Cpacity(Nm3/h) | Effective air consumption | Air purification system | |||
SPO-5 | 5 | 1 | KJ-1 | |||
SPO-10 | 10 | 2 | KJ-3 | |||
SPO-20 | 20 | 4 | KJ-6 | |||
SPO-40 | 40 | 8 | KJ-10 | |||
SPO-60 | 60 | 12 | KJ-12 | |||
SPO-80 | 80 | 16 | KJ-20 | |||
SPO-100 | 100 | 20 | KJ-20 | |||
SPO-150 | 150 | 30 | KJ-30 | |||
SPO-200 | 200 | 40 | KJ-40 | |||
2. If the model is not involved in the above table or the design conditions are changed, please consult our company for detailed information. | ||||||
Recommend Products
Company Profile
Toplink is specializing in the design and manufacture of oxygen production equipment, compressed air purification equipment, PSA nitrogen production equipment, nitrogen purification equipment, membrane separation nitrogen production and oxygen production equipment, and small cryogenic air separation production enterprises.
Our products are widely used in metallurgical coal, power electronics, petrochemical, biomedicine, tire rubber, textile and chemical fiber, food preservation and other industries, and play a role in many key national projects.
Our products are widely used in metallurgical coal, power electronics, petrochemical, biomedicine, tire rubber, textile and chemical fiber, food preservation and other industries, and play a role in many key national projects.
Packaging and delivery
Похожие товары

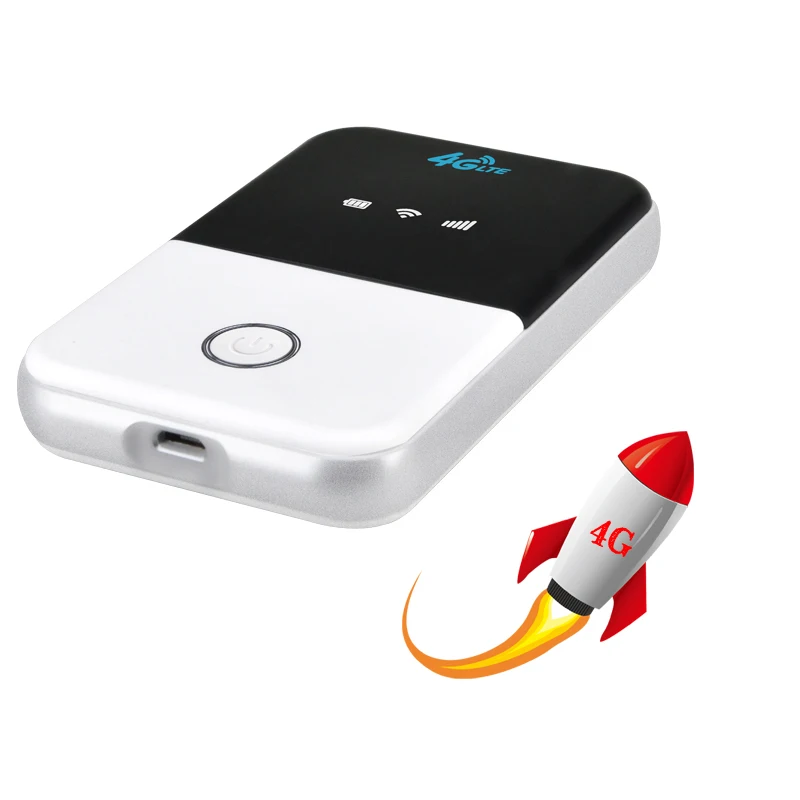

Мини-роутер Mifis Router 4G, Беспроводная портативная карманная Мобильная точка доступа Wi-Fi, точка доступа для путешествий, автомобиля, со слотом для Sim-карты, lte
