Светодиодная лента для подсветки 44 SLED 2012SGS46 7030L 64 REV1.0 телевизора Toshiba 46L5200U LE46E5000
3,90-5,50 $
Лента светодиодной подсветки для телевизора 50 фунтов 3 0 дюймов 180515 561 В 50LB563U 50LB563V 50LB565U 459 мм
- Категория: >>>
- Поставщик: Shenzhen Xieyuanxin Optoelectronics Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600136578435:
Описание и отзывы
Характеристики
【Get Online Catalog】
1、Please scan the QR code on the left to obtain the XIEYUANXIN online catalog. (Before this, you need to contact our business staff to obtain the login password for the online catalog)
2、Please contact our business staff directly for a complete catalog.
【DESCRIPTION】

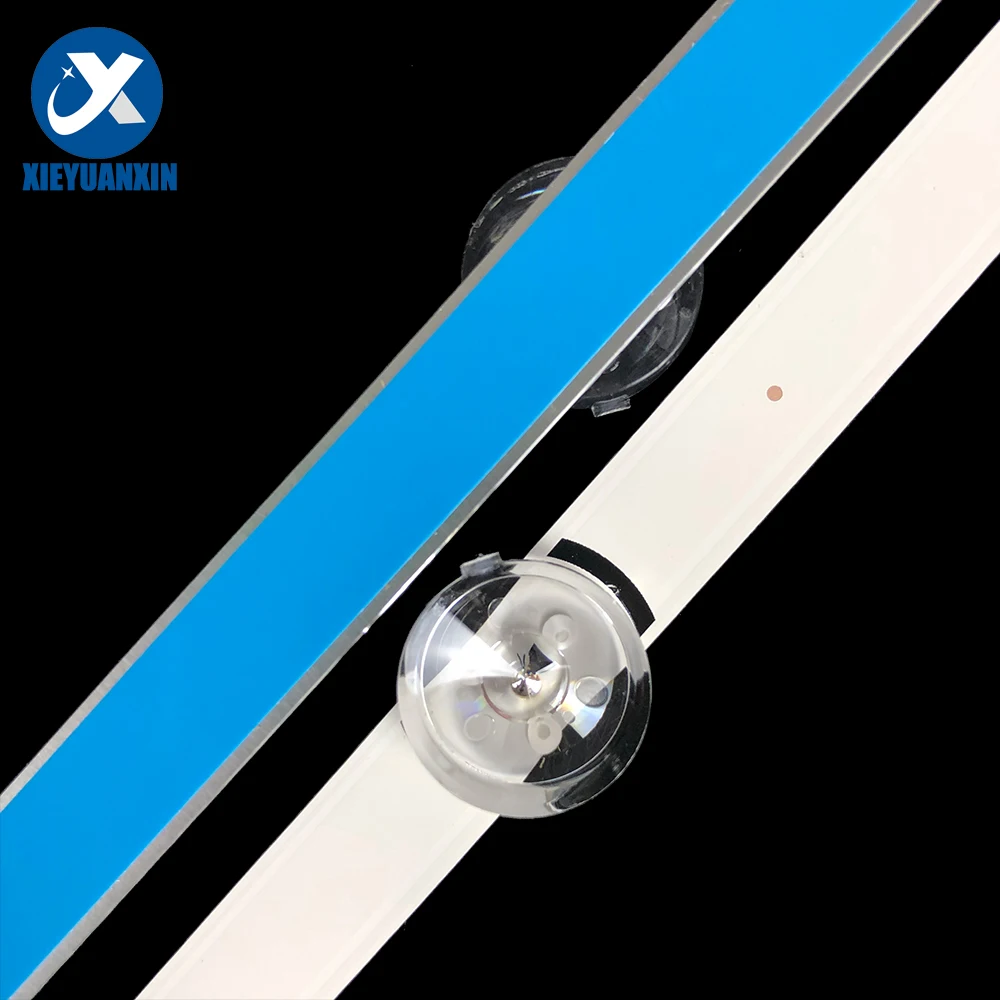

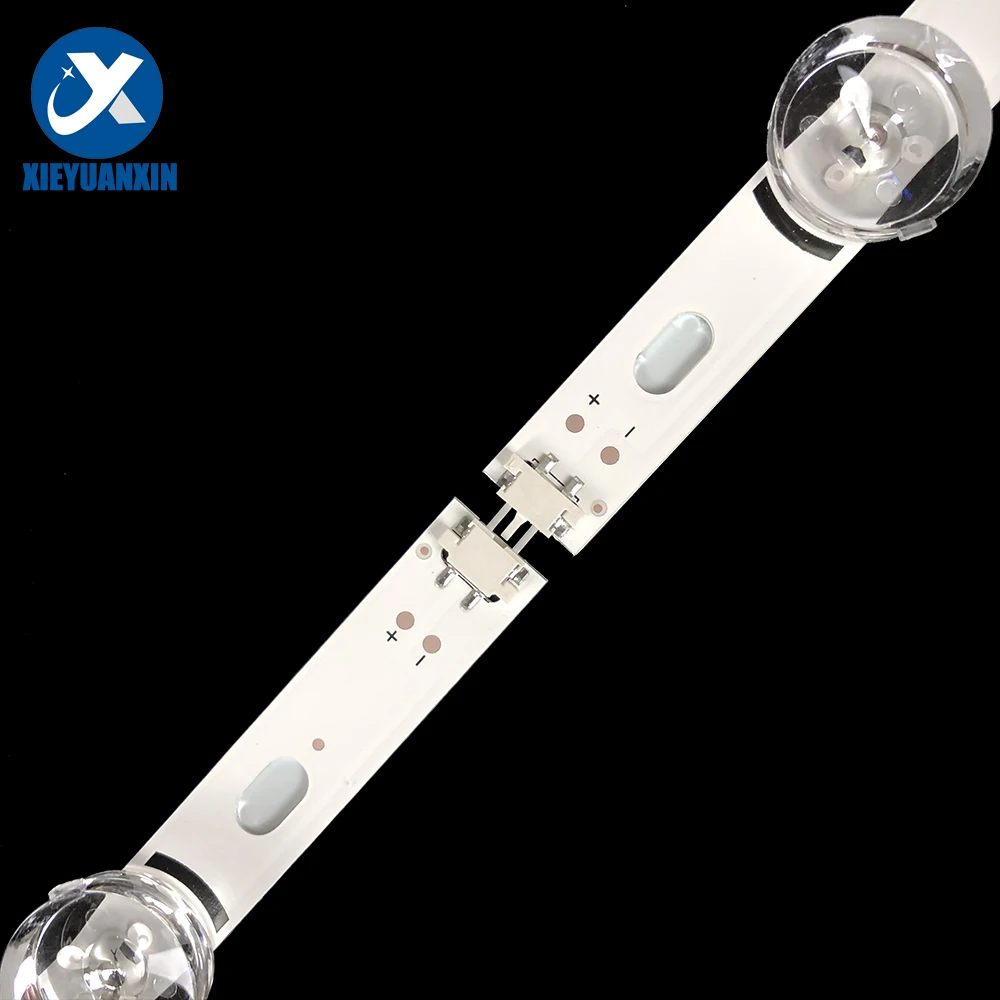

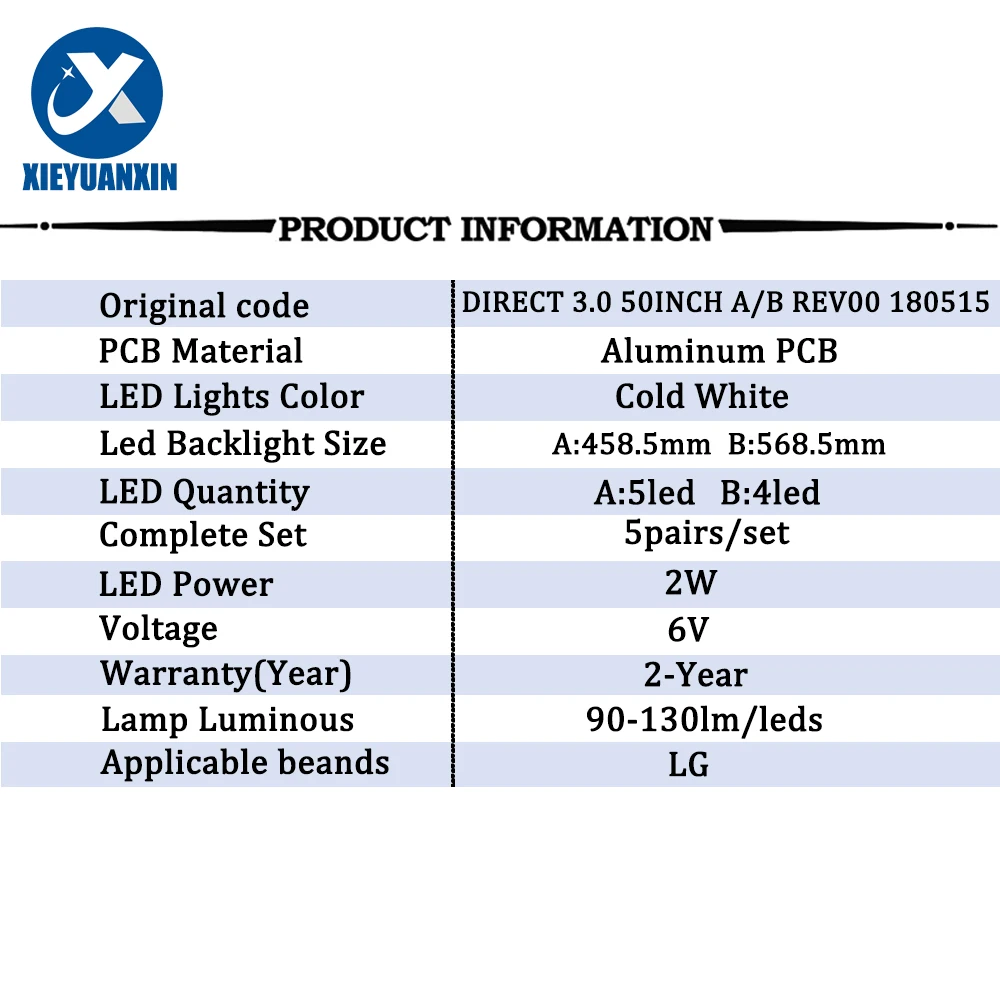

LG Innotek DRT 3.0 50” A+B 9 LED 6V DRT3.0 — LED Backlight Strip Kit

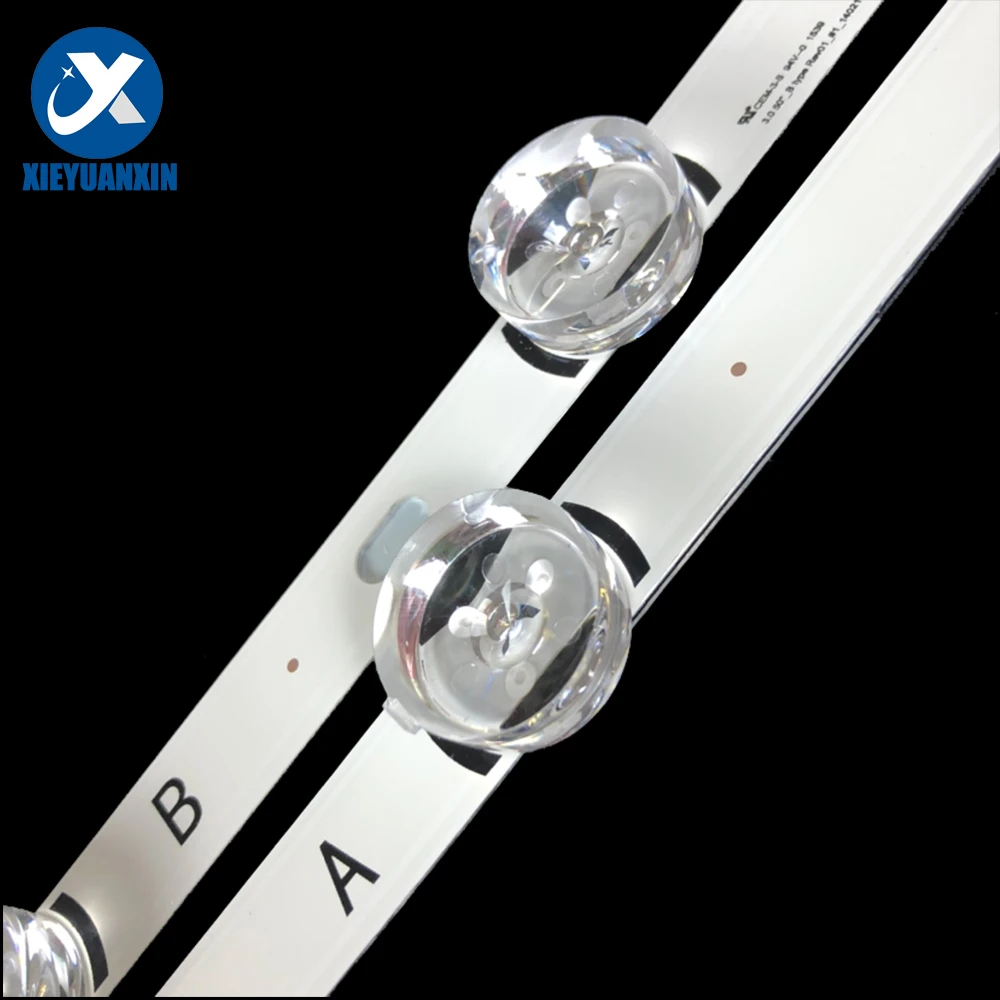

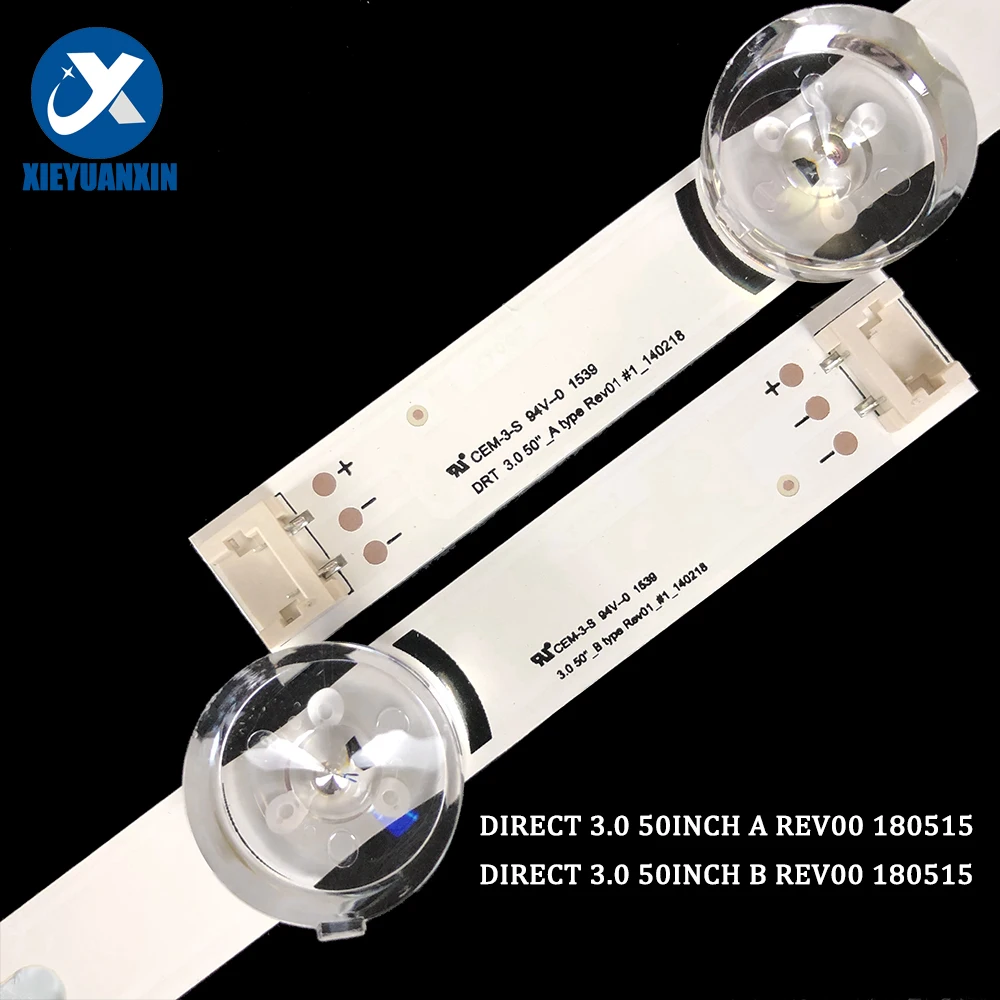

* Marking: DRT 3.0 50 Type A rev0.2 140108 and DRT 3.0 50 Type B rev0.2 140108
* Number of LEDs on the bar: Type A: 4 pcs Type B: 5 pcs
* Operating voltage of one LED: 6 V
* Total voltage: 54 V
* Line length: A：574 mm B：458 mm
* Line width: 15 mm
* The distance between the centers of the LEDs: Type A bulb: 116-110-100 mm Type B: 123-116-110-100 mm
* Substrate material: Aluminum
* Type of light diffuser: concave 23mm
* Diagonal matrix:50″
Installed in the following TV models:
* For LG 50LBxxx series: 50LB561V 50LB572V 50LF580V 50LF561V 50LB570V 50LB650V 50LB652V 50LB653V B5610, 50LB5800, 50LB580V
Compatible partner numbers:
* 6916L-1781A，6916L-1782A，6916L-1735A,，6916L-1736A,6916L-1978A，6916L-1779A
* Marking: DRT 3.0 50 Type A rev0.2 140108 and DRT 3.0 50 Type B rev0.2 140108
* Number of LEDs on the bar: Type A: 4 pcs Type B: 5 pcs
* Operating voltage of one LED: 6 V
* Total voltage: 54 V
* Line length: A：574 mm B：458 mm
* Line width: 15 mm
* The distance between the centers of the LEDs: Type A bulb: 116-110-100 mm Type B: 123-116-110-100 mm
* Substrate material: Aluminum
* Type of light diffuser: concave 23mm
* Diagonal matrix:50″
Installed in the following TV models:
* For LG 50LBxxx series: 50LB561V 50LB572V 50LF580V 50LF561V 50LB570V 50LB650V 50LB652V 50LB653V B5610, 50LB5800, 50LB580V
* For LG 50LBxxx series:0LB560V
* For LG 50LFxxx series:LG 50LF650V, 50LF652V, 50LF653 wǔ,50LB580V,50LF5610,50LF652V,50LF5800,50LF561V,50LF625V
Found in the following matrices:
*LC500DUE-FGA3,LC500DUE-FGA4,LC500DUH-FGP1,LC500DUH-FGP2,LC500DUH-MGP1
* For LG 50LFxxx series:LG 50LF650V, 50LF652V, 50LF653 wǔ,50LB580V,50LF5610,50LF652V,50LF5800,50LF561V,50LF625V
Found in the following matrices:
*LC500DUE-FGA3,LC500DUE-FGA4,LC500DUH-FGP1,LC500DUH-FGP2,LC500DUH-MGP1
Compatible partner numbers:
* 6916L-1781A，6916L-1782A，6916L-1735A,，6916L-1736A,6916L-1978A，6916L-1779A
【Our Overseas Warehouse】
Our overseas warehouse distribution includes : (click on the corresponding keywords & icons for more information)
* Mexico Overseas Warehouse
* Russia Overseas Warehouse
* Spain Overseas Warehouse
* Poland Overseas Warehouse
What are the advantages of overseas warehouses?
* Russia Overseas Warehouse
* Spain Overseas Warehouse
* Poland Overseas Warehouse
What are the advantages of overseas warehouses?
Our overseas warehouses guarantee shipment within 24 hours and delivery completion within 5 days nationwide.The overseas warehouses in Mexico, Russia, Spain, and Poland will not only save import duties, value-added taxes, and shippingcosts for our VIP clients but also provide after-sales service under the same conditions. For further details, please consult our business team.
*Please Click On The Image On The Right To Get The Overseas Warehouse Catalog And Delivery Costs.
【XIEYUANXIN Business Team】
This store is composed of a highly experienced team of 4 individuals proficient in English, Spanish, Arabic ,Cantonese, and Chinese.
Business Manager: Cherry
(Proficient in English, Spanish, Cantonese, and Chinese.10 years of TV Led backlight sales experience, familiar with the global TV Led backlight market)
(Proficient inEnglish, Spanish, Cantonese, and Chinese. )
(Proficient in English,Spanish, and Chinese.)
(Proficient in Arabic, English, Spanish. )
【XIEYUANXIN Business Team】
*We firmly believe that the key to the prosperity and development of a business lies not only in providing high-quality products that meet market demands and competitive advantages but, more importantly, in its ability to drive sales performance. Our sales team in the television backlighting industry possesses extensive experience, allowing us to quickly match product details and pricing specifics based on your requirements listed. This ensures a genuine alignment between demand and advantage, fostering true collaboration.
*Simultaneously, our sales team will be a powerful partner for the development of your business. An exceptional sales team can deliver outstanding solutions, services, efficiency, foster better relationships with customers, and powerful emergency response capabilities.This is the original intention behind XIEYUANXIN's cultivation of the business team. We highly value the experience, professionalism, and vision of the business team.
*Simultaneously, our sales team will be a powerful partner for the development of your business. An exceptional sales team can deliver outstanding solutions, services, efficiency, foster better relationships with customers, and powerful emergency response capabilities.This is the original intention behind XIEYUANXIN's cultivation of the business team. We highly value the experience, professionalism, and vision of the business team.
【Emergency Business Contact Phone Number】
： +86 13316188560 （Cherry）
【DXP Drawing】
1、For any customized LED backlight strip, our engineers will create DXP drawings of the PCB circuit structure. We will ultimately confirm all customized details with you.
2、You only need to provide details such as the power and voltage of the light strip, the number of lights, length, hole positions, etc. Our professional engineers can take care of everything based on your specifications.
【Sample Production】
Based on the confirmed DXP files, we will begin producing samples of the LED TV backlight/ELED TV backlight/DLED TV backlight. The samples will match the quality and manufacturing craftsmanship of the final product. Once the samples are completed, we will ship them to your address via expedited courier service.
【Laser Your LOGO】
We offer laser logo services to enhance the visibility of your brand. We can laser your logo onto aluminum PCB or copper PCB. You only need to provide a clear logo file, and our engineers will create a CDR file for the laser process.
【Shipping Protection】
Here is a part of our packaging:
* Five-layer corrugated paper outer box.
* Transparent plastic tray.
* Pearl cotton.
* Anti-static bag.
* Black protective corners for the outer box.
We can also customize packaging for your wholesale and retail business according to your requirements. You only need to provide the vector graphic files for the packaging design.
* Five-layer corrugated paper outer box.
* Transparent plastic tray.
* Pearl cotton.
* Anti-static bag.
* Black protective corners for the outer box.
We can also customize packaging for your wholesale and retail business according to your requirements. You only need to provide the vector graphic files for the packaging design.
【XIEYUANXIN GROUP】
*We independently hold a 100% stake in a cutting-edge television backlight factory and have strategic investments in other sectors of the Black Product industry.
*The television backlight factory operates seven independent production lines.
*With an annual production capacity of 42 million backlight strips, our warehouse in China maintains a consistent standing inventory of approximately $1.15 million.
*Across 4 overseas warehouses, we uphold a robust standing inventory of $800,000, with a continuous monthly supply of goods in transit.
【Quality Comparison】
Here are some features of the components we use:
LEDs:
Regardless of the quality, LEDs available on the market come in the same size, making it difficult to distinguish with the naked eye. Our LEDs have a larger wafer size, reaching 26*35mm, providing a longer lifespan and excellent heat dissipation capabilities.
PCB Thickness:
LEDs:
Regardless of the quality, LEDs available on the market come in the same size, making it difficult to distinguish with the naked eye. Our LEDs have a larger wafer size, reaching 26*35mm, providing a longer lifespan and excellent heat dissipation capabilities.
PCB Thickness:
Our PCB copper thickness is 35um. Some other suppliers might use 25um or 18um to lower costs or increase profits.
PCB Edge Processing:
The V-cut edge of our PCB is smooth and won't scratch the skin. In contrast, other suppliers may have rough and uneven V-cut edges.
Connector of our light bars:
Our original connectors retain their color even after high-temperature baking.
Lens Supplier:
We source our lenses from a LED lens supplier associated with well-known television brands, ensuring superior brightness and uniformity.
PCB Edge Processing:
The V-cut edge of our PCB is smooth and won't scratch the skin. In contrast, other suppliers may have rough and uneven V-cut edges.
Connector of our light bars:
Our original connectors retain their color even after high-temperature baking.
Lens Supplier:
We source our lenses from a LED lens supplier associated with well-known television brands, ensuring superior brightness and uniformity.
【Production & Quality Control】
The production process consists of a total of 12 steps, and it's noteworthy that our Quality Control (QC) team conducts three rounds of quality inspections. This ensures that all products meet our quality standards before entering the warehouse.
Step1 - Brush Tin Paste.
Step2 - SMT LED /Connetor.
Step3 - SMT High Precision Machine.
Step4 - LED Reflow Soldering.
Step5 - Test Leds.
Step6 - Wait For Assemble Lens.
Step7 - Glue Dispensing.
Step8 - Assemble Lens.
Step9 - Len Reflow Soldering.
Step10 - QC*3.
Step11 - Packing.
Step12 - Warehouse.
Step2 - SMT LED /Connetor.
Step3 - SMT High Precision Machine.
Step4 - LED Reflow Soldering.
Step5 - Test Leds.
Step6 - Wait For Assemble Lens.
Step7 - Glue Dispensing.
Step8 - Assemble Lens.
Step9 - Len Reflow Soldering.
Step10 - QC*3.
Step11 - Packing.
Step12 - Warehouse.
【XIEYUANXIN After-sales Service】
We provide a 2-year warranty for all light bars produced by our factory. The warranty period starts from the date of package delivery. Our comprehensive after-sales system is designed to enhance our emergency response capabilities. We value customer feedback and their purchasing experience. We welcome opinions and suggestions as they help us become a better supplier for you.
We provide a 2-year warranty for all light bars produced by our factory. The warranty period starts from the date of package delivery. Our comprehensive after-sales system is designed to enhance our emergency response capabilities. We value customer feedback and their purchasing experience. We welcome opinions and suggestions as they help us become a better supplier for you.
【Industry Awareness】
* The Chinese market has seen the emergence of very low-priced sales and transactions for TV backlighting. It's challenging to discern differences in appearance among similar products from images or videos. Additionally, there is a substantial presence of inventory from famous brand original TV accessory manufacturers. These products have been stockpiled by the original factories for over three years, resulting in numerous quality issues. They are not suitable for practical use as they are electronic components. Some unscrupulous business practices use this to disrupt the market's reputation, impacting certain customers. Time will prove everything, and ultimately, we will verify these facts through feedback from end-market consumers.
* We firmly believe that excellent quality and service are fundamental to collaboration. "Customers want world-class products, and suppliers provide corresponding product quality and sales services. This is not only the profit provided by customers but also the profit model for suppliers." XIEYUANXIN consistently adheres to these principles as the competitiveness for the sustained operation of the business.
* We firmly believe that excellent quality and service are fundamental to collaboration. "Customers want world-class products, and suppliers provide corresponding product quality and sales services. This is not only the profit provided by customers but also the profit model for suppliers." XIEYUANXIN consistently adheres to these principles as the competitiveness for the sustained operation of the business.
What advantages can your overseas warehouse bring to customers?
Cost Savings on Shipping、VAT (Value Added Tax) Savings、Faster Delivery Times、Reduced Buyer Inventory Capital、Sales Invoices、Free Overseas Warehouse Storage (for VIP Customers)
What type of Packaging do you offer?
We offer neutral branding in standard gift or brown box tested to international shipping standards. We also offer customized packaging designed and made to your specifications. XIEYUANXIN does not compete with our customers in the B2C market -we build your brand, not our own.
Does XIEYUANXIN provide OEM/ODM Service?
Absolutely! We have in-house industrial design and engineering teams that can quickly take your idea from concept to completion. We have a strong emphasis of communicating the status and progress of every project along the way. Simply contact us with your requirements.
What are Your Payment Terms?
T/T and L/C are the most common forms of payment, specific terms can be discussed with you prior to you issuing a purchase order.XIEYUANXIN operates via an advanced ERP system that allows factory production to rapidly occur as payments are efficiently and accurately processed.
What is the Standard Lead Time for Samples and Bulk Orders?
Sample lead time is normally around 7-10 days. For most products, bulk orders are approximately 45 days after receipt of payment. However, production time normally depends on order quantity and specifications.
What is XIEYUANXIN’s Warranty?
XIEYUANXIN is proud to offer one of the longest warranty’s in the industry - covering both material defects and workmanship. Please contact us for details
Cost Savings on Shipping、VAT (Value Added Tax) Savings、Faster Delivery Times、Reduced Buyer Inventory Capital、Sales Invoices、Free Overseas Warehouse Storage (for VIP Customers)
What type of Packaging do you offer?
We offer neutral branding in standard gift or brown box tested to international shipping standards. We also offer customized packaging designed and made to your specifications. XIEYUANXIN does not compete with our customers in the B2C market -we build your brand, not our own.
Does XIEYUANXIN provide OEM/ODM Service?
Absolutely! We have in-house industrial design and engineering teams that can quickly take your idea from concept to completion. We have a strong emphasis of communicating the status and progress of every project along the way. Simply contact us with your requirements.
What are Your Payment Terms?
T/T and L/C are the most common forms of payment, specific terms can be discussed with you prior to you issuing a purchase order.XIEYUANXIN operates via an advanced ERP system that allows factory production to rapidly occur as payments are efficiently and accurately processed.
What is the Standard Lead Time for Samples and Bulk Orders?
Sample lead time is normally around 7-10 days. For most products, bulk orders are approximately 45 days after receipt of payment. However, production time normally depends on order quantity and specifications.
What is XIEYUANXIN’s Warranty?
XIEYUANXIN is proud to offer one of the longest warranty’s in the industry - covering both material defects and workmanship. Please contact us for details
