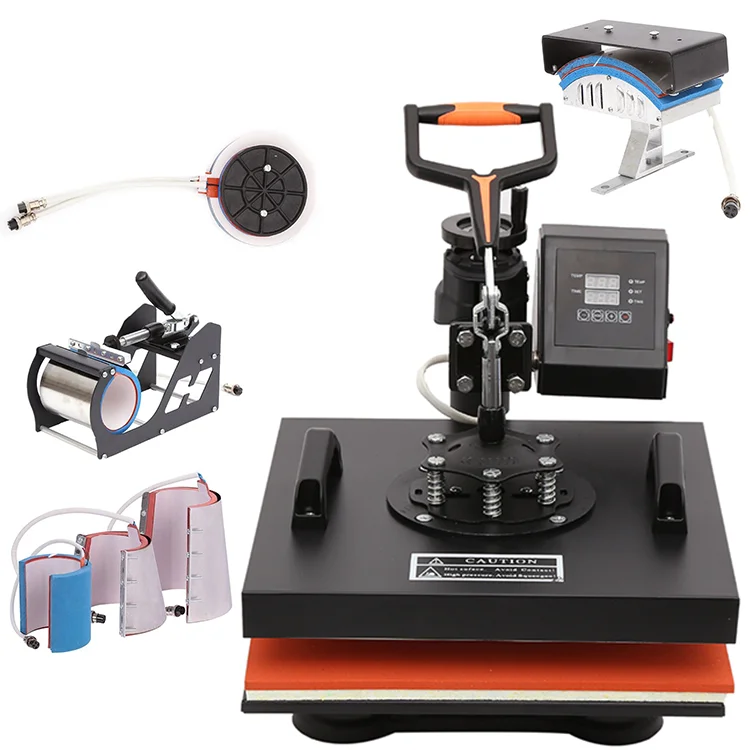

8 в 1 термосублимационный пресс для футболок/кружек/тарелок комбинированный термопресс машина термопечати на рубашках
18 944,15-21 486,99 ₽
Печати под давлением и температурой Автоматическое Одеяло HJD J9 этикетка футболка роликовая термо переводная печатная машина цены
- Категория: >>>
- Поставщик: Qingdao Henghengtai Printing Equipment Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1600136867275:
Описание и отзывы
Характеристики

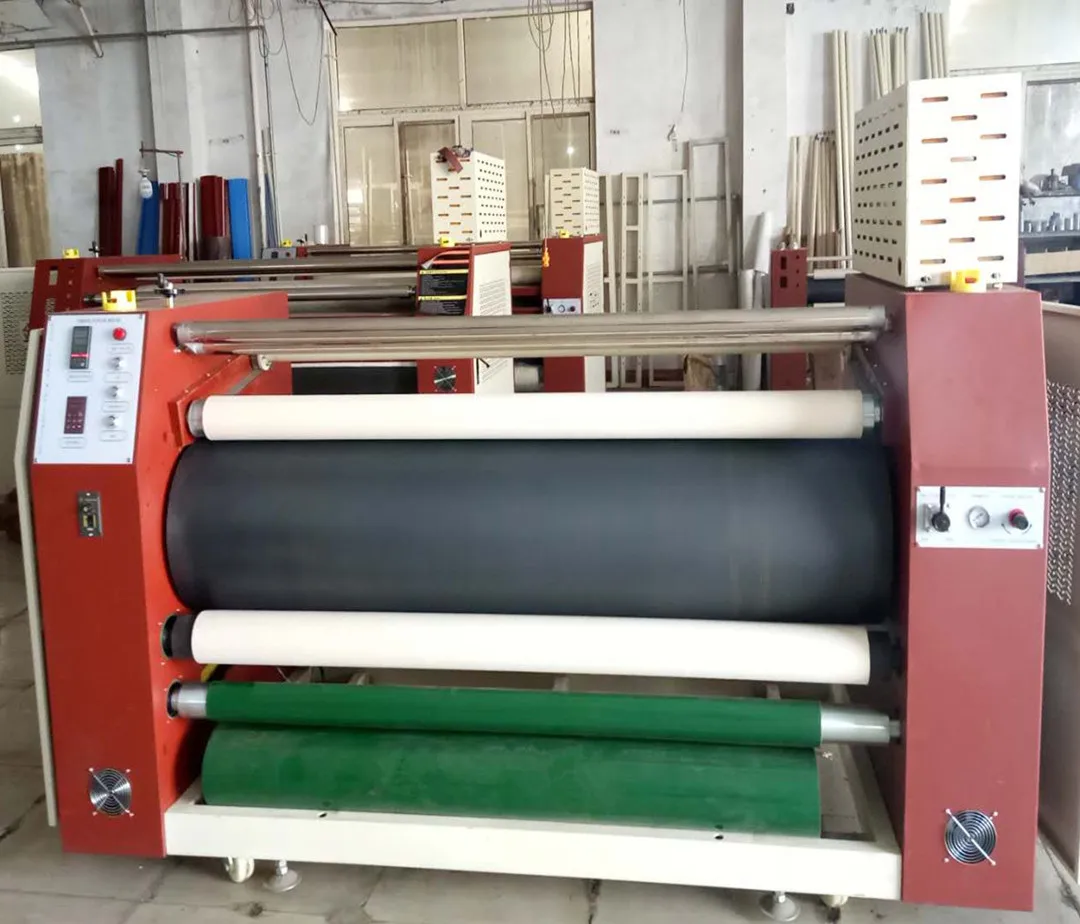

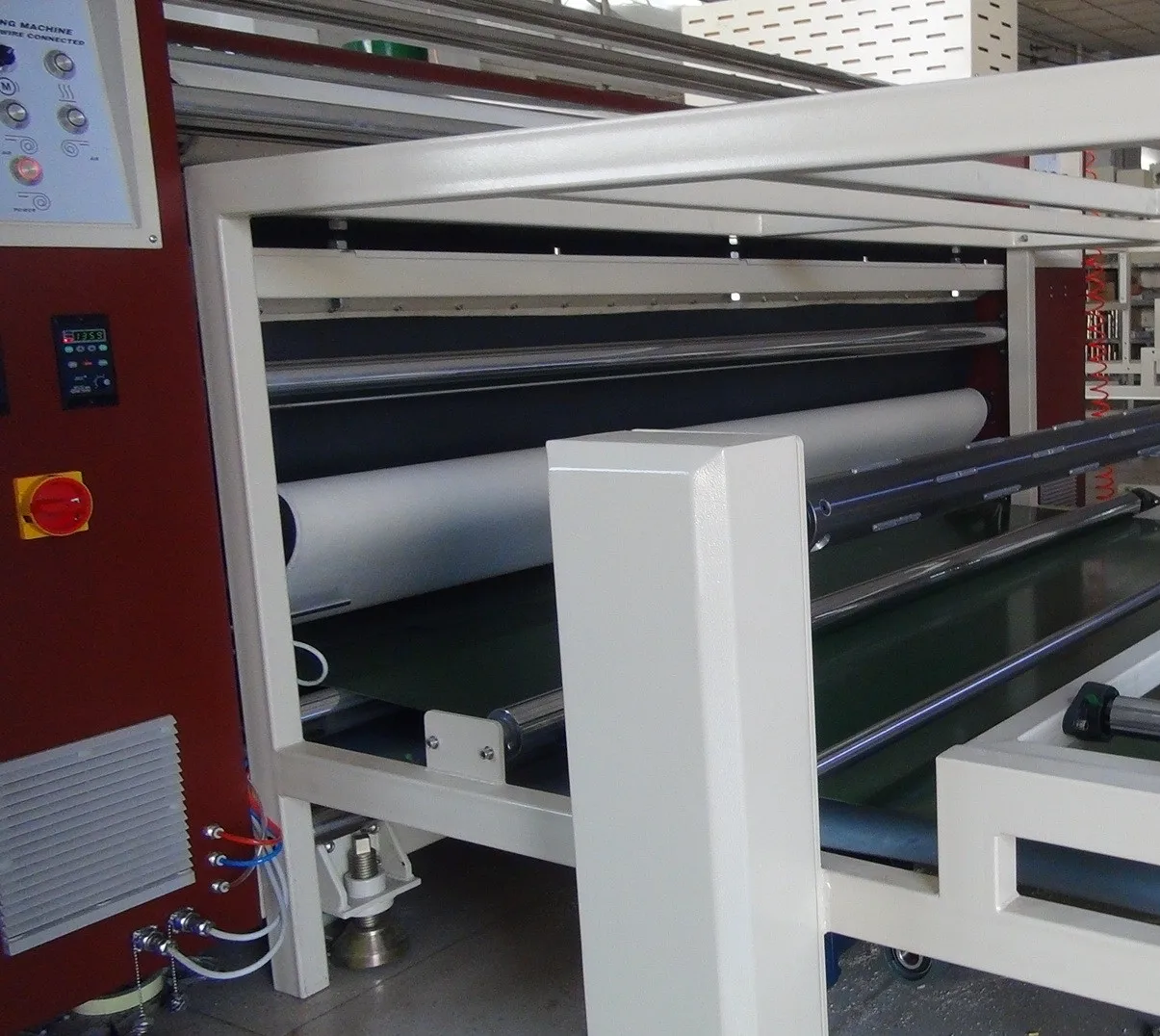

Sublimation Heat Press Roller Heat Transfer Printing Machine
Product Description
| Number | HJD-J901 | HJD-J902 | HJD-J903 | HJD-J904 |
| Power Configuration | Single-phase two-wire 220v/50HZ | Three-phase four-wire 380v/50HZ | ||
| Power | 7kw | 20kw | 43kw | 60kw |
| Heating | Oil-based heating pipe | |||
| Drum diameter | 200mm | 420mm | 600mm | 800mm |
| Blanket width | 1150mm | 1730mm | 1730mm | 1960mm |
| Working Table | 1000*1280mm | 1000*1280mm | 1000*1280mm | 1000*1280mm |
| Max working speed | 60-80m/h | 100-120m/h | 210-230mh | 300-400m/h |
| Packing size(mm) | 1800*750*1200 | 2640*1400*1470 | 2640*2540*2570 | 3100*1800*1800 |
| Net weight | 320kg | 1500kg | 2500kg | 3500kg |
Product Features
1. Lathing inner circle and circle contains grinding by precision grinding machine,unsure the thickness of roller consistent,difference of temperature is +/-1°C.Roller surface use Teflon treatment,anti-stick(to prevent the line stick to roller)
2. The stainless steel heat pipe,imported from Taiwan, is all soaked in conduction oil,heat faster and saves 15% energy.
3. Pneumatic compression device can regulate the pressure according to different materials,transfer speed is faster and color is more vivd.
4. Inflatable shaft ensures putting cloth and paper with no excursion,rolling tightly and many,labor saving and raising overall sufficiency.
5. Using synchronous rod and pressure balance bar make blanket breakaway,ensure pressure between blanket and make its life longer.
6. Independent fuel tank makes adding conduction oil convenient.Having the advantage of anti-explosion and high safety.Transfer speed is more stable.
7. Frequency converter can freely adjust the printing speed, the transfer speed is more stable.
8. Three puts:put cloth,put transfer paper, and put protective paper. Two rolls: roll used transfer paper,roll protective paper.It’s suitable for printing roller cloth,cutting pieces and garments.
Other Products
All items of our products and related tests as follow :
| HJD-A Automatic Screen Printing Machine | A1 Oval Automatic Screen Printing Machine |
| A2 Round Automatic Screen Printing Machine | |
| A3 Manual Suction Screen Printer | |
| A4 Plate Type Digital Textile Printer | |
| A5 Flat Automatic Screen Printing Machine | |
| HJD-B Screen printing table | B Screen printing table |
| HJD-C Dryer | C1 Far Infrared Automatic Moving Dryer (Common) |
| C2 Far Infrared Automatic Moving Dryer(High-Grade) | |
| C3 Quick Flash Dryer | |
| C4 High Temperature Oven | |
| HJD-D Beater | D1 Vertical Beater |
| D2 Ink Mixer | |
| D3 Manual Ink Mixer | |
| HJD-DP Digital Printer | DP01 Digital Conduction Belt Printer |
| DP02 Plate Type Digital Textile Printer | |
| DP03 Small Flatbed Digital Inkjet Printer | |
| DP04 Digital Textile Belt Printer | |
| DP05 High Grade Roll Heat Transfer Machine | |
| HJD-E Screen Stretching Machine | E1 Manual-layering Screen Stretching Machine |
| E2 Manual-clamp Screen Stretching Machine | |
| E3 Pneumatic Screen Stretching Head | |
| E4 Chain Wheel Screen Stretching Machine | |
| E5 Mechanical Screw-Type Stretching Machine | |
| E6 Large-size Automatic Stretching Machine | |
| E7 New Style Motor-driven Stretching Machine | |
| HJD-F Automatic Emulsion Coating Machine | F Automatic Emulsion Coating Machine |
| HJD-G Screen Frame Dryer | G1 Horizontal Screen Frame Dryer |
| G2 Oriented Plate Screen Frame Dryer | |
| HJD-H Exposure Machine | H1 Micro-computer Exposure Machine |
| H2 Common Exposure Machine | |
| HJD-I Screen Washing Tank | I Screen Washing Tank |
| HJD-J Heat Press Machine | J1 Manual High Pressure Heat Press Machine |
| J2 Pneumatic Mark Heat Press Machine | |
| J3 Double-positon Semi-automatic Heat Press Machine | |
| J4 Double-Position Heat Transfer Printing Machine (pneumatic) | |
| J5 Automatic Pneumatic Heat Transfer Machine | |
| J6 Garment Embossing Machine | |
| J7 Mechanical 4-position Heat Press Machine | |
| J8 Large Semi-Automatic Double Position Heat Transfer Machine | |
| J9 Multifunction Printing Machine | |
| J10 Hot Transfer Printing Machine | |
| J11 Fusing Press (Hot Stamper) | |
| HJD-K Tunnel Dryer | K1 High Grade Tunnel Dryer |
| K2 Common Tunnel Dryer | |
| K3 Digital Printing Dryer | |
| HJD-L Curing Machine | L Curing Machine |
| HJD-M Grinding Scraping Machine | M Grinding Scraping Machine |
| HJD-N Sewage Treatment Equipment | N Sewage Treatment Equipment |
| HJD-O Drying Rack | O Drying Rack |
| HJD-P Screen Frame | P Screen Frame |
| HJD-Q Personalized Manual Screen Printing Machine | Q1 4 Color Station Double Wheel |
| Q2 Fast Clip Manual Stretcher | |
| Q3 Exposure unit& Vacuum Exposure unit | |
| Q4 Small Flash Dryer | |
| Q5 Small Frame Drying Cabinet | |
| Q6 Small Tunnel Dryer |
Our Service
Warranty: The warranty time is one year. Quick-wear part is excluded. When warranty date expires, lifetime maintenance service is provided.
Payment item: We accept 30% T/T as depsoite and 70% T/T balance before shipment. T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
CE certificate: For every products we have CE certificate.
Installation: We send engineer installatoin for automatic oval machine, other model machines we send installation video and document for guide.
Shipment cost: All the price we quote is factory price,
