Cisc0 SX20 быстрой установкой CTS SX20N C 12X K9 видео конференц системы
- Категория: Conference System >>>
- Поставщик: Shenzhen Helpyou Information Technology Co. Ltd.
Сохранить в закладки 1600139967248:
Описание и отзывы
Характеристики
Product Description

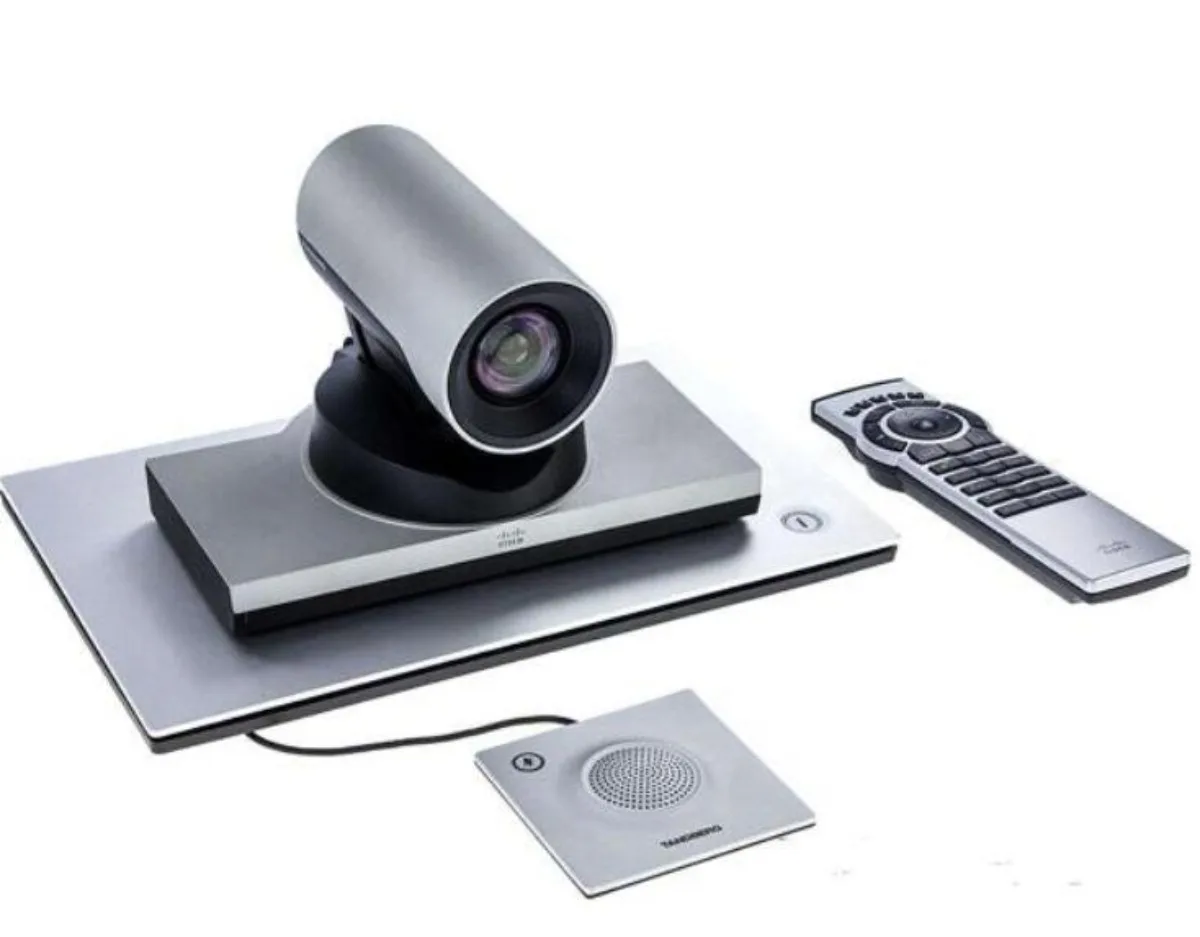

Cisc0 SX20 Quick Set CTS-SX20N-C-12X-K9 Video Conference System Audio System Conference
SX20 Quick Set combines a powerful codec, premium resolution of 1080p, two camera choices, and a dual-display feature in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact, feature-rich and affordable package.Now, the SX20 Quick Set supports cloud registration to Cisc0 Webex for even faster and more cost effective deployment[1]. Cisc0 SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.
The Cisc0 SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful video conferencing system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports optional embedded multipoint support with Cisc0® MultiSite technology, enabling users to add three additional participants to a video call.
SX20 Quick Set combines a powerful codec, premium resolution of 1080p, two camera choices, and a dual-display feature in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact, feature-rich and affordable package.Now, the SX20 Quick Set supports cloud registration to Cisc0 Webex for even faster and more cost effective deployment[1]. Cisc0 SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.
Views
Product Details
Product specifications | ||||||||
Software compatibility | ● Cisc0 TelePresence Software Version TC 5.1 or later ● Cisc0 Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control) | |||||||

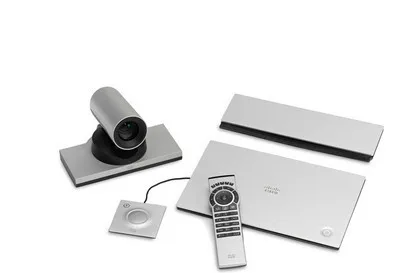

Product delivered with | ● SX20 Codec ● Cisc0 Precision Camera (choice of Precision 40 or 12X) Cisc0 Table Microphone 20 ● TRC6 remote control ● Cables and power supply | |||||||
Optional hardware components | ● Cisc0 Touch 10 control unit ● Wall mount kit ● Additional microphone ● Presentation cable (VGA or HDMI) ● Camera mount bracket for P40 or 12X ● Spare: TRC5 remote control to be used with TC 7.3 software can be acquired as spare | |||||||
Bandwidth | ● H.323 and SIP up to 6 Mbps | |||||||
Minimum bandwidth for resolution/frame rate | ● 720p30 from 768 kbps ● 720p60 from 1152 kbps ● 1080p30 from 1472 kbps ● 1080p60 from 2560 kbps | |||||||
Firewall Traversal | ● Cisc0 TelePresence Expressway Technology ● H.460.18, H.460.19 firewall traversal | |||||||
Video Standards | ● H.263, H.263+, H.264 | |||||||
Video Features | ● Native 16:9 widescreen ● Advanced screen layouts ● Local auto-layout | |||||||

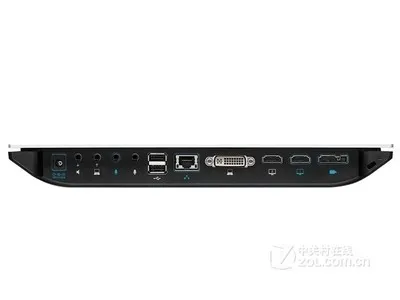

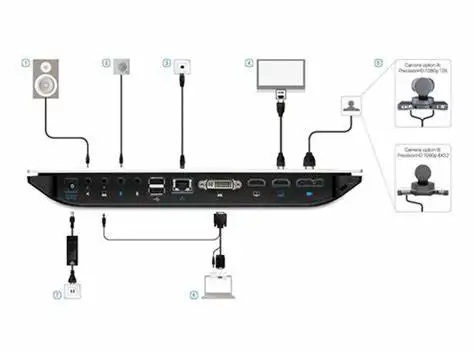

Video Inputs (Two Inputs) | One HDMI and One DVI-I (Analog and Digital); supports formats up to maximum 1920x1080 @ 60 fps (HD1080p60), including: ● 640x480 ● 720x480 ● 720x576 ● 800x600 ● 848x480 ● 1024x768 ● 1152x864 ● 1280x720 ● 1280x1024 ● 1280x768 ● 1280x800 ● 1280x960 ● 1360x768 ● 1366x768 ● 1400x1050 ● 1440x900 ● 1680x1050 ● 1920x1080 Extended Display Identification Data (EDID) | |||||||
Video Outputs (Two Outputs) | Two HDMI Outputs Supported Formats: ● 1920 x 1080@60 fps (1080p60) ● 1920 x 1080@50 fps (1080p50) ● 1280 x 720@60 fps (720p60) ● 1280 x 720@50 fps (720p50) ● 1366 x 768@60 fps (WXGA)[4] ● 1360 x 768@60 fps(WXGA)4 ● 1280 x 768@60 fps (WXGA)4 ● 1280 x 1024@60 fps4 ● 1024 x 768@60 fps4 VESA Monitor Power Management (DPM) CEC Power Management supported on HDMI output EDID Live Video Resolutions (Encode and Decode): ● 176 x 144@30, 60 fps (QCIF) (Decode only) ● 352 x 288@30, 60 fps (CIF) ● 512 x 288@30, 60 fps (w288p) ● 576 x 448@30, 60 fps (448p) ● 768 x 448@30, 60 fps (w448p) ● 704 x 576@30, 60 fps (4CIF) ● 1024 x 576@30, 60 fps (w576p) ● 640 x 480@30, 60 fps (VGA) ● 800 x 600@30, 60 fps (SVGA) ● 1024 x 768@30, 60 fps (XGA) ● 1280 x 768@30, 60 fps (WXGA) ● 1280 x 720@30, 60 fps (HD720p) ● 1920 x 1080@30, 60 fps (HD1080p) | |||||||
Audio Standards | ● G.711, G.722, G.722.1, G.728, G.729, AAC-LD and OPUS | |||||||
Audio Features | ● High quality 20 KHz stereo ● Two acoustic echo cancellers ● Automatic Gain Control (AGC) ● Integration with third-party audio systems ● Automatic noise reduction ● Active lip synchronization | |||||||
Audio Inputs (Four Inputs) | ● Two microphones, 4-pin minijack ● One minijack for line-in (stereo) ● One audio in from camera (HDMI) | |||||||
Audio Outputs (Two Outputs) | ● One minijack for line out (stereo) ● One HDMI, (digital main audio) | |||||||
Dual Stream | ● H.239 (H.323) dual stream ● BFCP (SIP) dual stream ● Support resolutions up to 1080p) at 30 frames per second | |||||||
Multipoint Support | ● Four-way embedded SIP/H.323 conferencing capability with MultiSite option ● Ad-hoc conferencing supported through: ◦ Unified Communications Manager Media Resource Group (requires a Cisc0TelePresence MCU) ◦ Cisc0 TelePresence Multiway [requires Cisc0 TelePresence Video Communication Server (Cisc0 VCS) and a Cisc0 TelePresence MCU] 4 ● Ability to natively join multipoint conferences hosted on Cisc0 Telepresence Multipoint Switch (CTMS)3 ● Switched conferencing (SVC)2 | |||||||
MultiSite Features (Embedded Multipoint) (Optional upgrade) | ● Adaptive SIP/H.323 MultiSite; resolution up to 720p30 ◦ 3-way resolution up to 720p30 ◦ 4-way resolution up to 576p30 ● Full individual audio and video transcoding ● Individual layouts in MultiSite continuous presence ● H.323/SIP/VoIP in the same conference ● Support for Presentation (H.239/BFCP) from any participant at resolutions up to 1080p15 ● Best Impression (automatic continuous presence layouts) ● H.264, encryption and dual stream from any site ● IP downspeeding ● Participants can be added by dialing in or host can dial out ● Conference rates up to 6 Mbps | |||||||
Protocols | ● H.323 ● SIP ● ISDN (requires Cisc0 ISDN Link) | |||||||
Embedded Encryption | ● H.323 and SIP point-to-point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange ● Supported in dual stream | |||||||
IP Network Features | ● DNS lookup for service configuration ● Differentiated services (quality of service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual Tone Multi-frequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Packet loss-based down speeding ● Uniform Resource Identifier (URI) dialing ● TCP/IP ● DHCP ● 802.1x network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and class of service [QoS]) ● ClearPath | |||||||
Cisc0 Unified Communications Manager (requires Cisc0 Unified Communications Manager Version 8.6 or later) | ● Native registration with Cisc0 Unified Communications Manager ● Basic Cisc0 Unified Communications Manager provisioning ● Software upgrade from Cisc0 Unified Communications Manager ● Cisc0 Discovery Protocol and DHCP option 150 support ● Basic telephony features such as hold/resume/transfer and Corporate Directory lookup | |||||||
Cisc0 Video Communication Server | ● Recommend latest software | |||||||
IPv6 Network Support | ● Single call stack support for both H323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both Static and Automatic IP configuration (stateless address auto configuration) | |||||||
Security Features | ● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection | |||||||
Certificate management | ● Certificate Authority Proxy Function (CAPF) support for additional security ● Manufacturer-Installed Certificates (MIC) ● Locally Significant Certificates (LSC) ● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported | |||||||
Network Interfaces | ● One LAN and Ethernet (RJ-45) 10/100/1000 Mbit | |||||||
Recommend Product
Clients Review
We got many reviews from partner
Contact us
Email
sales03@helpyouinfo.com
Skype
sales03@helpyouinfo.com
whatsApp/Phone Number
+86 18988759510
Our company
Helpyou Group Co.,Ltd
Helpyou Group.,lTD has been operating in China over a decade. We are one of the largest suppliers of Polycom, AXIS, DELL,Grandstream, Fortinet, Ruckus,Avaya and Aruba and so on, including networking equipments like router, switches, IP Phone,firewall,servers, video conferencing,wireless access point and CCTV camera etc.
We have en team and rich experience in trading all over the world,should you be interested in building business relationship with our company, please contact us by email,phone, skype and send us your inquiry.
Our Core value is “Service is life”. All we do is to help our partner to succeed.
Our teams&Customer Visit
Customer Visit: We have got many visitors from all over the world, they come from different countries such as USA, UK, Italy, India, UAE, Thailand, Pakistan, Lagos, Bahrain, Saudi Arabia and so on
Our Team:Young and Engeneratic with professional skills, which provide our partners great services
Our Inventory
Huge Stock,which allow us to arrange shipment in time
Payment Methods
Payment Method
1.T/T,Western Union, Alipay and Money Gram will be accept.Faster payment will help you to get the items earlier.
2.Remittance bank charges shall be borne by the remitter,and the collecting bank fees shall be borne by the beneficiary.
3.As the market changes and price fluctuation, please kindly pay the order within 3 days.
2.Remittance bank charges shall be borne by the remitter,and the collecting bank fees shall be borne by the beneficiary.
3.As the market changes and price fluctuation, please kindly pay the order within 3 days.
4.Trade Terms：Support FOB,CIF,EXW
5.30% deposit for preorder,100% prepay for inventory
Packing and Transportation
2.Packing: Original factory sealed packing, neutral carton packing for shipment
3.Shipping: By sea,air-cargo and by express delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Africa(15.00%),Mid East(15.00%),Southeast Asia(10.00%),Eastern
Europe(10.00%),South America(9.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic
Market(5.00%),North America(5.00%),Oceania(5.00%),South Asia(3.00%),Southern Europe(3.00%),Eastern Asia(2.00%). There are total
about 11-50 people in our office.
3.what can you buy from us?
ClSC0,Fortinet,Ruckus,Polycom,Dell
4. why should you buy from us not from other suppliers?
HELPYOU CO.,LTD has been operating in China for over a decade. We are one of the largest and complete suppliers of Networking
equipment,Such as CISC0 ,Polycom,Dell,Ruckus,Fortinet,Axis etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2010,sell to Africa(15.00%),Mid East(15.00%),Southeast Asia(10.00%),Eastern
Europe(10.00%),South America(9.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic
Market(5.00%),North America(5.00%),Oceania(5.00%),South Asia(3.00%),Southern Europe(3.00%),Eastern Asia(2.00%). There are total
about 11-50 people in our office.
3.what can you buy from us?
ClSC0,Fortinet,Ruckus,Polycom,Dell
4. why should you buy from us not from other suppliers?
HELPYOU CO.,LTD has been operating in China for over a decade. We are one of the largest and complete suppliers of Networking
equipment,Such as CISC0 ,Polycom,Dell,Ruckus,Fortinet,Axis etc
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары

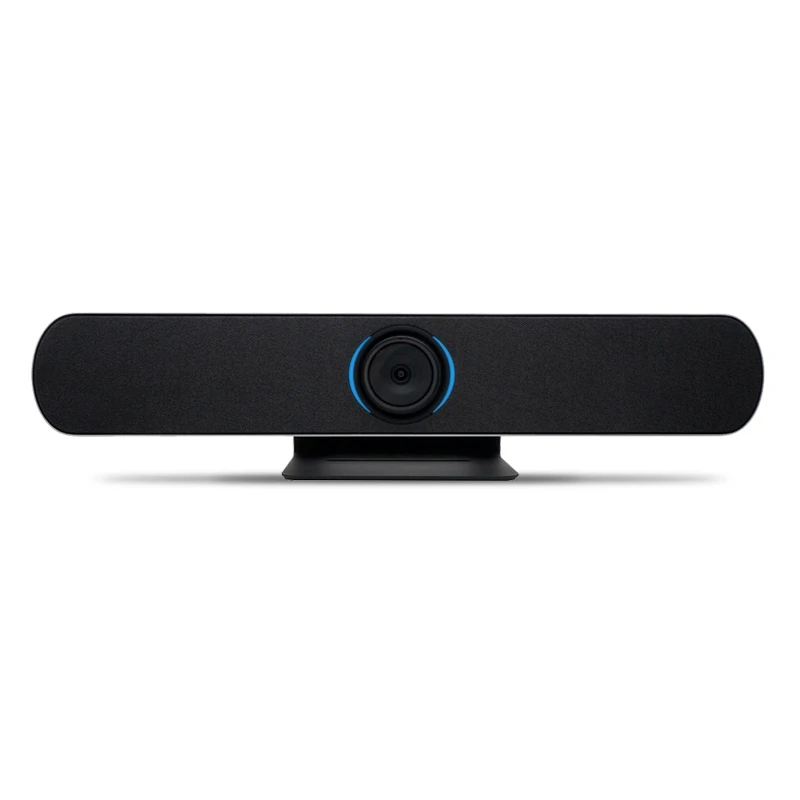

YSX-EA5 современный Конференц-веб-камеры 4K HD PTZ 5X зум все в одном Автоматическое отслеживание камера видео vonferencing
619,00 $ - 739,00 $
OEM ODM IP Ptz джойстик конференц-системы контроллер клавиатуры для камеры видеоконференции

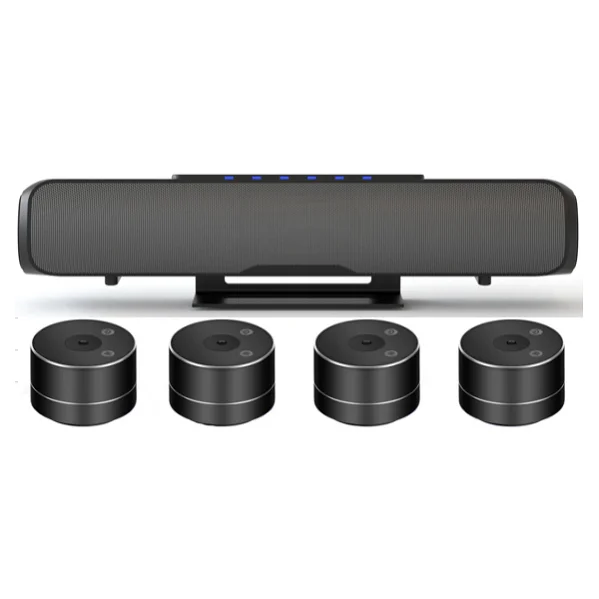

Беспроводная аудиосистема Mics с
739,00 $ - 799,00 $

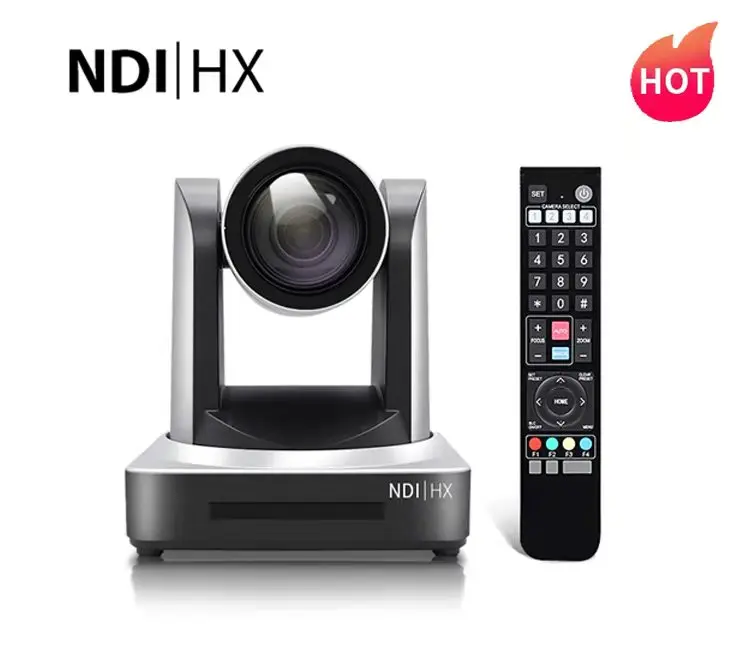

Y20B лучшая низкая подсветка 12x 20x NDI ptz потоковая профессиональная 1080P hd SDI HDM I живая видеоконференций камера для
450,00 $ - 500,00 $

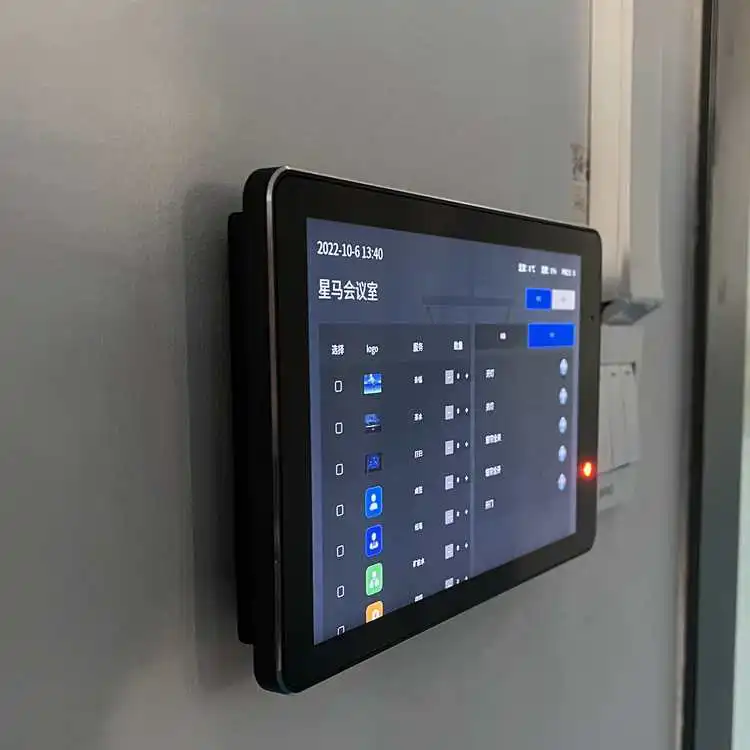

Sinmar оптовая продажа настенный сенсорный экран для конференц-зала ПК на базе
199,00 $ - 399,00 $

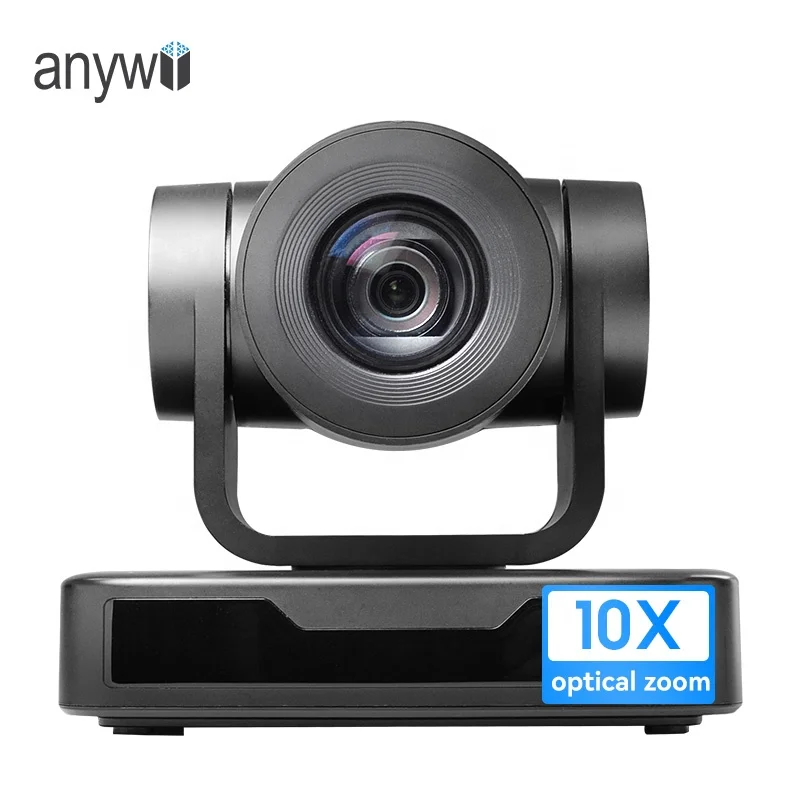

Система видеоконференций Anywii с 10-кратным увеличением, ptz-камера для цифровой интерактивной белой доски, умная электрическая доска
