Product Overview
Automatic Sugar Cane Fruit Juice Beverage Concentrate Production Making Processing Machine
In A vast global market for sugarcane derivatives keeps the industry booming. Sugar is prevalent in the modern diet and increasingly a source of biofuels and bio-plastics. As prices of petroleum rise, there is a growing market for ethanol from sugarcane. Managing social and environmental risks is important for sugarcane growers, processors and food companies due to regulatory pressures as well as shareholder and consumer expectations for sustainably produced goods.
We design, manufacture and supply complete Sugarcane Production Processing Machine including:
– Receiving, Washing and Sorting System
– Pressure Roller Extraction System
– Enzymolysis and Ultrafiltration System
– Falling Film Evaporator System
– Sterilization and Aseptic Filling System
We design, manufacture and supply complete Sugarcane Production Processing Machine including:
– Receiving, Washing and Sorting System
– Pressure Roller Extraction System
– Enzymolysis and Ultrafiltration System
– Falling Film Evaporator System
– Sterilization and Aseptic Filling System
Main Features of Sugar Cane Processing Machine:
1. Customization: 20 Tons/D - 100 Tons/D available.
2. Low temperature evaporation resulting improved quality of products.
3. Energy-saving design, low energy consumption, environmental protection.
4. All accessories from world famous brand, high stability and low failure rate.
2. Low temperature evaporation resulting improved quality of products.
3. Energy-saving design, low energy consumption, environmental protection.
4. All accessories from world famous brand, high stability and low failure rate.
Production Process

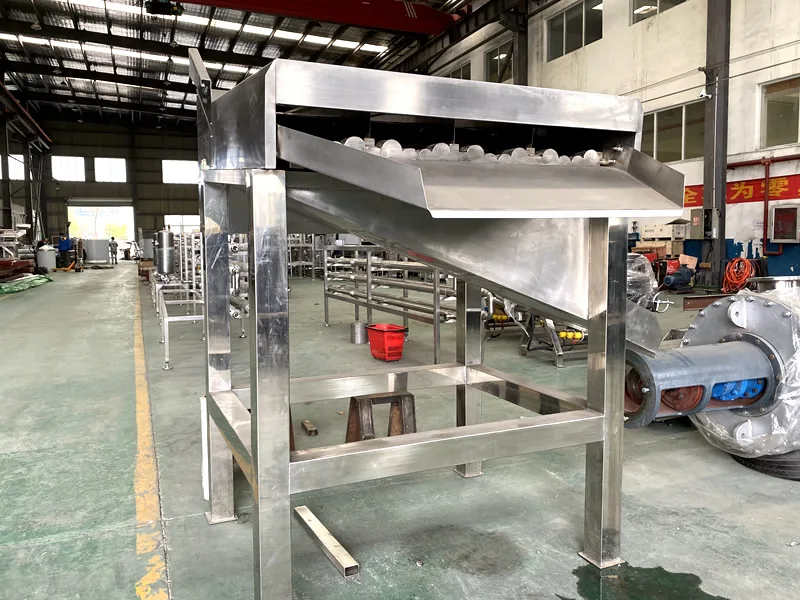

Washing and Sorting
1. The brush washer is designed and produced according to tubers processing machinery technology. The surface of Sugarcane are cleaned by rolling brushed and spraying water,meanwhile the Sugarcane are transported forwards by rotation of brushes slowly.
2. The machine is equipped with waste conveying system, sending the waste directly to the right place.
2. The machine is equipped with waste conveying system, sending the waste directly to the right place.

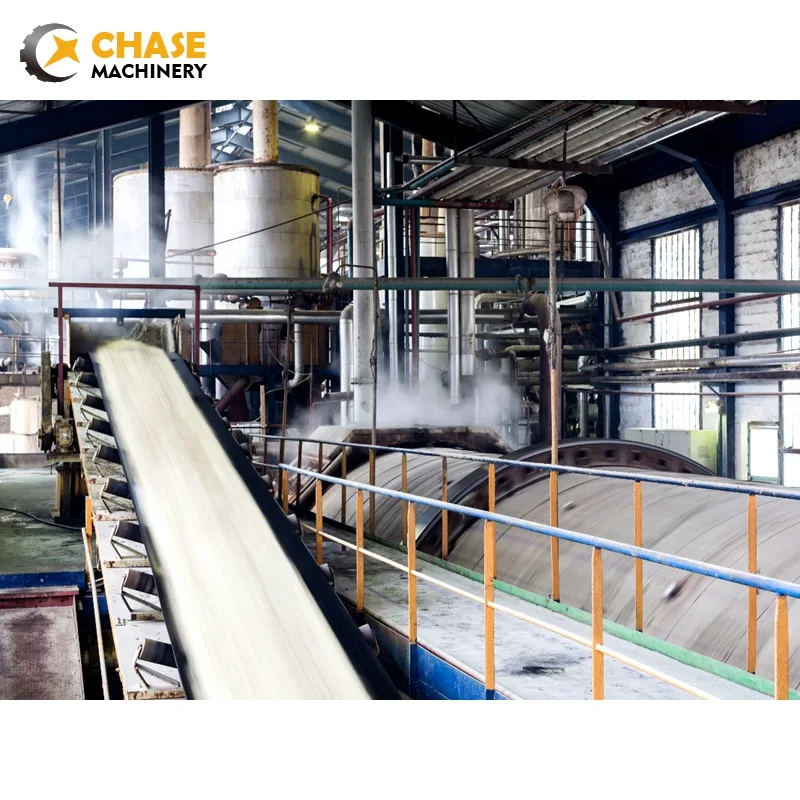

Sugar Cane Processing Plant
Extracting Juice for Sugar Cane
Pressure Roller Extraction
1. The sugarcane is received at the mill and prepared for extraction of the juice. At the mill, the cane is mechanically unloaded, placed in a large pile, and, prior to milling, the cane is cleaned. The milling process occurs in two steps: breaking the hard structure of the cane and grinding the cane. Breaking the cane uses revolving knives, shredders, crushers, or a combination of these processes.
2. For the grinding, or milling, of the crushed cane, multiple sets of three-roller mills are most commonly used although some mills consist of four, five, or six rollers in multiple sets. Conveyors transport the crushed cane from one mill to the next. Imbibition is the process in which water or juice is applied to the crushed cane to enhance the extraction of the juice at the next mill.
3. In imbibition, water or juice from other processing areas is introduced into the lastmill and transferred from mill to mill
towards the first two mills while the crushed cane travels from the first to the last mill. The crushed cane exiting the last mill is called bagasse.
towards the first two mills while the crushed cane travels from the first to the last mill. The crushed cane exiting the last mill is called bagasse.
Sugar Cane Processing Plant
Sugar Cane Processing Factory
Enzymolysis and Ultrafiltration
1. For high quality clarified sugarcane juice, depending upon application, clarification can be performed by an enzymatic treatment group followed either by Vacuum Filter or by Ultrafiltration. Both system are designed to reach a very low degree of turbidity, preserving the organoleptic properties (colour, taste, aroma, etc.) of fresh sugarcane.
2. The juice from the mills is strained to remove large particles and then clarified. In raw sugar production, clarification is done almost exclusively with heat and lime; small quantities of soluble phosphate also may be added. The lime is added to neutralize the organic acids. A heavy precipitate forms which is separated from the juice in the clarifier. The insoluble particulate mass, called “mud”, is separated from the limed juice by gravity or centrifuge. Clarified juice goes to the evaporators without additional treatment. The mud is filtered and the filtercake is washed with water.
2. The juice from the mills is strained to remove large particles and then clarified. In raw sugar production, clarification is done almost exclusively with heat and lime; small quantities of soluble phosphate also may be added. The lime is added to neutralize the organic acids. A heavy precipitate forms which is separated from the juice in the clarifier. The insoluble particulate mass, called “mud”, is separated from the limed juice by gravity or centrifuge. Clarified juice goes to the evaporators without additional treatment. The mud is filtered and the filtercake is washed with water.
Sugarcane Juice Enzymolysis System
Sugar Cane Falling Film Evaporator
Falling Film Evaporator
1. Evaporation is performed in two stages: initially in an evaporator station to concentrate the juice and then in vacuum pans to crystallize the sugar. The clarified juice is passed through heat exchangers to preheat the juice and then to the evaporator stations. Evaporator stations consist of a series of evaporators, termed multiple-effect evaporators; typically a series of five evaporators. Steam from large boilers is used to heat the first evaporator, and the steam from the water evaporated in the first evaporator is used to heat the second evaporator.
2. This heat transfer process continues through the five evaporators and as the temperature decreases (due to heat loss) from evaporator to evaporator, the pressure inside each evaporator also decreases which allows the juice to boil at the lower temperatures in the subsequent evaporator.
2. This heat transfer process continues through the five evaporators and as the temperature decreases (due to heat loss) from evaporator to evaporator, the pressure inside each evaporator also decreases which allows the juice to boil at the lower temperatures in the subsequent evaporator.
3. Some steam is released from the first three evaporators, and this steam is used in various process heaters in the plant. The evaporator station in cane sugar manufacture typically produces a syrup with about 65 percent solids and 35 percent water. Following evaporation, the syrup is clarified by adding lime, phosphoric acid, and a polymer flocculent, aerated, and filtered in the clarifier. From the clarifier, the syrup goes to the vacuum pans for crystallization.
Tubular UHT Sterilizer
Sugar Cane Production Line
Sterilizing and Aseptic Filling
1. The Sugarcane puree concentrated, can be sterilized or pasteurized depending by the specific request of the application, by a tubular heat exchanger.
2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).
2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).
Automatic Sugar Cane Fruit Juice Beverage Concentrate Production Making Processing Machine | ||||||||||||||||
Processing Capacity (Fresh Fruit) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
Water Consumption (t/h) | 7 | 13 | 22 | 44 | 66 | 88 | 110 | 132 | ||||||||
Power (kw) | 84 | 152 | 412 | 636 | 955 | 1292 | 1411 | 1558 | ||||||||
Steam Consumption (t/h) | 1.7 | 3.9 | 5.2 | 9.1 | 15.1 | 20.2 | 24.6 | 29.2 | ||||||||
Compressed Air Consumption (t/h) | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | ||||||||
Cooling Water Consumption (t/h) | 125 | 317 | 407 | 585 | 825 | 1075 | 1410 | 1630 | ||||||||
Our machine parts suppliers are all world famous brands.
JUMO (Japan) SIEMENS(Germany) OMRON(Japan) FESTO(Germany) KROHNE(Germany)
ABB(Switzerland) NSK(Japan) NETZSCH(Germany) DANFOSS(Denmark) SEW(Germany)
GRUNDFOS(Denmark) SPIRAX SARCO(UK) Endress+Hauser(Germany) SCHNEIDER(France)
Company Profile
Shanghai Chase Industrial Co., Ltd.
We own more than 60 employees with rich industrial experience and advanced mechanical equipment, a number of CE certifications and invention patents. We have plentiful production experience and complete service guarantee in equipment
manufacturing and after-sale service of tomato paste processing plant, fruit and vegetable processing production machine, fruit juice and dried fruit production lines.
manufacturing and after-sale service of tomato paste processing plant, fruit and vegetable processing production machine, fruit juice and dried fruit production lines.
Chase Production Workshop
Our workshop covers an area of 8000 square meters, with full production space and equipment which meet the requirements of
production flows. We have experienced mechanical engineers, electrical engineers and technicians. We design and produce all the important equipment and write PLC control programs by our own staff to ensure perfect after-sales maintenance. All the equipment is strictly inspected and tested in factory before delivery, to ensure smooth operation in customer's site.
production flows. We have experienced mechanical engineers, electrical engineers and technicians. We design and produce all the important equipment and write PLC control programs by our own staff to ensure perfect after-sales maintenance. All the equipment is strictly inspected and tested in factory before delivery, to ensure smooth operation in customer's site.
Certifications
CE-NFC Juice Production Line
CE-Fruit Concentrate Processing Line
CE-Mixing and Blending Line
ISO9001
Patent Certificate
Patent Certificate-Peeling Machine
SGS Certificate
Import and Export Certificate
BV Certificate
Successful Project
Vietnamese Customers Visiting
Algeria Customers
German Customers Visiting
Tomato Paste Processing Plant in Nigeria 2015
Mango Juice Production Line in Rwanda 2018
Dried Fruit Processing Plant in Indonesia 2019
Beverage Juice Production Line in France 2019
Transport and Installation
Standard exporting packing for Paste Processing Plant.
The machines will be wrapped with plastic film and then put in wooden cases.
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Similar Machinery
Beverage Filling Plant
Milk UHT Machine
Pear Juice Production Line
FAQ
Automatic Sugar Cane Fruit Juice Beverage Concentrate Production Making Processing Machine
1. Any guarantee of the machines?
- Yes, one year free maintenance and life time paid service.
2. Can the machines be specially designed for customers?
- Yes. The color, mark, shape and so on can all be specially designed if customer required.
3. Package?
- The machines will be wrapped with plastic film and then put in wooden cases.
4. Shipping port?
- Shanghai. (Other ports available if required)
5. Transportation
- Normally via ocean. Air available if required by customer.
- Yes, one year free maintenance and life time paid service.
2. Can the machines be specially designed for customers?
- Yes. The color, mark, shape and so on can all be specially designed if customer required.
3. Package?
- The machines will be wrapped with plastic film and then put in wooden cases.
4. Shipping port?
- Shanghai. (Other ports available if required)
5. Transportation
- Normally via ocean. Air available if required by customer.
Похожие товары

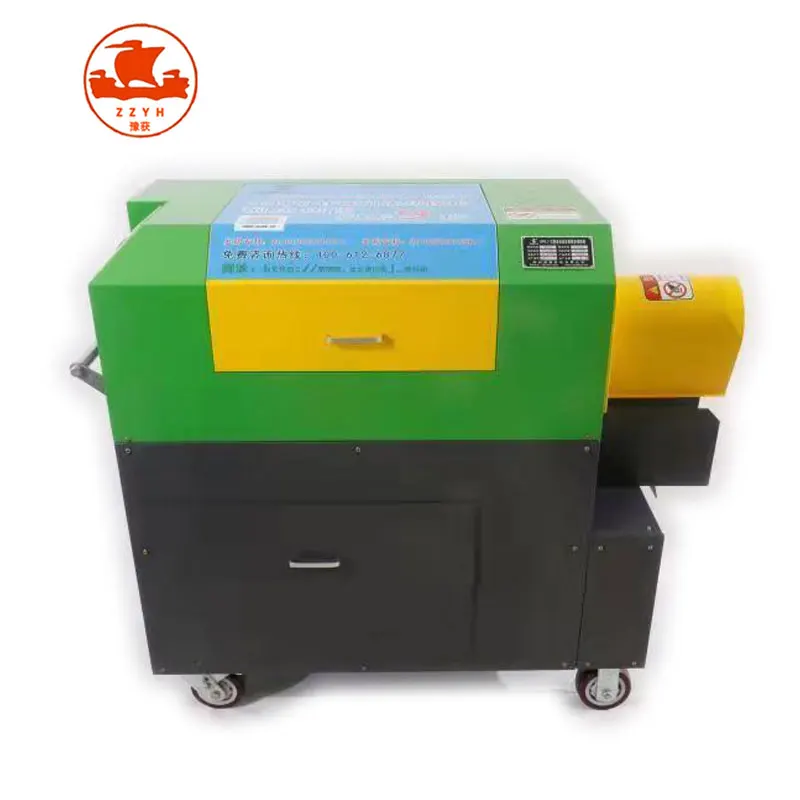

Очиститель сахарного тростника из нержавеющей стали лучшего качества/обработка сахарного тростника/машина для очистки
1 500,00 $
Здоровая закуска, домашняя еда для завтрака оптом, органическое печенье
3,01 $
MSYO Новый Браслет двенадцать знаков зодиака модные светящиеся браслеты для женщин тканые кожаные браслеты со звездами

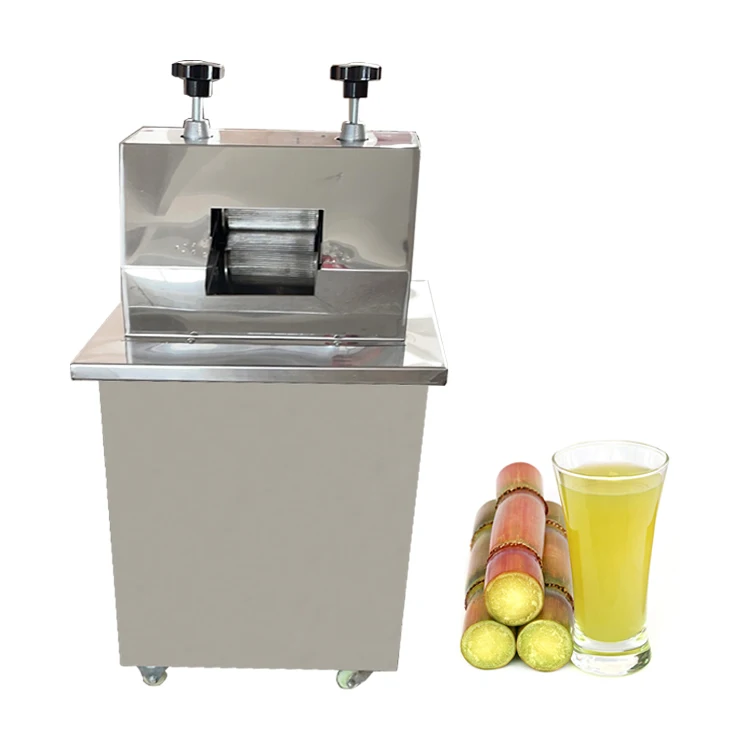

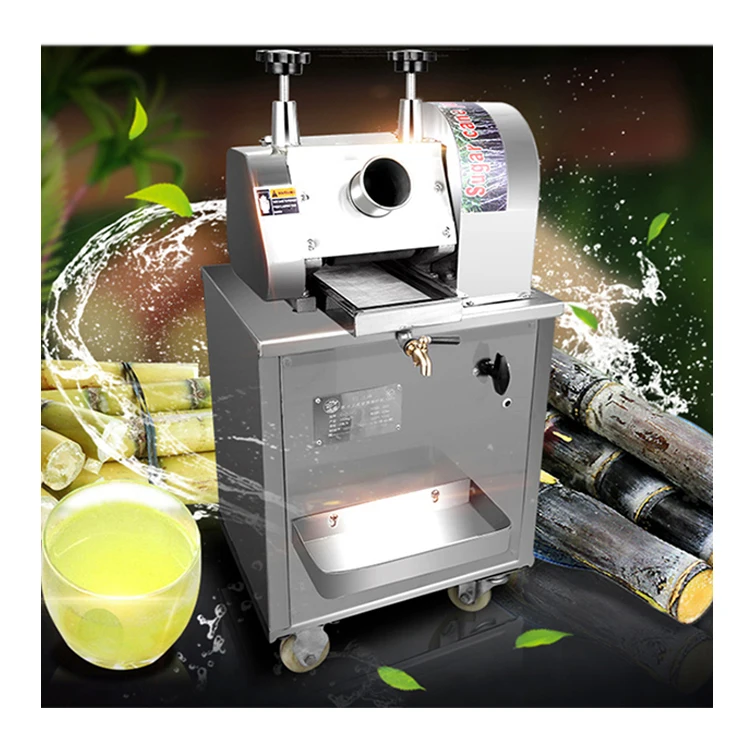

Прямое устройство для сока из сахарного тростника соковыжималка для сахарного тростника соковыжималка машина для обработки сока
218,00 $ - 230,00 $
Stainless Steel Automatic Orange Juicer Machine Juice Filter Press Juice Making Machine
19 800,00 $

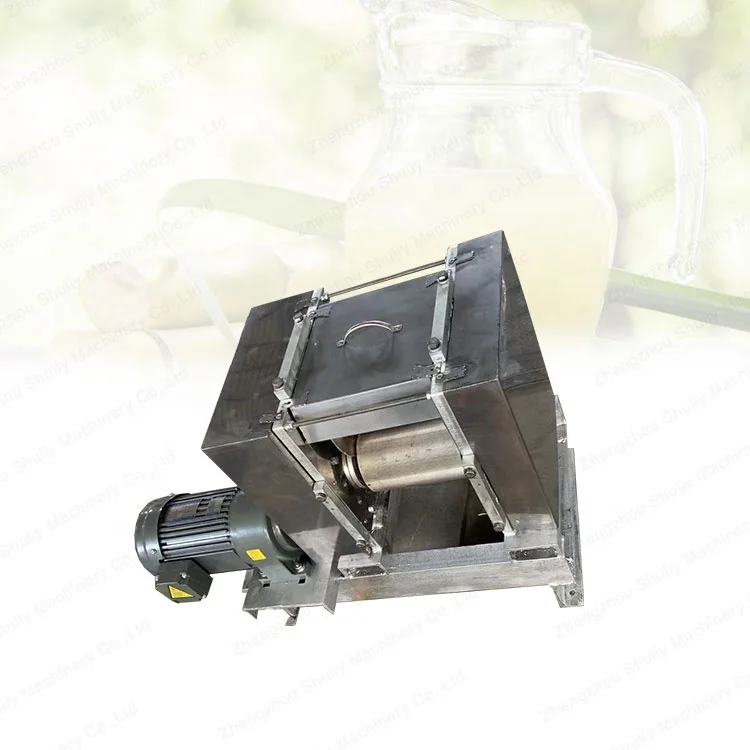

Машина Tebu, пресс для сахарного тростника, промышленные соковыжималки для сахарного тростника, обработка сахарного тростника
