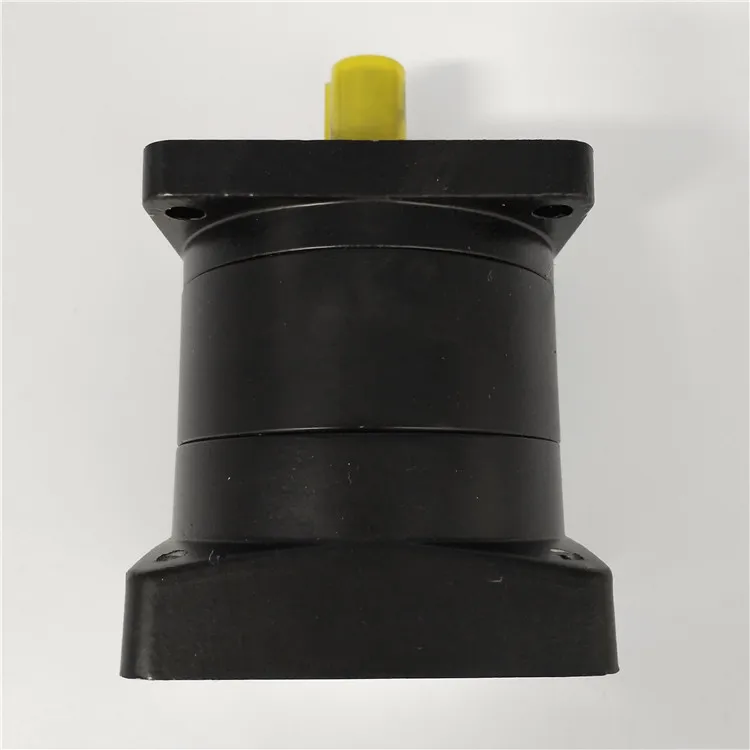

Nema23/34/42/52 Planetary Gearbox Gear Head for Stepper Motor Speed Reducer CNC


Package Included :



1 x planetary gearbox

1set screws

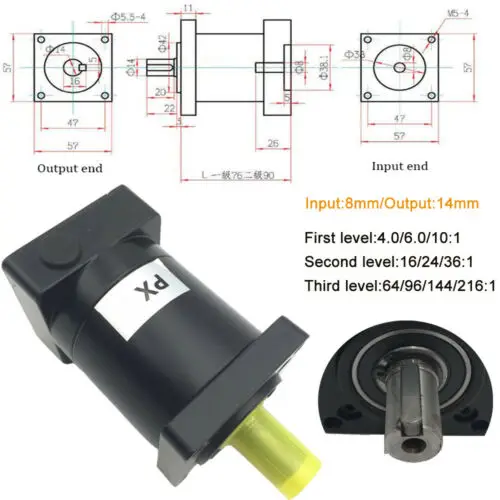

1, Nema23 Planetary Gearbox Specifications & Drawing :


























































































StageStage IStage IIStage III
Reduction ratio4/6/1016/24/3664/96/144/216
Body length(mm)7690104
Specified load(N.m)153040
Max load(N.m)254050
Effectiveness(%)959085
Backlash (Arcmin)Less than15Less than30Less than50
Rated input speed(rpm)Max.3000Max.3000Max.3000
Protection grade(IP)656565
Weight(KG)0.91.11.4
Noise(DB)£60£60£60
Life(H)200002000020000
Lubrication waygreasegreasegrease
Installationflangeflangeflange

57mm reducer size.jpg





2, Nema34 Planetary Gearbox Specifications & Drawing :

































































































StageStage IStage IIStage III
Reduction ratio3/4/610/16/24/30/3652.8/64/96/144/216
Input shaft14mm
Output shaft16mm
Body length(mm)7993107
Specified load(N.m)305060
Max load(N.m)5080100
Effectiveness(%)959085
Backlash (Arcmin)Less than 18Less than25Less than35
Rated input speed(rpm)300030003000
Protection grade(IP)656565
Weight(KG)1.82.43
Noise(DB)Less than 60Less than60Less than60
Life(H)≈20000≈20000≈20000
Lubrication waygreasegreasegrease
Installationflangeflangeflange

86mm reducer size.jpg

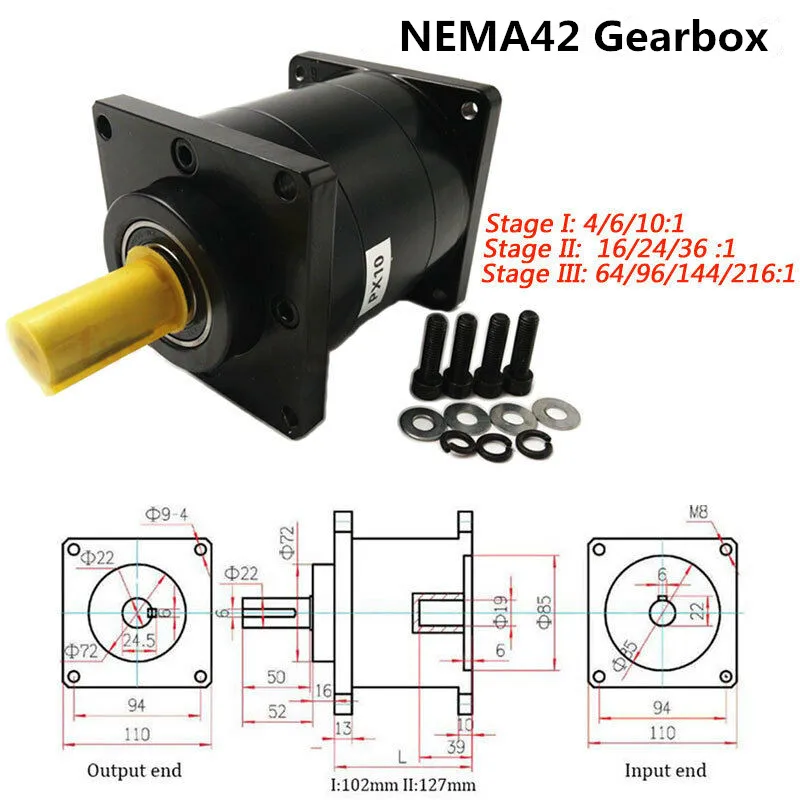

3, Nema42 Planetary Gearbox Specifications & Drawing :





110mm reducer.jpg


4, Nema52 Planetary Gearbox Specifications & Drawing :


Speed ratio: 3/4/6/10/16/24/36/64/96/144/216


Input bore: 19mm


Output shaft: 28mm with 8mm keyway


Input speed: Max. 3000rpm


Max Load: 150Nm~240Nm


Body length(mm): 121mm/153mm/185mm


Protection Grade: IP65


Noise(DB): less than 60


Lubrication way: Grease


Mounting: Flange mounting





130mm reducer.jpg
