Wireless Vp44 Clamp Sensor Variable Window Type Current Transformer

Описание и отзывы

Характеристики

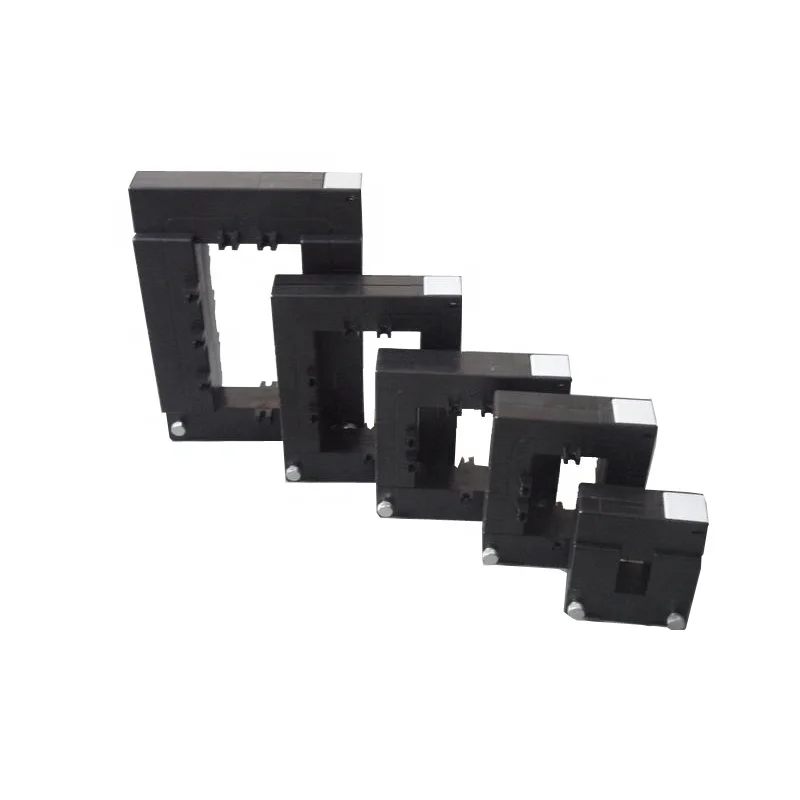

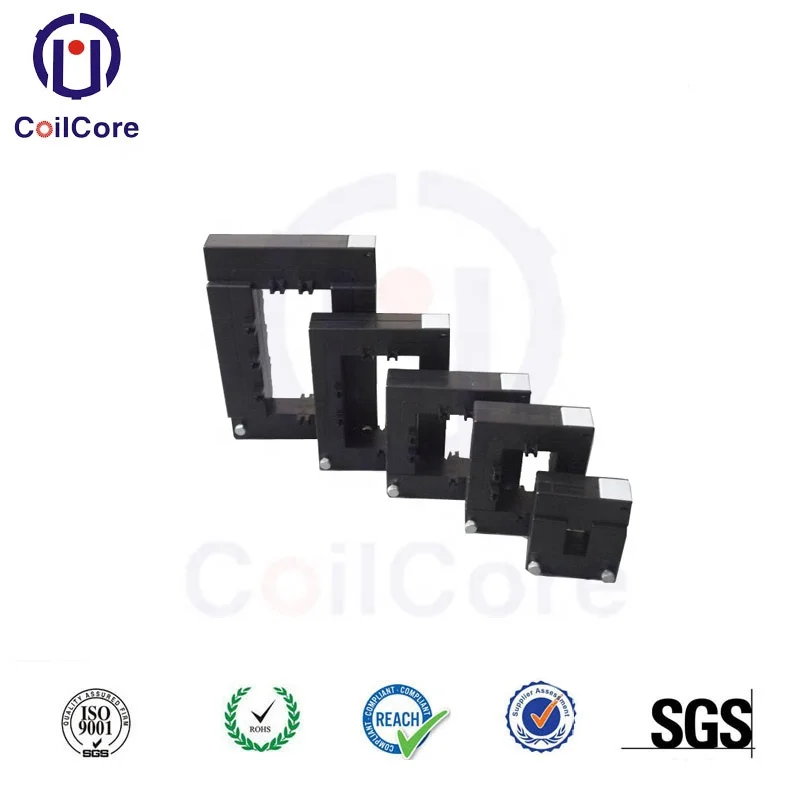

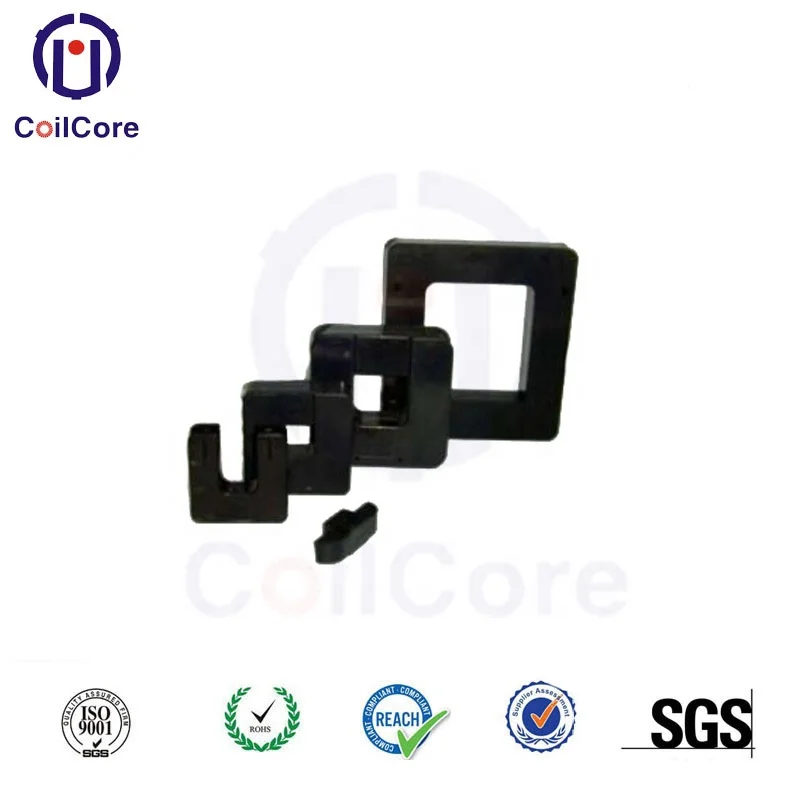

Split-core current transformers are designed to meet the growing demand of installation into existing networks. Our Split Core (open-able) CTs can be a savings overall in the labor cost savings.Simply clip these around the wires being read. Secure them in place with a zip tie, without disconnecting cables or busbar circuits.

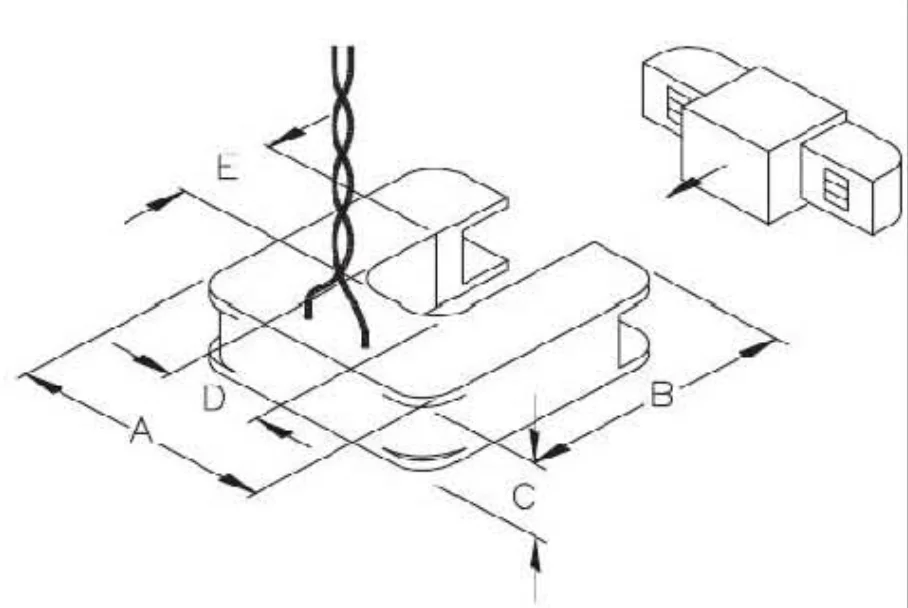

Item No.	Rated Current (Input/Output)	Dimensions(mm)
		A	B	C	D	E
ASCT-751A	0-150A / 0.333V or 0-25mA	50.8	53.3	17	19.1	19.1
	(5,10,15,30,50,80,150)A
ASCT-751B	0-400A / 0.333V or 0-5A	59.6	62.7	21	19.1	19.1
	(30,50,80,100,250,300,400)A
ASCT-751C	0-400A / 0.333V or 0-25mA	82.5	85.1	27	31.8	31.8
	(30,50,80,100,250,400,630)A
ASCT-751D	0-1500A / 0.333V or 0-25mA	121	127	30	50.8	50.8
	(100,400,630,1000,1500) A
ASCT-751E	0-3000A / 0.333V or 0-5A	118	133	24	68	80
	(400,1000,1500,2000,3000)A
Note: OEM available.

Wire Gauge: It is much better to oversize your CT than to undersize it. Please measure your wire diameter in millimeters, rather than use the MCM wire size because the insulation thickness varies materially from one wire manufacturer to the next.

Selected with accuracy and ease of installation in mind. Coilcore's Splite-core CTs can be set internally to be used with 400 amp CTs:

· Use 1 CT for 120 volt single phase, or 230 volt 2-wire systems

· Use 2 CTs for 120/240 volt single phase systems

· Use 2 CTs for 3-phase 3-wire systems (no neutral)

· Use 3 CTs for 3-phase 4-wire systems



Accuracy Class: 0.1 --- 99.9% accurate, this is a revenue grade precision component.



We can design & produce goods based on specifications & drawing, specification needed including:

1. Bare core size, Size finished, special Min. Hole size.

2. Split CT Turns ratio, accuracy



Main Application:

Our Split-core current transformer can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. Which is widely used for:

· Current Measurement

· Electrical loading monitoring

· Energy and sub-metering products

· Network equipment

· Instruments and sensors

· Control System

· Go GREEN initiatives



Fexible Design:

1. We manufacture form Split Core, to Split - core current Transformers.

 2. To meet different application,Coilcore supply various Split-Core CTs:
