Product Description

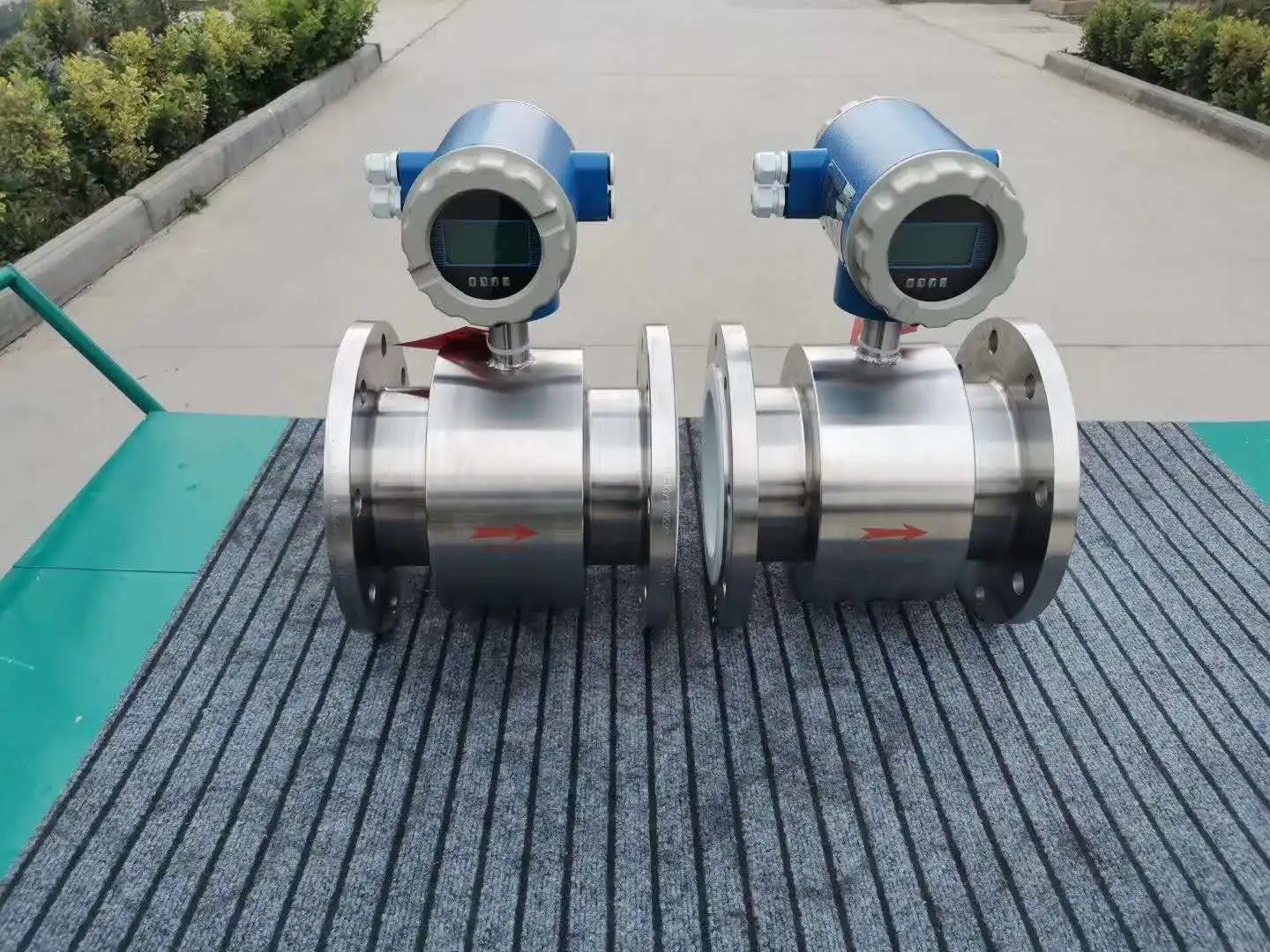

kaifeng clamp electromagnetic water flow meter
Electromagnetic flowmeter is used to measure the volumetric flow of conductive liquid and slurry in closed pipelines. It is suitable for chemical, electric power, metallurgy, petroleum, water supply and drainage, papermaking, medicine, food and other departments.
LCD Display
Excellent conversion accuracy
Advanced AOL circuit repair
Combined with AOL optical inspection technology, the quality of the circuit board such as soldering and soldering of the printed circuit board is improved, and the product quality stability and reliability are comprehensively improved.
Qualified aging process
In accordance with international standards, the history of 48 hours of high and low temperature cycle aging, strict elimination of defective products to ensure product quality is stable and reliable, product failure is far less than five thousandths, far exceeding the peer product repair rate.
Feathers
1.High precision measurement
2.Small pressure loss
3.Wide coverage to meet the requirements of various conductive fluids
4.Stable performance and low power consumption
5.Fast calculation speed, strong anti-interference ability, reliable measurement and high precision
6.High definition backlit LCD display7.Communication signal output
8.Conductivity measurement function
9.SMD device and surface mount (SMT) technology
Flow diagram
Case
Drawing
Parameters
Main technology parameter | |||||||
Diameter | DN6-DN2000mm | ||||||
Accuracy | ±0.2%/±0.5% | ||||||
Measuring rage | 0.3-10m/s | ||||||
Ambient temperature | -10℃ to +60℃ | ||||||
Medium temperature | -40℃ to +180℃ | ||||||
Nominal pressure | 0.6Mpa,1.0Mpa,1.6Mpa,4.0Mpa(customized for high | ||||||
Power supply | 85v-245VAC,24VDC,Battery | ||||||
Electrodes material | SUS316L,HB,HC,Titanium,Tantalum,Stainless steel coated with tungsten carbide and other special material | ||||||
Linning material | PTFE, Hard Rubber,Neoprene,Polyurethane,F46 | ||||||
Working pressure | 16bar, ANSI , DIN,JIS (OEM) | ||||||
Protection grade | IP65,IP67,IP68 | ||||||
Maximum flow rate | 15m/s | ||||||
Packing & Delivery
※ Packing Details : The goods packed by plastic film,put into carton box with foam,then all the carto ns put into a big wooden box.
Professional packaging staff for the package.
※ Shipment Details : Support nominated freight forwarder,or we help to choose a suitable one.
(Use FEDEX;Ups;DHL;TNT;EMS;etc.)
For large quantity,recommend to transport by air/rail/sea.
※ Delivery Details: Small quantity:3-5 working days.
Application
About Us
Henan Junyuan Automation is a high-tech enterprise specializing in the research, development and production of flow meters such as electromagnetic flowmeters and vortex flowmeters.
The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking ,medicine, light industry, environmental protection and other industries.
Our philosophy: the pursuit of excellence, professionalism.
Our aim: to survive by quality, to win the word of mouth by service.
The company has advanced production technology and perfect after-sales service system. The main products are: electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter, throttling device, rotameter, complete set of automatic instrumentation, widely used in metallurgy, water supply and drainage, electric power, mining, petroleum, chemical, papermaking ,medicine, light industry, environmental protection and other industries.
Our philosophy: the pursuit of excellence, professionalism.
Our aim: to survive by quality, to win the word of mouth by service.
Certifications
RQF
1.Q:How to intallation flowmeter ?
A:We can provide manual of flowmeter ,kindly contacts us freely.
2.Q:How can I choose this flow diameter?
A:Yes.that's according to your pipe diameter and flow range.
3.Q:Could i get samples?
A:Yes,We have materials in stock to help you to get the samples as sooon as we can.
4.Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
5.Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
6.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
A:We can provide manual of flowmeter ,kindly contacts us freely.
2.Q:How can I choose this flow diameter?
A:Yes.that's according to your pipe diameter and flow range.
3.Q:Could i get samples?
A:Yes,We have materials in stock to help you to get the samples as sooon as we can.
4.Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
5.Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
6.Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
