N2XH N2XH J N2XH O 0 6/1Kv не содержащий галогенов и огнестойкий кабель питания 4X240mm2 RM

Сохранить в закладки 1600144477617:


Цена:0,10 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

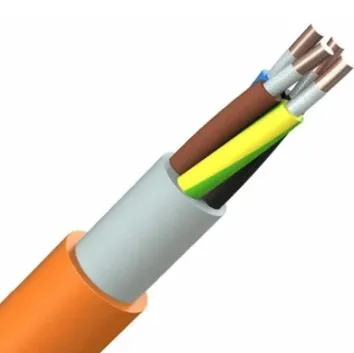

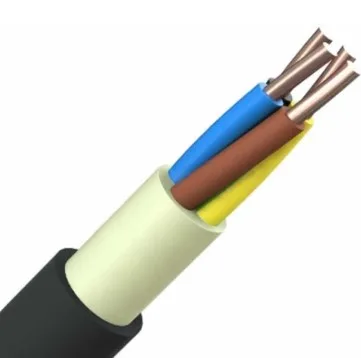

N2XH,N2XH-J,N2XH-O,0.6/1Kv Halogen-free and Flame-resistant Power Cable



N2XH,N2XH-J,N2XH-O (0.6/1Kv Halogen-free and Flame-resistant Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


N2XH cable Application:
Halogen-free and flame-resistant cable for power transmission and power distribution, generally for fixed installation in public buildings as hospitals, schools, hotels, airports and railway stations, where are high requirements for security. N2XH - Halogen-free power cable acc. HD 604/VDE 0276-604. Building installation cable with improved fire characteristics for fixed installation.


Kabel N2XH Features :
-Flame-retardant according IEC 60332-1-2.
-No flame-propagation according to IEC 60332-3-24
-Halogen-free according to IEC 60754-1
-Low smoke density according to IEC 61034-2


Cable N2XH Construction:
Conductor : Bare copper wire conductor class 1 for cross section 1.5mm2 to 16.0mm2; class 2 for cross section 16mm2 to 95mm2.
Abbreviations "re", "rm", "se", "sm":
r = round conductor form;
s = sectorial conductor form;
e = single-wire conductor;
m = multi-wire conductor;
Insulation : Cross-linked polyethylene type XLPE
Inner covering: halogen-free compound, flame-resistant
Sheath: halogen-free compound, flame-resistant type HM4 according to HD 604
Sheath color : black.
N2XH-J  With protective conductor.
N2XH-O  without protective conductor.


Technical data:
1) Conductor acc. to HD 604
2) rated voltage Uo/U: 0.6/1 kV
3) test voltage: alternating voltage - 4 kV
4) insulation resistance at 90 °C: min 1012 Ω x cm
5) maximum conductor temperature: + 90 °C
6) max. conductor temperature at short circuit for 5 s : +250 °C
7) temperature of environment: -30 °C to +70 °C
8) minimum temperature during installation: -5 °C
9) minimum bending radius during installation: single core : 15D; multiple core : 12D (D - outer cable diameter)
10) flame test: flame-retardant acc. to IEC 60332-3 category "B" and VDE 0472 part 804
11) corrosivity of combustion gases - in acc. to VDE 0472 part 813
12) low smoke density - in acc. to VDE 0472 part 816.








































































































































































































































































































































































































































































































































































Number of cores and mm² per conductorOuter diameter (mm)Copper index (kg/km)Weight (kg/km)
 N2XH-J
1x1,5 RE6.014.053
1x2,5 RE6,524.090
1x4 RE8,538.069
1x6 RE6,558.090
1x10 RE7,396.0131
1x16 RM8,6154.0197
1x25 RM10,2240.0293
1x35 RM11,3336.0389
1x50 RM12,7480.0517
1x70 RM14,6672.0717
1x95 RM16,3912.0972
1x120 RM18,31152.01215
1x150 RM20.01440.01494
1x185 RM22,61776.01855
1x240 RM25,22304.02387
1x300 RM27,92880.02971
2x1,5 RE12.029.0185
2x2,5 RE13.048.0220
2x4 RE14.077.0275
2x6 RE15.0115.0335
2x10 RE16.0192.0450
2x16 RM18.0307.0625
2x25 RM21.0480.0950
3x1,5 RM13.043.0179
3x2,5 RM14.072.0225
N2XH-O
1x25 RM10,2240.0293
1x35 RM11,3336.0389
1x50 RM12,7480.0517
1x70 RM14,6672.0717
1x95 RM16,3912.0972
1x120 RM18,31152.01215
1x150 RM20.01440.01494
1x185 RM22,61776.01855
1x240 RM25,22304.02387
1x300 RM27,92880.02971
3x1,5 RE8,943.0125
3x2,5 RE9,872.0163
3x4 RE10,8115.0219
3x6 RE11,8173.0289
3x10 RE13,6288.0431
3x16 RM16,7461.0638
3x25 RM20,2720.01015
3x35 RM22,3 1231
3x50 RM25,51440.01652
3x70 RM30.02016.02455
3x95 RM32.02736.03260
3x120 RM35.03456.04000
3x150 RM39.04320.05100
3x185 RM44.05328.06160
3x240 RM49.06912.08000
4x1,5 RE9,758.0147
4x2,5 RE10,696.0195
4x4 RE11,7154.0266
4x6 RE12,9230.0355
4x10 RE15,2384.0547
4x16 RM18,3614.0839
4x25 RM22,6960.01294
4x35 RM25,81344.01605
4x50 RM29,41920.02154
4x70 RM34,42688.03047
4x95 RM38,63648.04102
4x120 RM42,44608.05062
4x150 RM47,25760.06256
4x185 RM52.07104.07751
4x240 RM58,69216.010047
5x1,5 RE10,572.0174
5x2,5 RE11,5120.0233
5x4 RE12,7192.0319
5x6 RE14,2288.0437
5x10 RE17.0480.0682
5x16 RM20,2768.01036
5x25 RM24,91200.01584
5x35 RM28,41680.02155
7x1,5 RE11,3101.0214
7x2,5 RE12,4168.0291
7x4 RE17.0269.0540
10x1,5 RE14.0144.0299
10x2,5 RE15,8240.0419
12x1,5 RE14,7173.0342
12x2,5 RE16,4288.0480
12x4 RE21.0461.0805
14x1,5 RE17.0202.0480
14x2,5 RE19.0336.0635
19x1,5 RE18.0274.0600
19x2,5 RE21.0456.0810
24x1,5 RE20,2346.0625
24x2,5 RE24.0576.0990
30x1,5 RE21,3432.0738
30x2,5 RE23,7720.01045
