Диск дискового клапана из алюминиевой керамики для картриджа
- Категория: >>>
- Поставщик: Shenzhen Jia Rifeng Tai Electronic Technology Co. Ltd.
Сохранить в закладки 1600144724750:
Описание и отзывы
Характеристики
Product Description

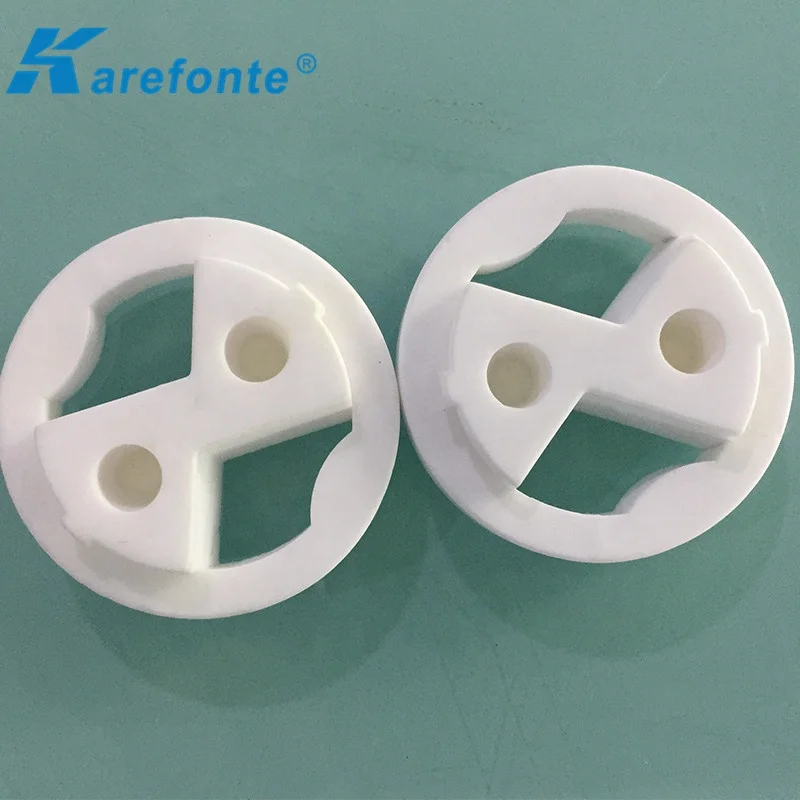

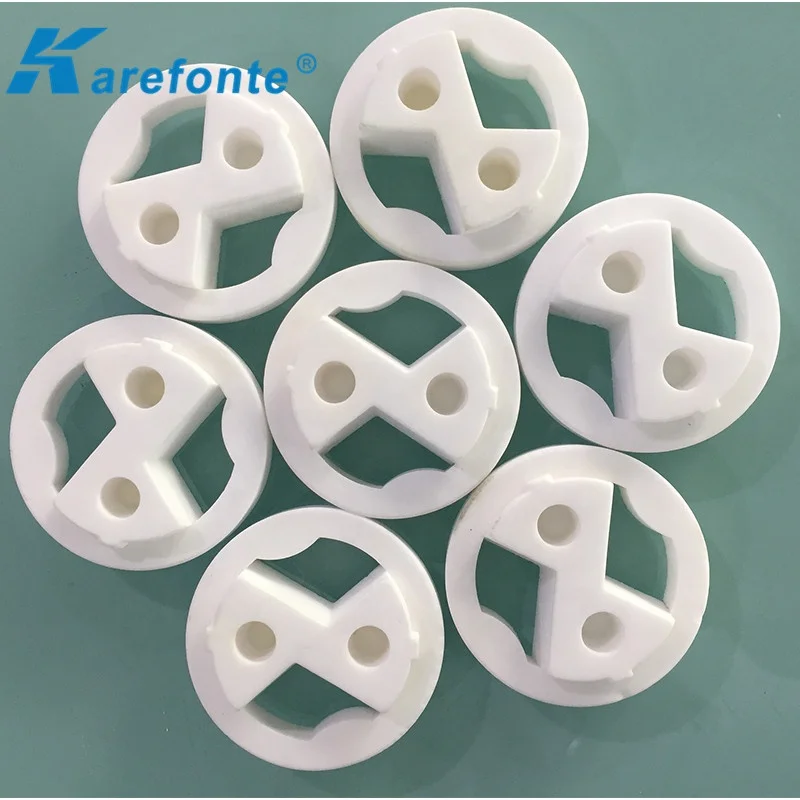

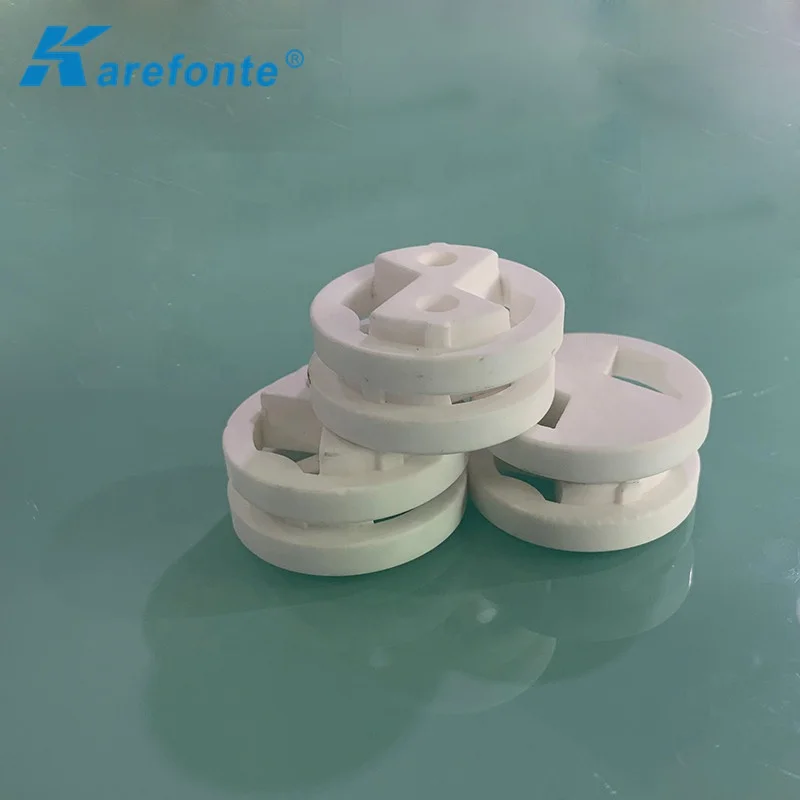

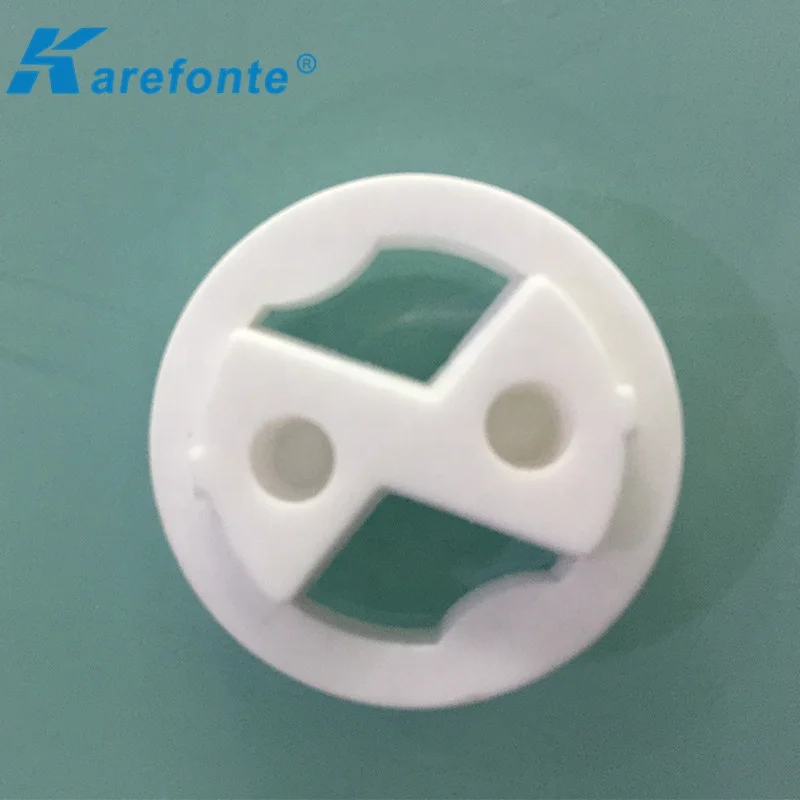

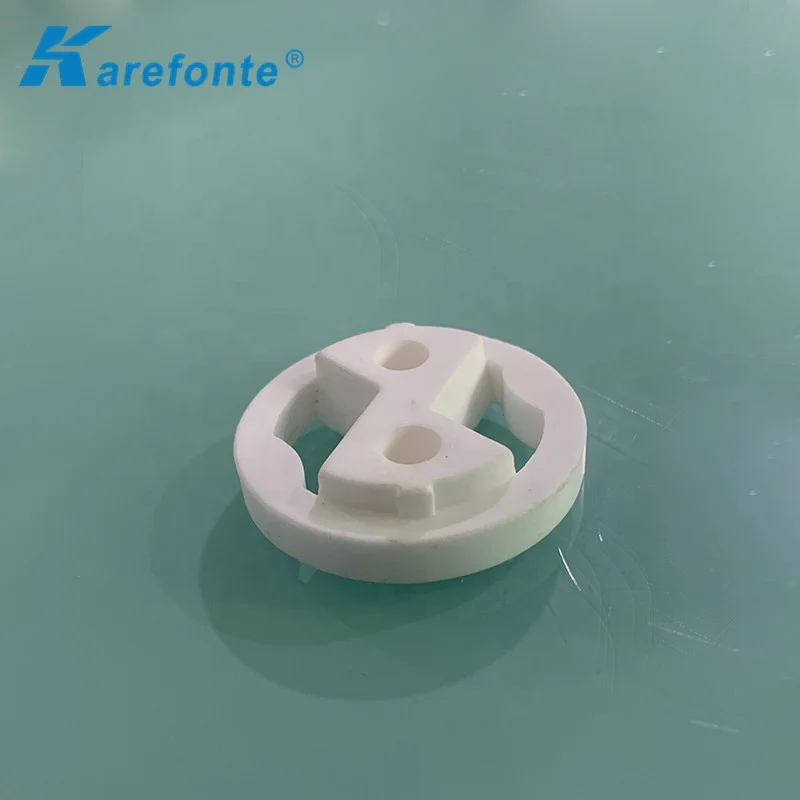

Alumina Ceramic Disc Valve disc For Faucet Tap Cartridge
Alumina ceramic is Al2O3 as main raw material, in the rare metal oxide as flux, special ceramic sheets after one thousand degrees high temperature roasting into.
Alumina ceramic Al2O3 content is high, the structure is relatively compact, with special properties, it is known as the special ceramics. The Al2O3 ceramic materials are densely arranged six party structure for oxygen ion and aluminum ion, filled in 2/3 with eight sides in the gap, which is the same with natural corundum stable alpha Al2O3 structure, so the ceramics with high melting point, high hardness, good wear - resistance.
Feature:
1.Light weight
2.High hardness
3.Wide scope of application
4.Extremely abrasive resistance performance
Performance
Physical properties: high insulation resistance, breakdown, high temperature resistance, abrasion resistance, high strength (three meters altitude fall not broken)
Fire rating: USA military standard MIL-F-51058 (the highest level)
Typical application: strong current, voltage, strong high temperature parts, IC MOS, IGBT power tube heat pipe insulation
Certification: natural organic matter, the European Union, exempt products without certification materials
Thermal conductivity: high temperature: 1600 degrees below the ideal heat insulating material of high voltage and high frequency equipment.
Application
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength
Regular size and models :
TO-220, 1mm*14mm*20mm
TO - 3P, 1mm*20mm*25mm
TO-264, 1mm*22mm*28mm
TO-247, 0.635mm*17mm*22mm
Test Item/Unit | Numerical Value | Test Item/Unit | Numerical Value | ||||
Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance cm | >1012 | >1012 | >1012 |
Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient *10° | 6.8-8 | 6.2-8.5 | 6.9-10 |
Breakdown Voltage Strength kv/mm | 15 | 15 | 15 | Roughness μm | ≤0.8 | ≤0.8 | ≤0.8 |
Bibulous Rate % | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
Anti Pressure Mpa | 3700 | 2400 | 5000 | Thermal Conductivity W/m-k | 25 | 20 | 2.5 |
Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
order process
Application
Certifications
![F9K6GW)T{]M4}SJHTWPXLD.png](http://sc01.alicdn.com/kf/H9ff9f4c93ca44357965d312d1154ab81N/222032861/H9ff9f4c93ca44357965d312d1154ab81N.png)
Our Services
| Online Services:24 hours,Inquiry reply within fastest. |
| Well- Trained & Experienced Staff are to answer all your requirements. |
| Standard Export Carton Or Marked With Customer's Information Or Customized. |
| Sample Order delivered within 24 hours. |
Packaging & Shipping
-Packaging:Export Standard Packing
-Shipping:TNT/UPS/EMS/DHL/FedEx
-Delivery Time :3-5 days
Company Information
Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd.was founded in 2010, a total investment of more than 1 million yuan, Jia Rifeng Tai is a professional dedicated to electronic thermal insulation materials research and development, production and sales of integrated sets high-tech enterprises.
Our products have thermally conductive filler material , high thermal silicone gap pad, insulator silicone sheet , silicone heating film / pad, thermal phase change material , silicone rubber heater drums, thermal graphite , thermal grease / paste , thermal encapsulant , RTV silicone sealant , thermal double-side tape , alumina ceramic , ALN ceramic, zirconia ceramic, si3n4 ceramic, NFC ferrite , EMI absorber material . (Fujipoly) silicone , Bergquist thermal conductivity material K4, K6, K10 insulation pads and so on. Our products are widely used in power supplies, LED lighting, welding machines, laptops, wireless charger, set-top boxes, high-power and other industries. Currently, the company has passed SGS and other international certification authority.
FAQ
Q:Can we get the sample? If can , how to get it ?A:Yes , we can offer you the free sample if have in stock , but not include the shipping cost . Please feel free to contact to our sales if you need the sample.
Q:How can you guarantee the quality ?
A:With advanced professional machine and testing equipment,we ensure 100 % quality before shipment.
Q: Can we OEM or according to our requirement to cut the size ?
A:We are a China Manufacture specialized in the thermal insulation materials, for example,Silicone Rubber pad,Thermal tape,Thermal Grease,Silicone Cloth with more than 11 years old.
Q:What payment term is available?
A:Bank transfer , Paypal , Western Union , Master Card , VISA .
Any question or want to know, pls contact to me !
