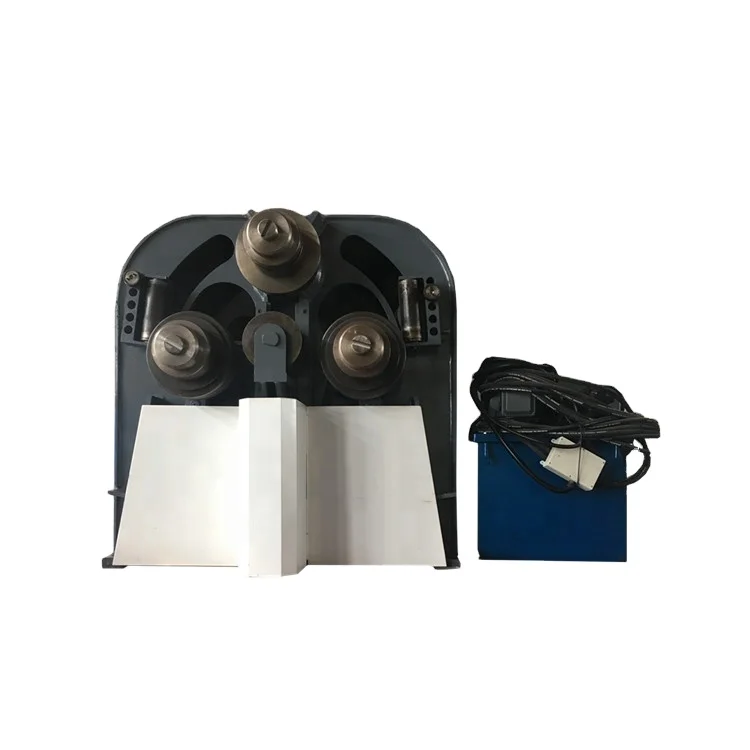

Гибочный станок для алюминиевых профилей с ЧПУ

Категория: Профилегибочный станок >>>
Поставщик: Suzhou Wonsten Import Export Co. Ltd.

Цена:15 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

About Wonsten

WONSTEN has progressively become the world's leading manufacturer of metalworking technologies, providing one of the biggest ranges of specialized equipment for the tube and pipe bending industry worldwide. We serve the global market with exceptional machinery and tooling for tube and pipe bending, cutting and end forming purposes – ranging from simple, manual appliances to complex, fully CNC powered systems. WONSTEN designs, develops, retails and services a variety of products for a range of leading industrial industries including automobile and shipping, aeronautics and construction amongst others.

WONSTEN has a proud history of manufacturing in China, Elsewhere, WONSTEN has commercial facilities and a worldwide network of over 20 agencies and technical centers – providing customer support wherever you are!

Our products are designed in our technical department by a team of highly-skilled engineers – we offer competitive solutions without compromising on quality. Over the years, WONSTEN has grown with our customers' requirements and the market demand.

Our products list: manual tube bender, NC series hydraulic semi automatic pipe bending machine, CNC automatic tube bending machine, electrical pipe bender, hairpin bender, pipe cutting machine, tube end forming machine.

Main Features

◆ Electric control system: world-renowned controllers are applied. For example, servo drivers, servo motors, positioning modules and CPU produced by Mitsubishi, Yaskawa and Delta are applied and they have strong performance and excellent stability.

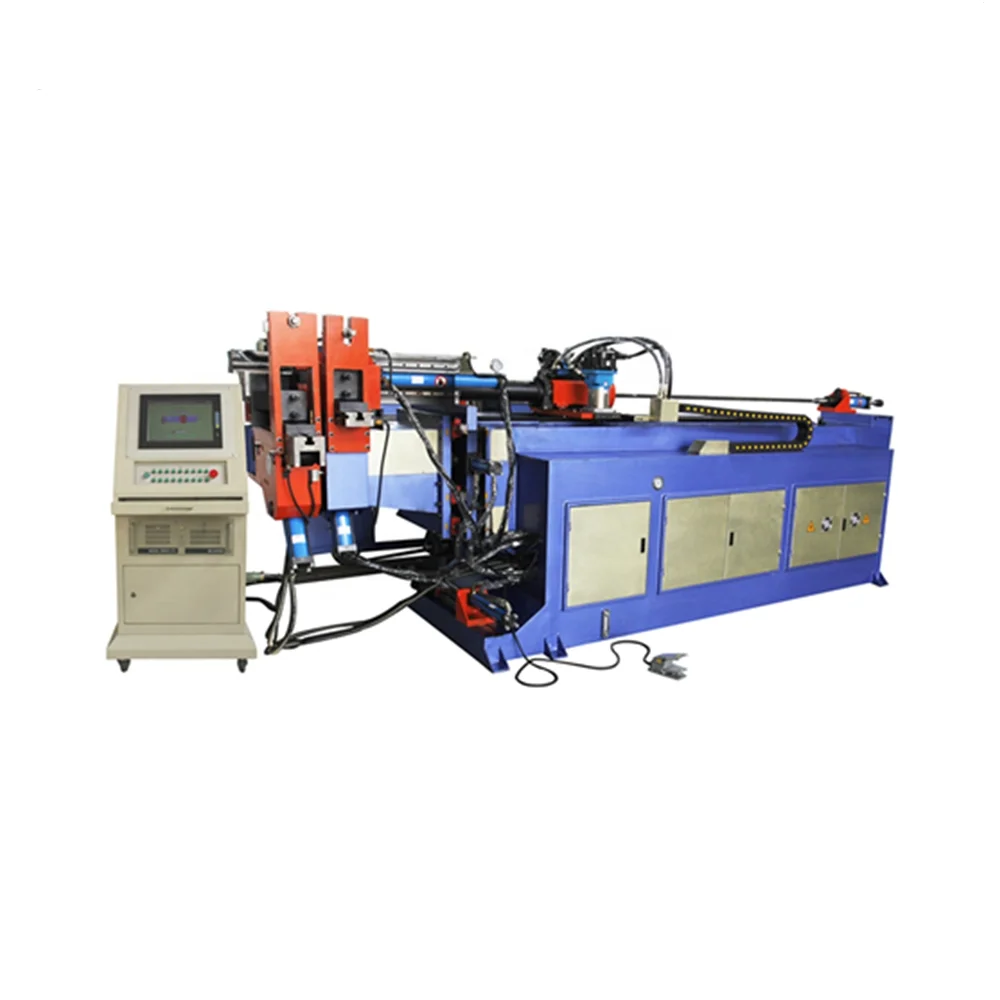

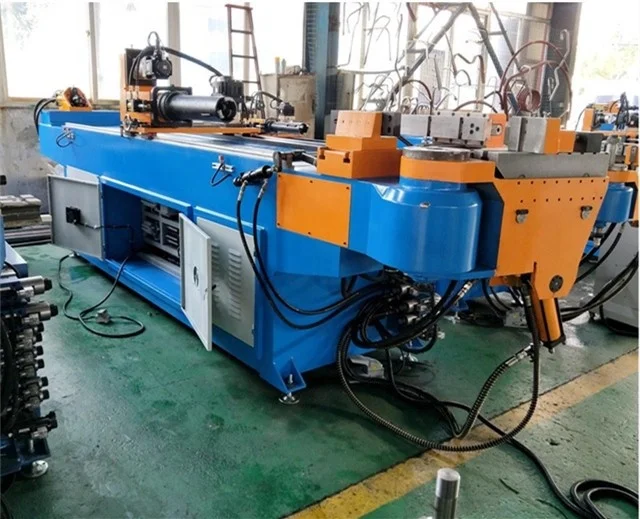

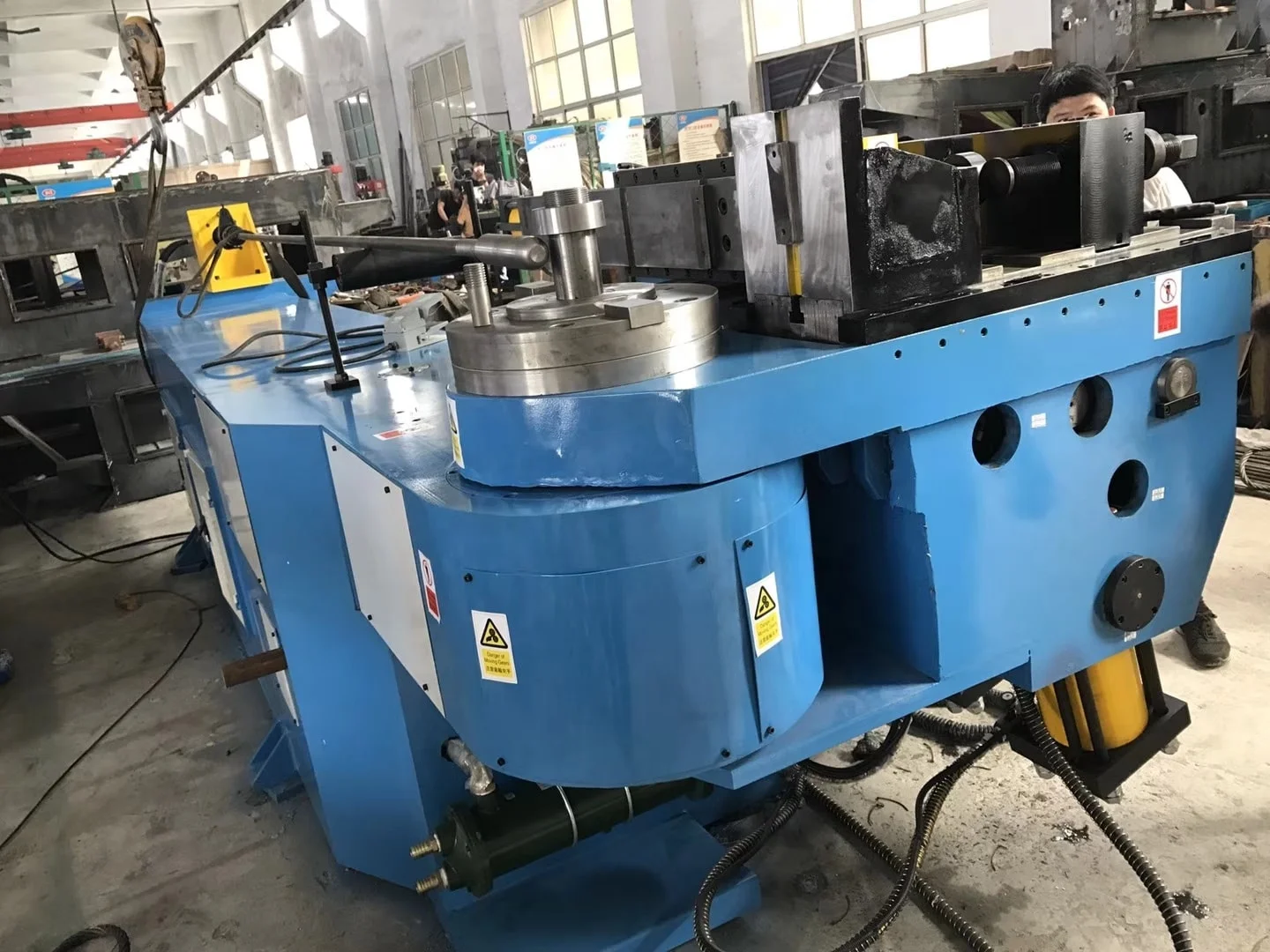

38CNC Fully Automatic Pipe Bending Machine From Chinese Factory

Auto Servo Feed, Auto Servo Rotate, Auto Hydraulic Bend

	Model	DW38CNC
Maxi. Diameter×thickness	mm	Φ 38×2
Maxi. Bending radius	mm	R180
Mini. Bending radius	mm	R15
Maxi. Bending angle		190°
Maxi. Length of feeding	mm	2000
Feeding way	Directly
Working speed	Bending speed	90°/s
	Rotation speed	200°/s
	Feeding speed	1000mm/s
Working precision	Bending precision	±0.3
	Rotation precision	±0.1
	Feeding precision	±0.1
Data input mode	YBC
Turning servo motor power	kw	0.45
Feeding servo motor power	kw	1
Maxi. Pipe bender number	pcs	32
Parts in store	pcs	2000
Hydraulic motor power	kw	5.5
Maxi. System pressure	mpa	12
Size	mm	3900×1840×1300
