Портативный Дизельный воздушный компрессор Kaishan 17 бар для буровой установки/б/у высокого давления
- Категория: >>>
- Поставщик: Zhengzhou Kaishan Mechanical & Electrical Equipment Co. Ltd.
Сохранить в закладки 1600146759786:
Описание и отзывы
Характеристики

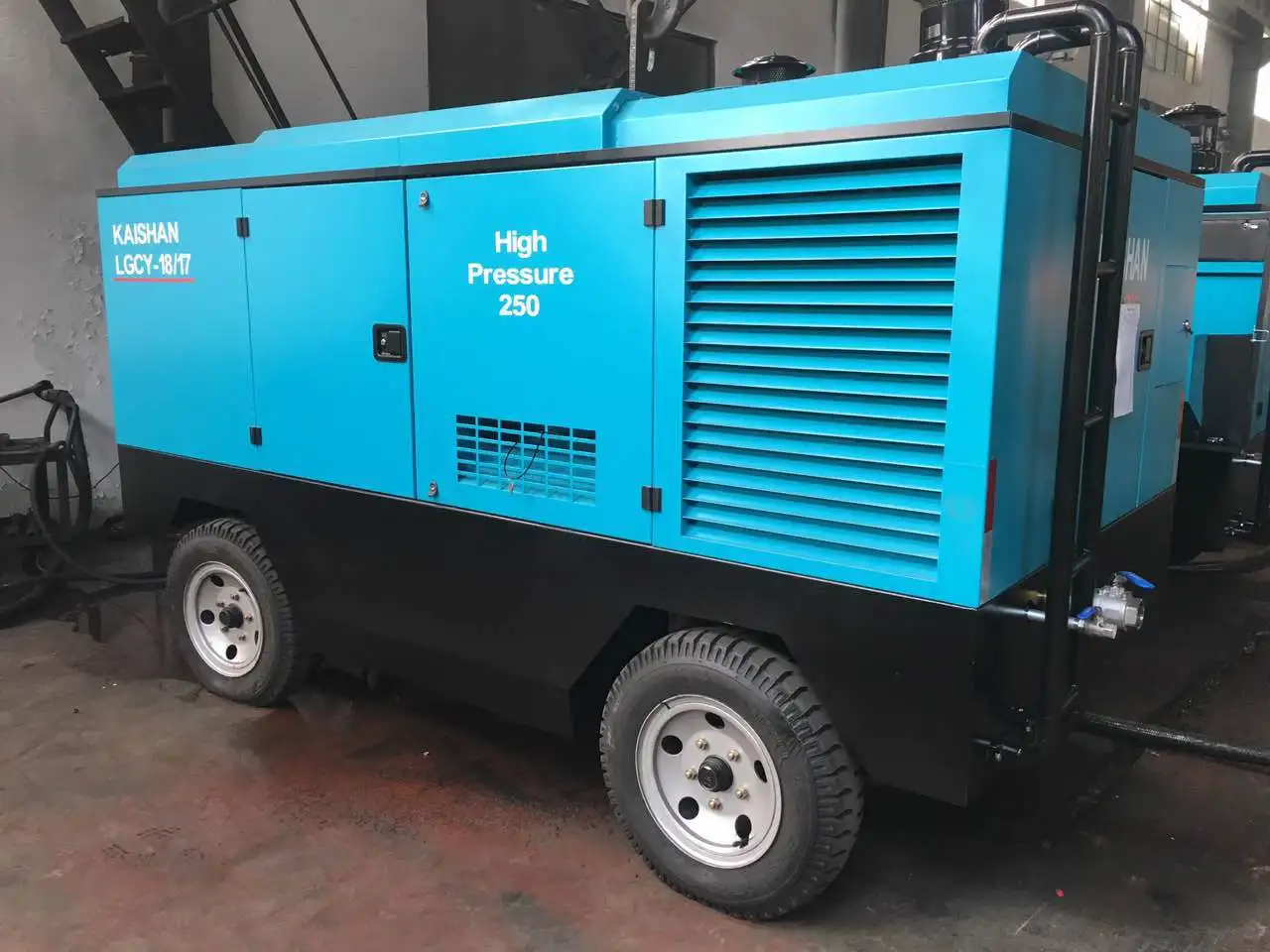

Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
Product Description
Description of Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
Introduction of Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
At present, Kaishan screw air compressor product energy efficiency level has been in the
world's leading level. In addition to advanced profile technology, we also have global invention patents to ensure lower fuel
consumption. If you compare our products with similar foreign products, you will soon find that the fuel savings of our products
are very obvious. The advancement of technology is self-evident, and the reliability has already been proved by hundreds of units
in service.
At present, Kaishan screw air compressor product energy efficiency level has been in the
world's leading level. In addition to advanced profile technology, we also have global invention patents to ensure lower fuel
consumption. If you compare our products with similar foreign products, you will soon find that the fuel savings of our products
are very obvious. The advancement of technology is self-evident, and the reliability has already been proved by hundreds of units
in service.
Description of Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of
Capacity to realize optimal energy saving effect.
Design Characteristics of Screw Rotor Profile:
1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce
horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing
property.
2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower
than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life,
and reduce sensibility to sundries and oil carbide.
3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply
to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.
4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of
Energy Conservation of Capacity Air Compressors.
KAISHAN LGCY Diesel Portable Screw Air Compressor adopts 0-100% infinitely variable control of
Capacity to realize optimal energy saving effect.
Design Characteristics of Screw Rotor Profile:
1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce
horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing
property.
2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower
than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life,
and reduce sensibility to sundries and oil carbide.
3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply
to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.
4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of
Energy Conservation of Capacity Air Compressors.
Characteristics of Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
SKY Patented Screw Host
- Rotor Profile; Patented Rotor Profile, Maximum Efficiency
- Heavy duty design; SKF bearing, direct drive
- Optimal structure, highest reliability
- Principle Energy Saving and Design Innovation
Heavy duty diesel engine
Equipped with Yuchai, Cummins and other heavy-duty special diesel engines. To achieve the best combustion state in the whole range
of engine operation.
Make the product have higher reliability, stronger power and better fuel economy
Computer Control System
Full range display operation parameters such as operation speed, supply pressure, oil pressure, exhaust temperature, coolant
temperature, fuel level, etc. It also has the functions of self-diagnosis, alarm and shutdown. Simple operation ensures the safe
operation of the unattended machine.
SKY Patented Screw Host
- Rotor Profile; Patented Rotor Profile, Maximum Efficiency
- Heavy duty design; SKF bearing, direct drive
- Optimal structure, highest reliability
- Principle Energy Saving and Design Innovation
Heavy duty diesel engine
Equipped with Yuchai, Cummins and other heavy-duty special diesel engines. To achieve the best combustion state in the whole range
of engine operation.
Make the product have higher reliability, stronger power and better fuel economy
Computer Control System
Full range display operation parameters such as operation speed, supply pressure, oil pressure, exhaust temperature, coolant
temperature, fuel level, etc. It also has the functions of self-diagnosis, alarm and shutdown. Simple operation ensures the safe
operation of the unattended machine.
Specification
Parameters for Kaishan 17bar Portable Diesel Air Compressor For Drilling Rig /used high pressure air compressor
Model | Exhaust pressure (Mpa) | Capacity (m3/min) | Diesel engine | Engine power (HP) | weight (kg) | Dimensions (mm) |
LGCY-550/14.5T | 1.45 | 15 | Yuchai | 190 | 2800 | 3600*1600*2220 |
LGCY-550/14.5TK | 1.45 | 15 | Cummins | 180 | 2800 | 3600*1600*2220 |
LGCY-12/15T | 1.5 | 12 | Yuchai | 160 | 2400 | 3000*1520*2200 |
LGCY-15/16T | 1.6 | 15 | Yuchai | 190 | 2400 | 3000*1520*2200 |
LGCY-15/16TK | 1.6 | 15 | Cummins | 180 | 2400 | 3000*1520*2200 |

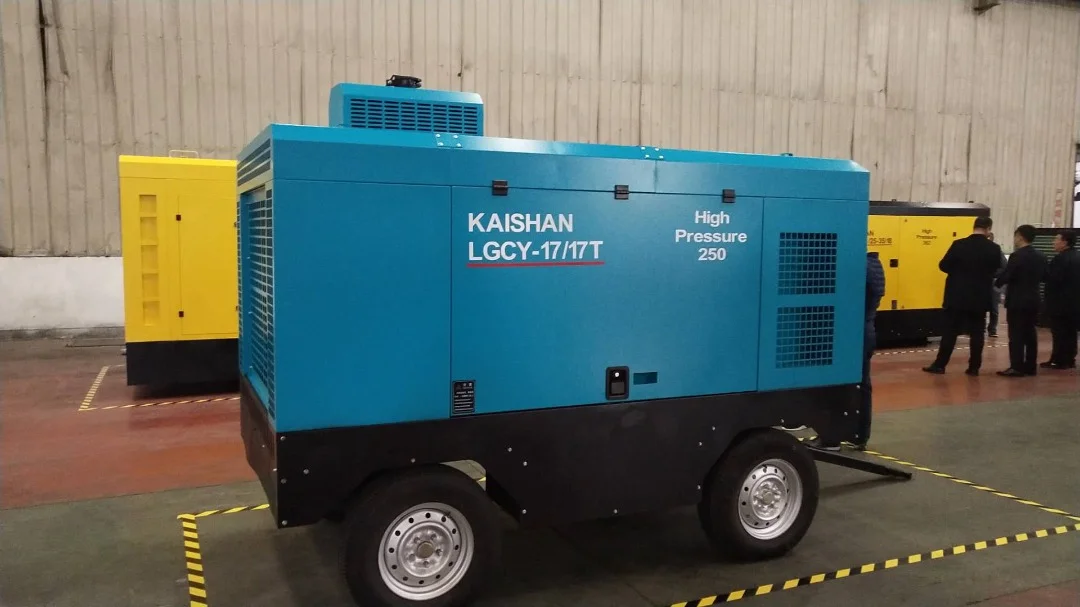

LGCY-17/17T | 1.7 | 17 | Yuchai | 220 | 3200 | 3000*1520*2200 |
LGCY-17/17T | 1.7 | 17 | Cummins | 210 | 3200 | 3000*1520*2200 |
LGCY-650/18T | 1.8 | 18 | Cummins | 260 | 3700 | 3980*1800*2230 |
LGCY-650/18TK | 1.8 | 18 | Yuchai | 260 | 3700 | 3980*1800*2230 |
LGCY-18/20T | 20 | 18 | Yuchai | 260 | 3700 | 3980*1800*2230 |
LGCY-18/20TK | 20 | 18 | Cummins | 260 | 3700 | 3980*1800*2230 |
LGCY-19.5/19 | 19 | 19.5 | Yuchai | 260 | 3700 | 3980*1800*2230 |
LGCY-19.5/19K | 19 | 19.5 | Cummins | 260 | 3700 | 3980*1800*2230 |

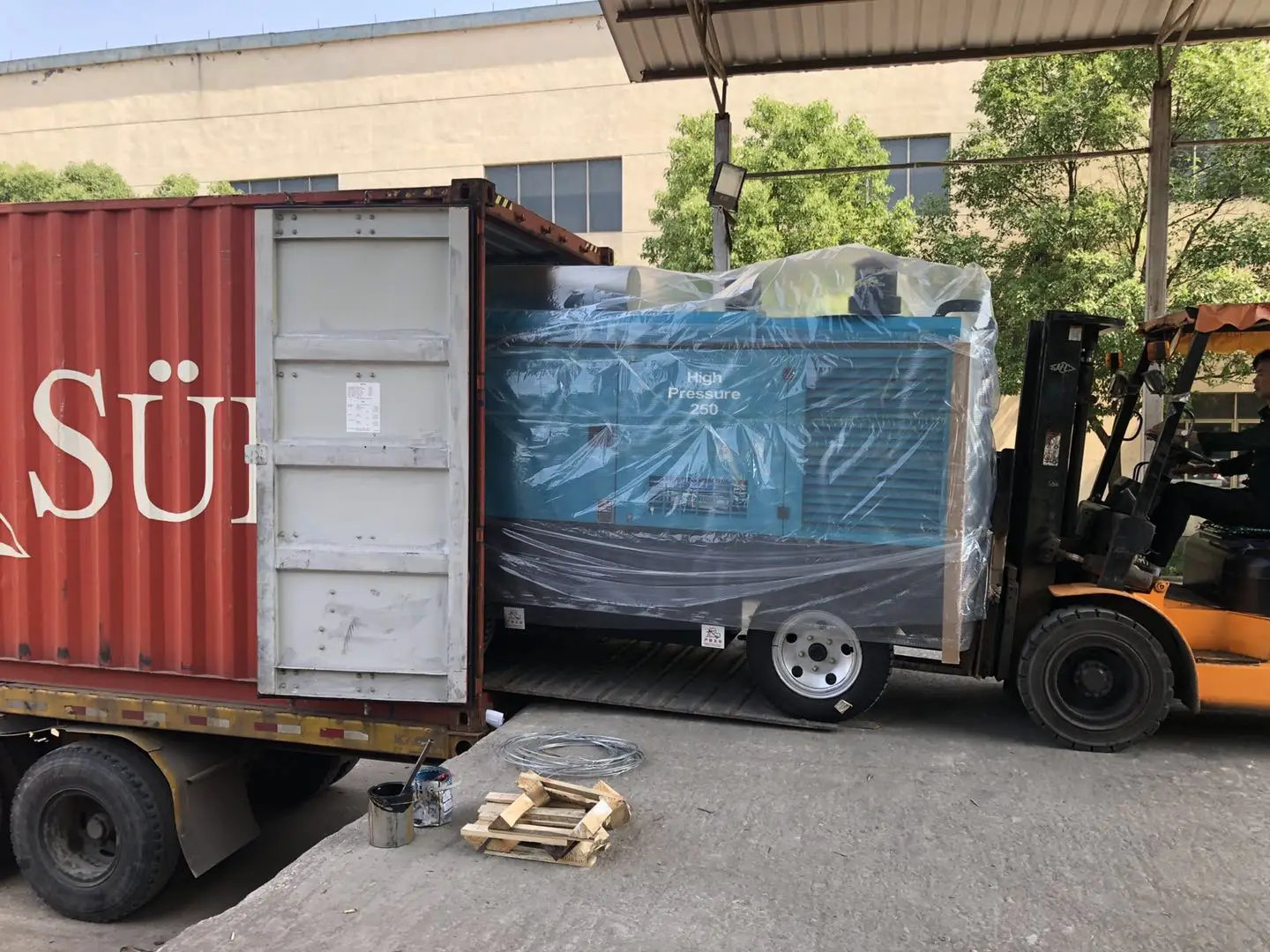

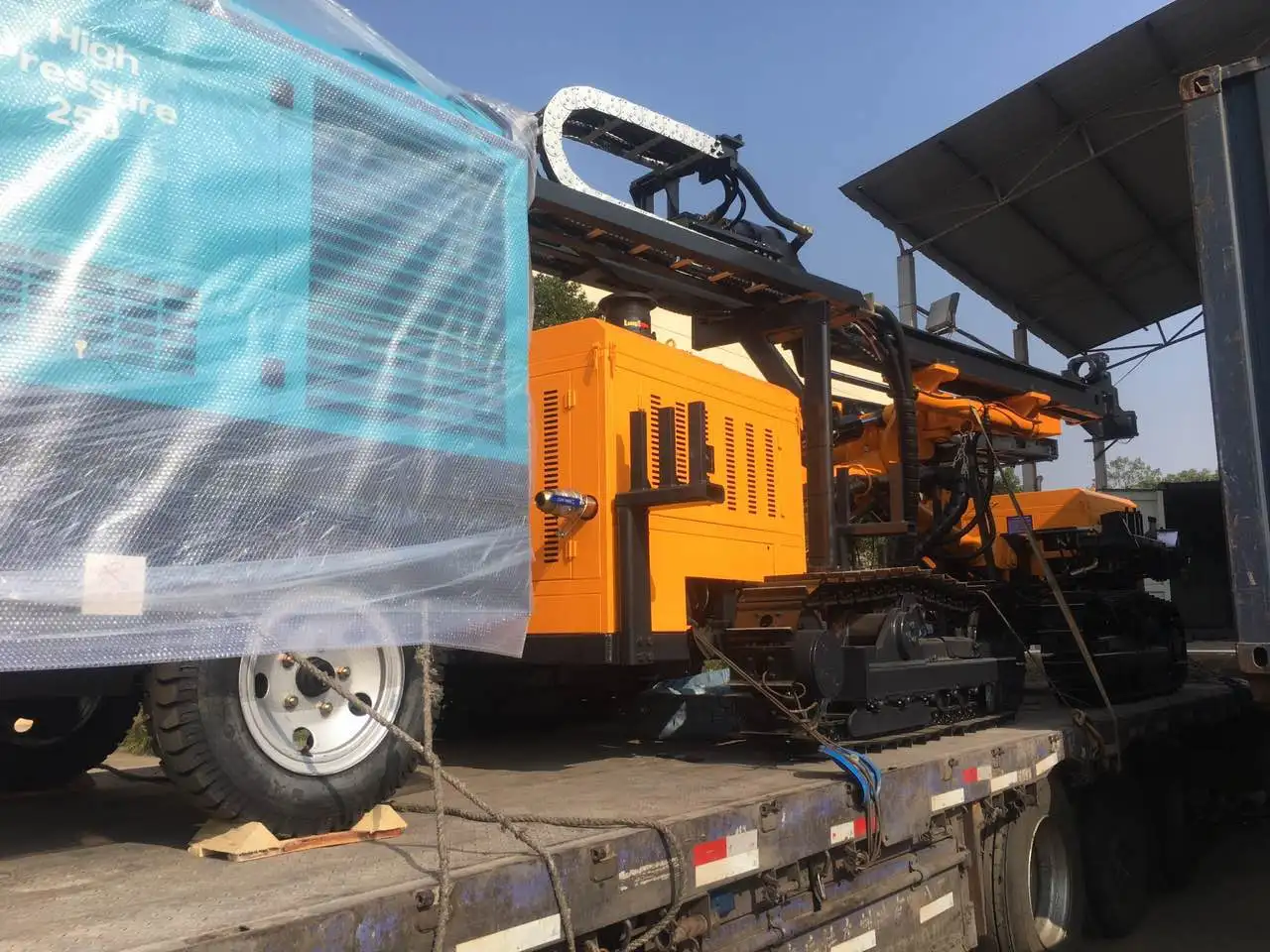

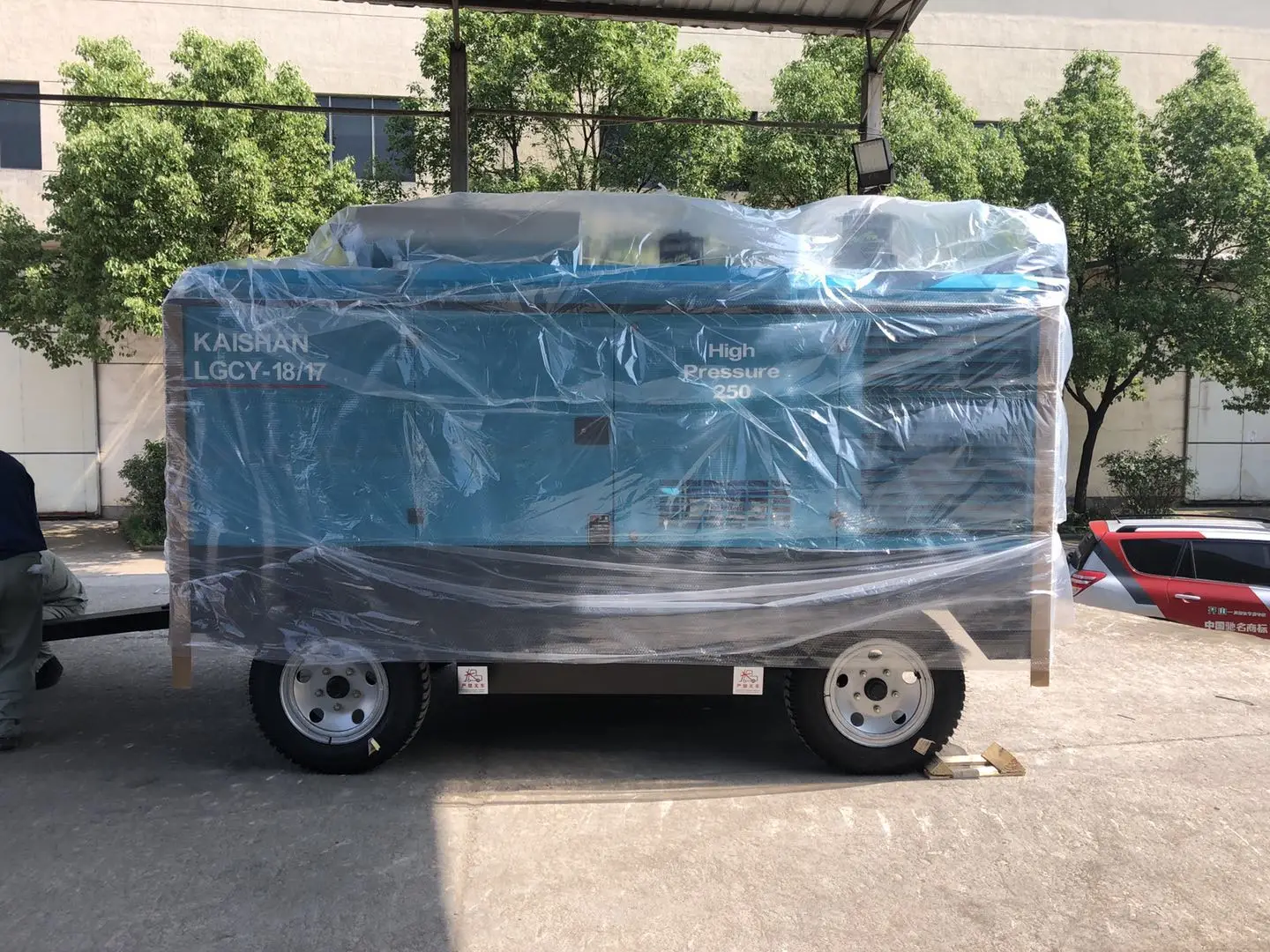

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Our company provide more than 20 kinds products, which including piston air compressors, screw air compressors, drilling rig machines,drill bits, drill rods, DTH, air picks, rockdrills, down the hole drills, small mining piston air compressors, chiller air compressors, and concretespraying machines. Meanwhile, we own independent rights of import and export. Our products have a vast marketin foreign countries, and are exported to Southeast Asia, South America, Africa and many other countries and regions, Our company has been committed to providing good after-sale service and best quality to meet domestic and overseas users demands.
FAQ
Q1: Why customer choose us?
A: Kaishan brand are specialized in Diesel Engine Portable Screw Air Compressor. Germany Standard and 10years exporting experience
help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhejiang,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and othercurrency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable
A: Kaishan brand are specialized in Diesel Engine Portable Screw Air Compressor. Germany Standard and 10years exporting experience
help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhejiang,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and othercurrency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable
Contact:
Похожие товары
SLGR JYUB507 втулка безмасляный подшипник 5*10*25 подшипник фирменный подшипник сцепления Япония
0,77 $ - 0,95 $

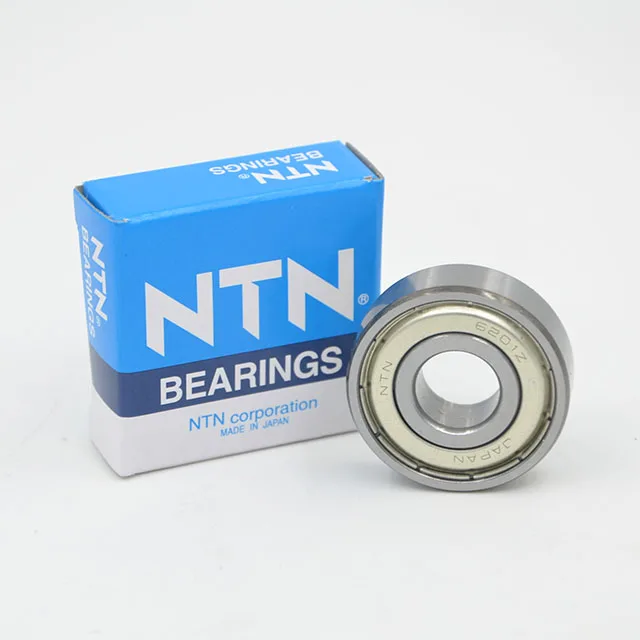

Знаменитый бренд, моторный подшипник, шариковый подшипник с глубоким желобом 6201
0,10 $ - 0,15 $

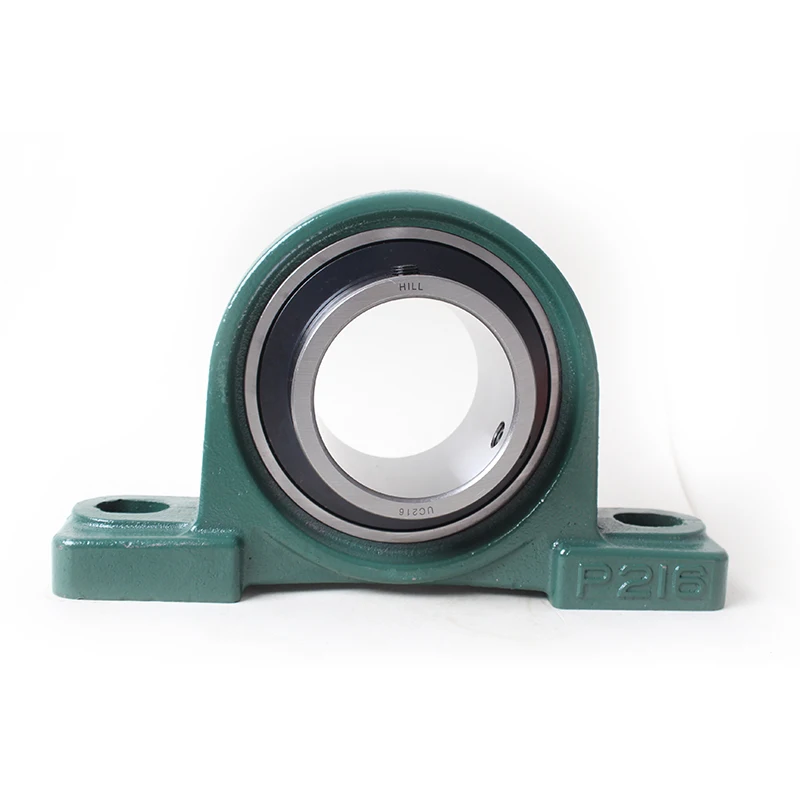

Опорный шарикоподшипник 67 мм С Пылезащитным покрытием фирмы Award FUC 216, опорный подшипник

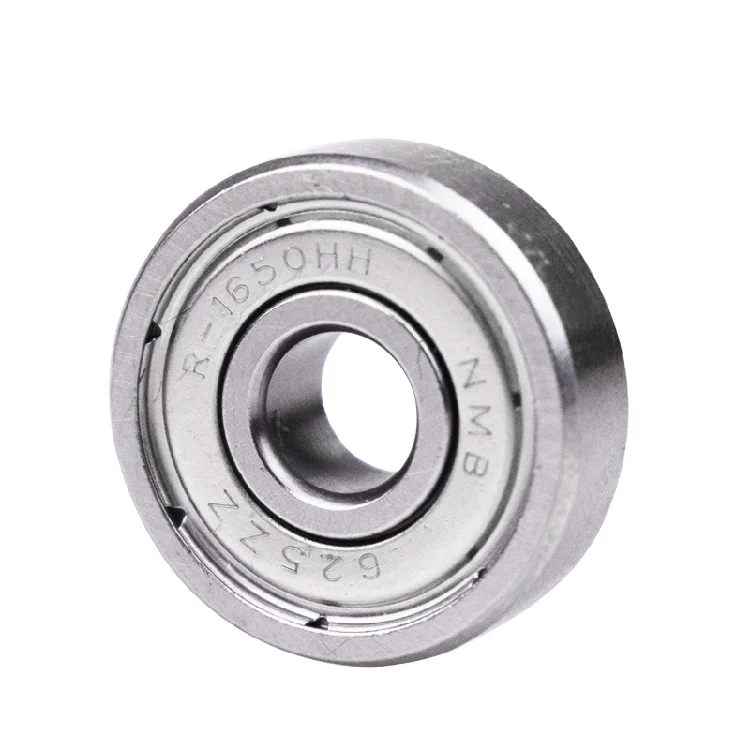

Оригинальный НМБ бренд миниатюрные шариковые подшипники высокой точности R-1340ZZ
0,80 $ - 0,90 $

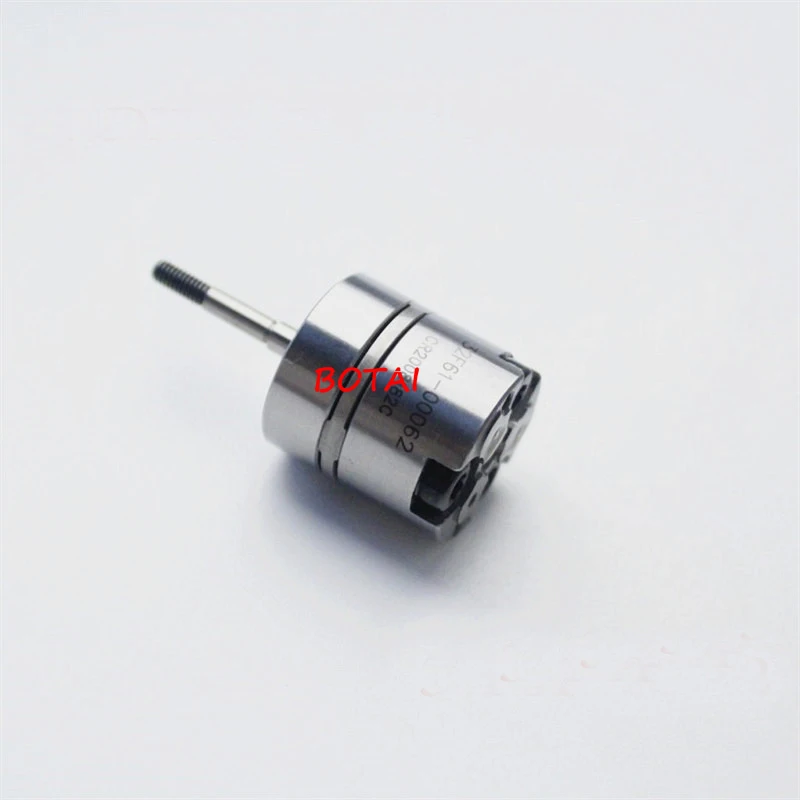

Зеленый регулирующий клапан мощности 32F61-00062 32F61-00060, запасные части двигателя для форсунок CAT 320D

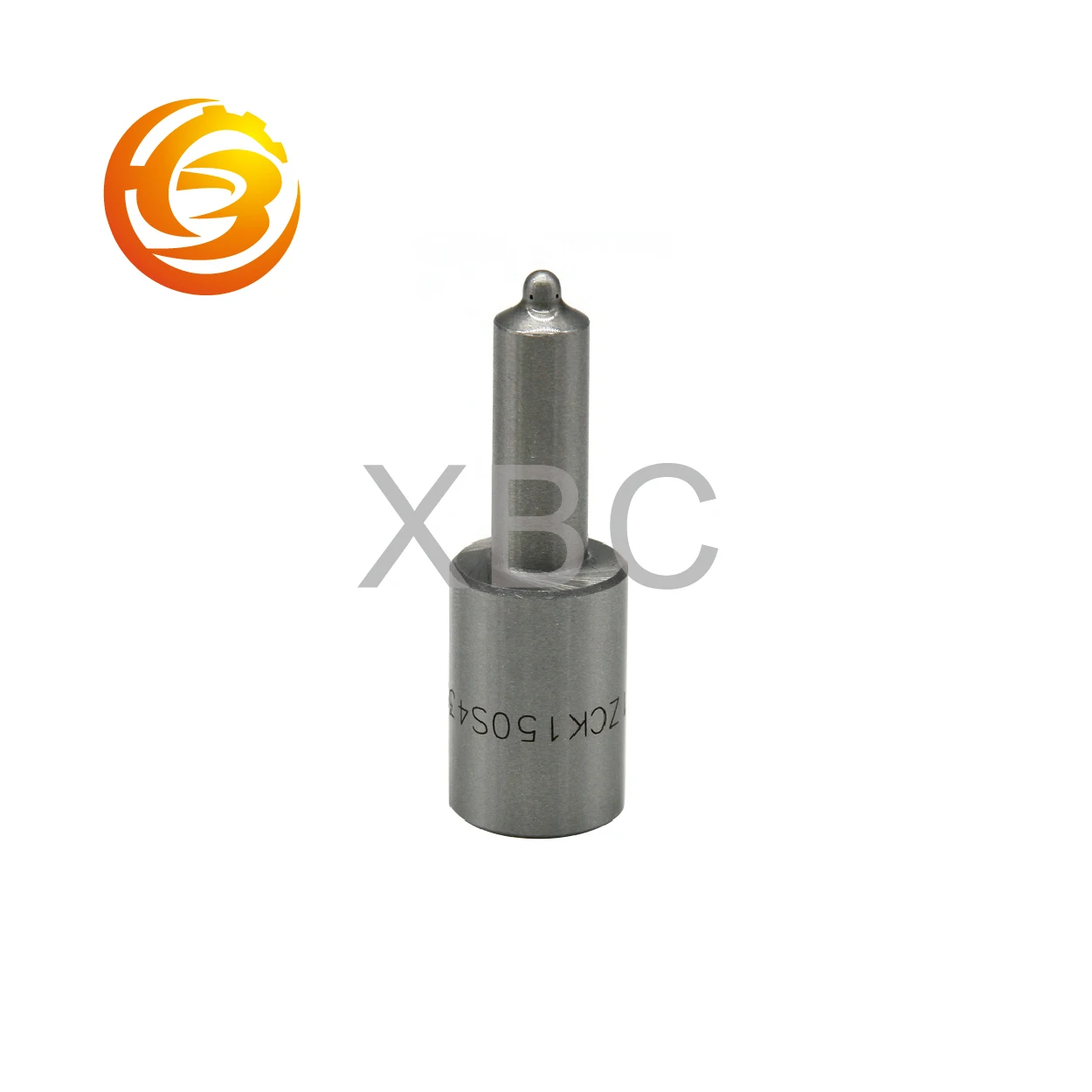

ZCK150S435E форсунка Форсунки дизельного топлива для дизельного двигателя SDEC Power 6135
