Wlkata 6 осевой промышленный робот манипулятор для образования карьеры техники
- Категория: >>>
- Поставщик: Beijing Tsinew Technologies Co. Ltd.Beijing Ltd.
Сохранить в закладки 1600147912565:
Описание и отзывы
Характеристики
Products Description
Function
Product Paramenters

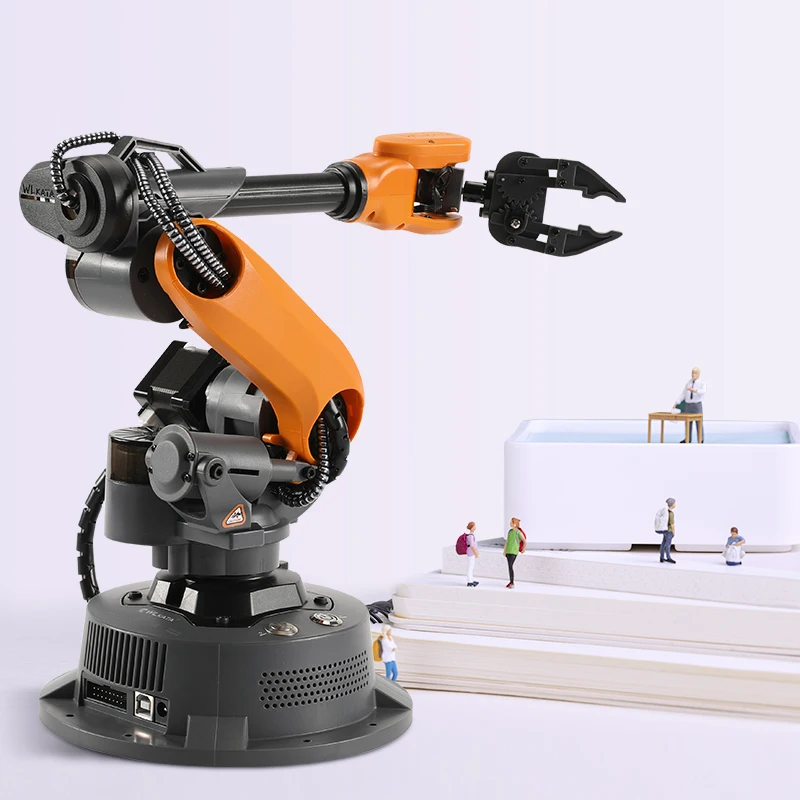

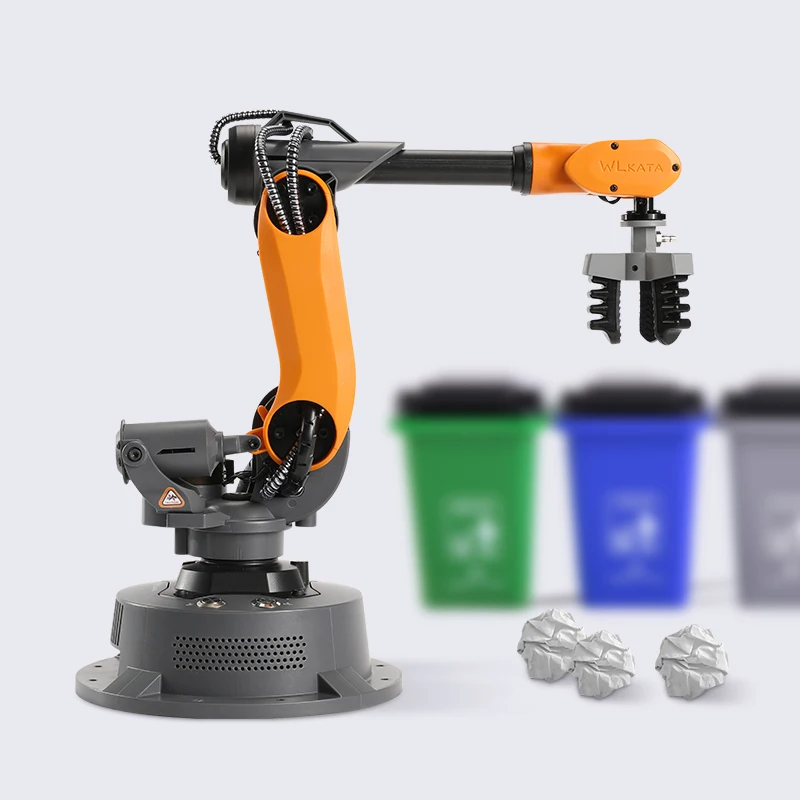

WLkata Mirobot 6 axis mini- industrial desktop robotics arm | ||||||
Basic Parameters : | ||||||
Number of axes | 6+1 | Repeated positioning accuracy | 0.2mm | |||
Standard payload | 250g | Maximum payload | 400g | |||
Workspace | 315mm | Base dimensions | 160mm | |||
Type of the six joints | High accuracy stepping motor + reducer | Communication interface | USB/ WIFI / Bluetooth / PLC (RS485) | |||
Power supply voltage | 100 V- 240 V, 50/60 HZ | Power input | 12V / 4A DC | |||
Power | 50W Max | Working environment | -10°C~ 60°C | |||
Net weight (robotic arm) | 1.5KG | Material | Aluminum alloy, ABS engineering plastics | |||
Pen holder | Range: 7~10mm | Servo Gripper | Range: 0~30mm; Torque: 0.6 Kg/cm | |||
Pneumatic Suction Cups | Suction Cup Diameter: 12mm; Pressure: -60Kpa | Three-finger Soft Gripper | Range: 5~40mm; Pressure: -60/120Kpa | |||
Axis Motion Parameters : | ||||||
1-axis | -110° ~ +160° maximum speed 85°/s | |||||
2-axis | -35° ~ +70° maximum speed 60°/s | |||||
3-axis | -120° ~ +60° maximum speed 65°/s | |||||
4-axis | -180° ~ +180° maximum speed 200°/s | |||||
5-axis | -200° ~ +30° maximum speed 200°/s | |||||
6-axis | -360° ~ +360° maximum speed 450°/s | |||||
Configuration
Extension Accessories
Conveyor Belt Set
Sliding Rail Set
Ai Vision Set
Robotic Arm Vehicle
Education Solutions
Fruit Picking Line
The intelligent fruit picking production line simulates the application of robots in the agricultural field. It can deepen students' understanding of the robot application in agriculture and expand their innovative thinking.
Logistic Warehousing Sorting Line
The logistic warehousing sorting line is a comprehensive system which integrates position sensor, pick and place and cooperatioin between 6-axis robotic arm and 3-axis robotic arm. It focuses on the training of sensor technology, information processing, electronic engineering, computer engineering, automation control engineering and artificial intelligence, representing the advanced integration technology of mechatronics.
AI Automatic Sorting Production Line
Automatic production line is the symbol of modern industry. It can build a small-scale production line with a desktop conveyor belt, which can directly reflect the operation of the industrial production line. The production line can help students understand the basic principles and knowledge of industry 4.0 and intelligent manufacturing. At the same time, building assembly line models in different scenes, can also cultivate students' abilities in innovative design, programming and other aspects.
Automobile Assembly Line
Automobile assembly is a comprehensive system which integrates welding, assembly, behavior control and execution. It focuses on the research results of sensor technology, information processing, electronic engineering, computer engineering, automation control engineering and artificial intelligence, and represents the advanced integration technology of mechatronics.
AI Static Garbage Sorting Production Line
This intelligent production line can help students learn the concept of Industry 4.0 and enhance their environmental awareness. It shows the application of robots in the field of environmental protection. Students can learn programming and garbage classification knowledge through this production line.
Deep Learning Moving Garbage Sorting Line
This deep learning moving garbage sorting production line is based on OpenCV deep learning. It shows the application of robots in the field of environmental protection. Through the visual algorithm learning and training to identify different types of garbage, the sorting of different garbage can be realized through the communication with Mirobot..
Automotive Manufacturing Simulation Production Line
In order to better cater to the concepts of industrial flexible production and to restore the automated production processes such as "handling, assembly, welding, grinding, and warehousing" during the process of intelligent manufacturing automobiles, a complete set of automobile manufacturing production line is formed accordingly. The controlling code can be stored in the multi-function control box through WLkata Studio, which is convenient to modify according to the scene, and provides a safe, open and friendly platform for learning robot programming and the engineering of intelligent manufacturing system controlling .
Education Textbook
Robotics - Planning, Control and Application
(A Manual of Experiments Based On WLKATA Mirobot)
(University textbook)
(A Manual of Experiments Based On WLKATA Mirobot)
(University textbook)
Developing Robot with ROS - based on WLKATA Mirobot (A Manual of Experiments)
(University textbook)
Customer Feedback And Exhibition
ISTELive 22，USA
Edutec 21, Korea
HEEC 2023, China
Q: How to buy rails, conveyors, vision kits as add-ons？
A: Please contact our customer service, and we will provide you the list and price of all the available accessories.
Alternatively, you could also purchase the rail and conveyor directly from our Alibaba store.
Q: How to consult us when has questions during using ?
A: Please follow us on WLKATA website, Facebook and official forum.
Website: www.wlkata.com
Facebook: https://www.facebook.com/mirobotarm/
Q: Is there a MacOS version of WLkata Studio？
A: Yes.Both Windows and MacOS are available. Please download from our official website.
Q: Do you provide invoice?
A: Yes, we can provide digital invoice to customers ordered from our Alibaba store. We will email the invoice to you. Please
contact our customer service, or email us at: wlkata_service@tsinew.com
Q: What is the repair and return policy?
A: Please read the repair and return policy page (under the page's bottom line) at our website: www.wlkata.com
A: Please contact our customer service, and we will provide you the list and price of all the available accessories.
Alternatively, you could also purchase the rail and conveyor directly from our Alibaba store.
Q: How to consult us when has questions during using ?
A: Please follow us on WLKATA website, Facebook and official forum.
Website: www.wlkata.com
Facebook: https://www.facebook.com/mirobotarm/
Q: Is there a MacOS version of WLkata Studio？
A: Yes.Both Windows and MacOS are available. Please download from our official website.
Q: Do you provide invoice?
A: Yes, we can provide digital invoice to customers ordered from our Alibaba store. We will email the invoice to you. Please
contact our customer service, or email us at: wlkata_service@tsinew.com
Q: What is the repair and return policy?
A: Please read the repair and return policy page (under the page's bottom line) at our website: www.wlkata.com
