Product Overview
Forced circulation evaporation evaporator / crystallizer
The forced circulation evaporator, also known as FC evaporator, is that the materials are transported to the tubular heater through a large flow circulating pump. After heating, the materials enter the separator for evaporation and separation. The non evaporated liquid material is transported by the circulating pump to the heater for heating and evaporation again, forming a process of repeated circulation evaporation. It is suitable for the treatment of materials with scaling, crystallinity, heat sensitivity (low temperature), high concentration, high viscosity and insoluble solids with particles. It is an ideal equipment for concentration of heat sensitive materials such as fruit pulp (tomato paste), inorganic salts (ammonium sulfate, sodium sulfate, sodium chloride, etc.), malt and essence, starch pulp, sugar, oligosaccharide, inositol, protein peptide and other heat sensitive materials. It is widely used in evaporation and concentration of aqueous or organic phase solution in food, medicine, chemical industry, environmental protection and other industries.
FEATURES AT A GLANCE
The whole set of equipment is mainly composed of heater, separator, circulating pipe, vapor-liquid separator, surface condenser, vacuum pump, feed pump, discharge pump, forced circulation pump, condensate pump, electric control box, workbench and all pipelines, valves and instruments.
Structure diagram of mould
machine show
Front elevation
PRODUCT SPECIFICATIONS
Model | VOFC-01 | VOFC-02 | VOFC-03 | VOFC-04 | ||||
Water Evaporation capacity（t/h） | 0.1-2 | 0.5-10 | 2-20 | 5-50 | ||||
Input concentration | we will design according to different kinds of raw material | |||||||
（Mpa） Steam pressure | 0.4-0.8 | |||||||
Steam consumption capacity （with heat pressure pump） | 0.65 | 0.38 | 0.28 | 0.18 | ||||
（Mpa） Maximum Vacuum | -（0.030～0.090） | |||||||
Evaporation temperature | 45-90 | |||||||
Cooling water cost/Evaporation capacity | 2-40 | 7.5-150 | 25-250 | 50-500 | ||||
Note：We can design and manufacture according to customer’s special requirement. | ||||||||
PRODUCT CONFIGURATION
Shanghai waste water treatment

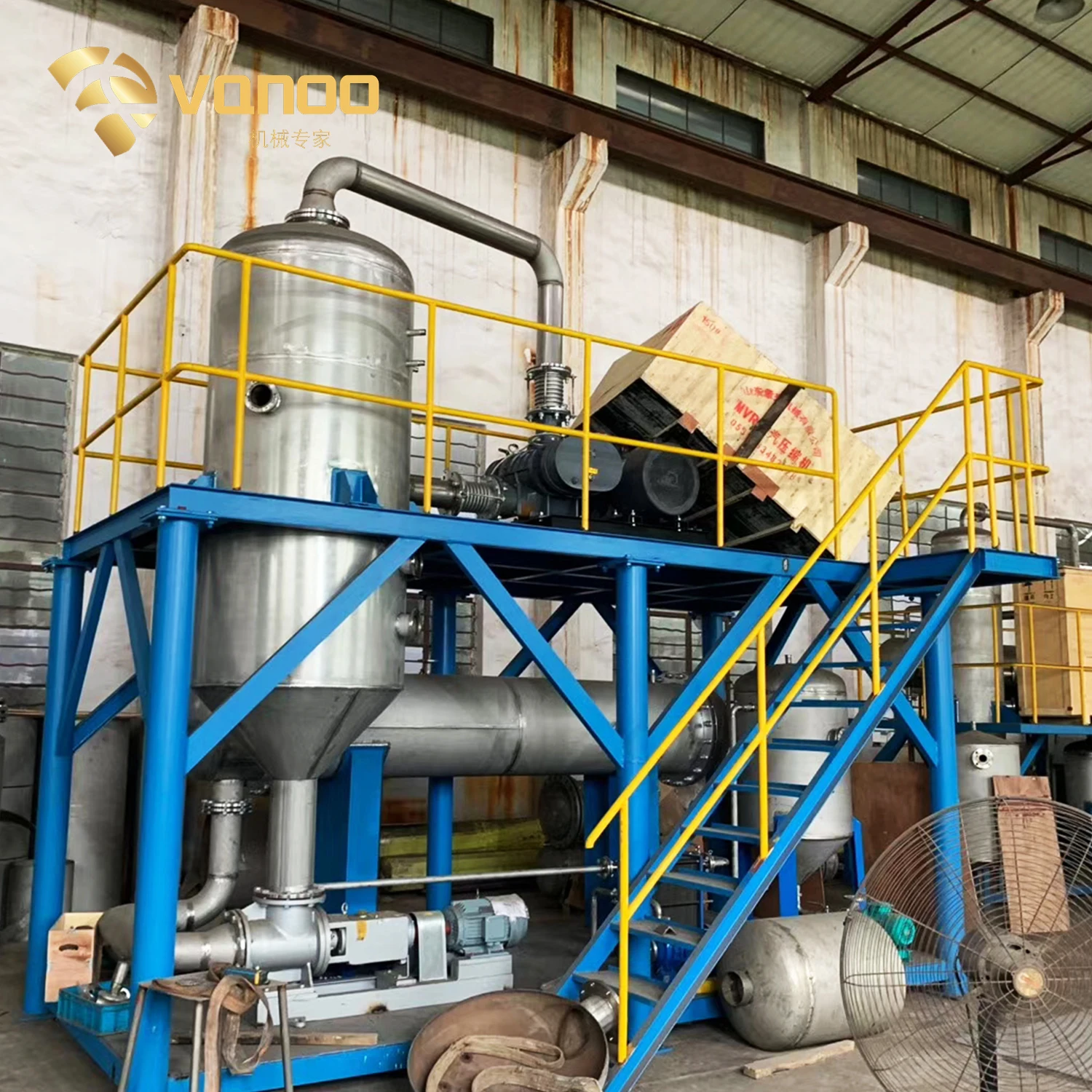

Machine show
Shanghai clients factory
SALES AND SERVICE NETWORK

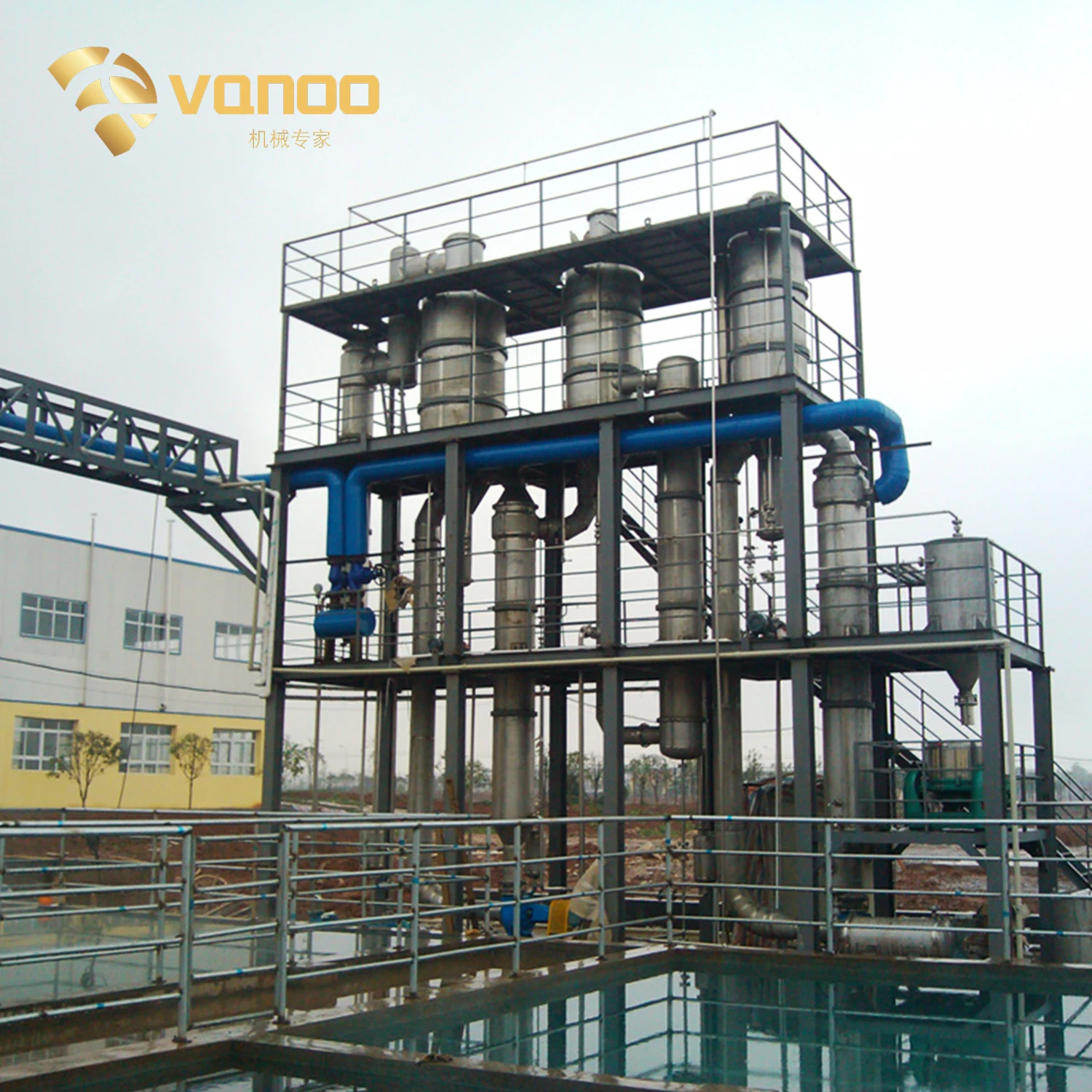

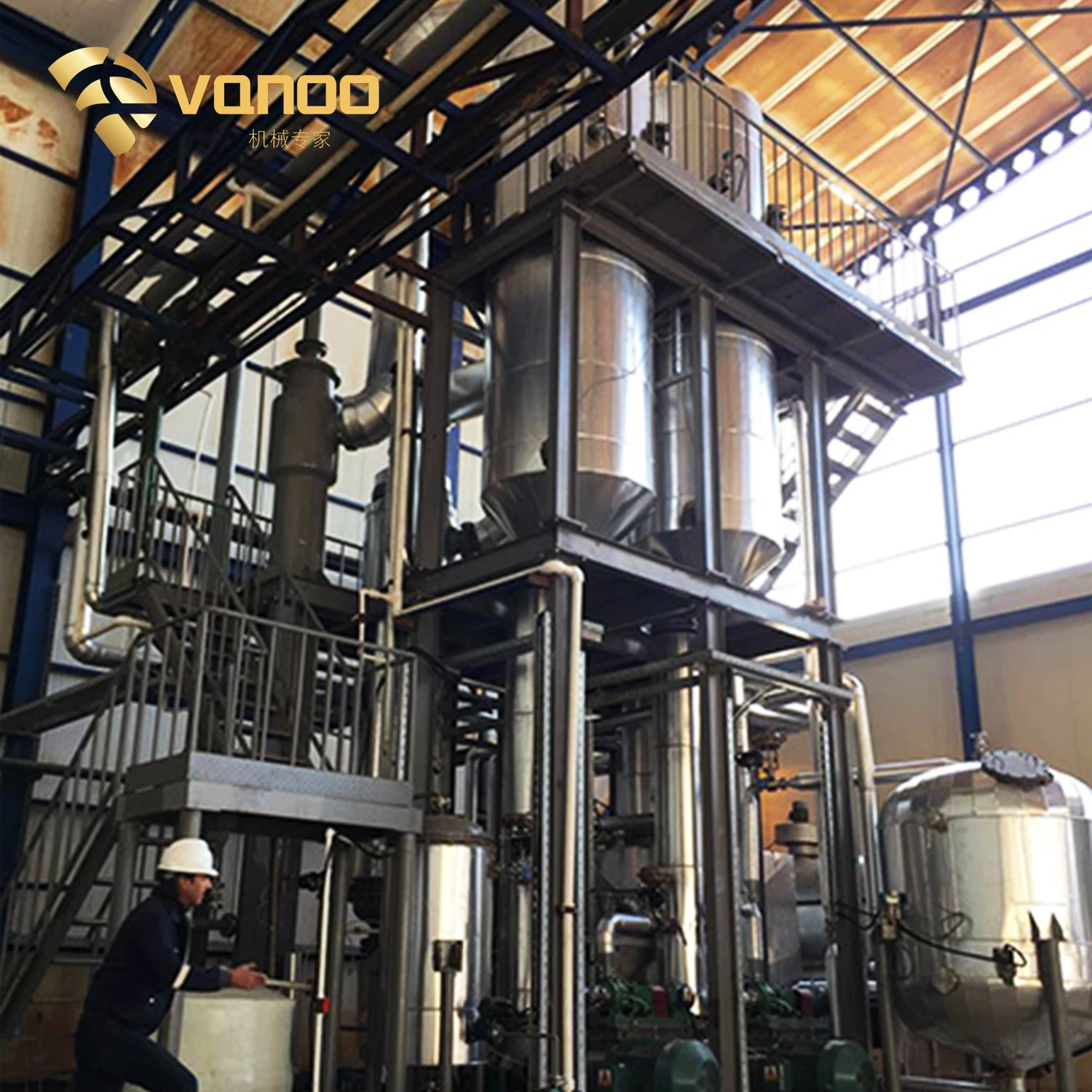

Successful Project
Project in Thailand
Project in Shanghai
Project in Russia
