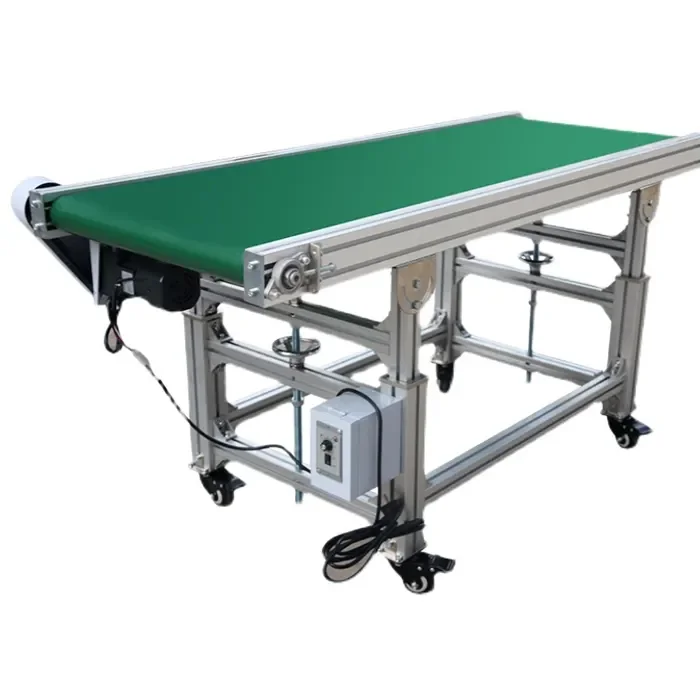

Ленточный конвейер, конвейер, двигатель в сборе, мотоциклы, 2 метра, конвейер, ленточный конвейер, упаковочные машины для производства
450,00 $ - 750,00 $

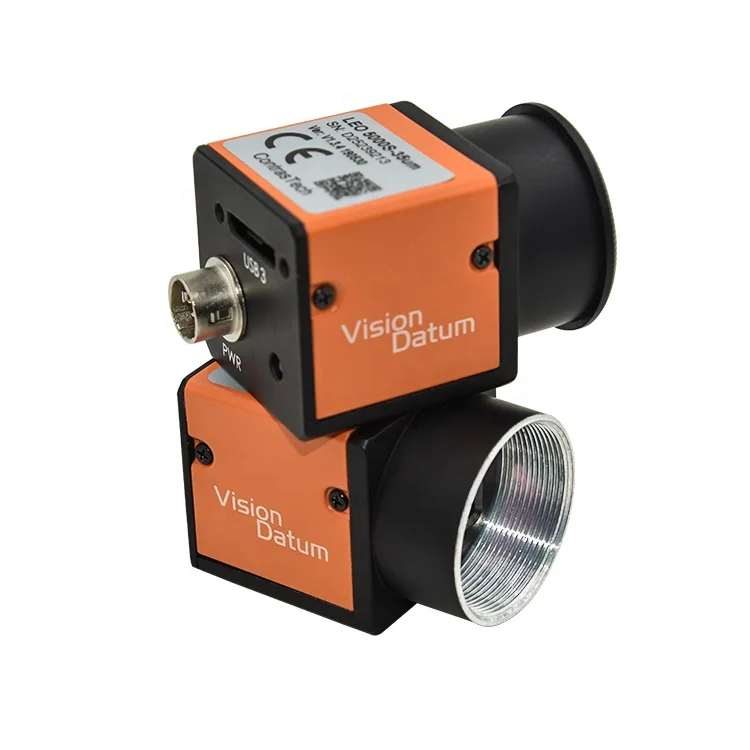

LEO 640P 815um совместимый с OpenCV 640x480 Global Shutter USB 3 0 модуль камеры Высокоскоростная камера медленного движения
- Категория: >>>
- Поставщик: Hangzhou Contrastech Co. Ltd.
Сохранить в закладки 1600149826497:
Описание и отзывы
Характеристики
Brief Introduction

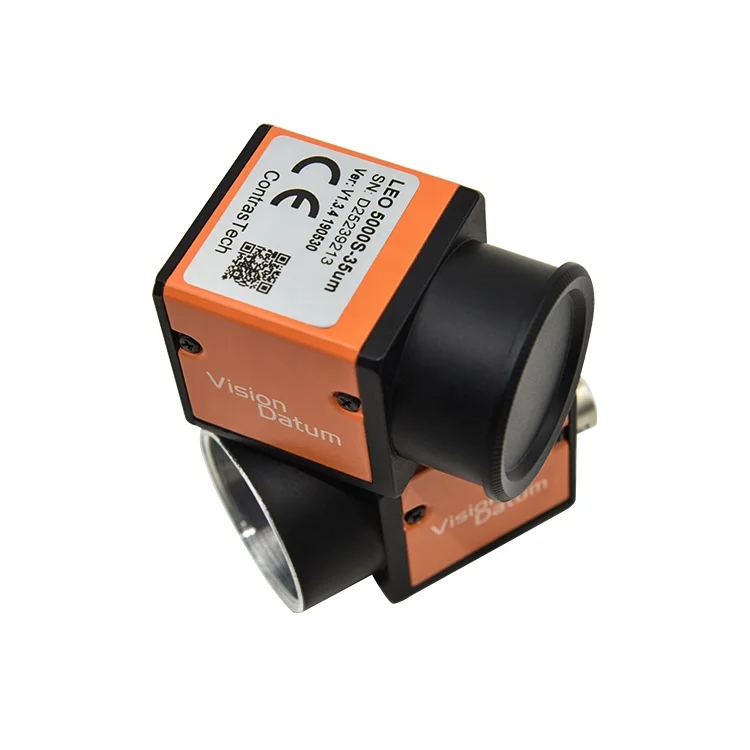

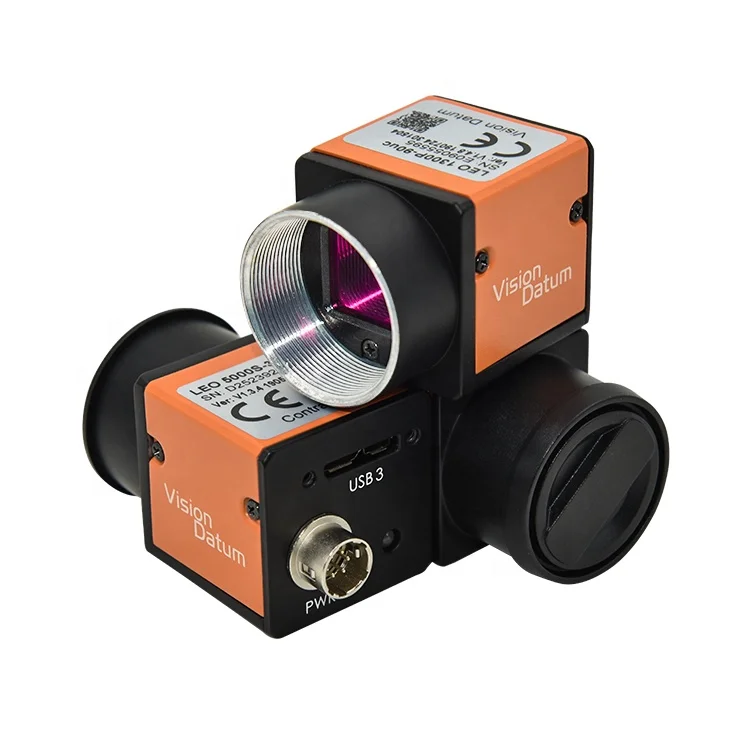

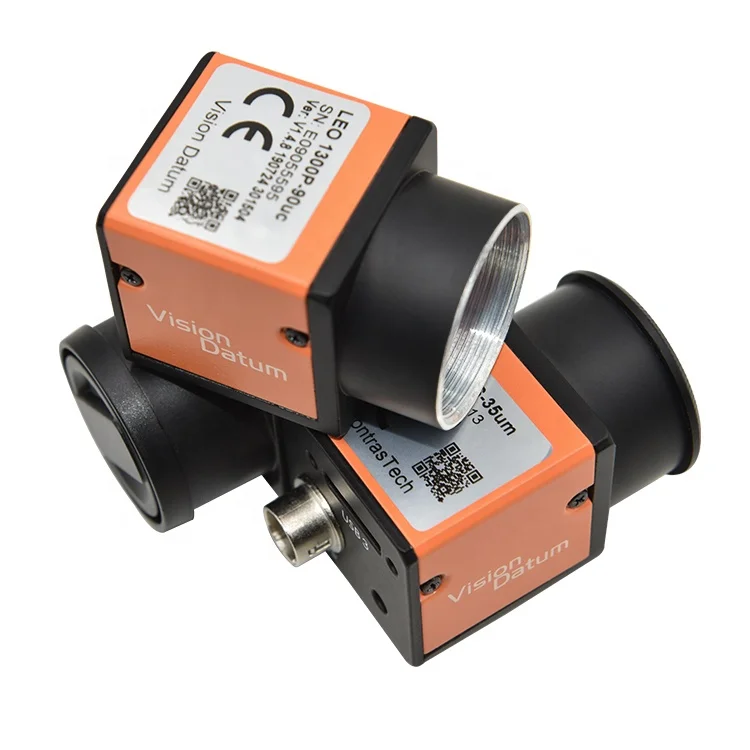

Contrastech LEO Series Area Scan Camera
LEO series area scan cameras, equipped with the advanced high-end image sensor
and it resolution from 0.3MP to 20MP.
Furthermore this series camera with different data interface——the GigE interface
with 100m transmission distance and the USB 3.0 interface supports plug and play.
The camera with The fully GenICam compliant SDK package, iDatum, allows the
vision system to be more flexible.
Product Main Features:
Resolution from VGA to 20MP.
2. High Quality Sensors.
Lastest Python sensor from On-Semiconductor and SONY Pregius CMOS sensors provide high quality images.
3.Frame Rate up to 815fps .
High frame rate ideal for high speed applications.
5.One-cable Solutions
Gigabit Ethernet with PoE, USB 3.0.
High frame rate ideal for high speed applications.
4.128MB RAM.
Internal memory up to 128MB guarantees no image loss.
Internal memory up to 128MB guarantees no image loss.
5.One-cable Solutions
Gigabit Ethernet with PoE, USB 3.0.
Product Specifications
Model Name | LEO640P-815UM |
Sensor Size | 1/4'' |
Resolution (H*V pixels) | 640*480 |
Pixel Size (μm2) | 4.8*4.8 |
Frame Rate | 815fps |
Exposure Time | 42µs~10s |
Mono/Color | Mono/Color |
Image Foramt | Mono: Mono8/10/10p/12/12p Color: Bayer RG 8/10/10p/12/12p |
Operating Temperature | -30~80°C (Storage) 0~50°C (Working) |
Camera Dimension Drawing:
29.0 mm × 29.0 mm × 30.0 mm
Camera Interface Instruction
Applications & Cases
Major Applications:
Our camera are widely
used in the following fields:
VR/AR;
Defect Inspection;
Vision Localization;
Barcode Reading;
Logistic Industry;
Dimension Measurement;
SMT(Surface Mounted Technology).
Cases Exhibition
Case1: Penhead Defect Detection
Case2: Cap Spray-code Detection
More Model List
LEO Series USB3.0 Area Scan Cameras | ||||||||
1. Please click the specific model name for more details. 2. um: USB3.0 Mono, uc: USB3.0 Color, NIR: Near Infrared. 1/4": 1/4 inch. | ||||||||
Model Name | Resolution (H*V pixels) | Frame Rate (fps) | Sensor Size (inch) | Pixel Size (μm2) | ||||
640*480 | 845 | 1/4 | 4.8*4.8 | |||||
720*540 | 520 | 1/2.9 | 6.9*6.9 | |||||
1280*960 | 30 | 1/3 | 3.75*3.75 | |||||
1280*1024 | 150 | 1/2.7 | 4.0*4.0 | |||||
1280*1024 | 170 | 1/2 | 4.8*4.8 | |||||
1280*1024 | 90 | 1/2 | 4.8*4.8 | |||||
1440*1080 | 166 | 1/2.9 | 3.45*3.45 | |||||
1920*1200 | 40 | 1/1.2 | 5.86*5.86 | |||||
2448*2048 | 35 | 2/3 | 3.45*3.45 | |||||
2592*1944 | 30 | 1/2.5 | 2.2*2.2 | |||||
2592*2048 | 30 | 1 | 4.8*4.8 | |||||
2592*2048 | 30 | 1 | 4.8*4.8 | |||||
3072*2048 | 43 | 1/1.8 | 2.4*2.4 | |||||
5472*3468 | 14 | 1 | 2.4*2.4 | |||||
4096*2160 | 32 | 1 | 3.45*3.45 | |||||
4096*3000 | 23 | 1.1 | 3.45*3.45 | |||||
4096*3072 | 30 | 1 | 3.2*3.2 | |||||
Product Accessories Recommended
Related Products
You May Need The Following Products !
Company Profile
Hangzhou Contrastech Co.,Ltd.
As one high-tech enterprise Hangzhou Contrastech Co., Ltd. specializes in providing professional machine vision software, hardware and equipments. Contrastech has been researching and developing machine vision applications, and the major products include industrial camera, scientific standard camera, high definition frame grabber card, industrial FA lens, telecentric lens, machine vision lights and image processing software. The Engineering Dept. of Contrastech has lots of mature and successful machine vision solutions based on automatic industrial inspection, high precision measuring and module distinguishing.
Our Service
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our website: https://contrastech.en.alibaba.com/
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
5. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T, L/C, MoneyGram and Western Union.
7.Shipping
We have strong cooperation with FedEX, DHL, UPS, TNT and ARAMEX.
You also can choose your own shipping forwarder.
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
5. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
6. Payment:
You can pay for the order via:T/T, L/C, MoneyGram and Western Union.
7.Shipping
We have strong cooperation with FedEX, DHL, UPS, TNT and ARAMEX.
You also can choose your own shipping forwarder.
Похожие товары

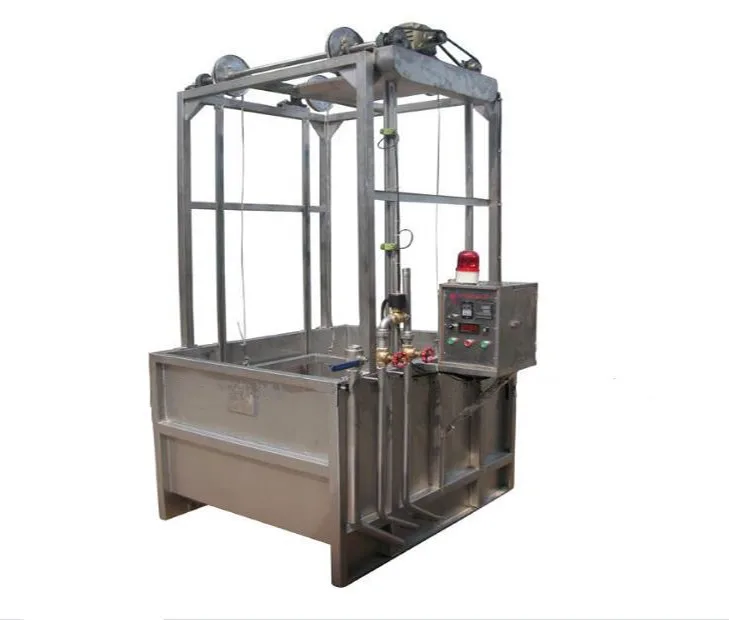

Промышленная машина для окрашивания ткани/одежды, машина для окрашивания волоконной пряжи

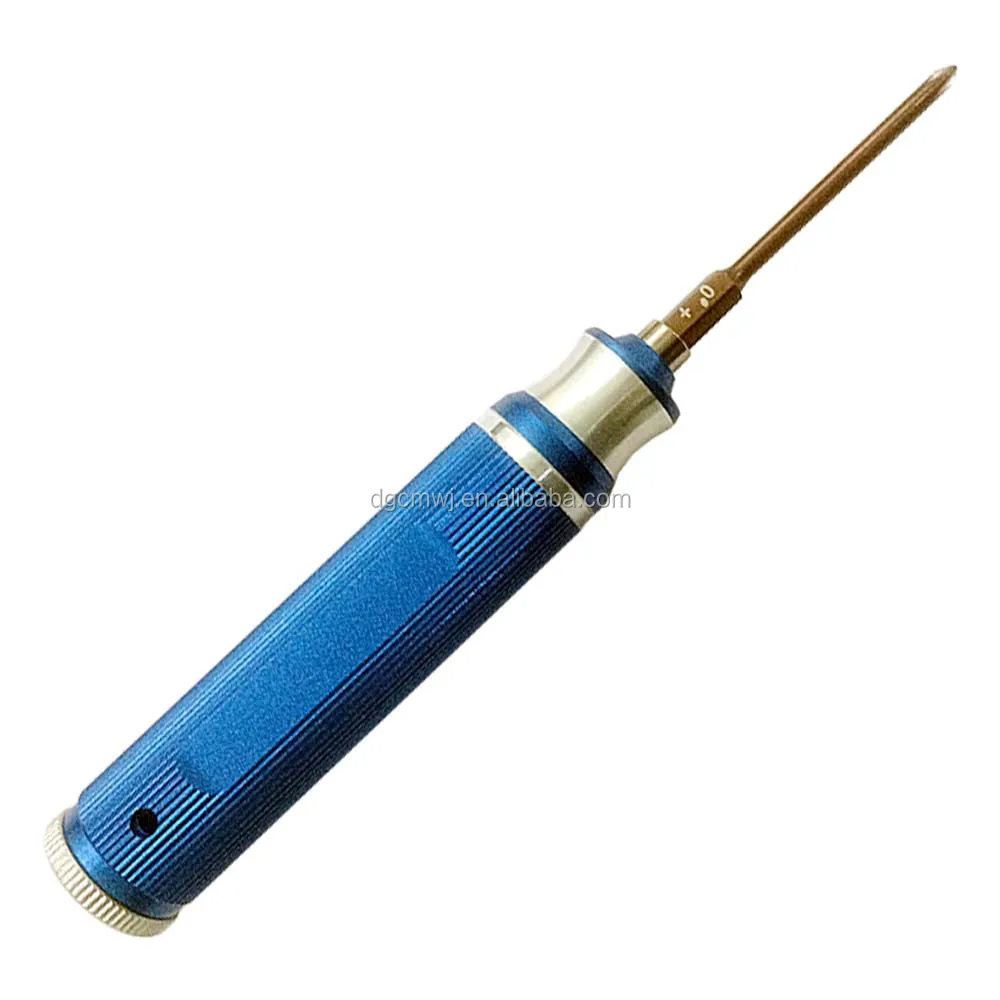

Набор инструментов для ремонта дронов DJI Phantom 3 и 4 6 в 1
4,00 $ - 5,00 $
Кас 154-86-9 DL-PHENYLEPHRINE гидрохлорид Горячая продажа чистоты
0,50 $ - 1,00 $
Оригинальный линейный направляющий блок TBI TRH20VN H20VN линейный направляющий подшипник
Воздуха Сушилка для Acticarbon/Активированный уголь/Производитель Активированным Углем/Активный Charcoa Производственной Линии
Мужской Джинсовый комплект из двух
13,00 $ - 14,50 $

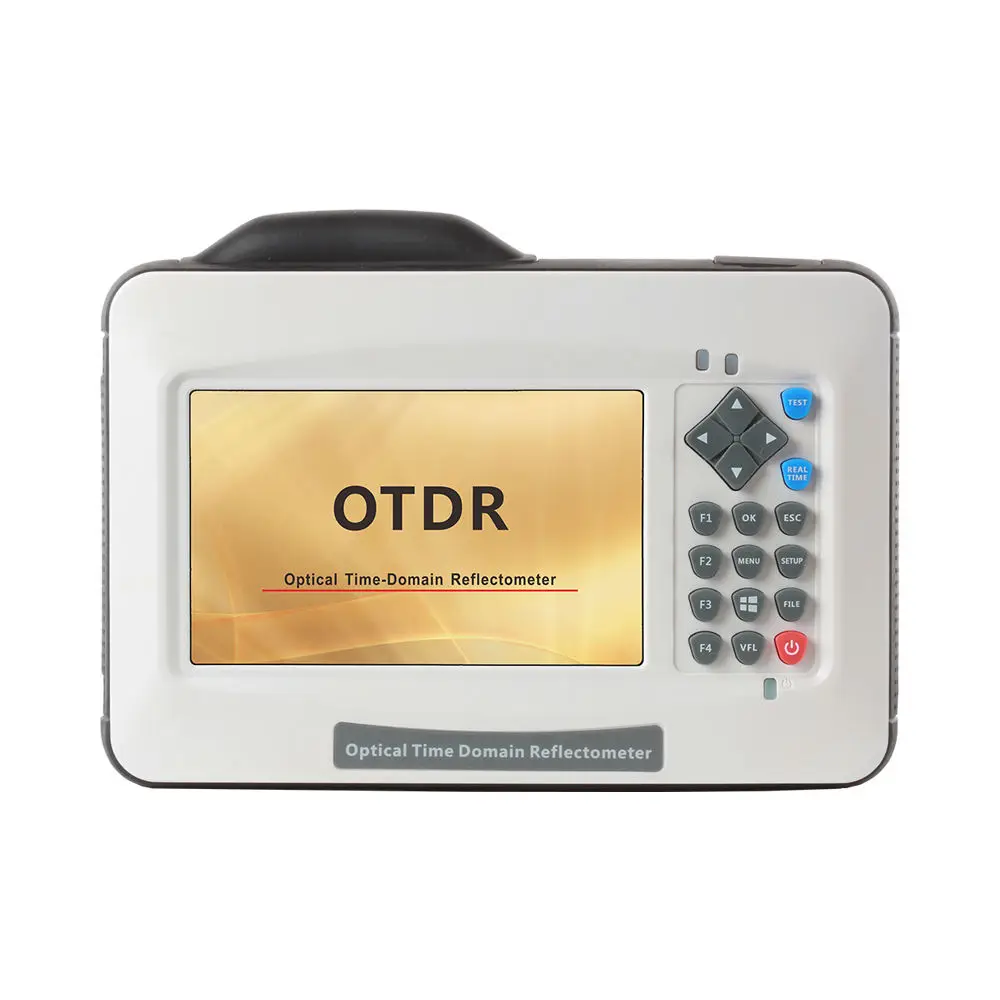

Мульти-функциональный OTDR 1310/1550nm 32/30dB с синхронная передача данных, устройство локального контроля, переходники 11 в 1 OTDR волоконно-оптические измерительные инструменты для FTTX тестирования с одним Ke
