Линия по производству концентратов лимона пюре напитков сушеных лимонов
- Категория: >>>
- Поставщик: Shanghai Chase Industrial Co. Ltd.
Сохранить в закладки 1600150177554:
Описание и отзывы
Характеристики
Product Overview
Lemon Juice Puree Beverage Dried Lemon Concentrate Making Production Processing Line
Shanghai Chase Machinery designs and manufactures citrus processing equipment for the production of high quality fresh juice, as well as NFC pasteurized juice, and essential oil. We can supply complete turnkey citrus processing plants line as well as single machines to meet specific requirements.
We design, manufacture and supply complete Lemon Fruit Dried Lemon Processing Line including:
We design, manufacture and supply complete Lemon Fruit Dried Lemon Processing Line including:
– Receiving, Washing and Sorting System
– Extraction and Refining System
– Essential Oil Extraction System
– Falling Film Evaporator System
– UHT Sterilizing and Aseptic Filling System
– Extraction and Refining System
– Essential Oil Extraction System
– Falling Film Evaporator System
– UHT Sterilizing and Aseptic Filling System
Main Features of Orange Lemon Juice Processing Machine:
1. Customization: 20 Tons/D - 100 Tons/D available.
2. Low temperature evaporation resulting improved quality of products.
3. Energy-saving design, low energy consumption, environmental protection.
4. All accessories from world famous brand, high stability and low failure rate.
2. Low temperature evaporation resulting improved quality of products.
3. Energy-saving design, low energy consumption, environmental protection.
4. All accessories from world famous brand, high stability and low failure rate.
Production Process
Lemon Orange Fruit Processing Plant

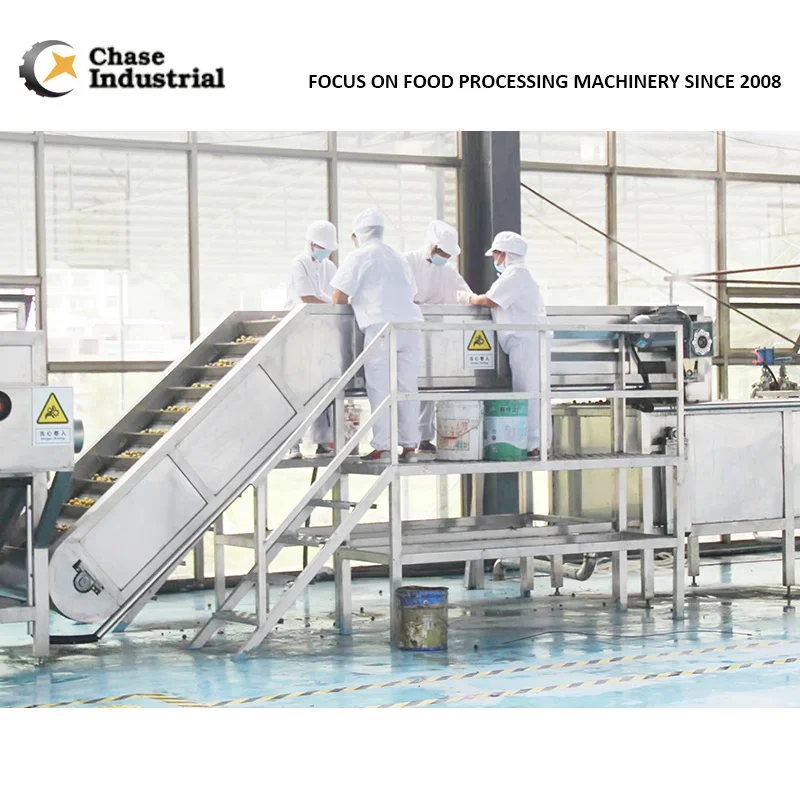

Lemon Washing Sorting Line

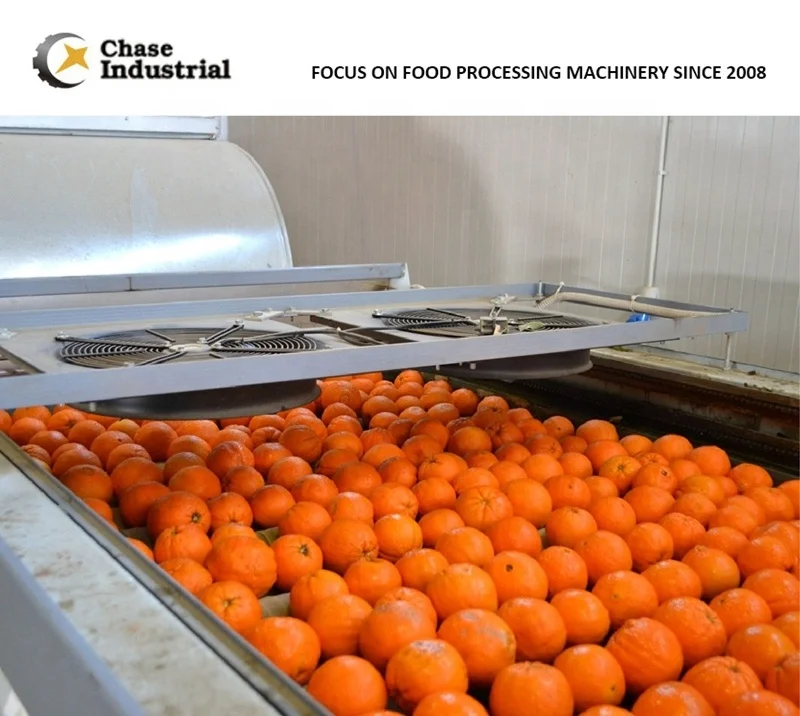

Washing and Sorting
1. Citrus fruits are received in the bubble washing machine where, by immersion in the water and thanks to a bubble generating system, the surface of the fruits is washed. Fruits are then rinsed by a shower of fresh water on the elevator that takes the fruits to the Sorting Operations.
2. Waste and sand sink to the bottom and are discharged by our special design. The surface of citrus are cleaned by rolling brushed,meanwhile the citrus are transported forwards by rotation of brushes slowly.
3. In order to guarantee the best quality of the final products, rotten and unripe fruits must be discarded. Chase universal sorting line allows to efficiently inspect the fruits, by making them slowly rotate on a roller belt conveyor under the sight of the operators.
4. The machine is equipped with waste conveying system, sending the waste directly to the right place.
2. Waste and sand sink to the bottom and are discharged by our special design. The surface of citrus are cleaned by rolling brushed,meanwhile the citrus are transported forwards by rotation of brushes slowly.
3. In order to guarantee the best quality of the final products, rotten and unripe fruits must be discarded. Chase universal sorting line allows to efficiently inspect the fruits, by making them slowly rotate on a roller belt conveyor under the sight of the operators.
4. The machine is equipped with waste conveying system, sending the waste directly to the right place.
Lemon Juice Extraction Machine
Citrus Essential Oil Extraction Machine
Juice Extraction and Essential Oil Extraction
1. The extractor that is most preferred for the production of high quality juice is. In order to minimize any contact between pulp and peels, this machine presses each fruit individually between two cups, squeezing the pulp out of a small hole pierced on its bottom side. The same machine refines the pulp coming from the fruits in order to remove seeds and reduce its high fiber content. is capable of processing up to 15.000 fruits per hour and it is suitable for oranges, grapefruits, tangerines, lemons and almost any kind of citrus.
2. For the extraction of essential oils from whole citrus fruits, Chase has designed rotating machine, which scrapes the peel by rotating rollers. Designed in several versions for different hourly capacities, allows to optimize the oil extraction cycles by varying the fruit advancing speed, as well as the rollers rotation speed.
2. For the extraction of essential oils from whole citrus fruits, Chase has designed rotating machine, which scrapes the peel by rotating rollers. Designed in several versions for different hourly capacities, allows to optimize the oil extraction cycles by varying the fruit advancing speed, as well as the rollers rotation speed.
Lemon Juice Enzymolysis System
Lemon Juice Ultrafiltration
Falling Film Evaporator
1. Evaporation and concentration under vacuum and low temperature conditions has high evaporation capacity, low energy consumption, low operating costs, and can maintain the original color, aroma, taste and effective ingredients of the material to a large extent.
2. This system heating is uniformly heated by steam, and the material liquid is liquid film flow evaporation, so it has high heat transfer efficiency and short heating time.
2. This system heating is uniformly heated by steam, and the material liquid is liquid film flow evaporation, so it has high heat transfer efficiency and short heating time.
Lemon Juice UHT Mahine

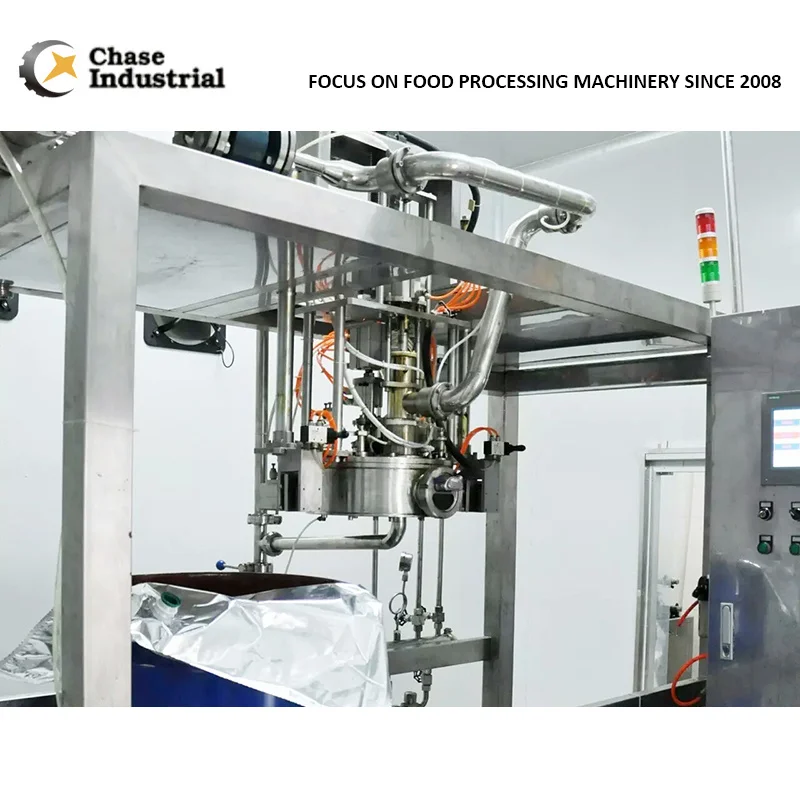

Lemon Juice Filling Packaging Line
Sterilizing and Aseptic Filling
1. The citrus fruit juice concentrated, can be sterilized or pasteurized depending by the specific request of the application, by a tubular heat exchanger.
2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).
2. In case of sterilization, the product can be filled in aseptic bag in drums or in box thanks to Aseptic Filling Machine (aseptic carton box, aseptic pouches...), while can be filled in durms or in any type of hot or cold filling machine (glass, PET, Can and BIB).
Lemon Juice Puree Beverage Dried Lemon Concentrate Making Production Processing Line | ||||||||||||||||
Processing Capacity (Fresh Fruit) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
Water Consumption (t/h) | 7 | 13 | 22 | 44 | 66 | 88 | 110 | 132 | ||||||||
Power (kw) | 84 | 152 | 412 | 636 | 955 | 1292 | 1411 | 1558 | ||||||||
Steam Consumption (t/h) | 1.7 | 3.9 | 5.2 | 9.1 | 15.1 | 20.2 | 24.6 | 29.2 | ||||||||
Compressed Air Consumption (t/h) | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | 66.2 | ||||||||
Cooling Water Consumption (t/h) | 125 | 317 | 407 | 585 | 825 | 1075 | 1410 | 1630 | ||||||||
Company Profile
Shanghai Chase Industrial Co., Ltd | Kunshan Sundelong Machinery Equipment Co., Ltd.
Our factory was established in 2008 and is a professional manufacturer of fruit and vegetable processing equipment with nearly 15 years of experience. We focusing on the design and production of food crushing, destoning, pulping, sterilizing, asseptic filling equipment and a full set of solutions, and provide clients with customized
consultation, design, manufacturing, after-sales service and one-stop turnkey project. We have provided fruit and vegetable processing equipment for many branded companies and foreign trade companies, and have won high praise and long-term cooperation from customers.
consultation, design, manufacturing, after-sales service and one-stop turnkey project. We have provided fruit and vegetable processing equipment for many branded companies and foreign trade companies, and have won high praise and long-term cooperation from customers.
Until 2016, our factory Kunshan Sundelong Machinery Equipment Co., Ltd established its own brand: Shanghai Chase Industrial Co., Ltd, and began to promote the equipment we produced to the world as a brand. In recent years, we have obtained more than 40 patented technologies and qualification certificates, and the scale of the company has continued to expand.
In 2020, we expanded our business to food processing equipment, upgraded fruit and vegetable processing equipment and applied it to the processing of different types of food.
I believe that with our sincere communication, professional services and stable equipment, we and you can become long-term partners and move forward together.
Our Team
Our CEO graduated from a world-renowned university with an MBA degree. Our managers and engineers are industry practitioners for more than 10 years and have rich experience.
Our sales staff have good professional knowledge and service awareness, and will fully communicate with customers and provide professional advice
Most of our technicians are experienced practitioners in the industry, and the team leader is a company practitioner who has more than 5 years of experience.
Customers | Exhibitions | Cases
WELCOME TO VISIT US
Our Office is in Shanghai, China
Our self-owned factory is located in Kunshan, Jiangsu Province
30 minutes from Shanghai Hongqiao Airport (SHA)
1.5 hours from Shanghai Pudong Airport (PVG)
200+ PROJECTS GLOBALLY
EXPORTED TO 30+ COUNTRIES
Certifications | Suppliers
40+ PATENTS ACQUIRED
CE CERTIFICATES ACQUIRED
IOS9001 ACQUIRED
GOOD ACCESSORIES PROMISE GOOD QUALITY
WHEN PURCHASING ACCESSORIES
WE ONLY COOPERATED WITH FACTORY OR 1-CLASS AGENTS DIRECTLY
Transport | Installation | Payment
1. Package?
Under normal circumstances, the unit equipment is packed in wooden boxes by LCL sea, and the whole line is directly packed in containers and carried by FCL sea. If you have special requirements, you can let us know.
2. how can we guarantee quality?
We provide remote factory inspection, on-site factory inspection, factory acceptance check, one-year free after-sales service and lifetime after-sales service.
3. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French
Under normal circumstances, the unit equipment is packed in wooden boxes by LCL sea, and the whole line is directly packed in containers and carried by FCL sea. If you have special requirements, you can let us know.
2. how can we guarantee quality?
We provide remote factory inspection, on-site factory inspection, factory acceptance check, one-year free after-sales service and lifetime after-sales service.
3. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,French
