Самая популярная полностью автоматическая линия по переработке картофельных чипсов 500 кг/ч оборудование для жарки палочек
2 424 584,80 ₽ - 3 306 252,00 ₽
Машина для производства хлопьев и картофельных чипсов линия по производству сухой сыпи Yam 500 кг 1000 кг/ч тапиока сладкие закуски
- Категория: >>>
- Поставщик: Zhucheng Lijie Food Machinery Co. Ltd.
Сохранить в закладки 1600151730869:
Описание и отзывы
Характеристики
Product Description
100-1000kg/h Fully Automatic Steam heated Potato flakes Line

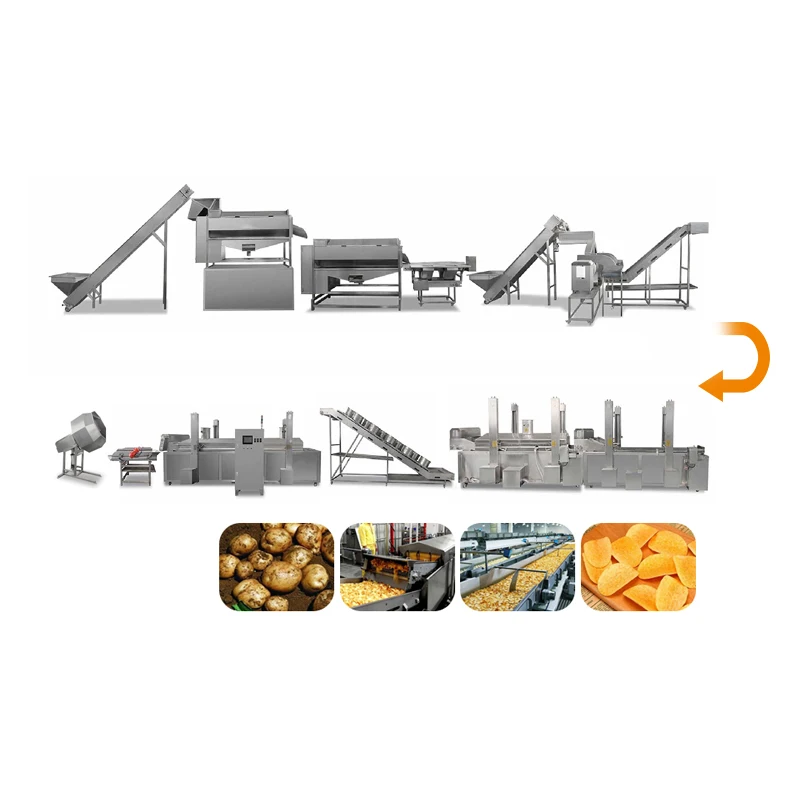

Potato flakes processing flow: Lifting machine——Steam peeling machine——Picking line——Cutting machine——blanching line—— ——Screw cooking machine——Cooling machine——Potato paste machine——Drum drying machine——Grinding machine——automatic packing machine—Finished product..
we can customize potato chips line with different production capacity, different heating methods according to your requirements, and provide complete solution and turnkey project.

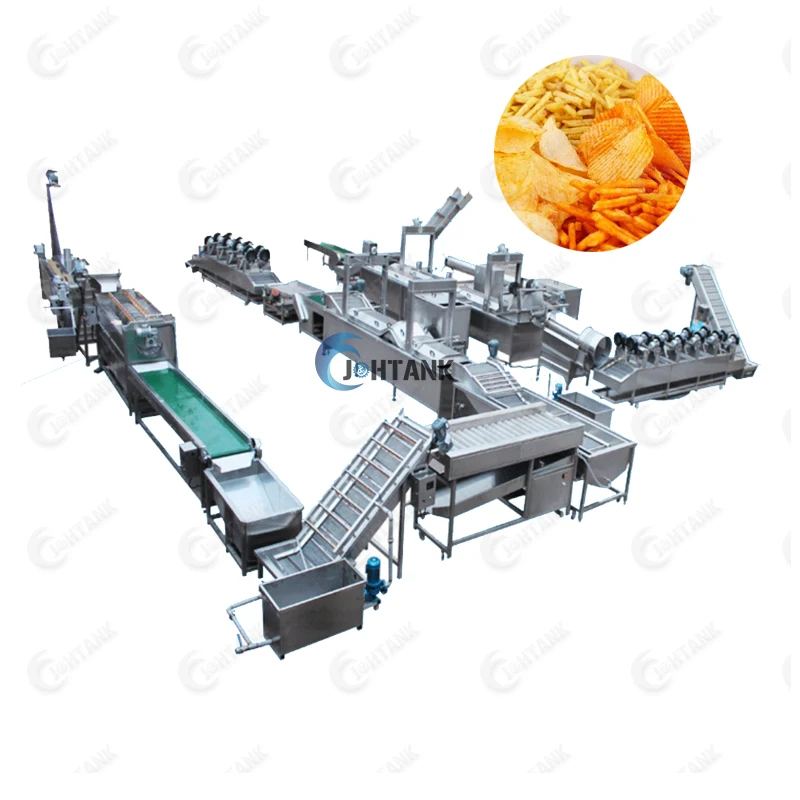

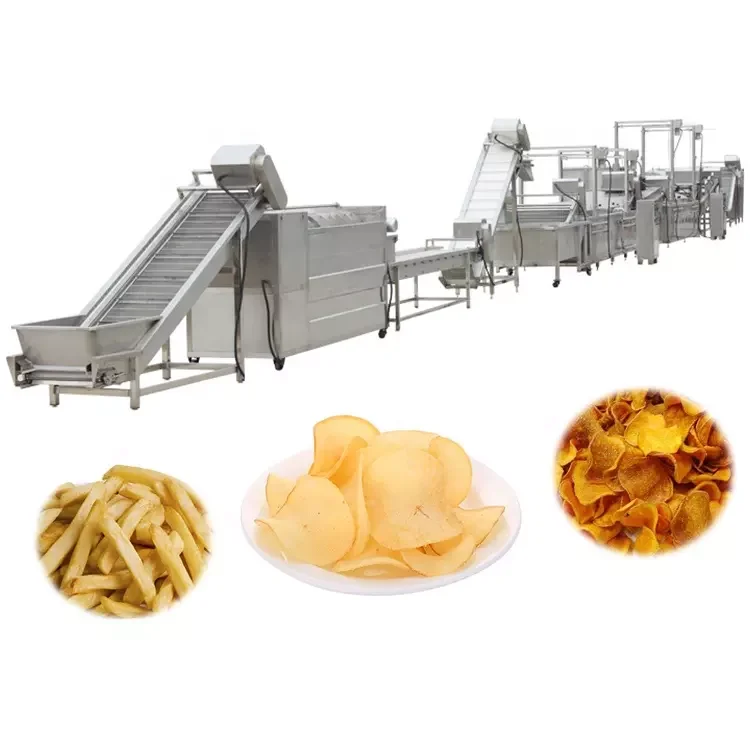

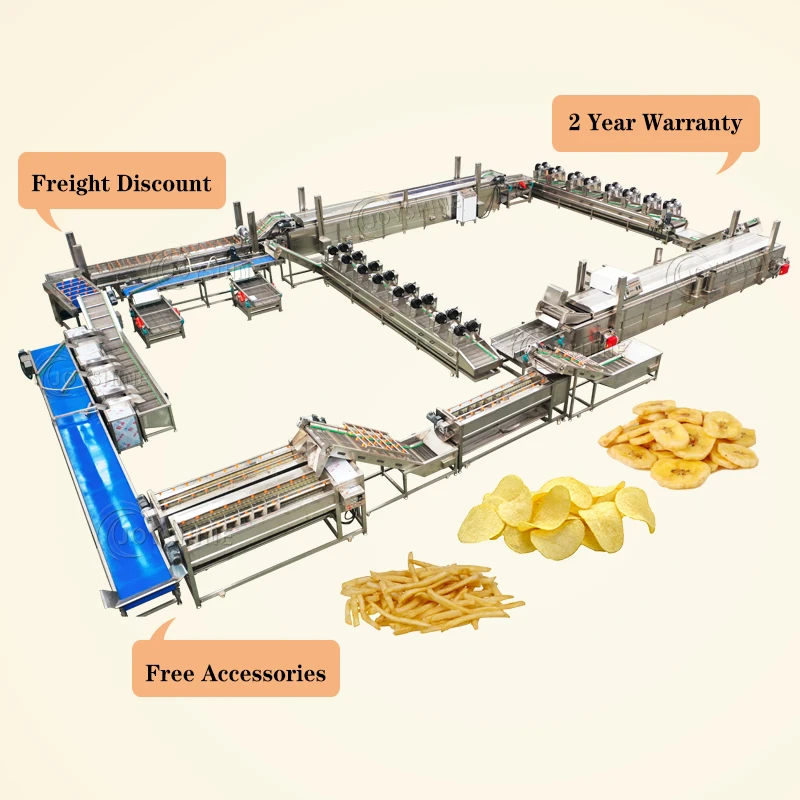

General introduction of whole chip line
1. Raw materials needed : potato3000kg/h
2. Final product: potato flakes500kg/h.
3. Workshop area: approx. 60m (L)*10m (W)
4. Total power: 50kw/380v/50hz,3phase industrial voltage, can be customized according to your local industrial voltage.
5. Water consumption: approx.2-3t/h;
6. Steam consumption: approx. 1000 kg/h;
7. Steam consumption: approx. or 4T~6T/h
2. Final product: potato flakes500kg/h.
3. Workshop area: approx. 60m (L)*10m (W)
4. Total power: 50kw/380v/50hz,3phase industrial voltage, can be customized according to your local industrial voltage.
5. Water consumption: approx.2-3t/h;
6. Steam consumption: approx. 1000 kg/h;
7. Steam consumption: approx. or 4T~6T/h
8.The main componens brand can be customized.such as Electrical control system or PLC can be Schneider brand or motors can be choosen Siemens or SEW brand. Pumps can be customized CNP brand.it will be need extra cost.
Specification
No. | Description of Machine | Dimension (mm) | QTY (set) | Price(USD) for reference |
1 | Feeding machine | 2500*800*1300mm | 1 | $1780 |
2 | Drum washing machine | 3000*760*1650mm | 1~2 | $7800 |
3 | Steam peeling machine | 6000*600*750mm | 1 | $150000 |
4 | Picking line | 4000*800*135mm | 1 | $3000 |
5 | Elevator | 3000*560*900mm | 1 | $5200 |
6 | Cutting machine | 1500*800*1300mm | 1 | $11000 |
7 | Screw Rinsing machine | 4000*1200*900mm | 1 | $36000 |
8 | Screw Blanching machine | 5000*1200*1850mm | 1 | $45000 |
9 | Screw Cooling machine | 5000*1200*1850mm | 1 | $40000 |
10 | Cooking machine | 5000*1200*1450mm | 1 | $8200 |
11 | Potato paste machine | 2000*600*1600mm | 1 | $6200 |
12 | Hot air Drum drying machine | 5000*1200*1150mm | 1 | $120000 |
13 | Grinding machine | 6000*1200*1150mm | 1 | $8200 |
14 | Automatic weighing packing machine | 4000*2500*3800mm | 1 | $14500 |
15 | Finished product conveyor | customized | 1 | / |
Total price(FOB) USD | 15 | $150000~1200000 |
Details Images
1.Feeding machine
(1) use: It can separate the stones and sand from the potatoes and lift the potato into peeling machine.
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 2500*600*1500mm
Power: 0.75KW/380v/50Hz
Mesh belt width: 600 mm
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 2500*600*1500mm
Power: 0.75KW/380v/50Hz
Mesh belt width: 600 mm
Frame: 50*50*2mm rectangle stainless steel square tube
1.Drum washing machine
(1) use: It can wash off the stones and sand from the potatoes
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 3000*800*1500mm
Power: 3.75KW/380v/50Hz
Drum width: 750 mm
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: SUS 304, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
Size: 3000*800*1500mm
Power: 3.75KW/380v/50Hz
Drum width: 750 mm
Frame: 50*50*2mm rectangle stainless steel square tube
3.Steam peeling machine
(1.Function: It can automatically peeling the potato with high pressure steam .2.Features: it is suitable for potato processing plant because of its large output, good peeling effect, low consumption rate of
steam and stable and reliable equipment.
3.Parameter:
1. Processing capacity: 3tons/h ;
2. Material is SUS304;
3. Control system;
PLC touch screen control, steam pressure can be adjustable;
4.weigh system
With accurate weighing system, can adjust inlet material quantity according to requirement with easy operation;
4.Rinsing machine
(1) use: rinse the potatoes after slicing and remove the starch on the surface
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions: 6000*1200*900mm
Conveyor belt width:1000mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw /380v/ 50Hz
Water pump power: 3kw
Capacity: 1000-1500kg/h
Frame: 50*50*2mm rectangle stainless steel square tube
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions: 6000*1200*900mm
Conveyor belt width:1000mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw /380v/ 50Hz
Water pump power: 3kw
Capacity: 1000-1500kg/h
Frame: 50*50*2mm rectangle stainless steel square tube

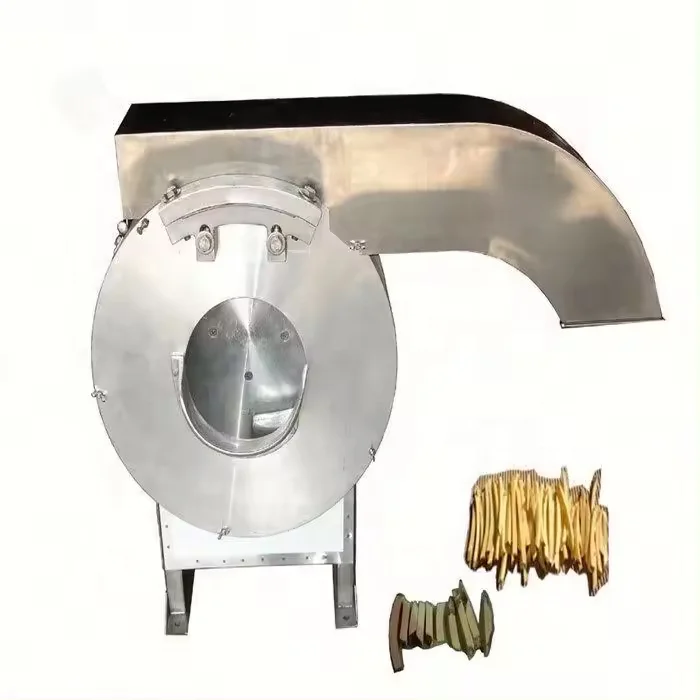

5.Slicing machine
(1) use: after cleaning the peeled potatoes ,cut potato into chips .
(2) features: US Technology, blade durable, smooth operation. large capacity, good cutting effect.
(3) technical parameters:
Dimensions: 1100*660*900mm
Power: 1.5kw /380v/ 50Hz
Cutting thickness:8-15mm
capacity: 1200kg/h
(4) material disposition
Frame material: 304SUS
(2) features: US Technology, blade durable, smooth operation. large capacity, good cutting effect.
(3) technical parameters:
Dimensions: 1100*660*900mm
Power: 1.5kw /380v/ 50Hz
Cutting thickness:8-15mm
capacity: 1200kg/h
(4) material disposition
Frame material: 304SUS

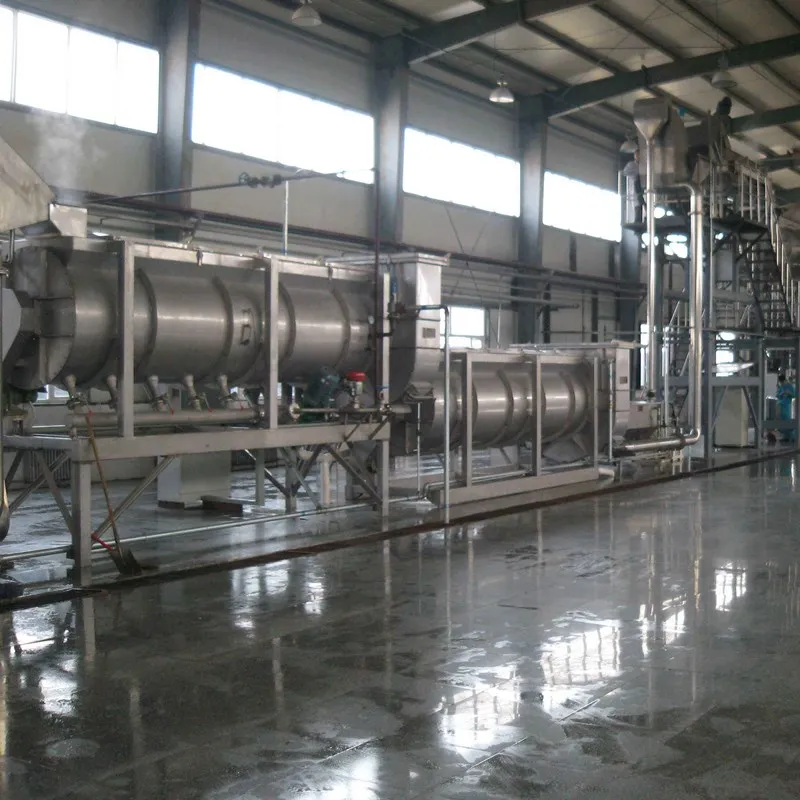

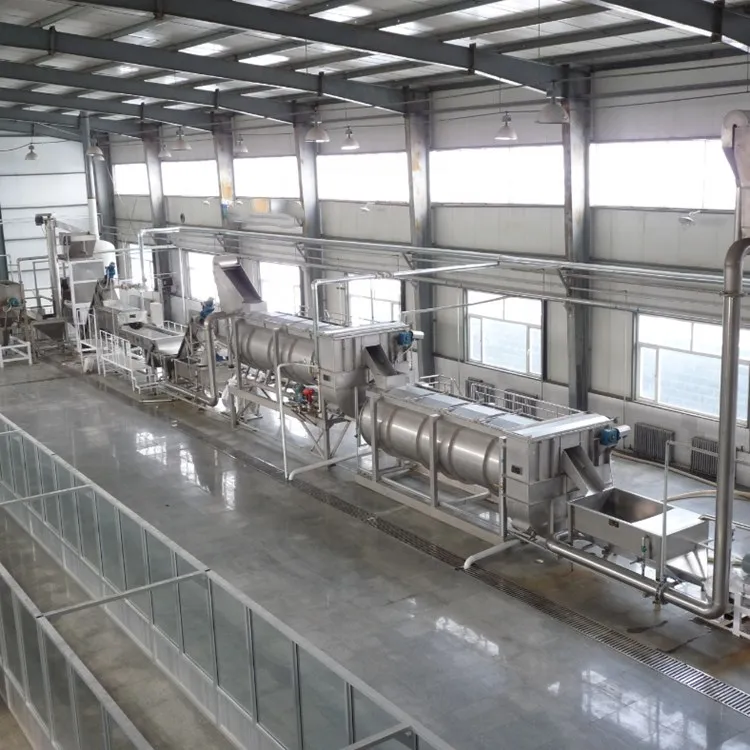

5.Screw Blanching machine
(1) use: in 80-90℃water blanching for about 5 minutes(2) features: electric heating, with the overall lifting function, easy to clean, maintenance, easy to clean.
(3) technical parameters:
Dimensions: 10000*1000*1850mm
Conveying power: 0.75kw.
Conveyor screw width:1000 mm,
Pump power:1.5kw
Heating method :Steam heated
(4) material disposition
Drive motor: variable frequency adjustable speed motor
Frame: 50*50*2mm rectangle stainless steel square tube
6.Screw cooling machine
(1) use: Washing the precooked potato chips with cold water can increase the elasticity of material cell wall and further remove
the free starch, so as to reduce the viscosity of material mud.
(2) technical parameters:
Dimensions: 5000*1000*1850mm
Conveying power: 3kw.
Conveyor screw width:1000 mm,
Pump power:1.5kw
(3) material disposition
Drive motor: variable frequency adjustable
Frame: 50*50*2mm rectangle stainless steel square tube
the free starch, so as to reduce the viscosity of material mud.
(2) technical parameters:
Dimensions: 5000*1000*1850mm
Conveying power: 3kw.
Conveyor screw width:1000 mm,
Pump power:1.5kw
(3) material disposition
Drive motor: variable frequency adjustable
Frame: 50*50*2mm rectangle stainless steel square tube
7.Cooking machine
(1) use: It can cook the potato chips continuously.
(2) features: external heater, the temperature of 0-120 ℃ can beadjusted, frequency speed regulation. better cooking effect, more safe, less energy, Longer service life.
(3) technical parameters:
Dimensions:5600*1200*2100mm
Conveying power: 3kw/380v/50Hz
Heating method:steam heated
Fuel consumption:70m³/h natural gas or 60 kg LP gas.
Drive motor: variable frequency adjustable speed
Frame: 50*50*2mm rectangle stainless steel square tube.
(2) features: external heater, the temperature of 0-120 ℃ can beadjusted, frequency speed regulation. better cooking effect, more safe, less energy, Longer service life.
(3) technical parameters:
Dimensions:5600*1200*2100mm
Conveying power: 3kw/380v/50Hz
Heating method:steam heated
Fuel consumption:70m³/h natural gas or 60 kg LP gas.
Drive motor: variable frequency adjustable speed
Frame: 50*50*2mm rectangle stainless steel square tube.
8. Flakes Drum dryer
(1)Function The prepared potato mud is pumped to a roller dryer for drying, and its moisture content is controlled below 10 %.
After that, the dried large pieces of material are scraped off through the structure, and then crushed and sieved into 2-8 mm full
powder.
Dimensions: 4000*1500*1850mm
Driving power: 0.75kw.
Diameter of the drum:1000 mm,
Pump power: 1.5kw
Heating method :Steam heated
(4) material disposition
Drive motor: variable frequency adjustable speed motor
Frame: 50*50*2mm rectangle stainless steel square tube
After that, the dried large pieces of material are scraped off through the structure, and then crushed and sieved into 2-8 mm full
powder.
Dimensions: 4000*1500*1850mm
Driving power: 0.75kw.
Diameter of the drum:1000 mm,
Pump power: 1.5kw
Heating method :Steam heated
(4) material disposition
Drive motor: variable frequency adjustable speed motor
Frame: 50*50*2mm rectangle stainless steel square tube

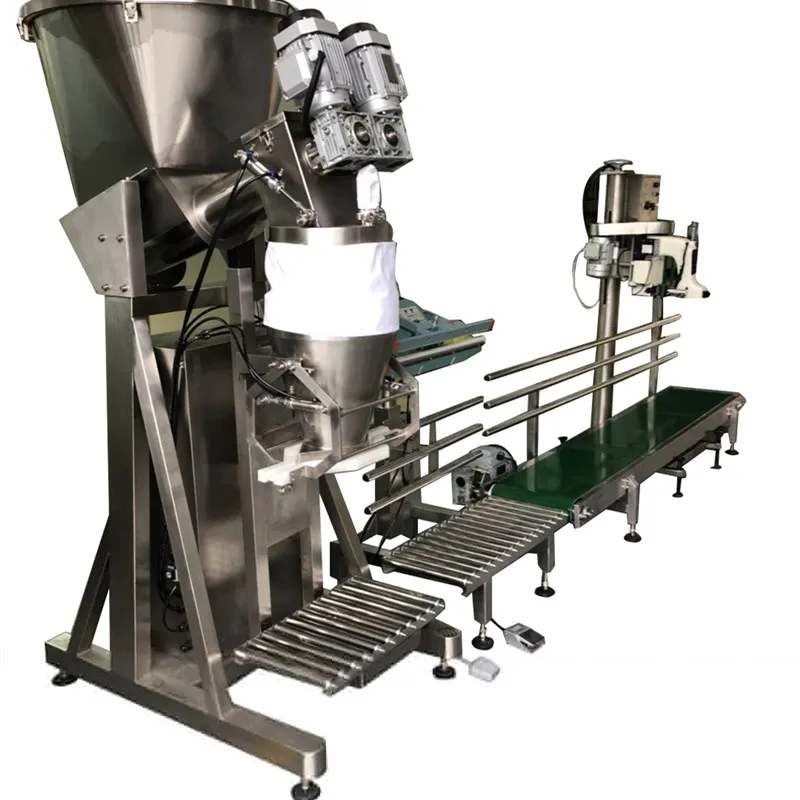

9. Automatic weighing packing machine
(1) use: Automatic feeding, metering, bag filling, automatic sealing, date printing, Nitrogen filling, with two packing main units.
(2) features: high precision, higher efficiency ,smooth running, stainless steel frame structure, easy maintenance, easy cleaning.
(3) technical parameters:
Power:3kw/220v/50hz
Dimension:4658*2610*3650mm
Capacity:40-100bags/h
(2) features: high precision, higher efficiency ,smooth running, stainless steel frame structure, easy maintenance, easy cleaning.
(3) technical parameters:
Power:3kw/220v/50hz
Dimension:4658*2610*3650mm
Capacity:40-100bags/h
Company Profile
Zhucheng Lijie Food Machinery Co., Ltd is located in Zhucheng City, Shandong Province. Our products mainly sold to the United States, Singapore, Russia,kazakhstan, Burma, United Kingdom and so on.The company has 12000 square meters of factory buildings and 1500 square meters of office space. The company have 60 employees,15 technical personnel,41 workshop staff and 10 welfare officers among them to provide best service for our clients.
Our company's main products include Frying machine, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
Our company's main products include Frying machine, potato chips frying (frozen) processing equipment, fruit & vegetable washing machine, pasteurizer, large-scale hot air drying machine, air drying machine, sandwich pot, and cooking equipment, etc.
FAQ
1.Are you a manufacturer or a trading company?
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .And help customer to produce good quality food according customer’s detailed formula.
We are a professional manufacturer of food machinery.Especially for snack food processing production line.
2.What's the price of your machines?
You can inquiry to us directly.
3.What is your payment terms?
T/T or L/C; by T/T 40% as down payment, 60% by T/T before delivery, L/C at sight.
4.Can we provide the formula to you?
We can provide basic formula .And help customer to produce good quality food according customer’s detailed formula.
